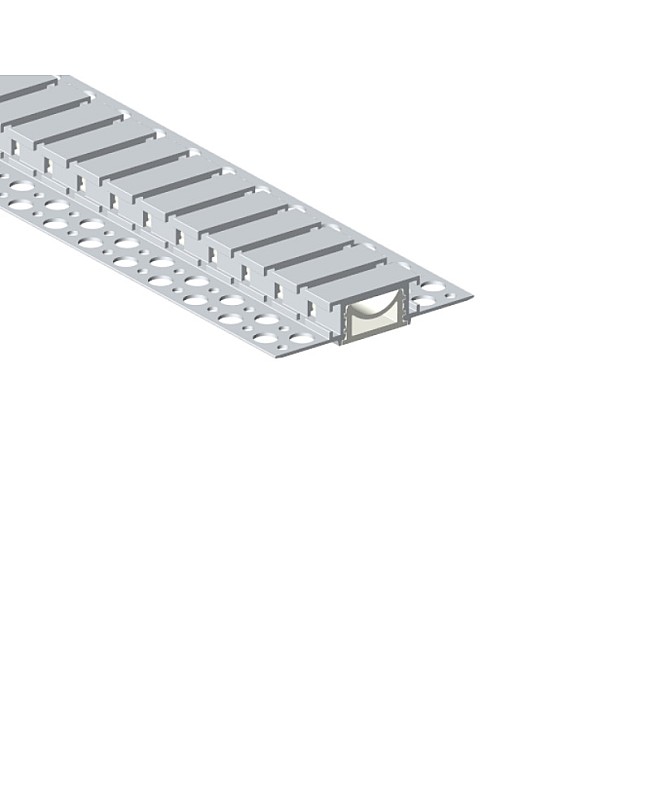

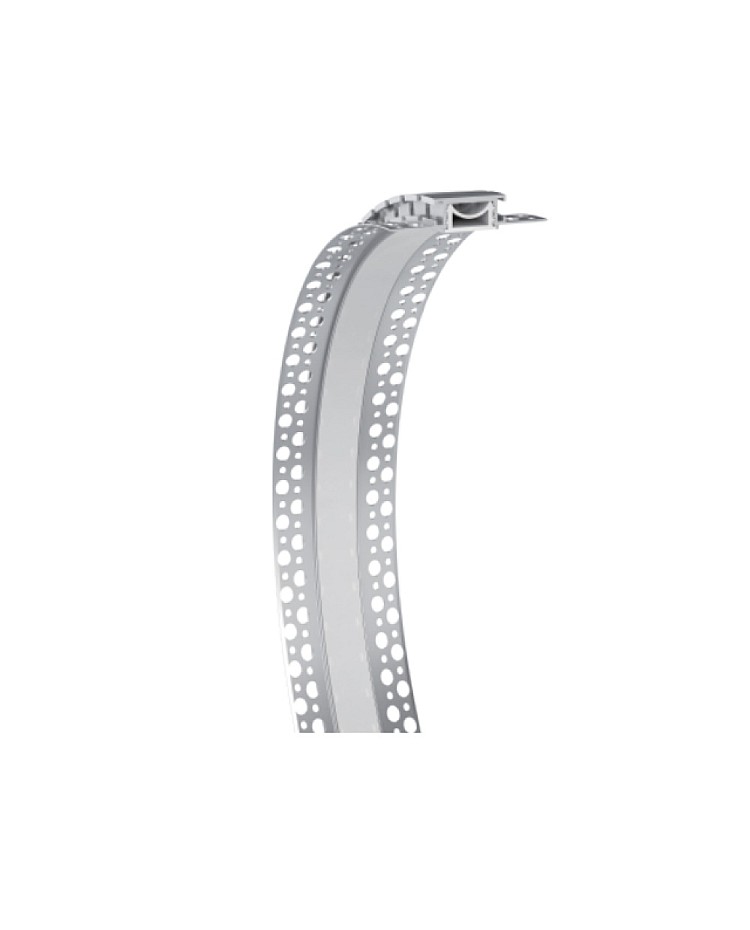

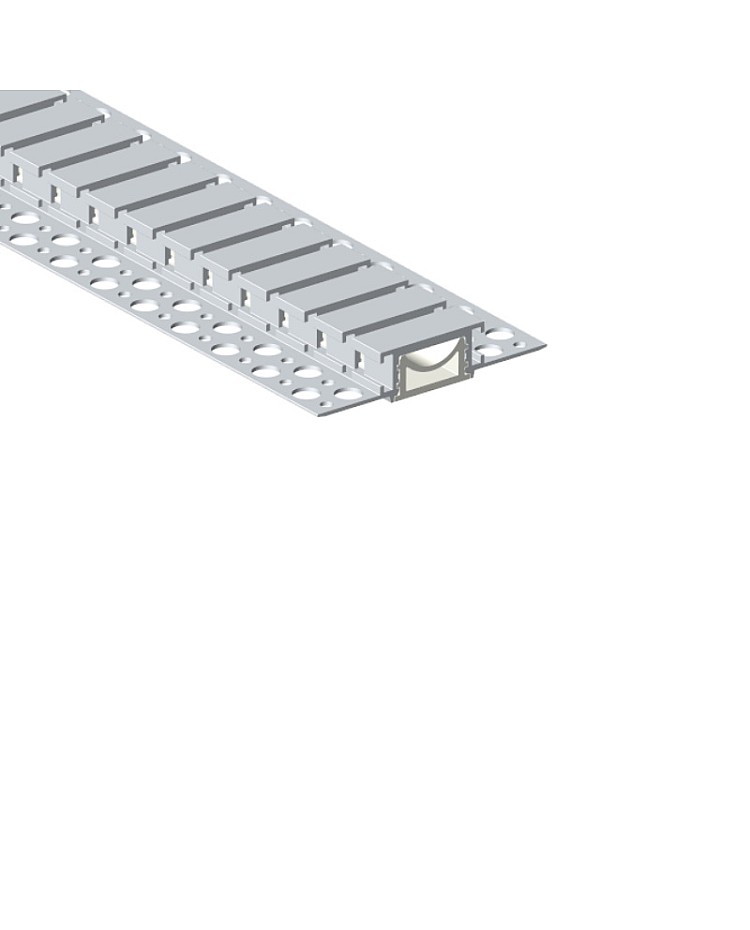

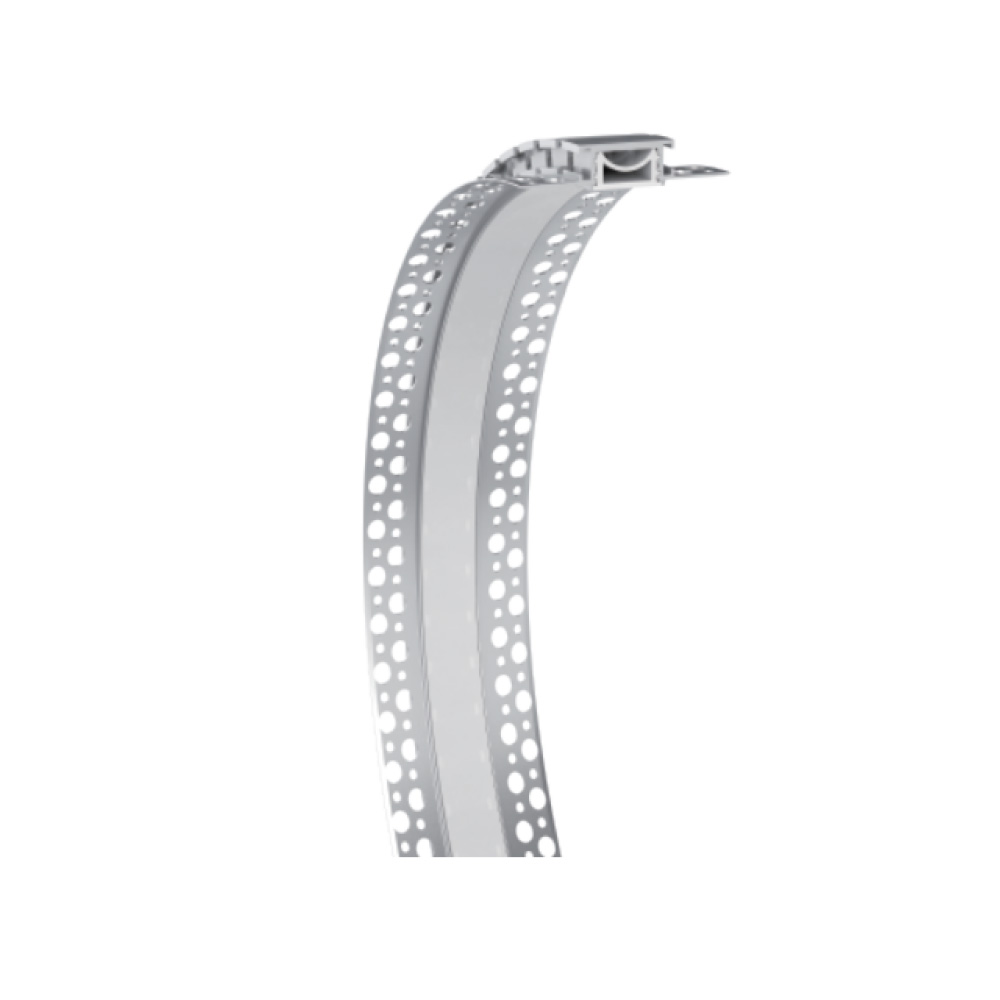

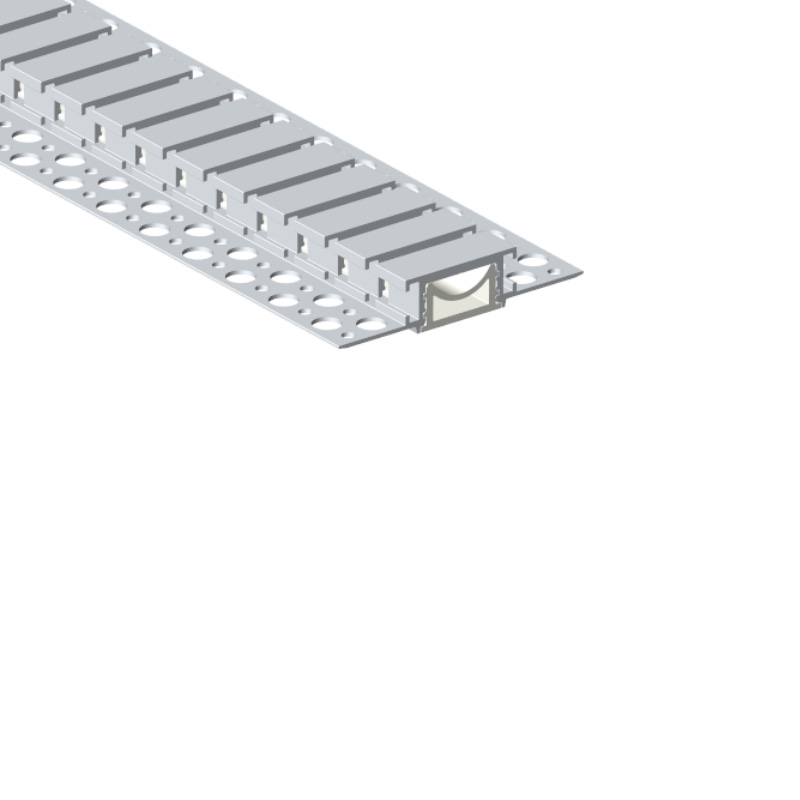

The Flexible LED Channel Diffusers, with their top-bendable design, can be installed in curved locations on ceilings or walls. You can use them to design the amazing linear lighting that regular Aluminum Channels can not. The flanges have small honeycomb holes, allowing them to be easily integrated into the drywall. They are made of 6063-T5 extruded aluminum alloy, have a silver anodized finish, anti-oxidation resistance, and are long-lasting. The standard length is 1M and 2M and can be cut to any size. The inner width is 21.2mm, and the max width of LED Strips is 21mm. You can install single or multiple lines of COB Flexible LED Strips as the light source without dark areas and hot spots. The Silicone Diffusers are included. They are made of high-quality silicone material, are anti-yellowing, and emit uniform light.
Features:
- Type: Top Bendable Aluminum LED Channels

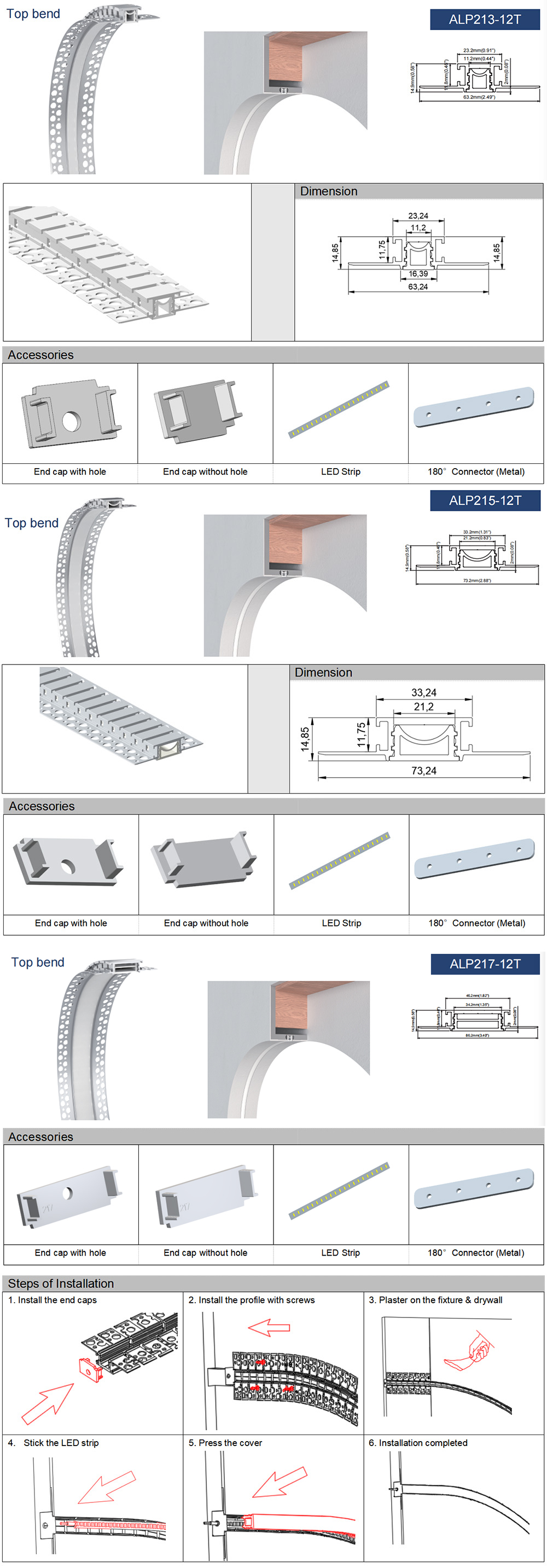

- Model: ALP213-12T /ALP215-12T / ALP217-12T
- Material: 6063-T5 Extruded Aluminum Alloy + Silicone
- Colors: Silver( LED Channel) / White( Silicone Diffuser)

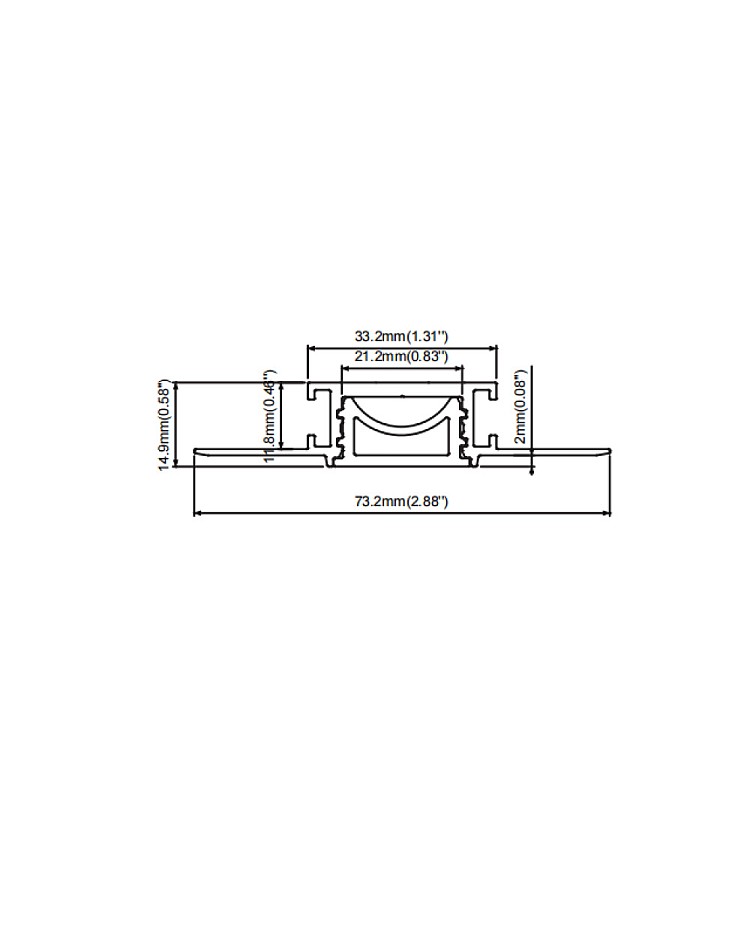

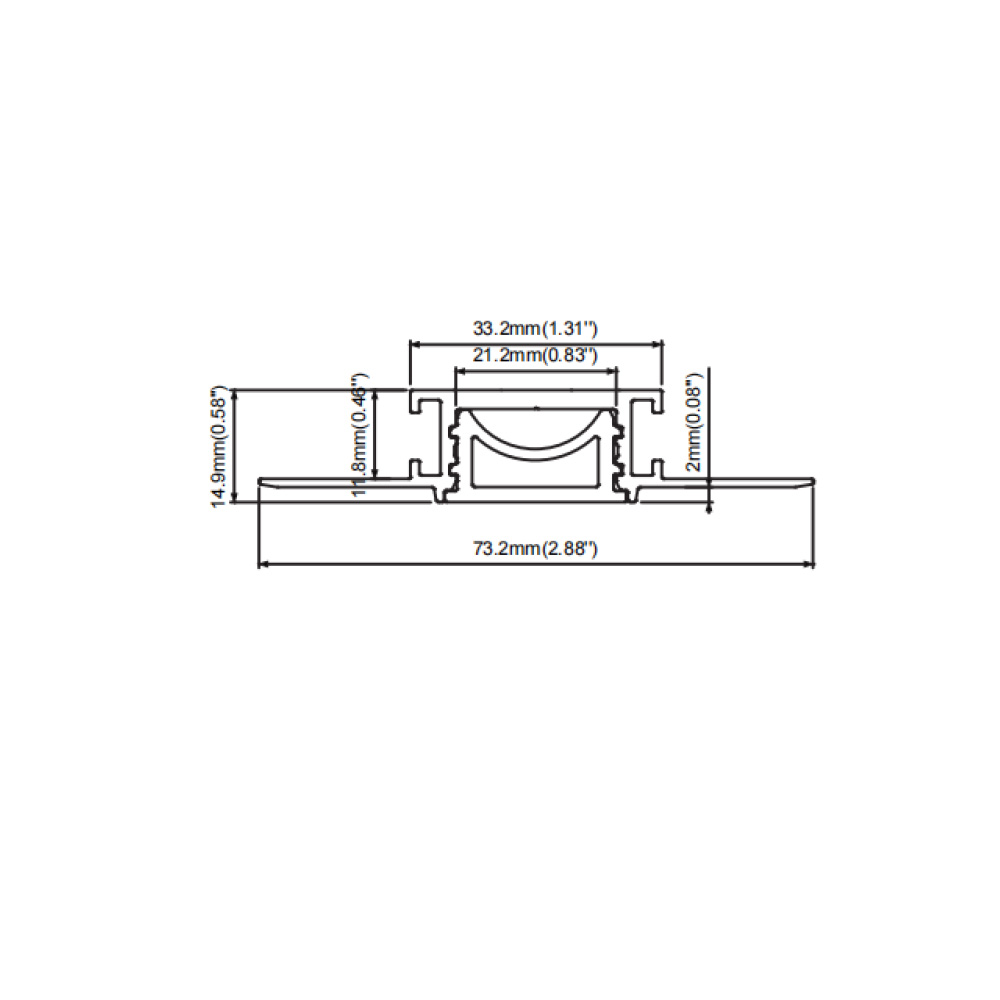

- Size(W*H): 63.24*14.85mm(ALP213-12T) / 73.2*14.9mm(ALP215-12T) / 86.24*14.85mm(ALP217-12T)
- Length: 1M / 2M
- Custom Length: YES
- Inner Width: 11.2mm(ALP213-12T) /21.2mm(ALP215-12T) / 34.2mm(ALP217-12T)
- Max LED Strip Width: 10mm(ALP213-12T) / 20mm (ALP215-12T) / 34mm(ALP217-12T)
- Max Power: 15W/M(ALP213-12T) / 18W/M(ALP215-12T) / 20W/M(ALP217-12T)
- Diffusers: Silicone Cover
- Tolerance: ±1%
- IP Rating: IP20 Non-waterproof

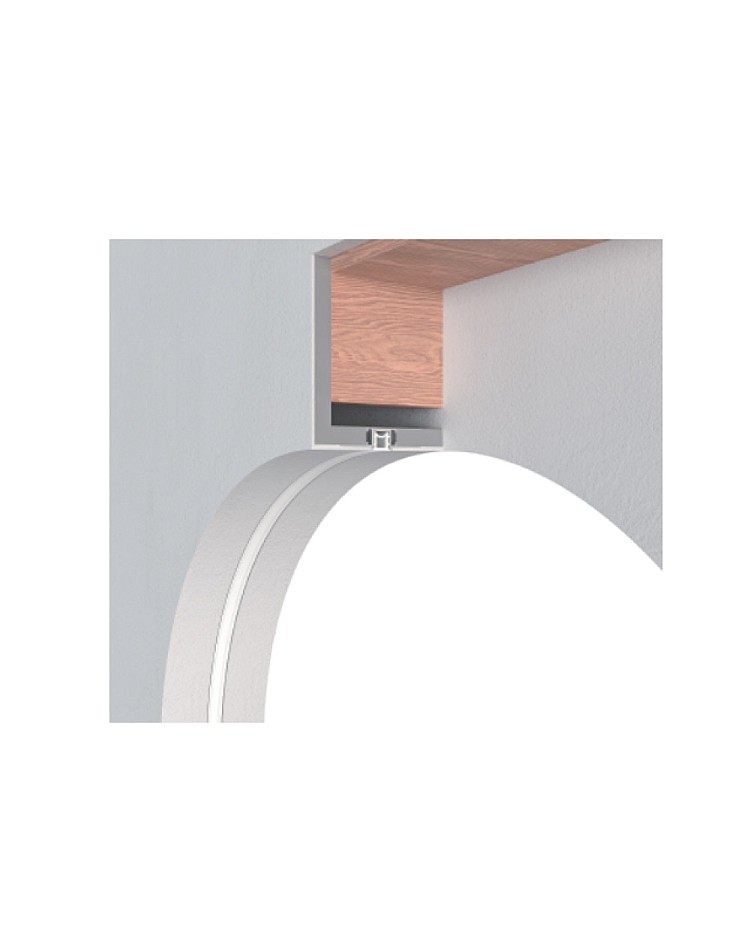

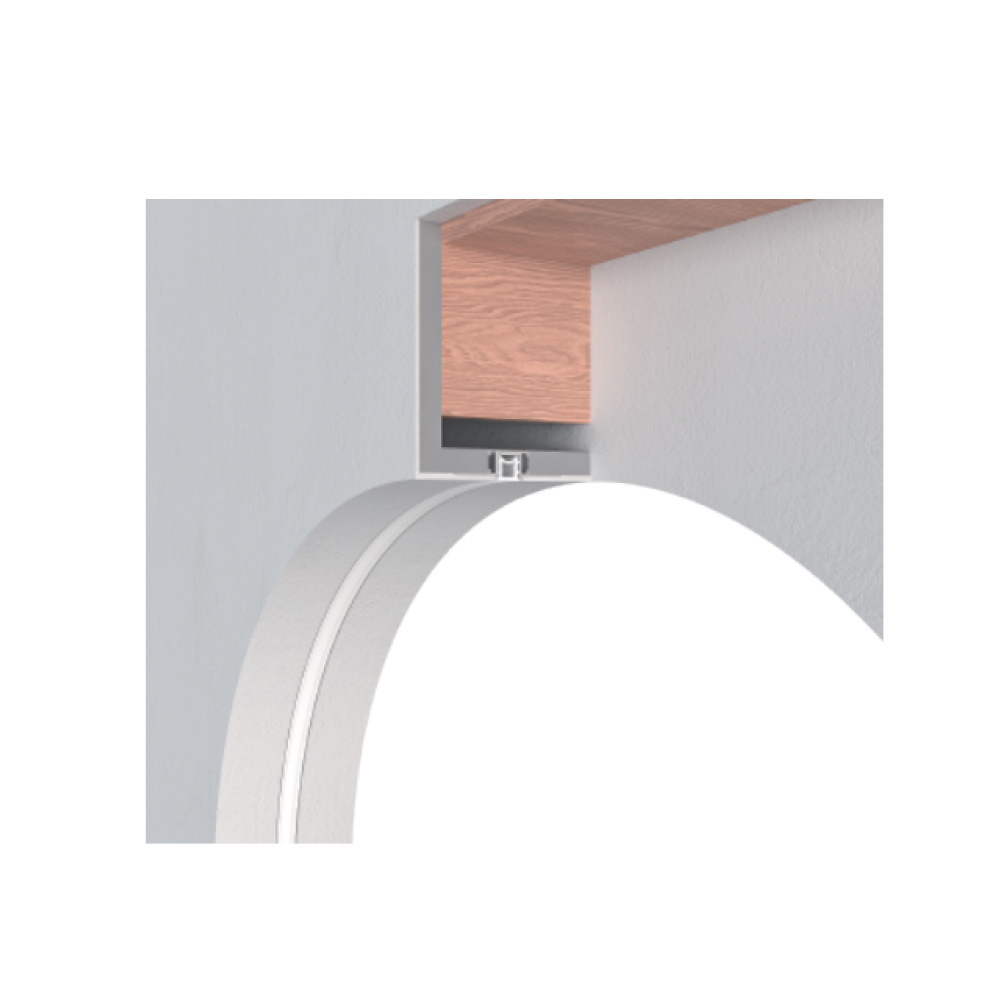

- Installation: Drywall Recessed
- Applications: Curved Linear Lighting Design
- 5 Years Warranty
Includes:
1*Flexible LED Channel Diffuser
End Caps
