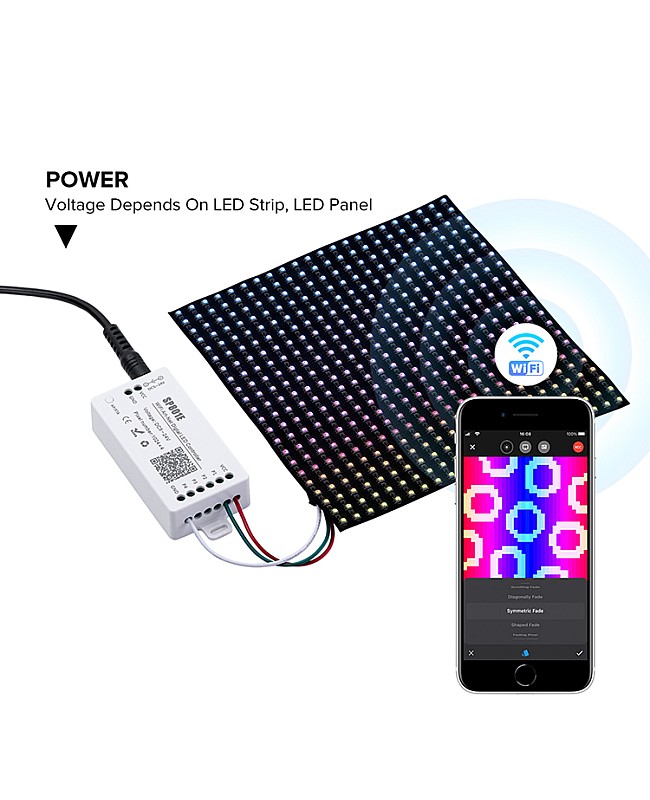

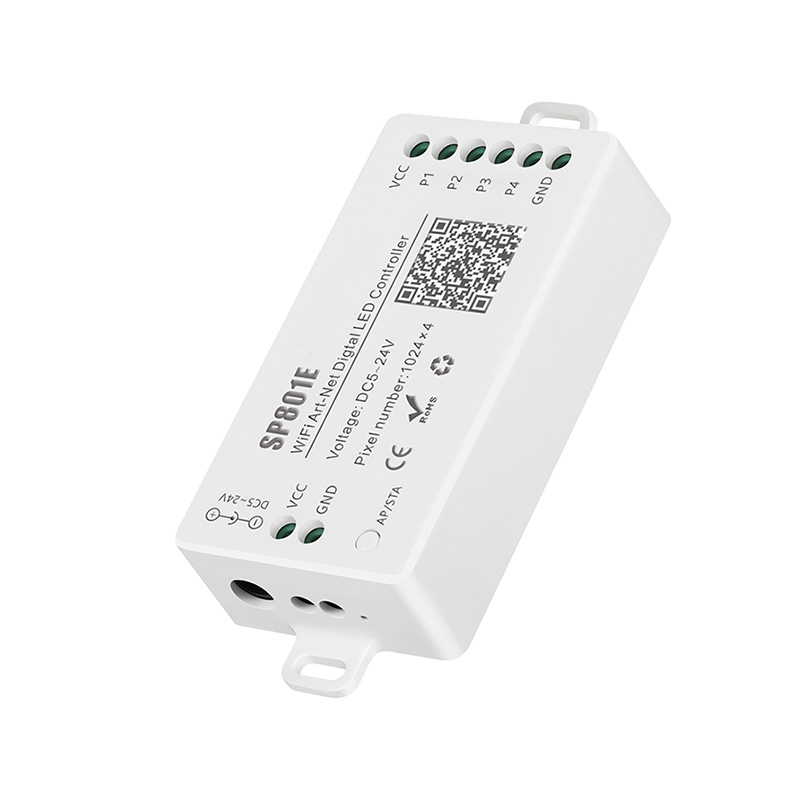

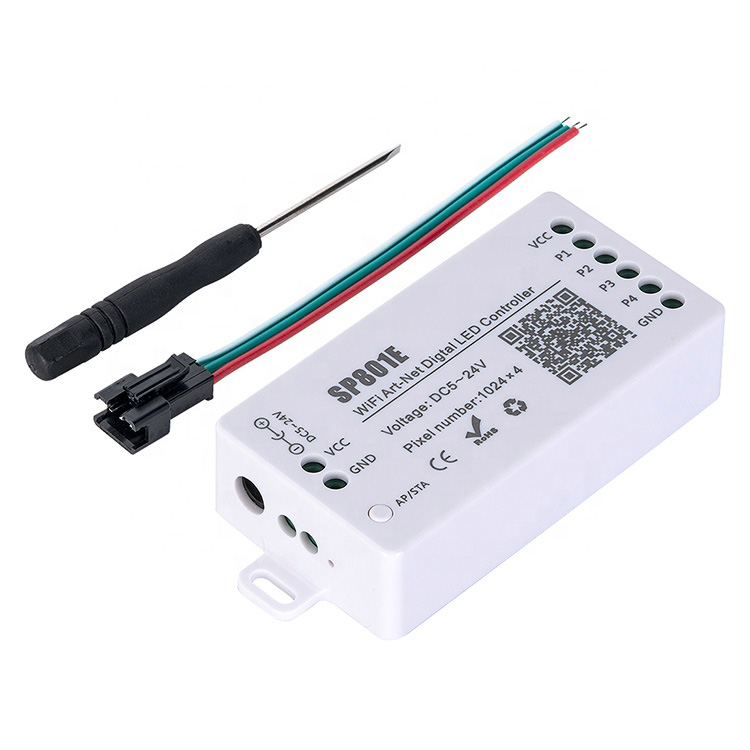

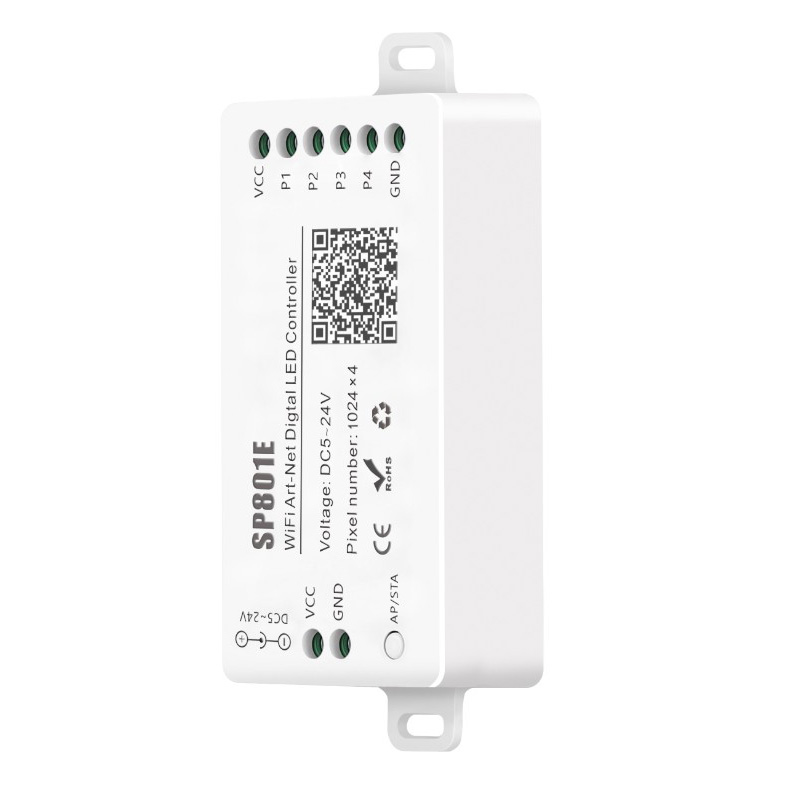

The SP801E Smart LED Controller by Sperll is a powerful and versatile LED Controller that allows you to control hundreds of LEDs from your phone or tablet, can work with Addressable LED Strip Lights, Light Panels, and more, and supports the primary type of smart ICs on the market. There are four output ports, and each port supports 1024PCS of ICs, supporting a total quantity of ICs up to 4096PCS. A smartphone APP can control the SP801E Controller via WiFi and is compatible with multiple Art-Net software. Supports IOS and Android mobile operating systems. You can download the APP "BalanX" in the APP Store. The Pixel LED Controller Supports AP mode and STA mode for various applications. Two layout setting methods are available: regular rectangle layout setting and importing DXF files, support two layers overlay, multiple built-in types of effect layers, text layer, music effect layer, etc. The effect layers support a variety of custom parameters: direction, width, color, length, shape, etc. You can preview the layer on the APP in real-time, and it supports recording the current scene to the controller storage. This Controller allows you to display complex lighting patterns without programming or a complicated setup.
Features:
- Lighting Solutions Service: Lighting And Circuitry Design, Auto CAD Layout

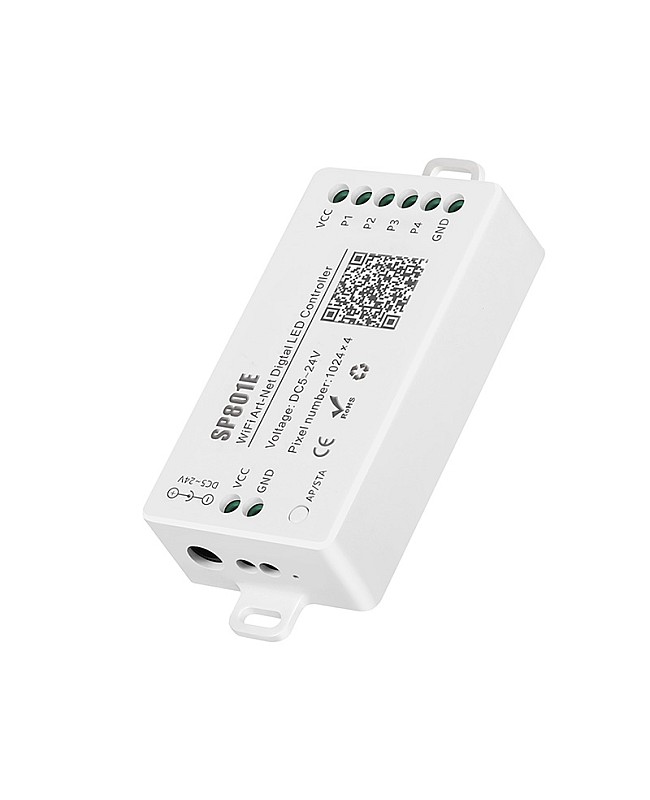

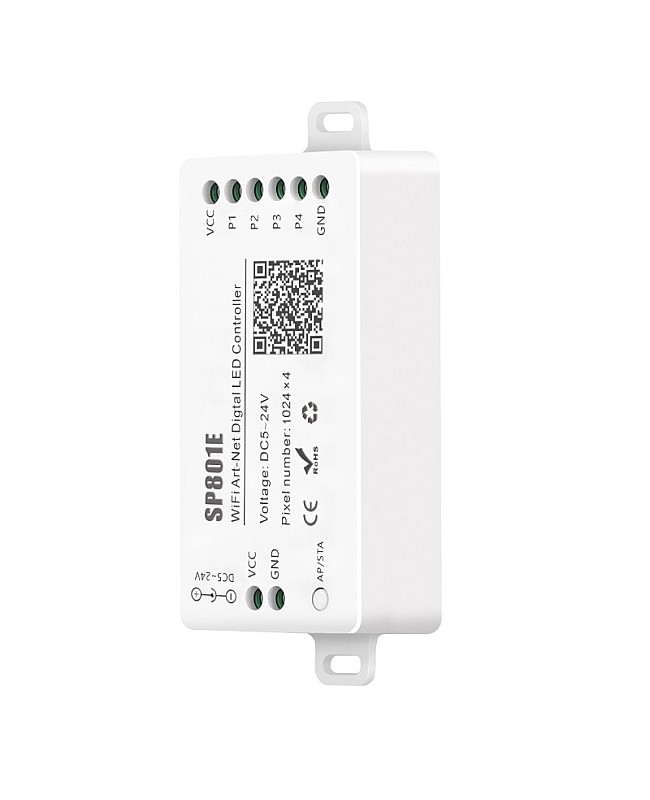

- Model: SP801E
- Size: 80*41*20mm(L*W*H)

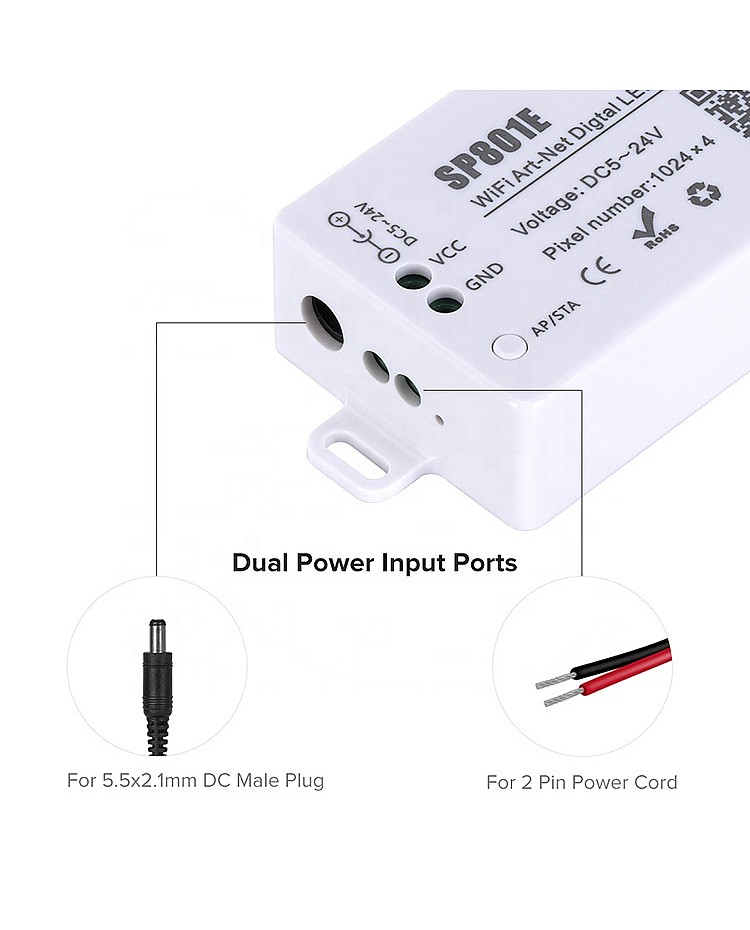

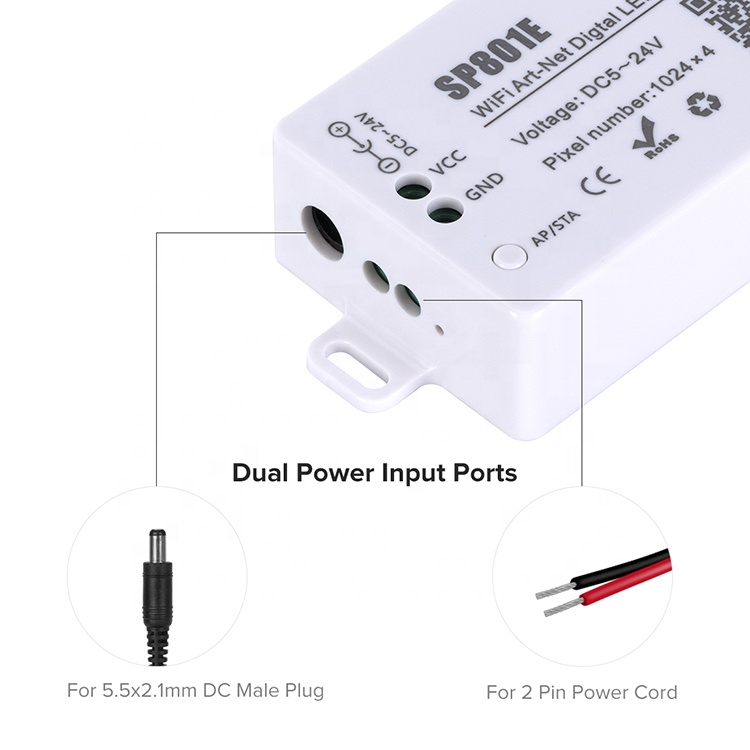

- Working Voltage: DC5-24V
- Working Current: 25mA-130mA
- Output Singal: SPI(TTL) Digital
- 4 Output Channels

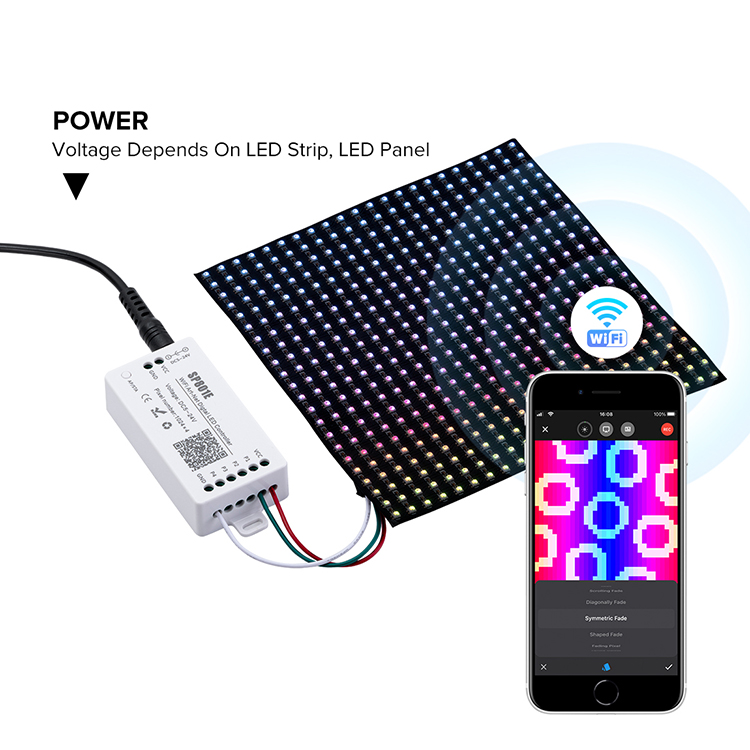

- Smartphone Controllable Via WiFi
- APP Name: BanlanX
- Colors: 16M
- Flash Capacity: 128M
- Memory Function: YES
- Supporting Mobile System: IOS 10.0/Android 4.4 Above
- Support IC Types: Normal One-Wire RZ Code LED IC
- Controllable IC Quantity: 4*1024PCS
- Support ICs: WS2812B/WS2811/WS2813/WS2815/TM1812/UCS1903/SK6812, etc
- Fit For Digital LED Lights
- Compatible With Multiple Art-Net Software
- BluFi Configuration Using Dual-Mode Chip(WiFi&BT)

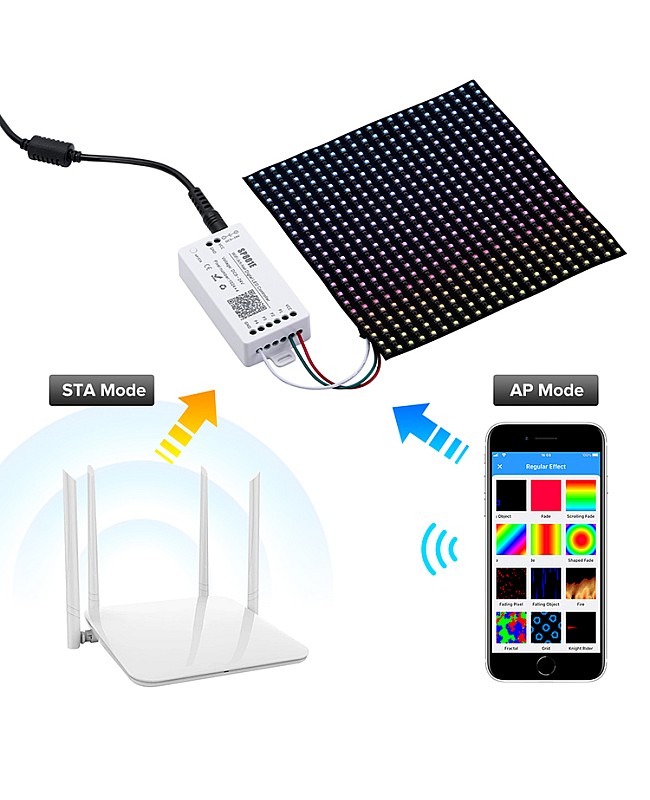

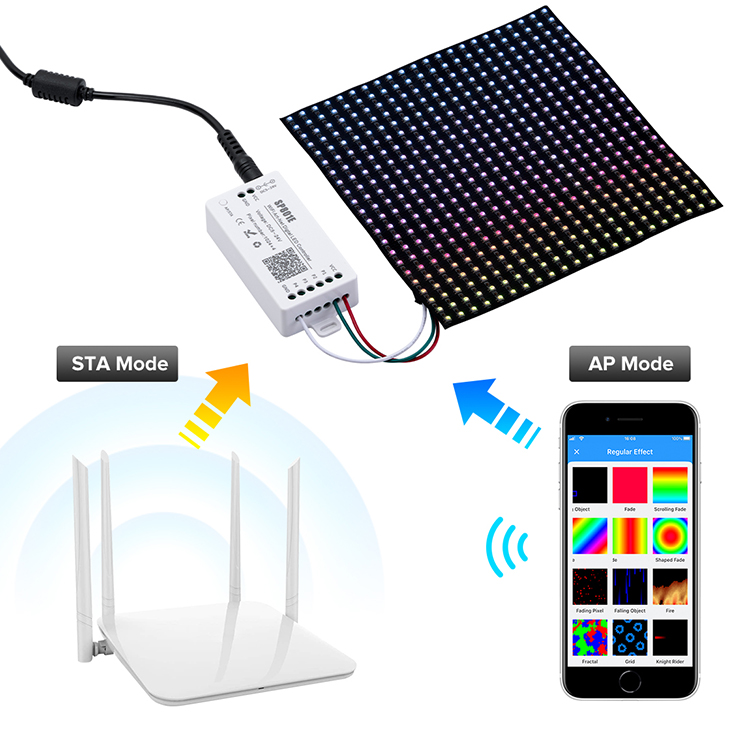

- Support AP Mode And STA Mode
- Two Layout Setting Methods: Regular Rectangle Layout Setting And Importing DXF
- Support Two Layers Overlay, Built-In Multiple Types Of Effect Layers, Text Layer, Music Effect Layer, etc.
- The Effect Layers Support A Variety Of Custom Parameters: Direction, Width, Color, Length, Shape, etc.
- Real-Time Preview, Support Recording The Current Scene To The Controller Storage
- Support Change Device Name, Reorder The RGB Order And OTA Update
- Applications: LED Display, Matrix, LED Strips, LED Modules, etc.
- Working Temperature: -20℃-+60℃
Includes:

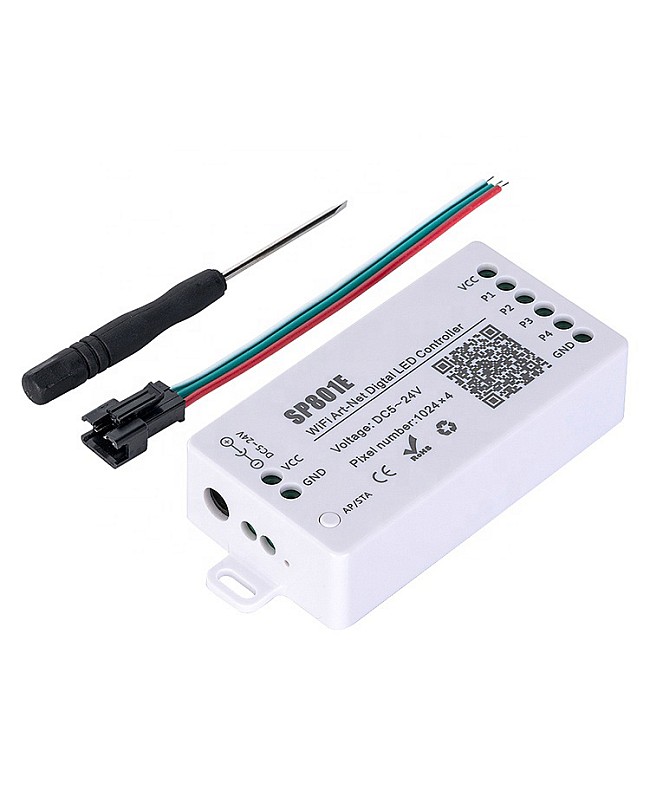

1*SP801E Smart Controller
