The SP52XE series mini PWM controllers are designed for all types of regular LED strips, and they are easy to connect to lights and power supply and can be controlled by APP, voice, and remote. The PWM controllers have Bluetooth and WiFi dual-mode chips and support Bluetooth, WiFI, and remote cloud connections. There are five models available for all kinds of color lights: SP521E for single lights, SP522E for tunable white lights, SP523E for RGB lights, SP524E for RGBW lighting, and SP525E for RGBCCT lighting. Integrate high-frequency, precise PWM dimming technology, which allows you to adjust the brightness, color temperature, static colors, or dynamic effects. You can download the APP " BalanX' to your cellphone to control the LED lights remotely and achieve timer and group functions. The sperll Bluetooth controllers have music modes, allowing input signals from mobile phone mic, player streaming, or onboard mic. The input port is a standard female DC connector; connecting to the power adapter is easy. The output side has a specific connector to match the corresponding tape lights. The mini WiFi controllers allow you to install them conveniently and do not take much space with multiple control methods for easy control. Because they are non-waterproof, they are only for indoor use.
Features:
- Type: PWM Light Controller

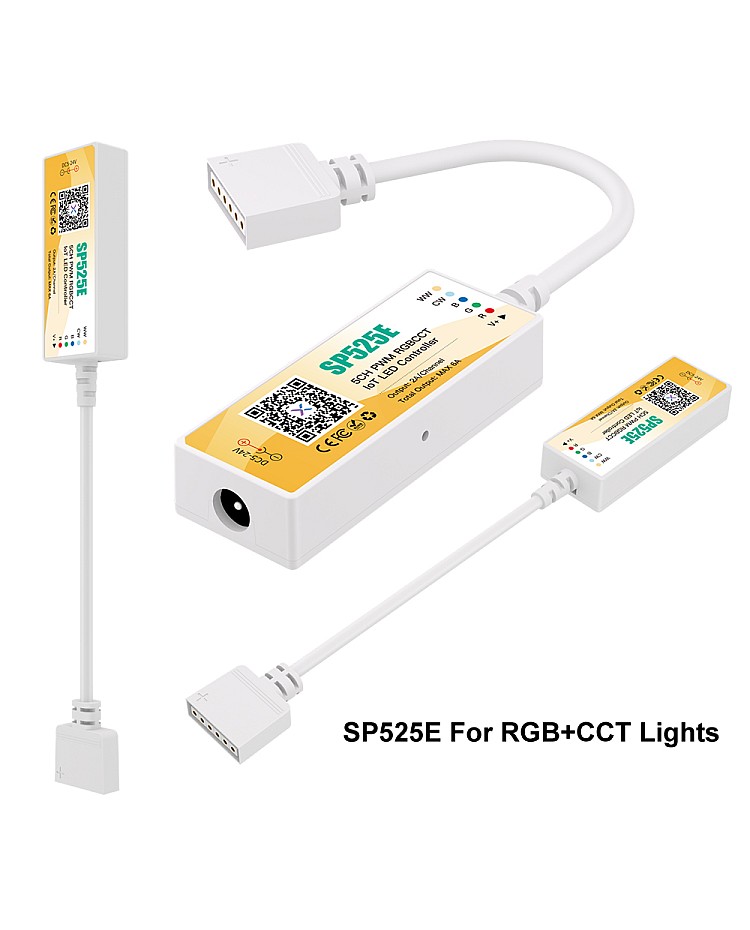

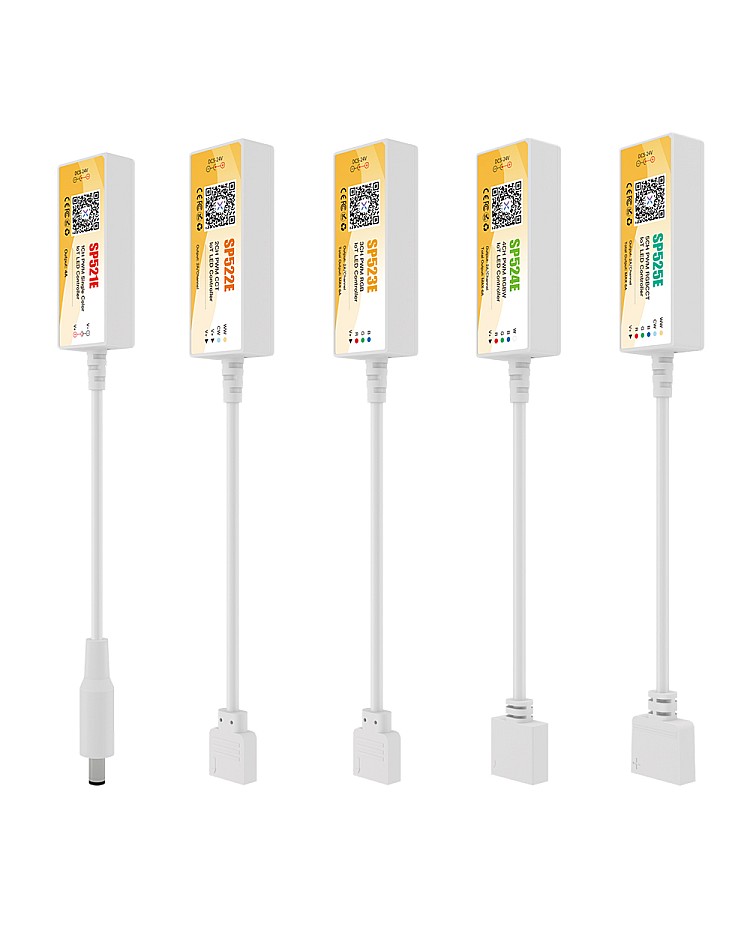

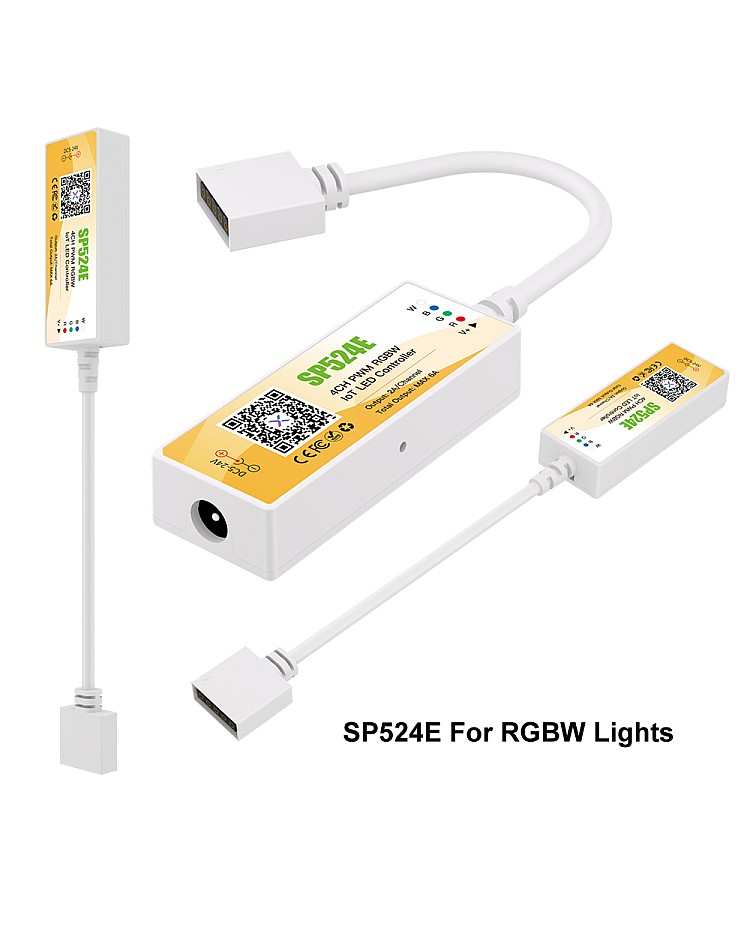

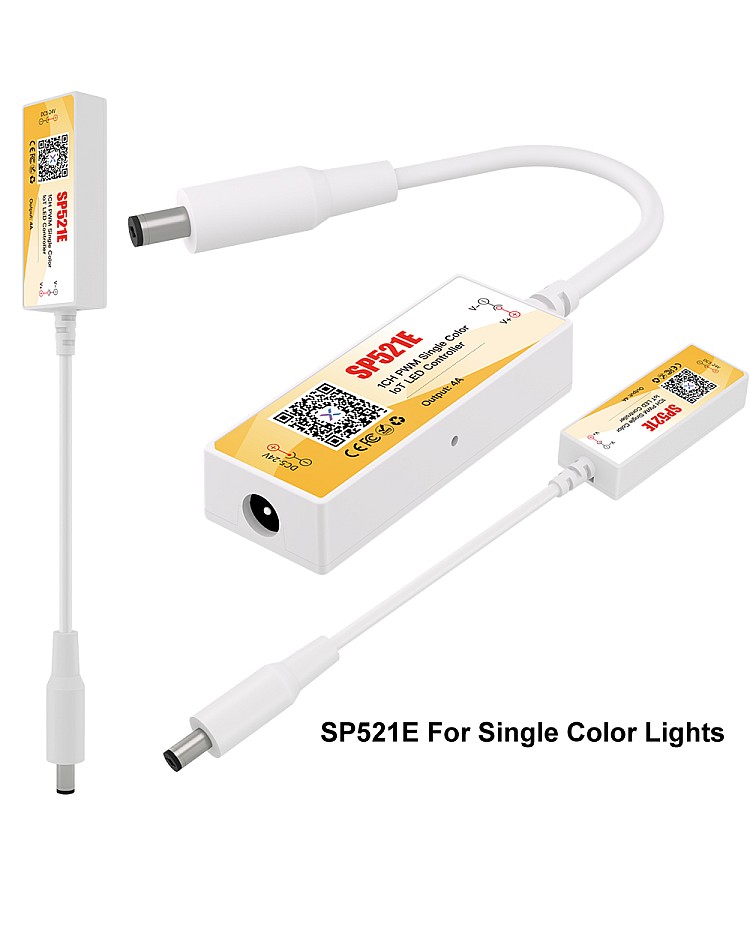

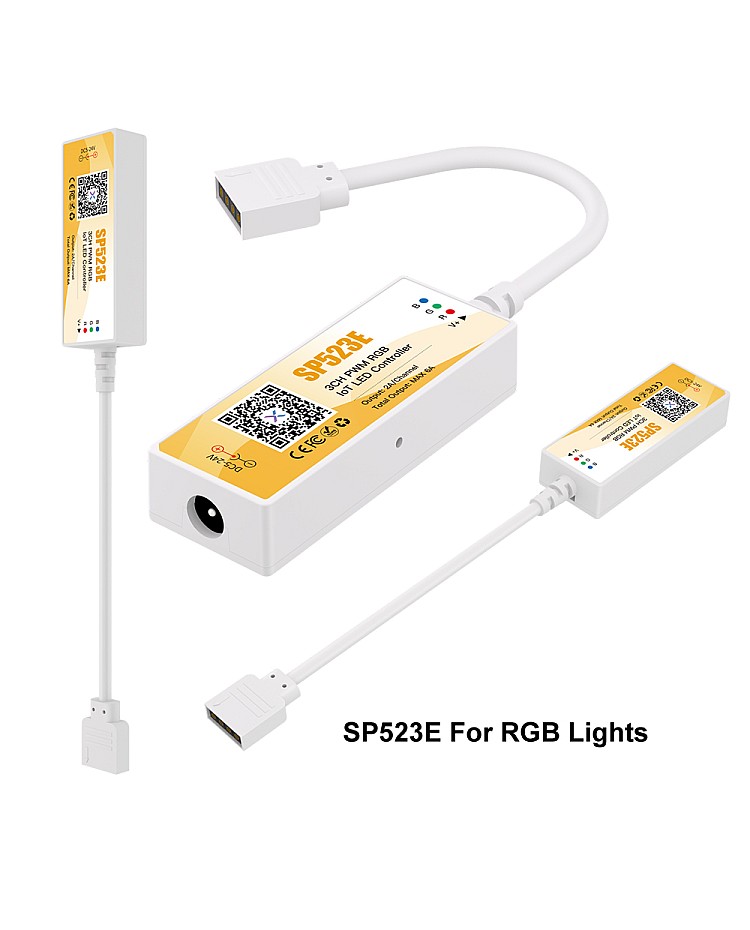

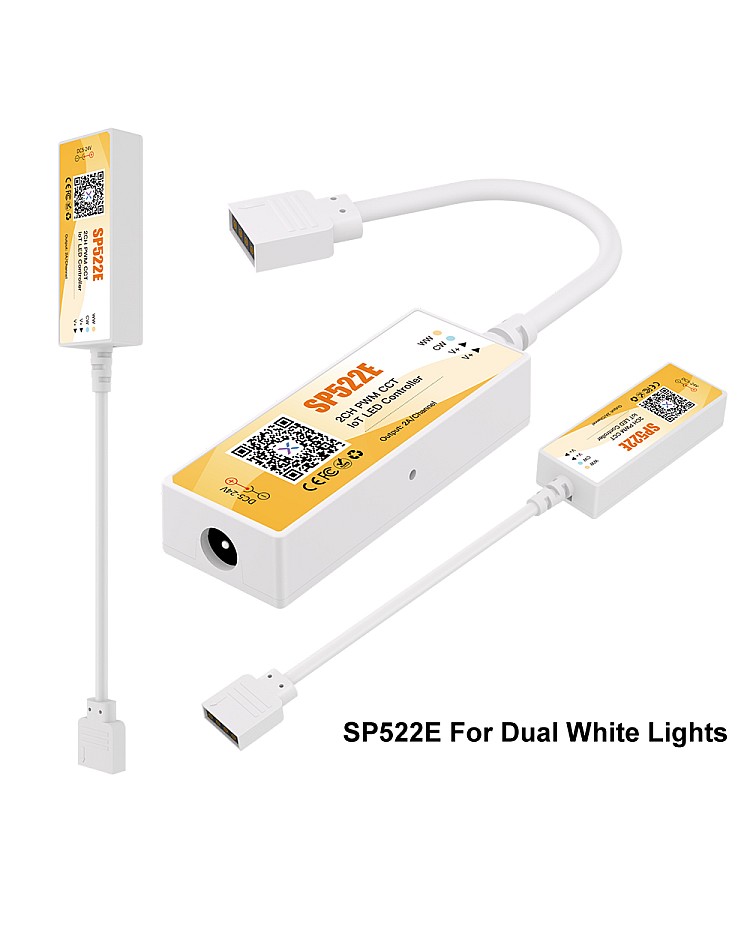

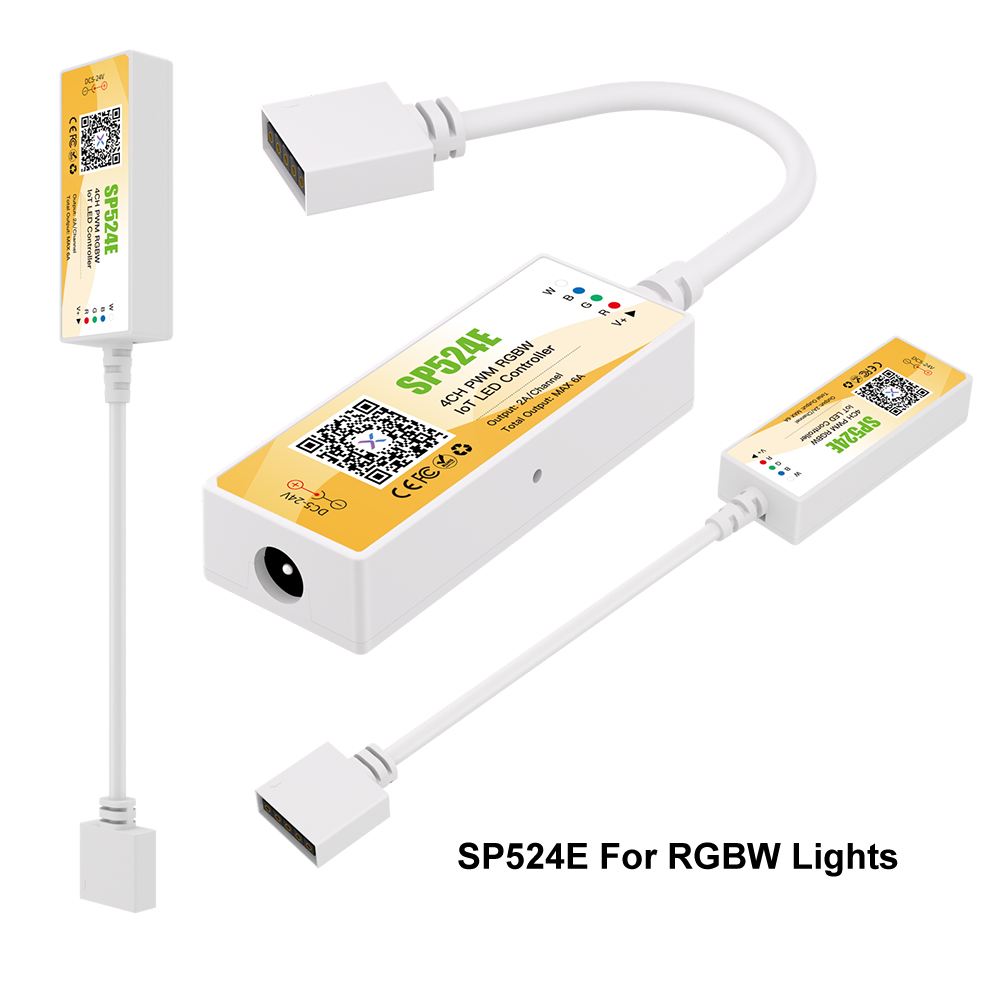

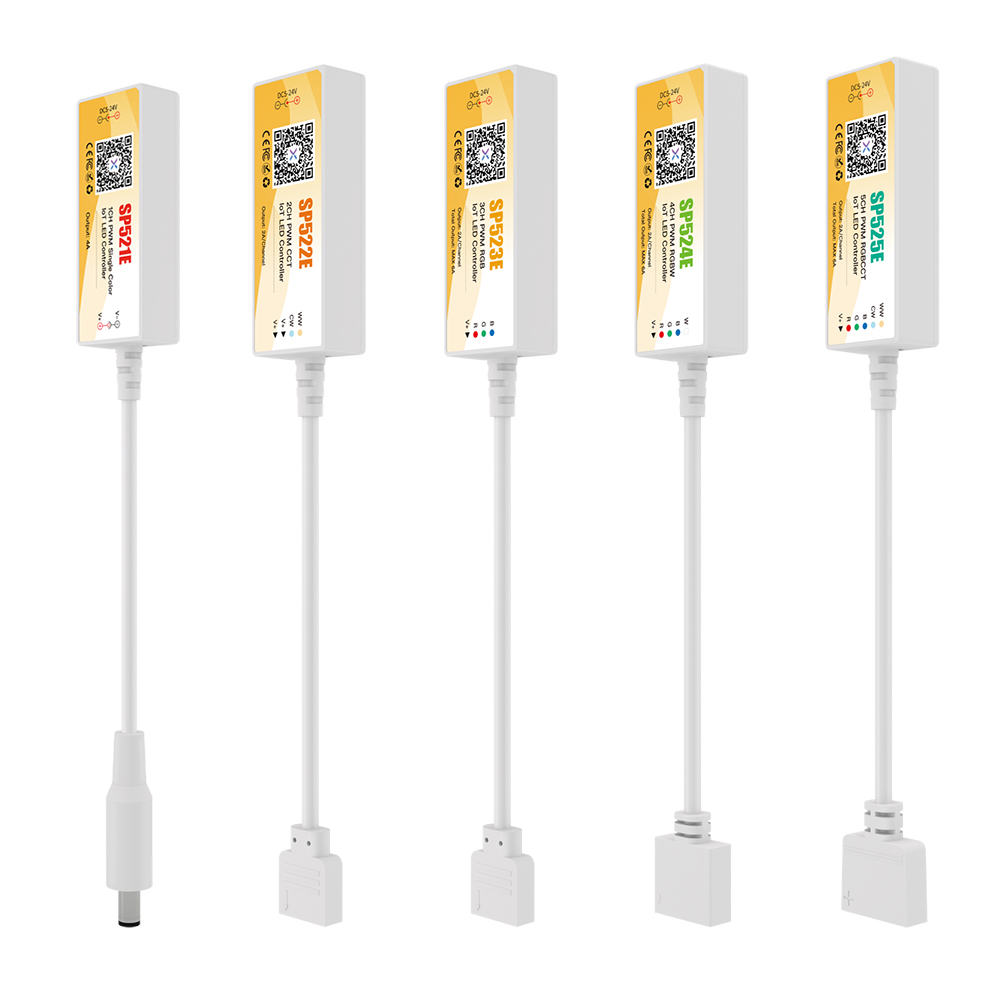

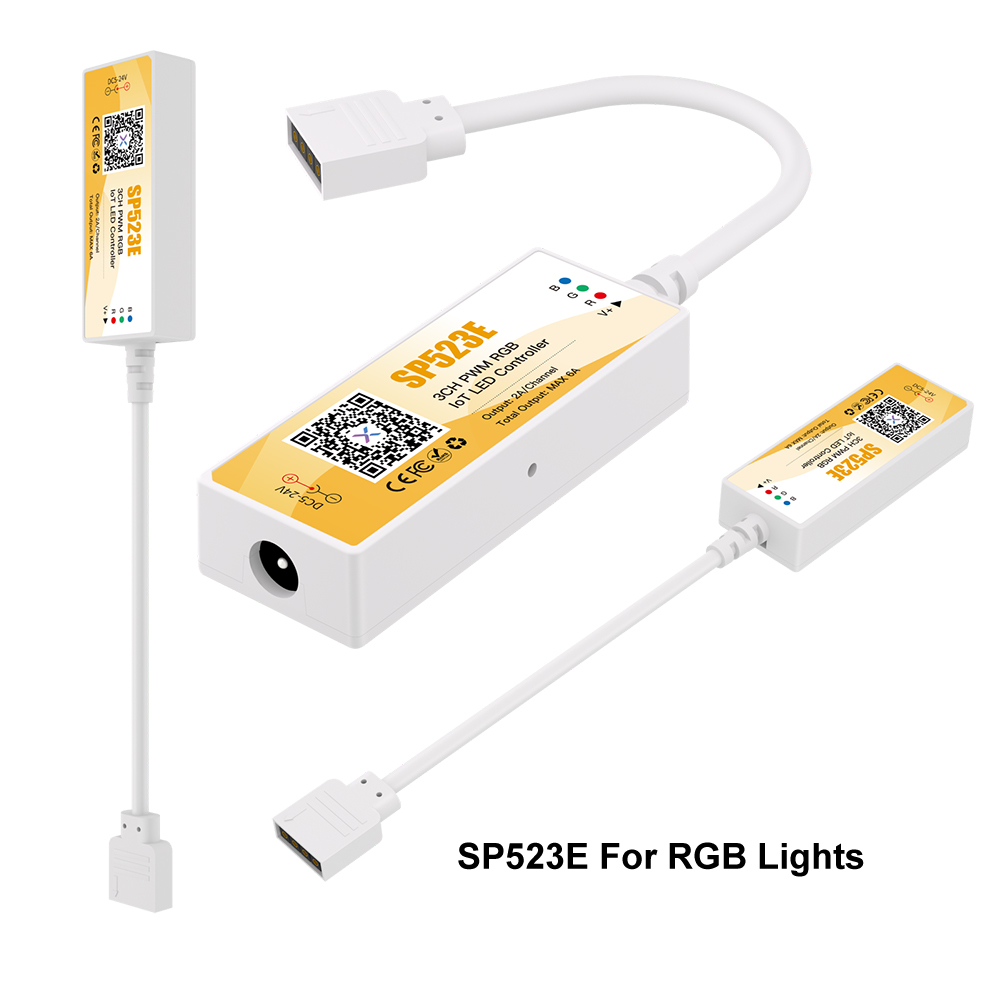

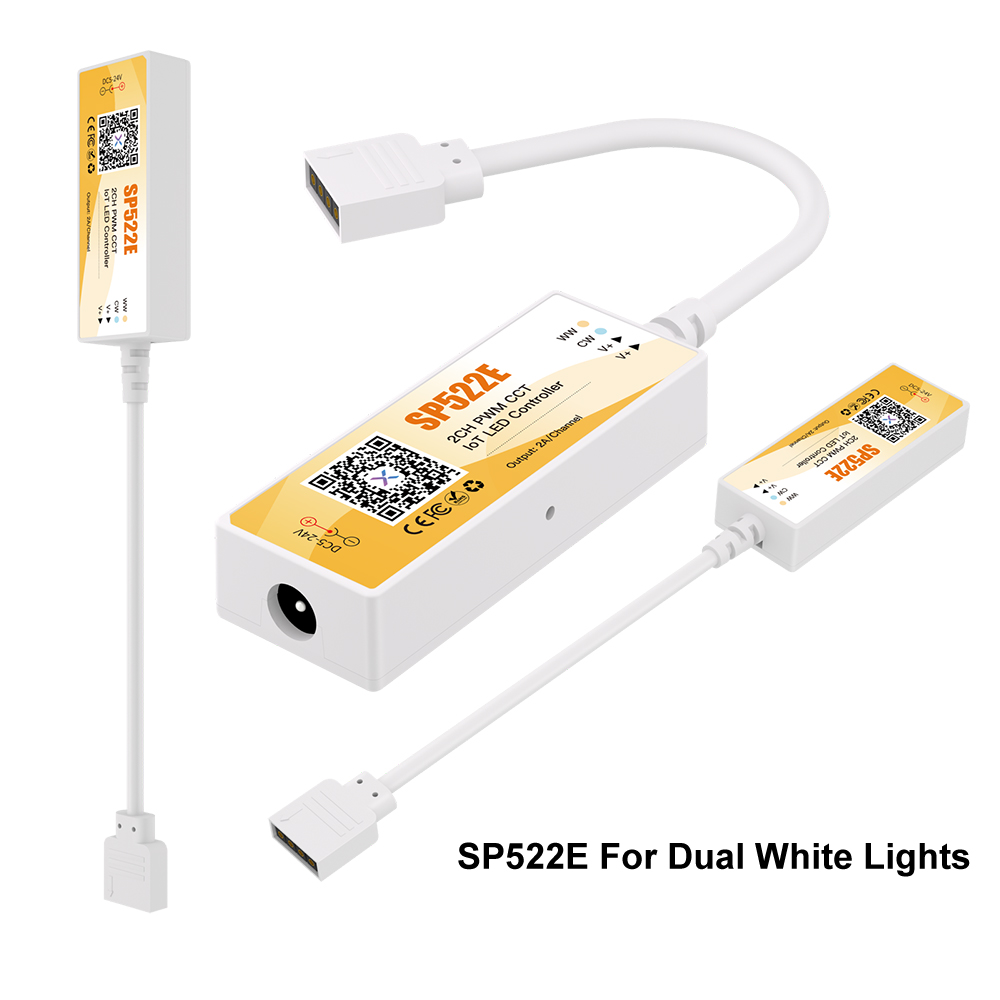

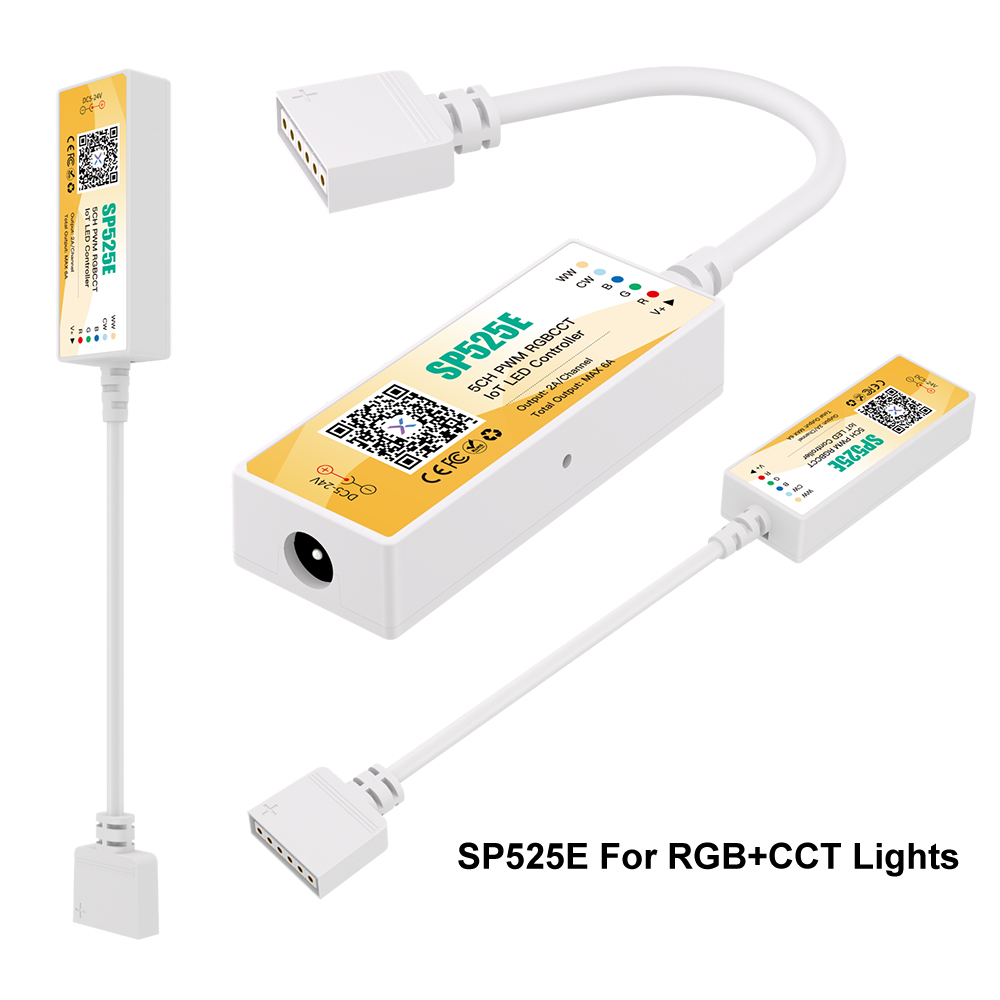

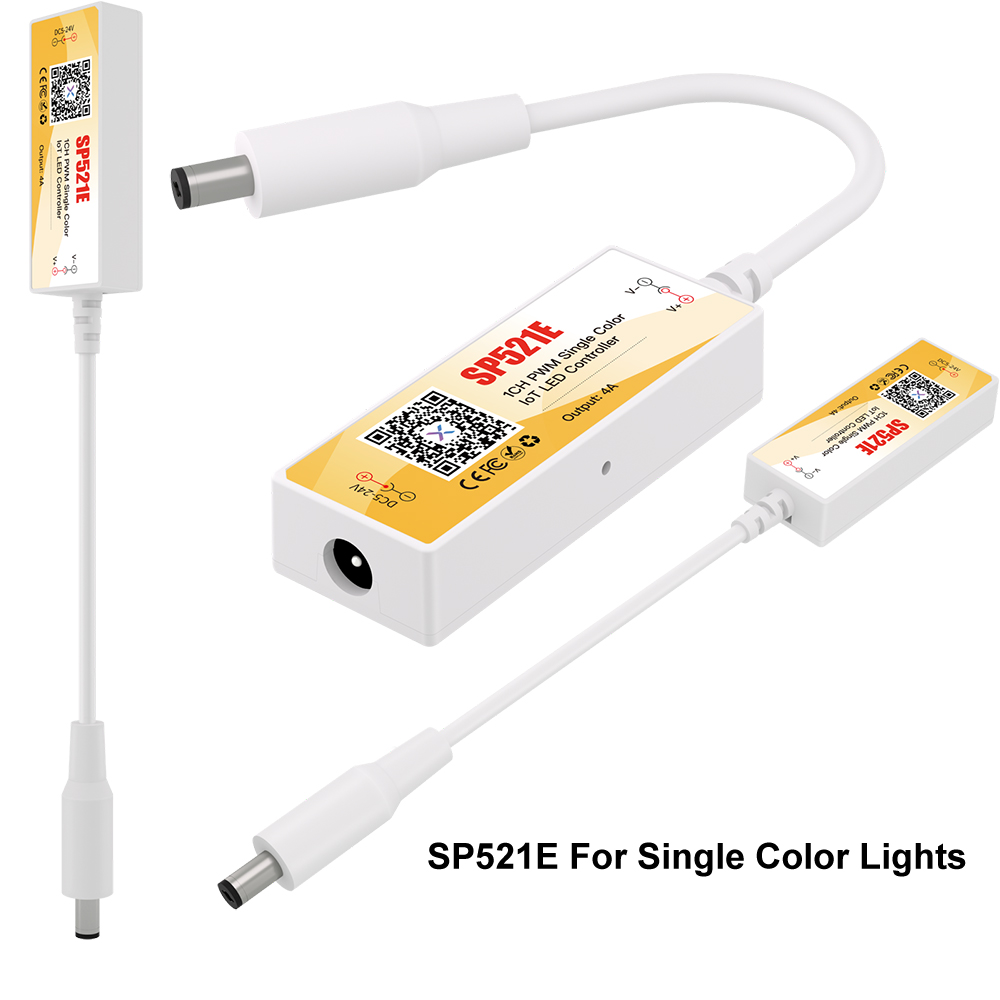

- Models: SP521E(For Single Color), SP522E(For Dual White), SP523E(For RGB), SP524E(For RGBW), SP525E(For RGB+CCT)
- Size(L*W*H): 56*21*12mm/2.2"*0.83"*0.47"
- Input Voltage: DC5V-24V
- Working Current: 12mA-40mA
- Single Channel Maximum Output Current: 4A(SP521E), 2A(SP522E), 2A(SP523E), 2A(SP524E), 2A(SP525E)
- Max Output Current: 4A(SP521E), 4A(SP522E), 6A(SP523E), 6A(SP524E), 6A(SP525E)
- Communication Protocols: Bluetooth + WiFi
- APP Name: BanlanX
- Voice Control, APP Control, Remote Control
- Support Smart Speakers: Xiaodu, Xiaoai, Alexa, Google Home
- Music Mode: Play Streaming, Mobile Microphone Mic, Onboard Mic
- Connector: DC(SP521E), 3P(SP522E), 4P(SP523E), 5P(SP524E), 6P(SP525E)
- Remote Controls Recommended: RD1 For SP521E, RD2 For SP522E, RD3 For SP523E&SP524E, RD4 For SP525E
- IP Rating IP20 Non-waterproof
- Working Temperature: -10℃-+60℃
- Lifespan: >35,000 Hours
- 2 Years Warranty
Includes:
1*SP52XE PWM Controller
