In Stock
$5.99
Reward Points: 6
-
+
  • Brand: Sperll
  • Product Code: SP106E

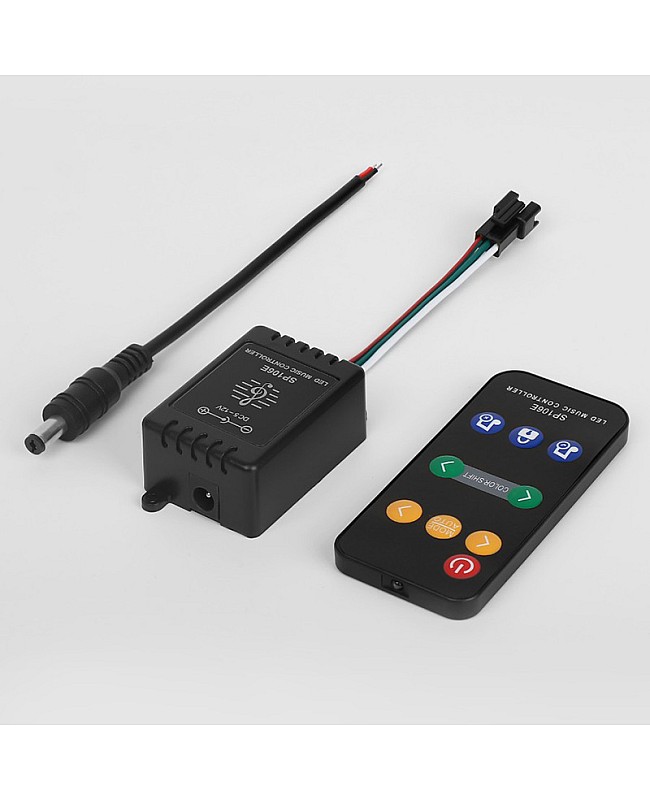

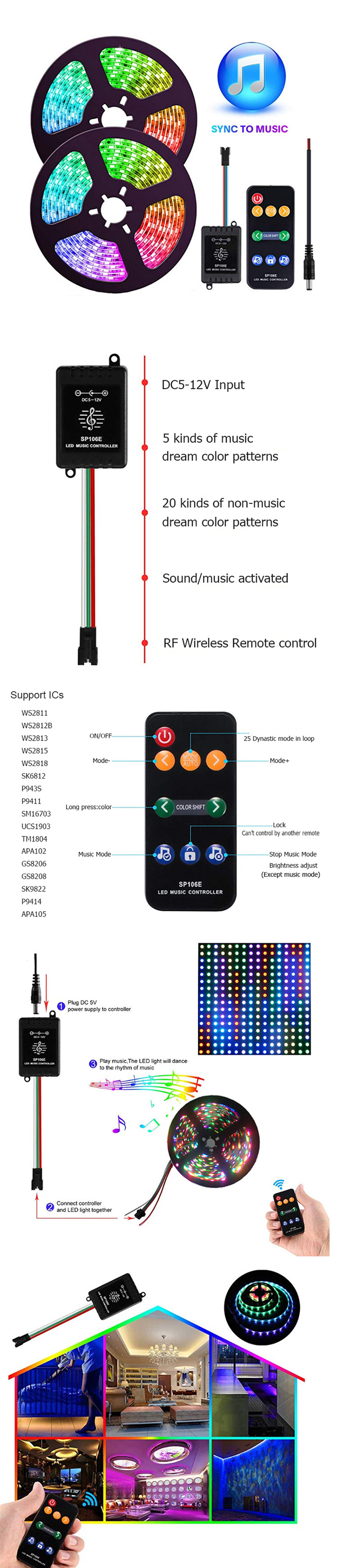

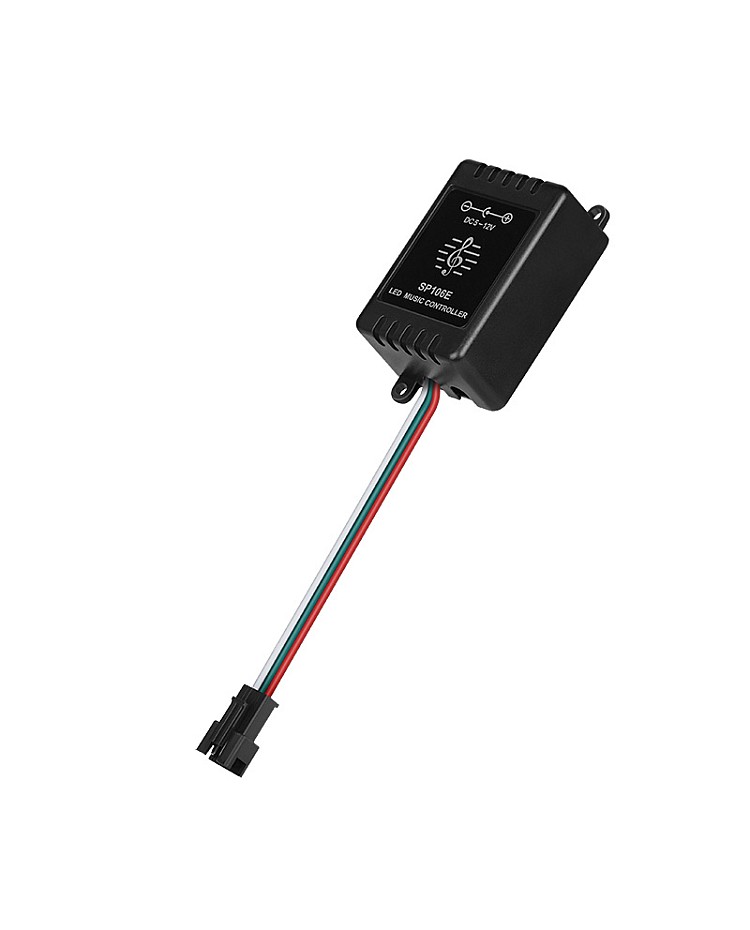

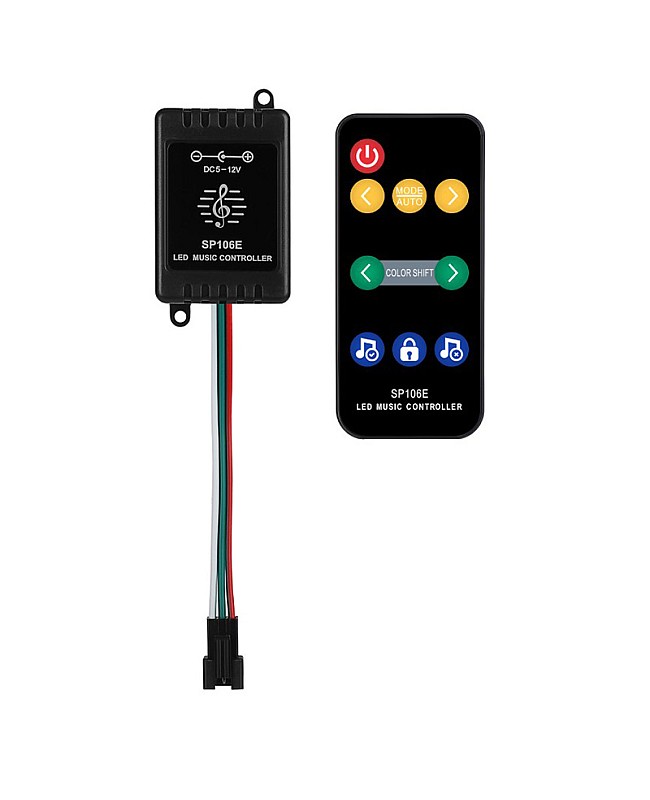

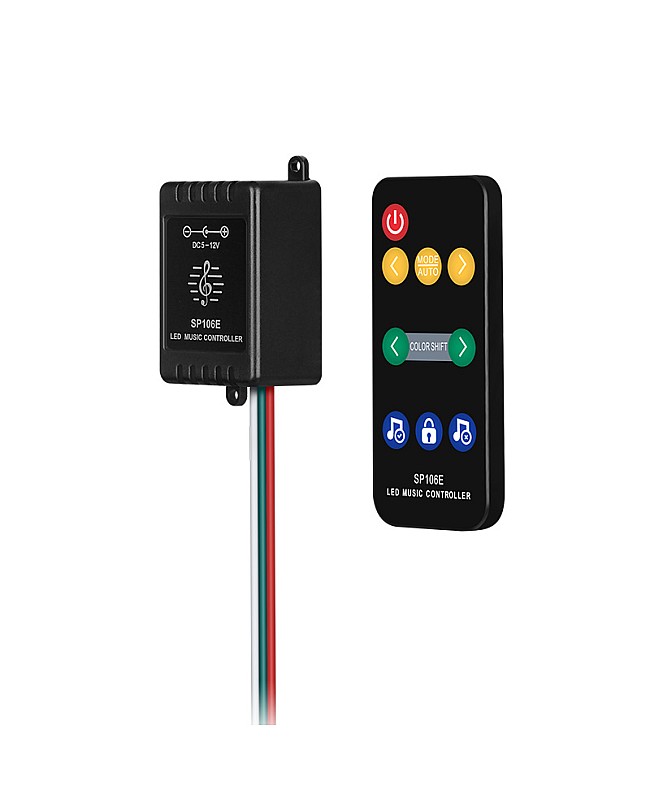

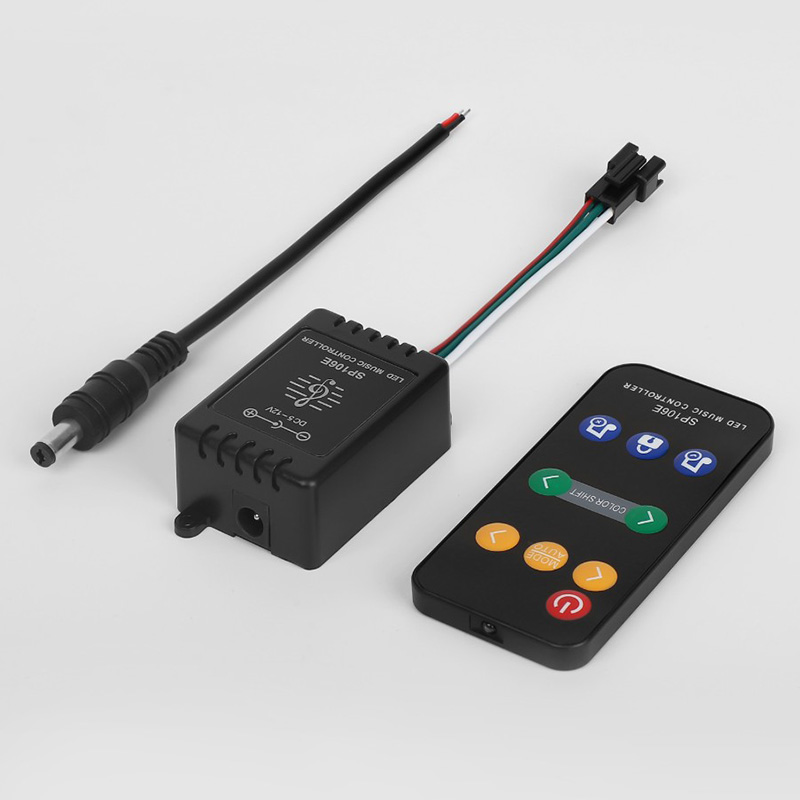

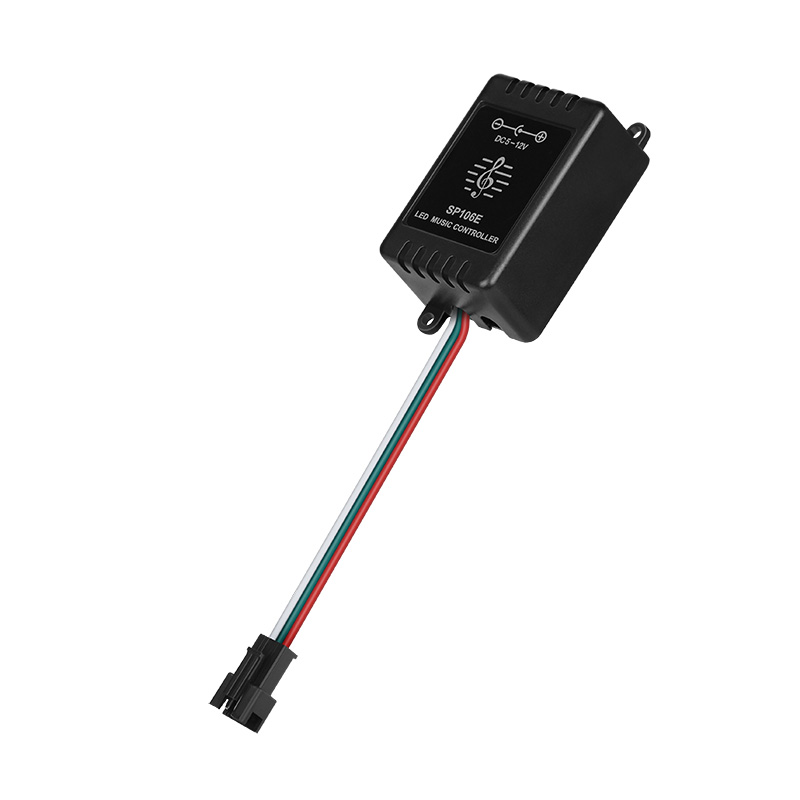

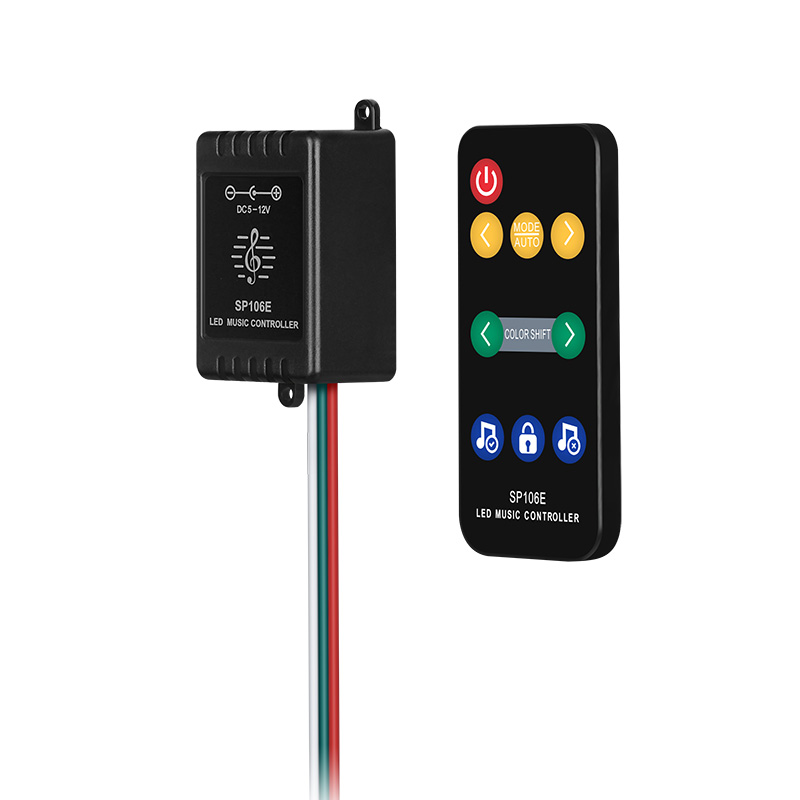

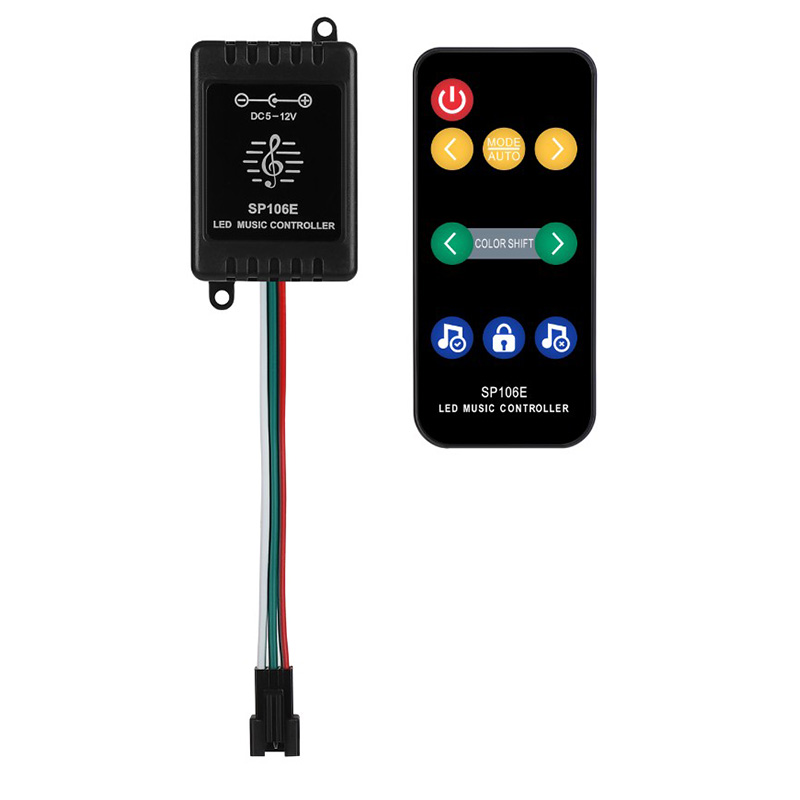

Check the SP106E Individually Addressable LED Strip Controller, which is lightweight and has a small size design. The nine keys RF Remote Control is included and can work with most smart ICs like WS2811, WS2812B, 16703, 1903, etc. The Addressable LED Controller comes with a female JST SM 3Pin Connector, which makes it easy to connect to the Pixel LED Strips, and the max loading number of pixels is 600PCS. The Individually Addressable LED Controller built-in 25 kinds of lighting patterns, including five music patterns and 20 regular patterns. Under the music modes, the lighting will change automatically following the rhythm of the music. Under the regular modes, the brightness of color is adjustable.


Features:

  • Material: Plastic
  • Controller Size: 2"*1.4"*0.9" (L*W*H)
  • Remote Control Size: 3.4"*1.6"*0.04" (L*W*H)
  • Color: Black
  • Working Voltage: DC5-12V
  • Working Current: 43mA-45mA
  • Max Loading Pixels: 600PCS
  • Output Signal: SPI
  • Built-In Lighting Patterns: 5 Kinds Of Music Patterns + 20 Kinds Of Regular Patterns
  • Output Connector: 3Pin
  • Connecting Method: Common Anode
  • Support Types Of ICs: WS2811, WS2812B, WS2813, WS2815, WS2818, SK6812, P943S, P9411, SM16703, UCS1903, TM1804, APA102, GS8206, GS8208, SK9822, P9414, APA105
  • RGB Sequence: RGB
  • 9 Keys RF Remote Control Included
  • Remote Control Distance: ≤20M
  • IP Rating: IP20 Non-Waterproof
  • Working Temperature: -20℃-+60℃
  • 2 Years Warranty

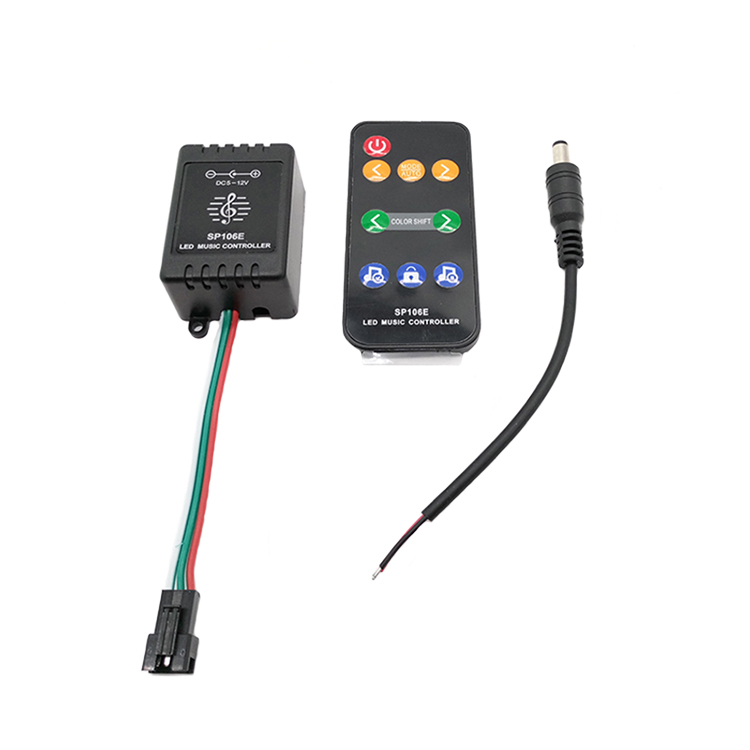

Includes:

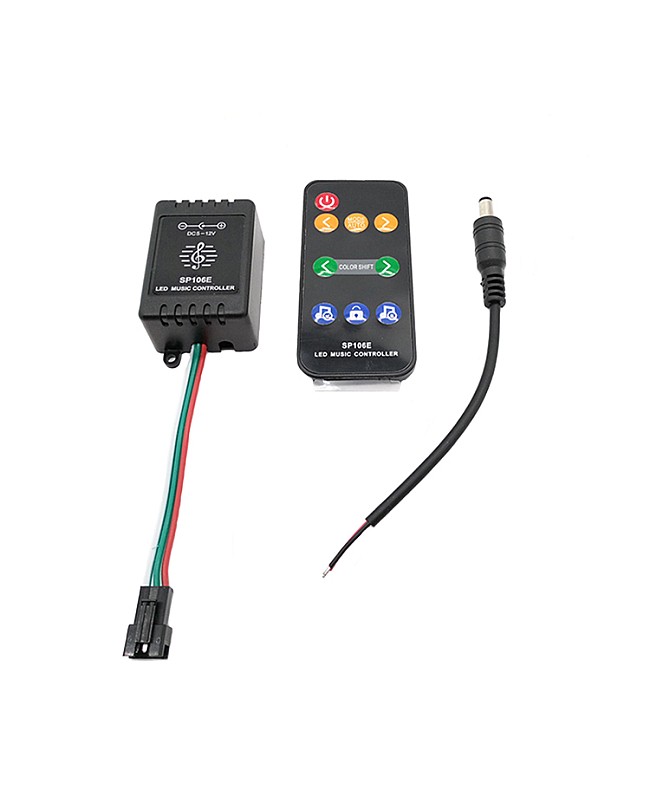

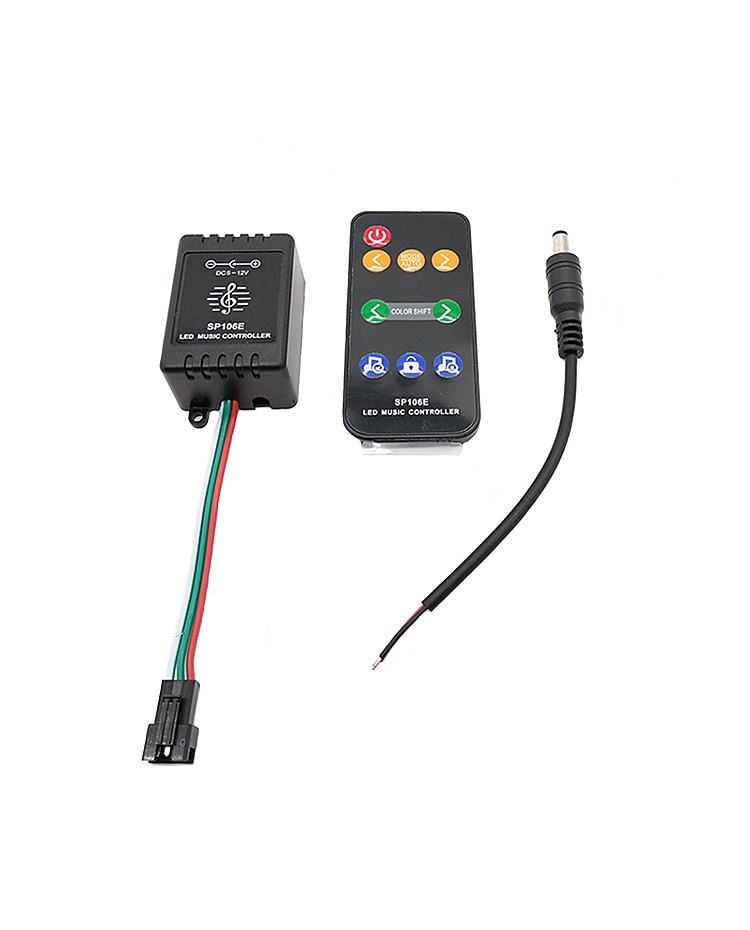

1*SP106E Light Music Controller

1*9 Keys Remote

1*DC Male Connector

SP106E
