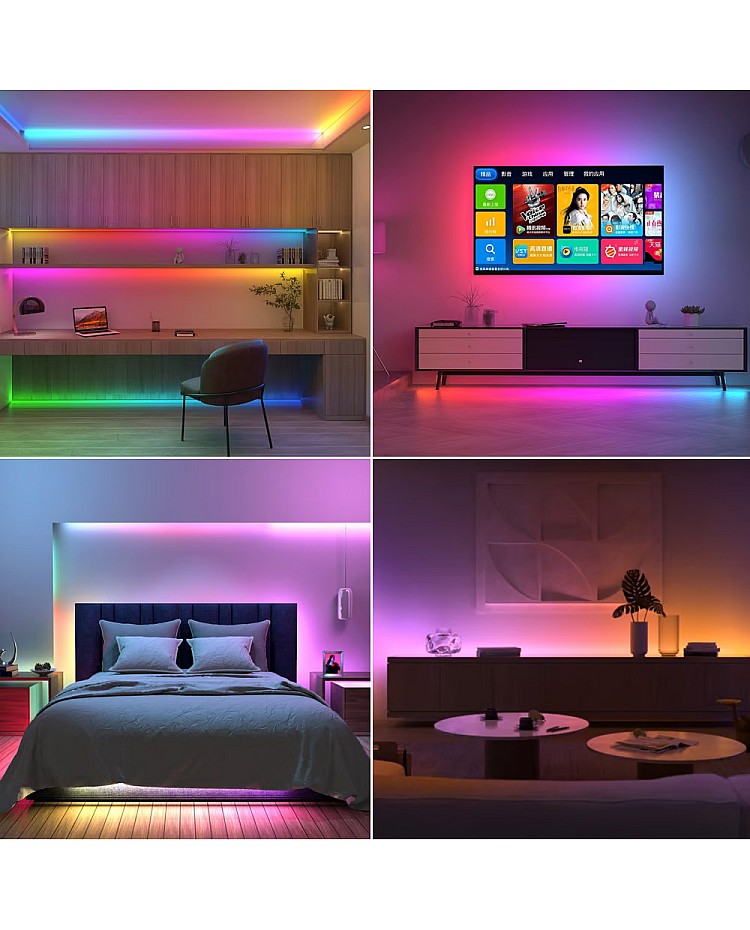

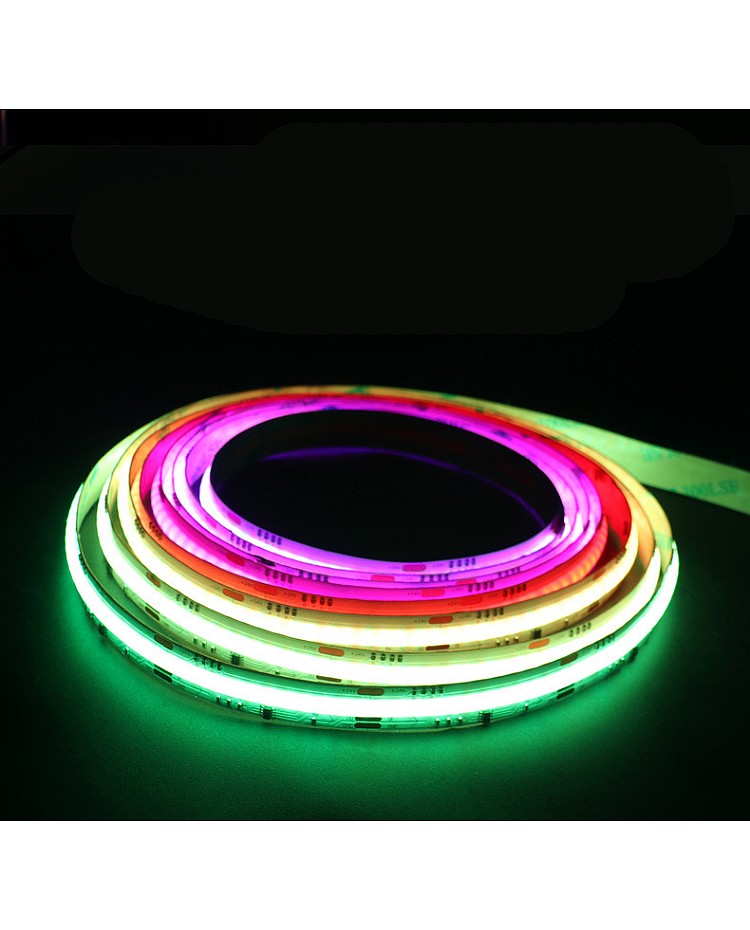

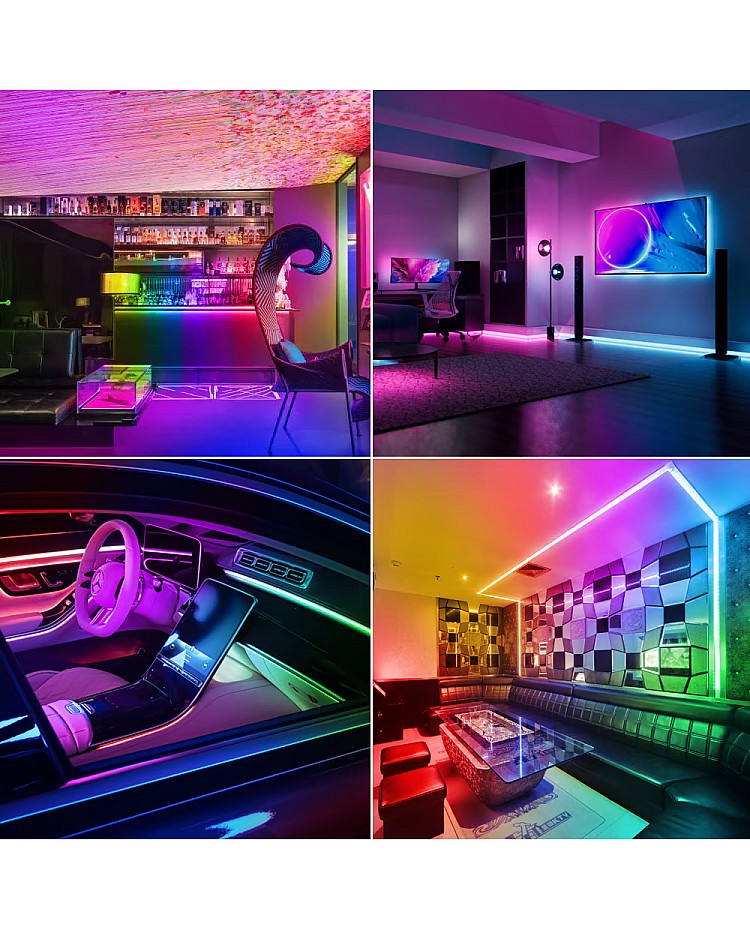

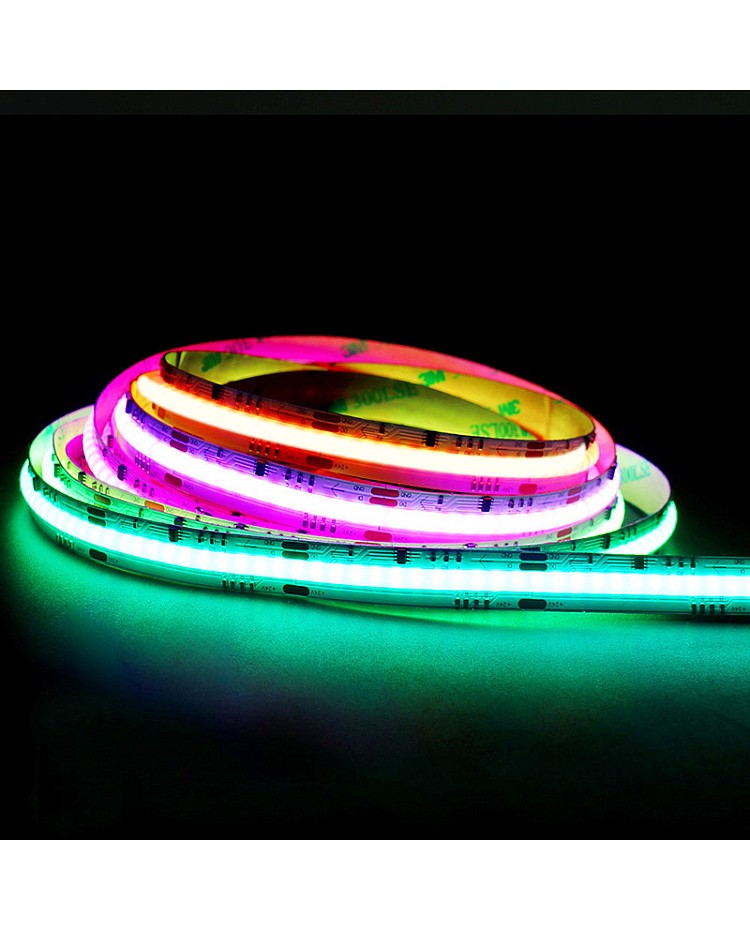

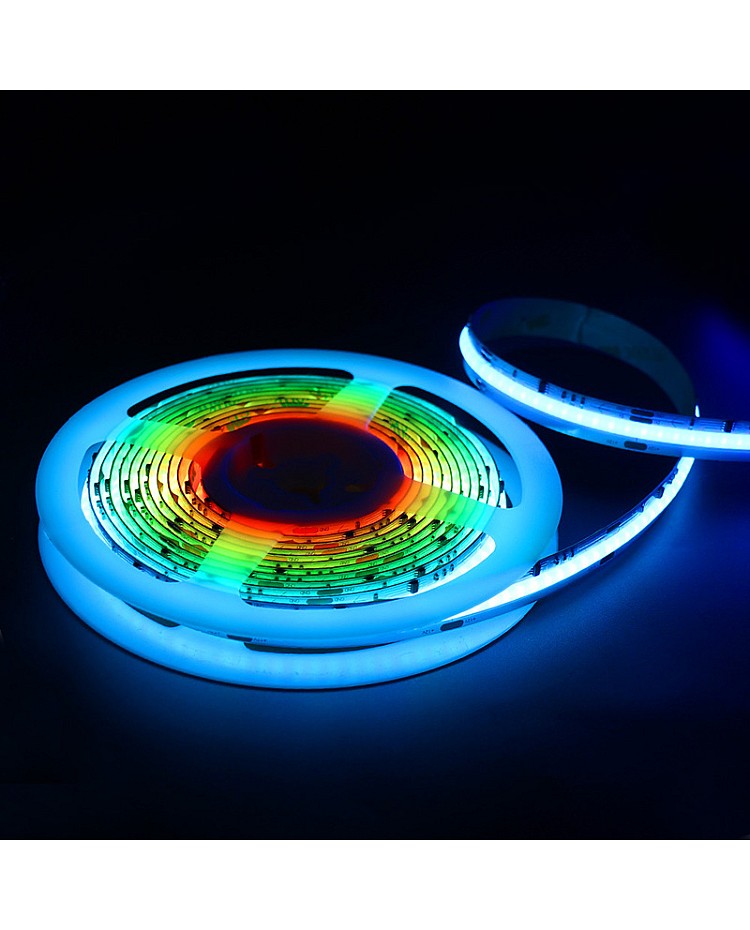

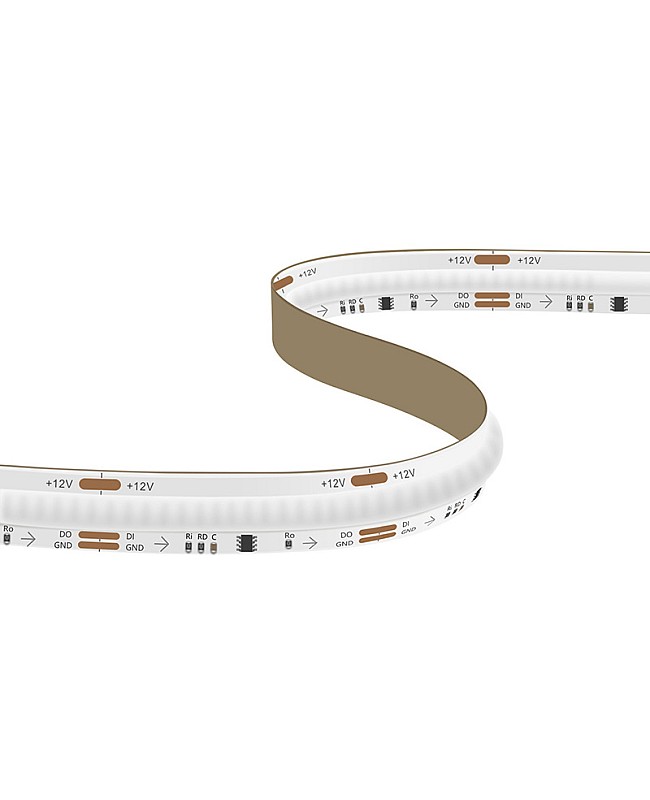

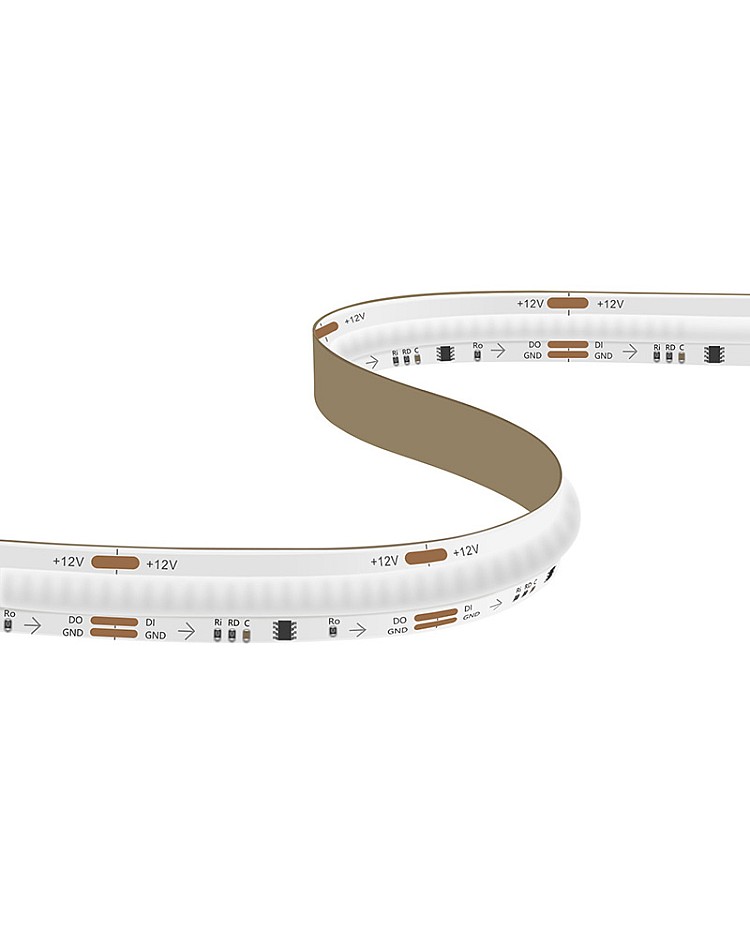

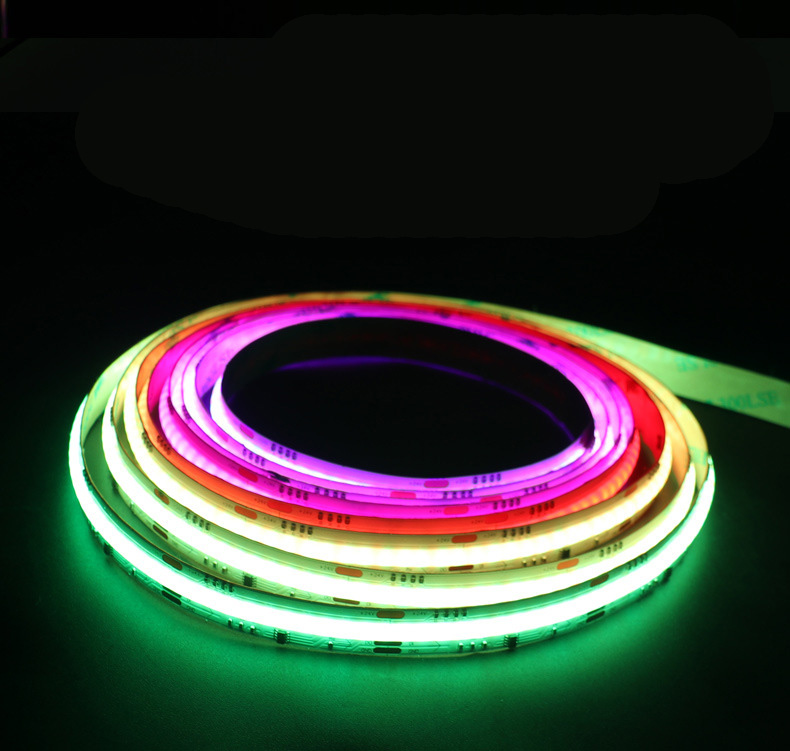

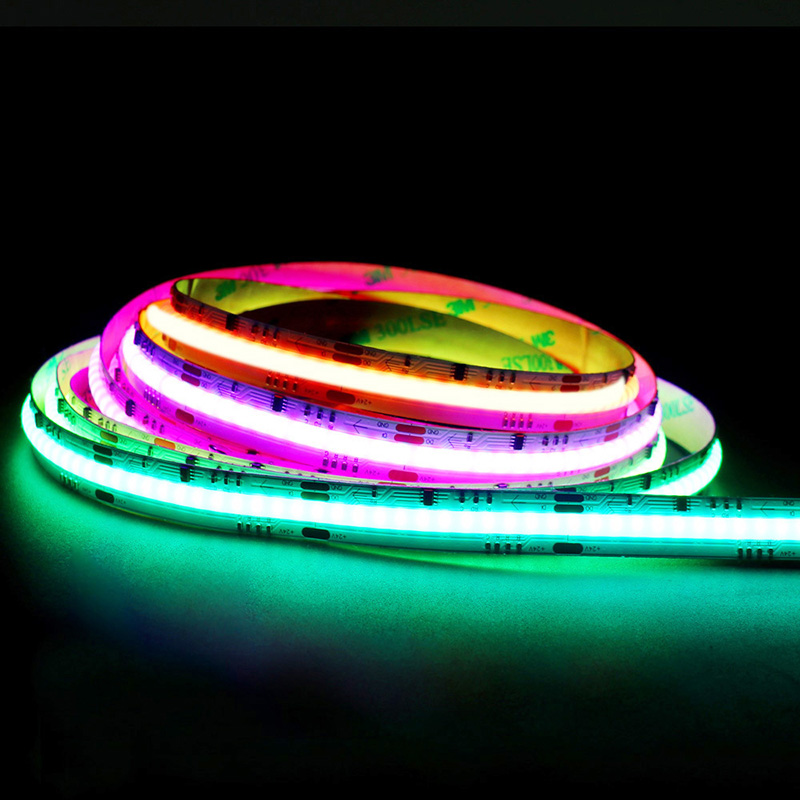

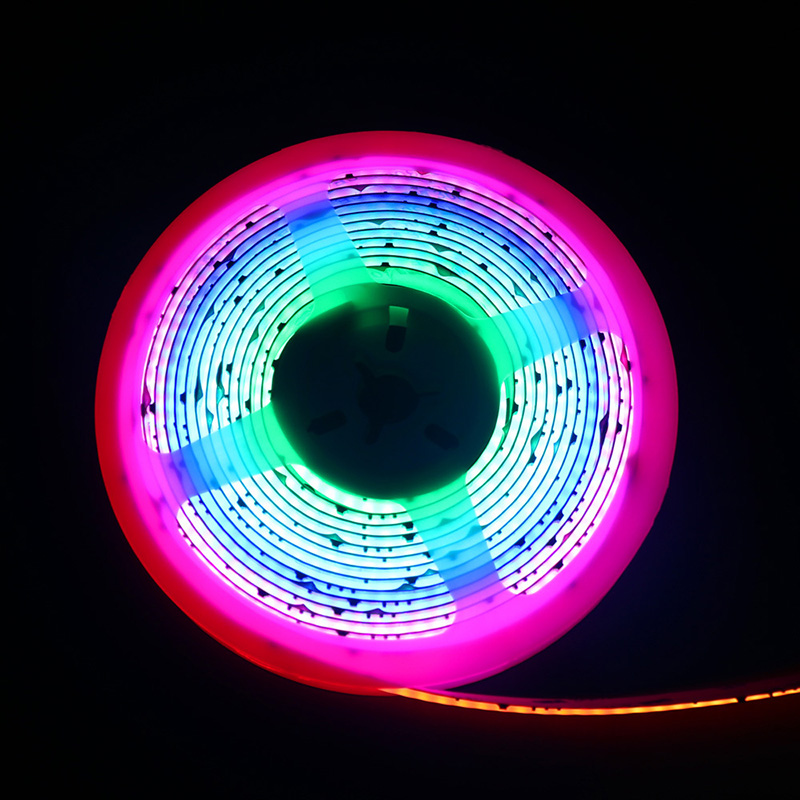

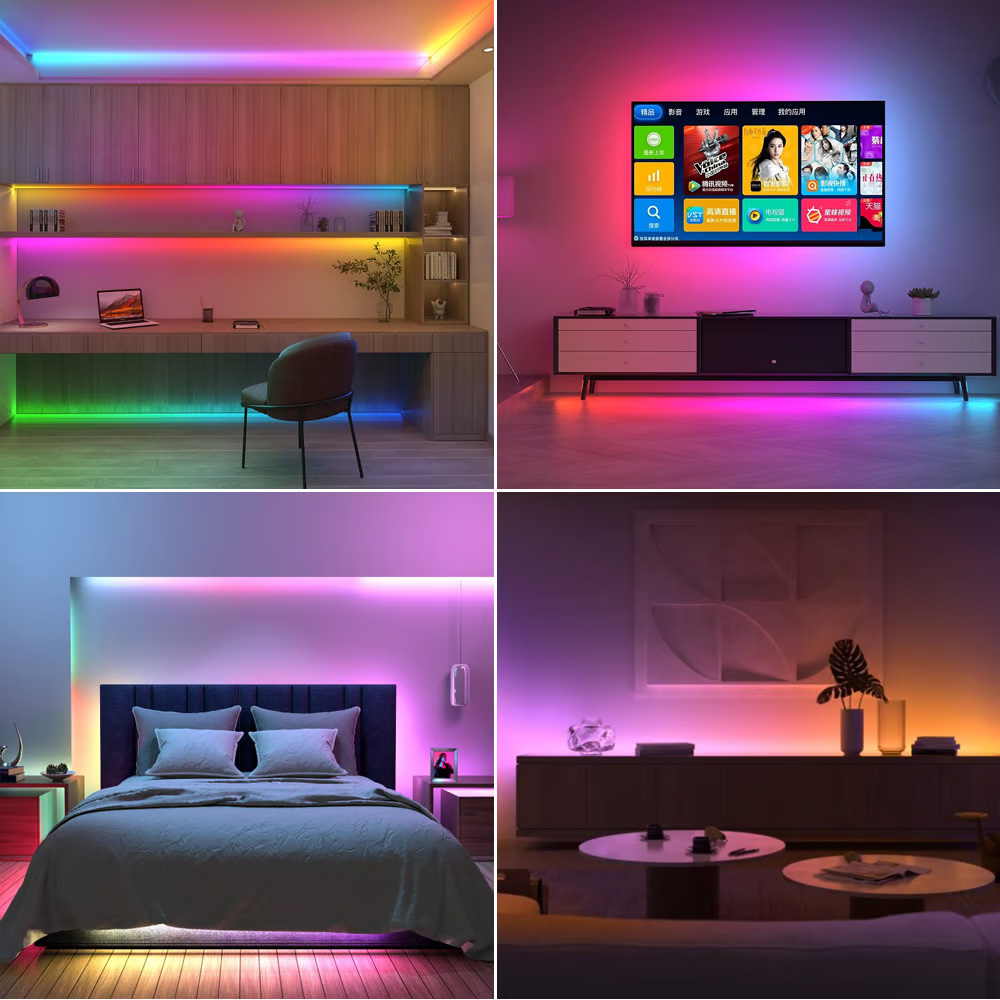

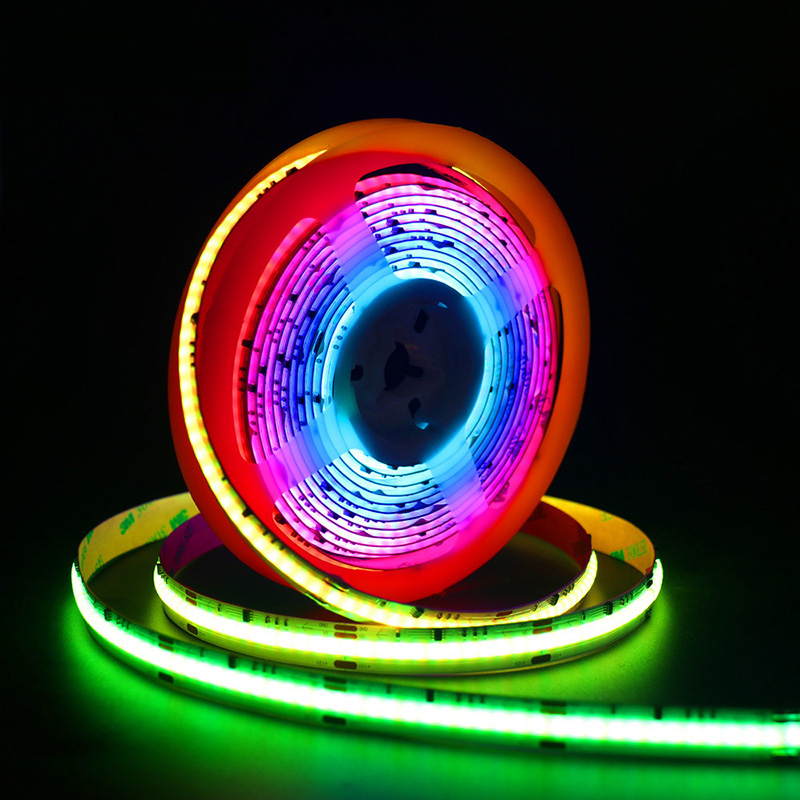

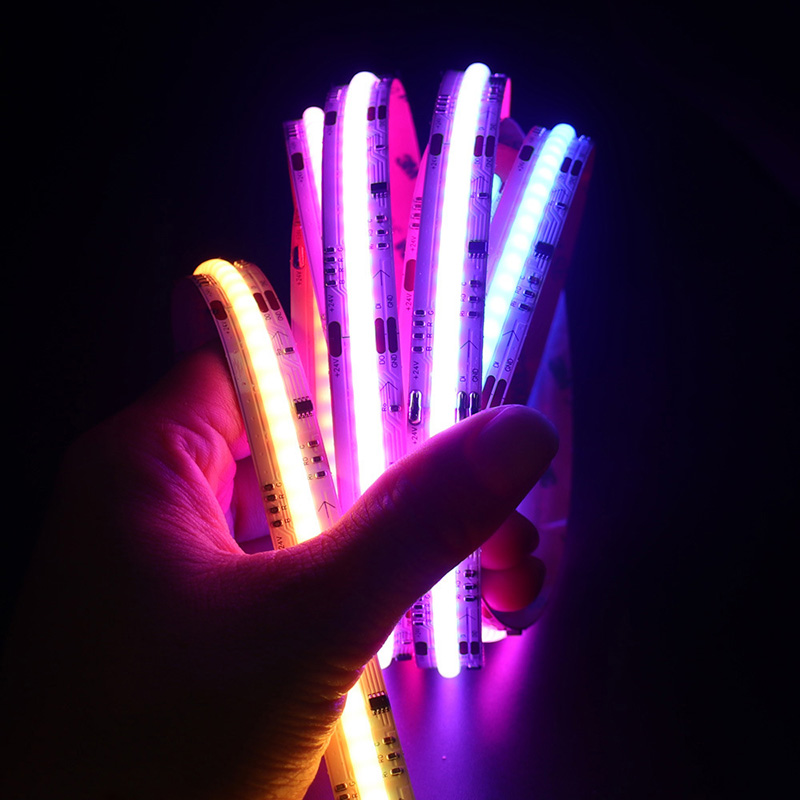

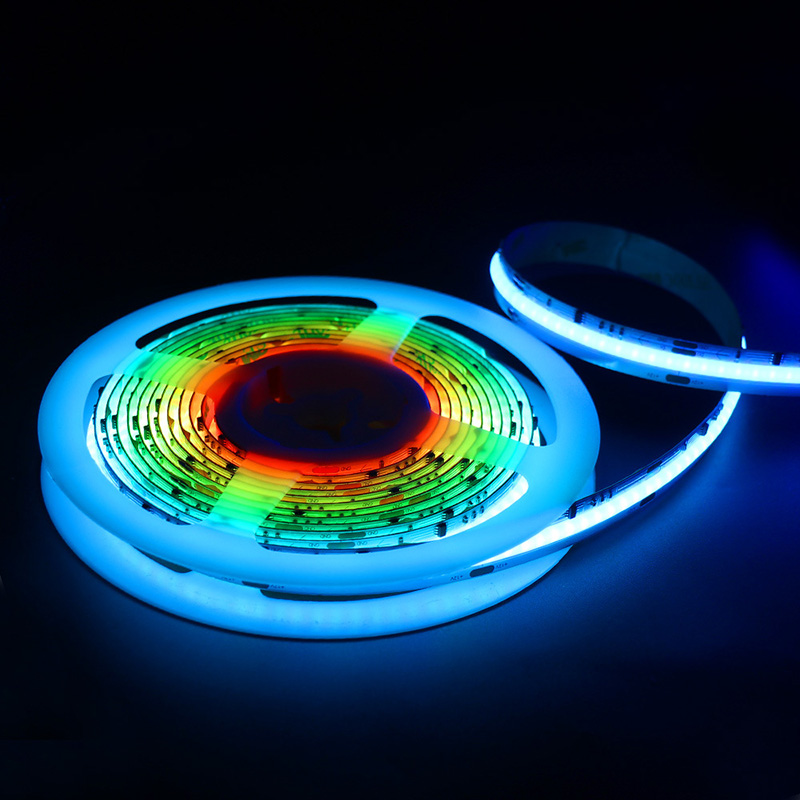

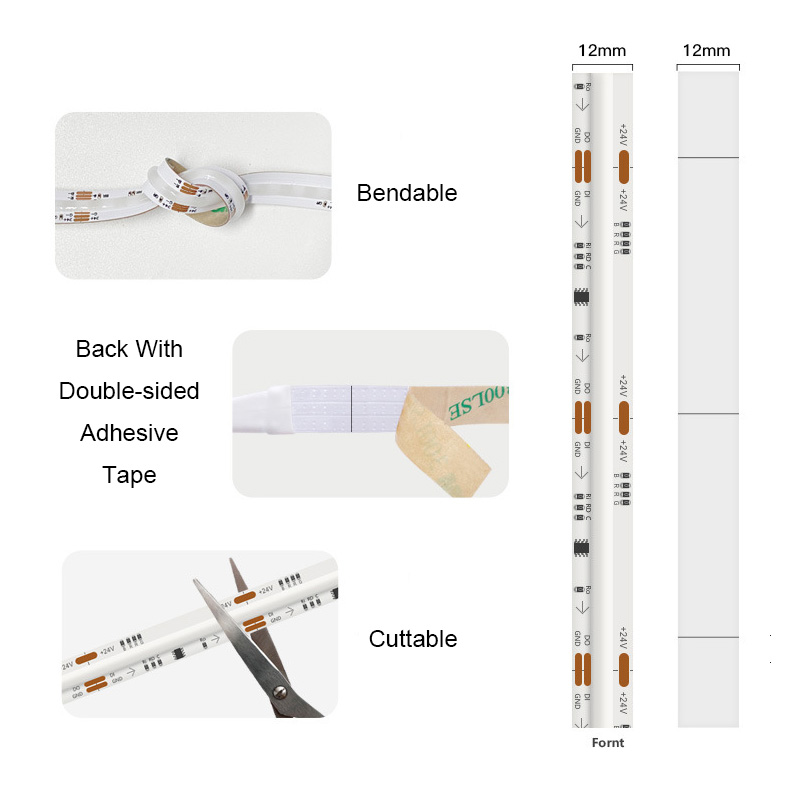

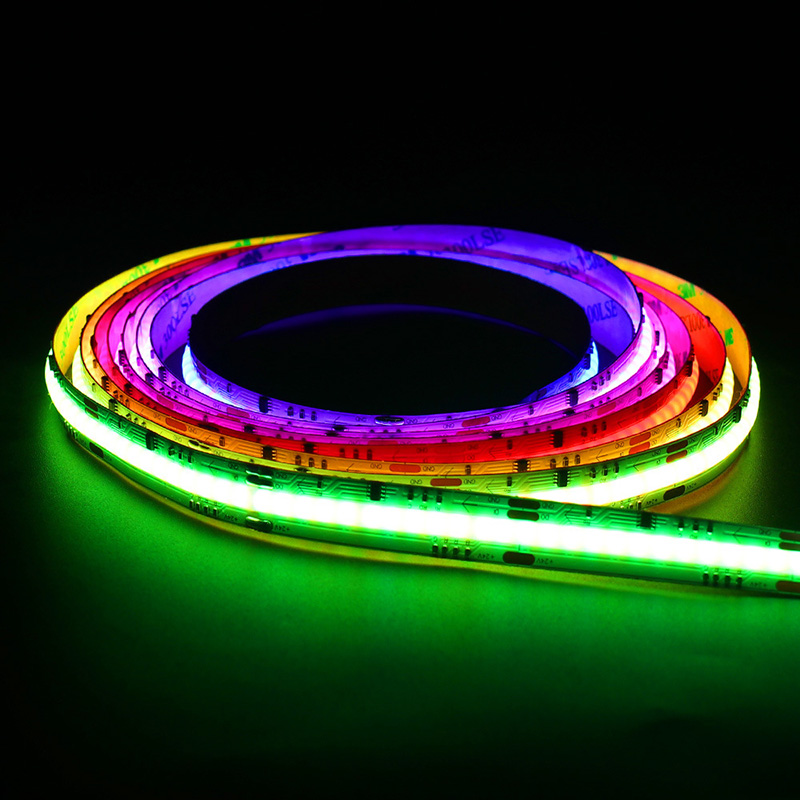

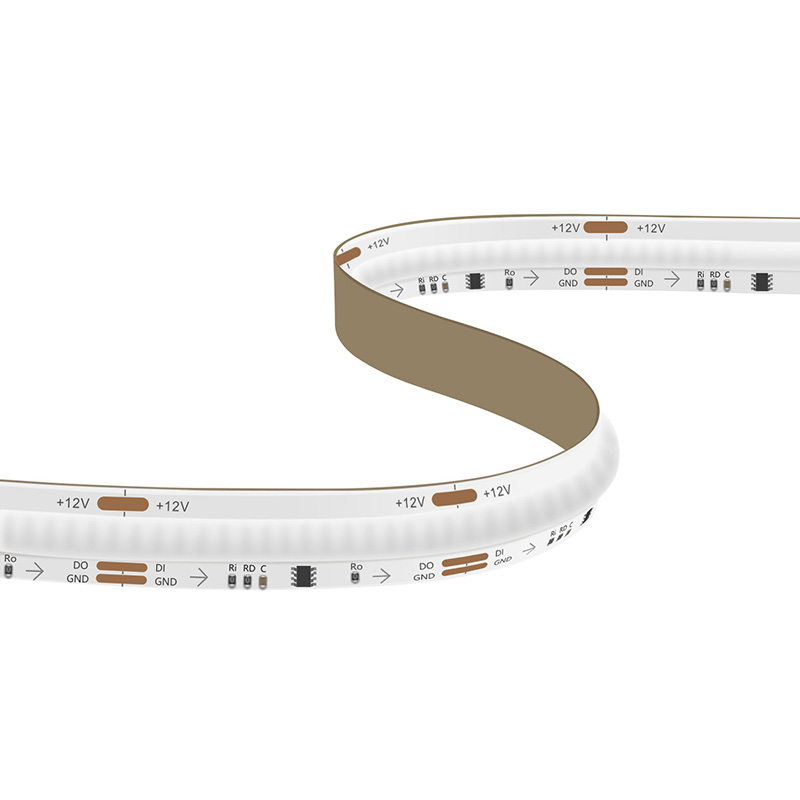

The Addressable Smart Light Strips enable various lighting effects and are an excellent way to add color and mood lighting to your home or business. The Addressable means that you can program it to create various patterns, effects, and animations, allowing you to customize your lighting to match your mood or create a special atmosphere. The width of the PCB board is 12mm, and the reel length is 16.4 ft. The minimum cutting length is 5cm; it can be cut to any length and linked together for even more flexibility. Adopts COB(chip-on-board) technology, 720PCS LED chips mounted on the dual-layer PCB board, flexible and bendable, the high-density LED Chips allow brighter than the traditional SMD LED Strips, no visible light dots, and no dark areas for high-quality color rendering and uniform light emission. Use WS2812B ICs to achieve an addressable function, and one IC controls 36 pieces of LED Chips to create hundreds of amazing lighting effects, such as curtain-up, flowing water, flash, jump, raindrop, etc. This allows for color-changing, dimming, and more intricate lighting designs. It can work with most Pixel Light Controllers, including SP105E, SP106E, SP108E, SP110E, as well as Arduino and Raspberry Pi Controllers. The Magic Color LED Strips come with 3P JST-SM Connectors, which are easy to connect to the Controller to light up. Two waterproof levels of products are available: IP20, which is non-waterproof, and IP67, which features a silicone tube for waterproof protection. You can use the IP20 for indoor projects and IP67 for outdoor applications. The back of the IP20 LED Strips has double-sided adhesive tape. Removing the protector paper from the tape is easy, and sticking it where you want to install it. The Silicone Tube Waterproof products can be installed in a wet or rainy location. With its low power consumption and easy installation, the Smart LED Strips are the perfect way to bring extra color to your life.
Specifications:
- Model: 12MM-COB-WS2812B-RGBIC
- LED Brand: San An
- LED Type: 1022
- LED Quantity: 720PCS/Meter
- IC Type: WS2812B
- IC Quantity: 20PCS/Meter

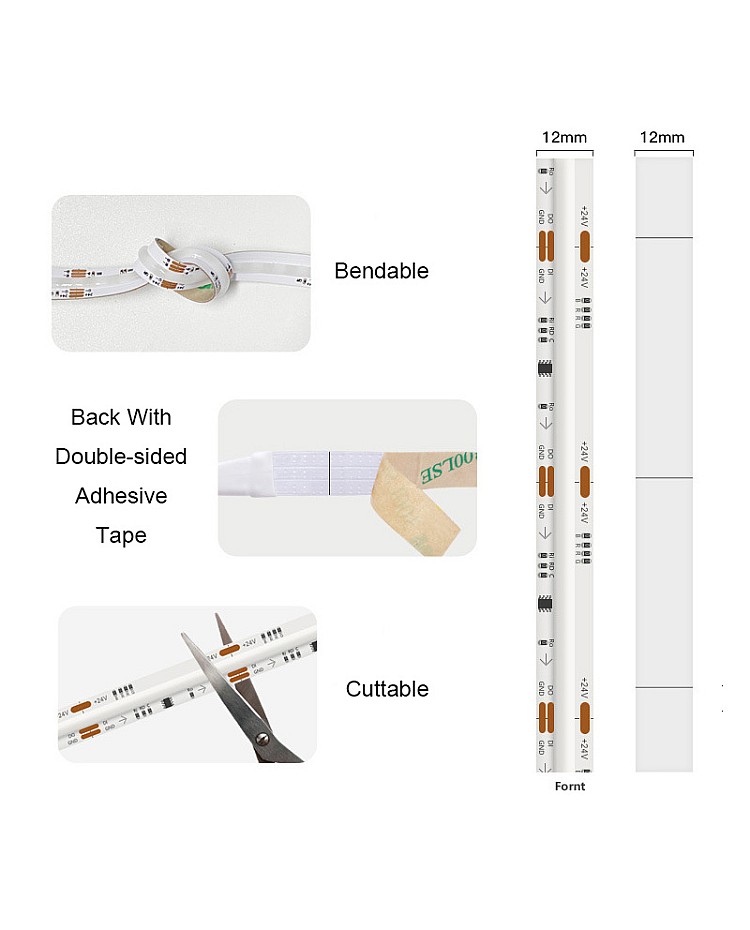

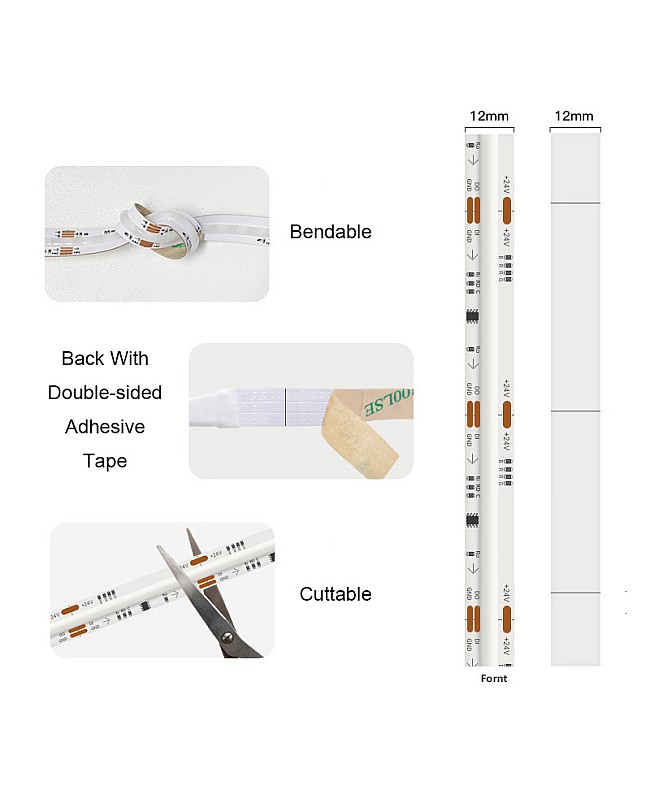

- Width: 12mm
- Length: 5Meters(16.4FT)/Reel
- Working Voltage: DC24V
- Power: 24W/Meter
- Emitting Color: Magic Color 24-Bit
- Grayscale Levels: 256
- View Angle: 180°
- CRI: 90Ra
- Dimmable: YES

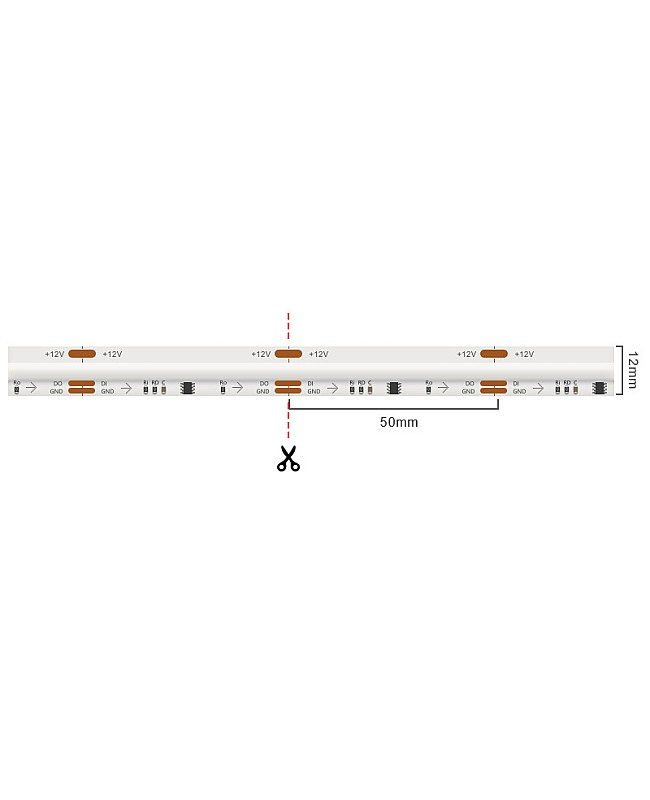

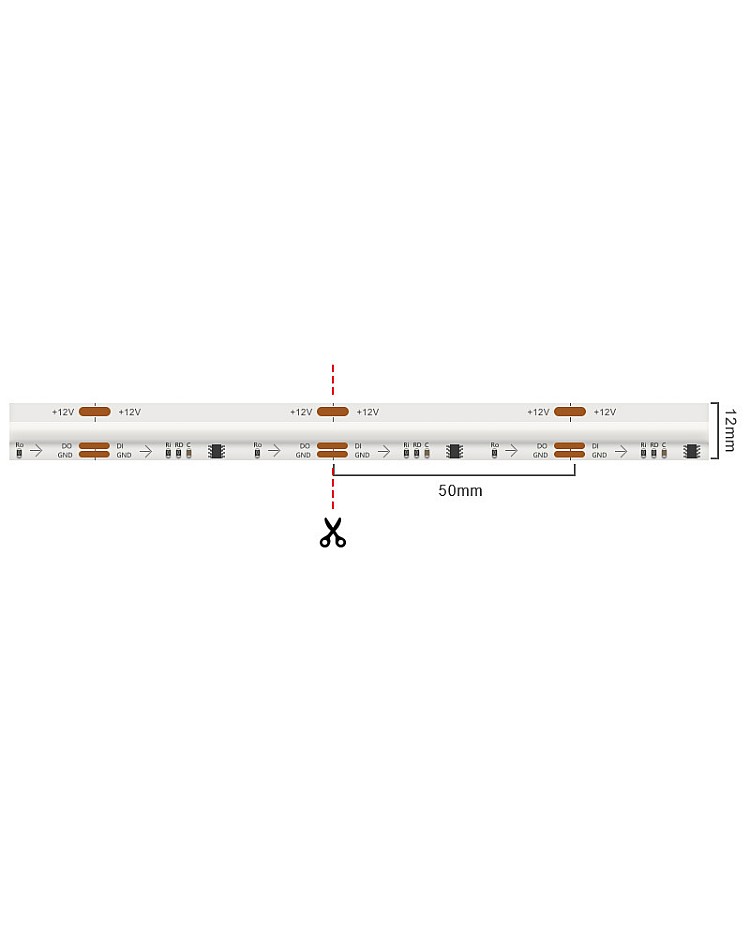

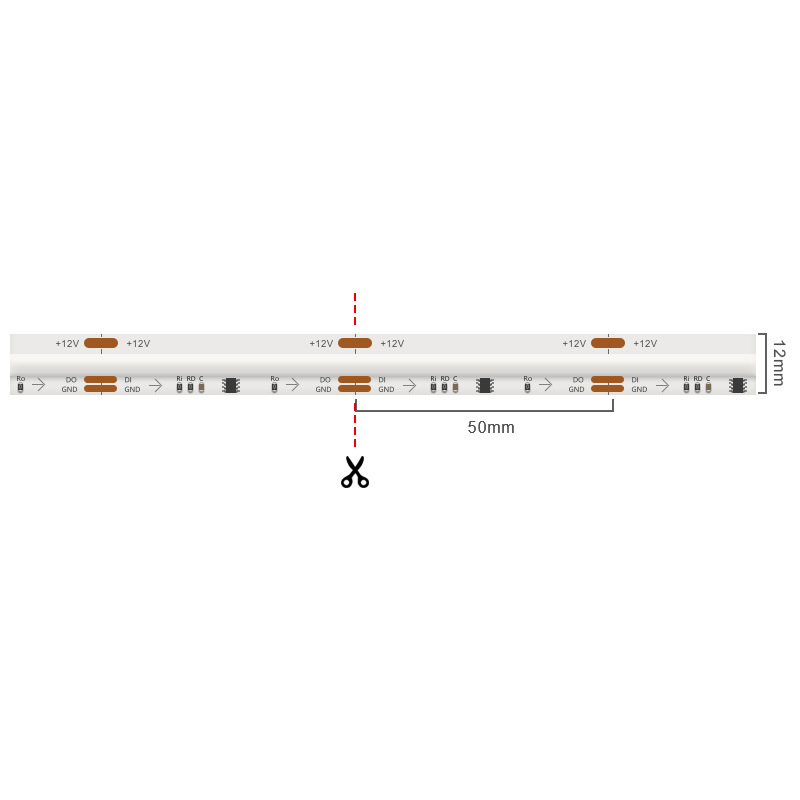

- Minimum Cutting Length: 50mm
- IP Rating: IP20 Non-waterproof, IP67 Silicone Tube Waterproof
- 3 Pin JST-SM Connectors Included
- Can Work WIth SP105E, SP107E, SP108E, SP110E, Arduino, Raspberry PI Controllers
- Working Temperature: -20℃-+45℃
- Storage Temperature: -20℃-+60℃
- Lifespan: 50,000 Hours
- 3 Years Warranty
Includes:
1 * Programmable LED Strip Lighting(16.4 FT/Reel)
