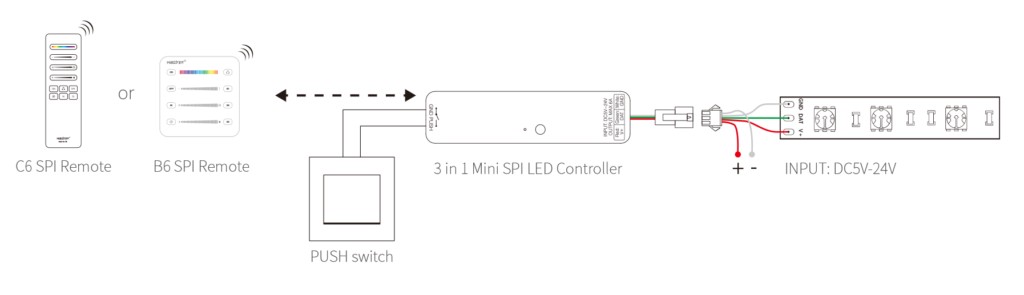

The MiBoxer SPIR3-M LED Controllers are designed for Programmable LED Strips, which are compatible with most hot sale LED Strips including Chips like TM1809, TM1804, TM1812, SK6813, UCS1903, WS2811, WS2812, WS2813, WS2815, etc. They can work with C6 or B6 Remote Controls to adjust mode, color, brightness, ON/OFF time, and edit dynamic lighting features. It has a 3-in-1 design for single color, RGB, and RGBW Pixel SPI Strip Lights and supports the max number of pixels up to 2048PCS under single-color working mode. A " SET" on the controller allows you to switch the working modes from single color, RGB, and RGBW. The MiBoxer SPI LED Controller adopts 2.4G wireless transmission technology, has high-speed transmitting and strong ability for anti-interference, and stable signal.
Features:
- Type: Mini 3 In 1 LED Controller For Single Color, RGB, RGBW Programmable LED Strips
- Model: SPIR3-M

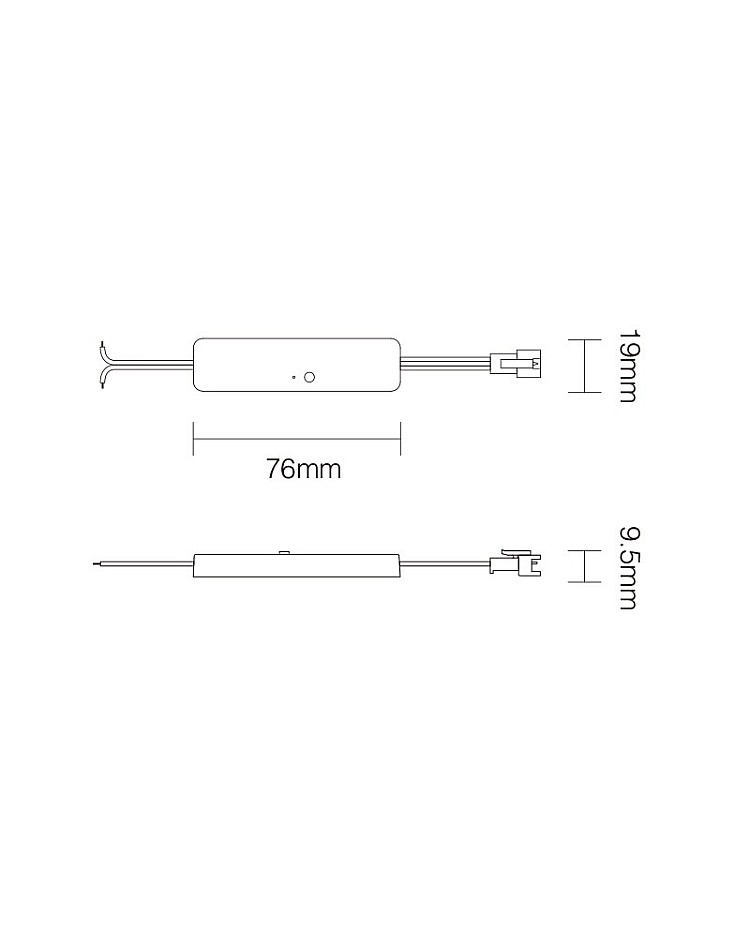

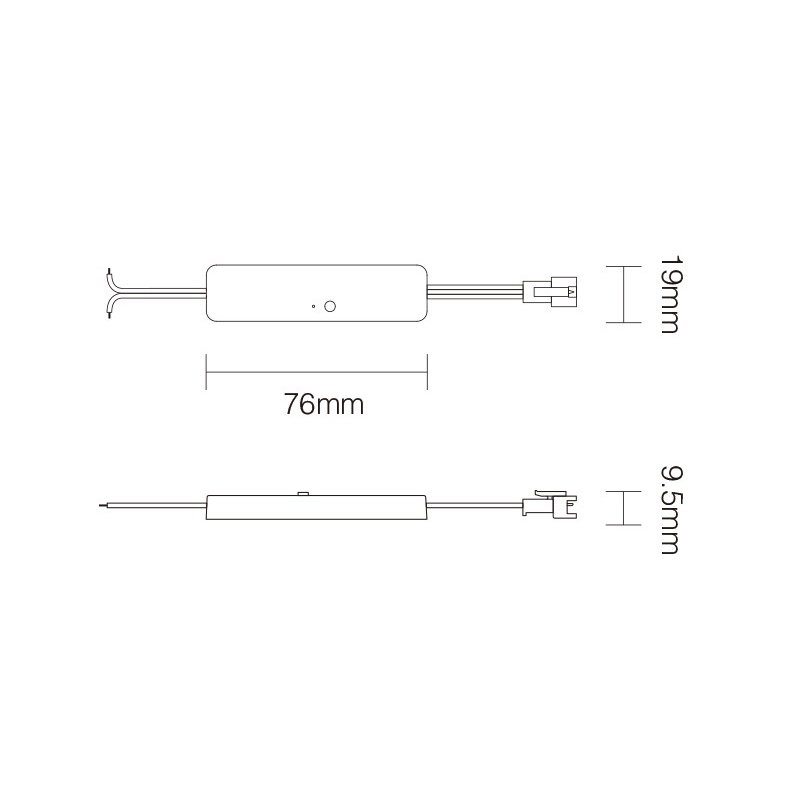

- Size: 76*19*9.5mm(L*W*H)
- Input Voltage: DC5V-24V
- Output Current: 6A Max
- Output Power: 30-144W
- Output Type: Constant Voltage
Output Signal: SPI(TTL) 800Kbs - Max Support Number Of Pixels: 2048PCS(Single Color), 1536PCS(RGB), 1024PCS(RGBW)
- Compatible Chips: TM1809, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
- Total 20 Dynamic Modes And Support Editing Color
- Support PUSH Switching Dynamic Mode
- Control Signal: 2.4GHz RF
- Control Distance: ≤30m
- IP Rate: IP20 Non-waterproof
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Certification: CE, EMC, LVD, RED
- Working Temperature: -10-40℃
- 5 Years Warranty
Includes:
1*SPIR3-M Mini Programmable LED Controller
