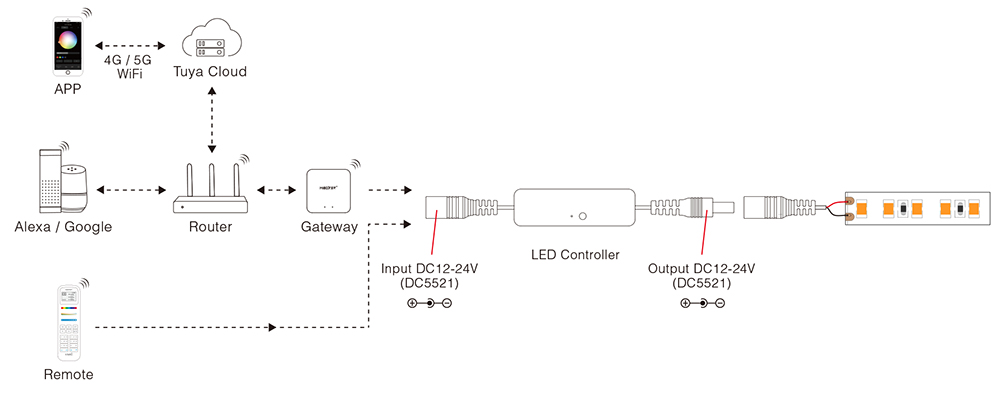

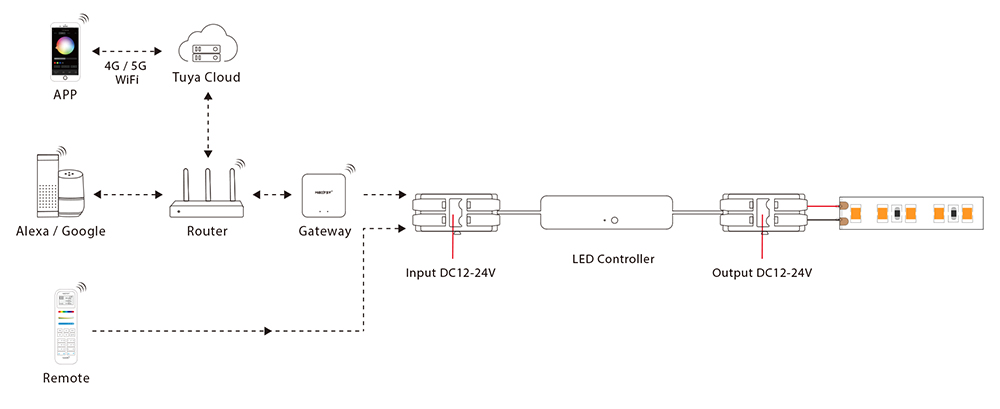

The MiBoxer MLR1 and MLR2 are the mini inline Light Dimmers for single-color LED Lights. The MLR1 comes with male and female DC Connectors, and the MLR2 comes with bare wire connectors; you can choose them for various types of lighting. They have a slim size design, which allows them to be installed and hidden in a limited space or area. The MiBoxer Dimmers use 2.4G RF wireless transmission technology and support remote control. One remote can control countless controllers simultaneously, and after pairing them with 2.4G Gateways, they can be controlled by Tuya Smart APP and third-party voice control. You can adjust the brightness from 0.1% to 100% for various scenes. The Dimmers will automatically forward the remote control signal to another same model Dimmer, making the LED Remote Control distance infinite. The MiBoxer MLR series supports a do-not-disturb mode setting, suitable for areas with frequent power outages to save electricity.
Features:
- Type: Mini Single Color LED Controller

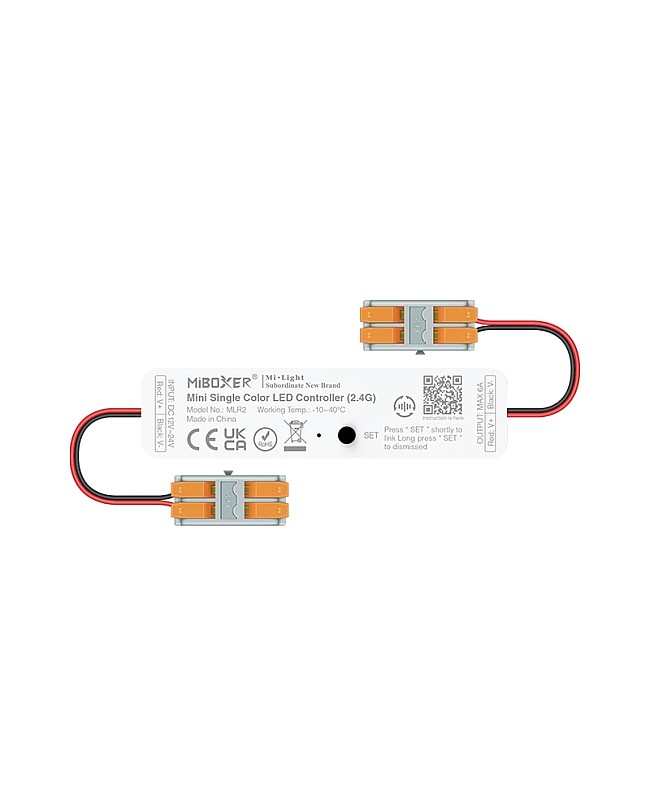

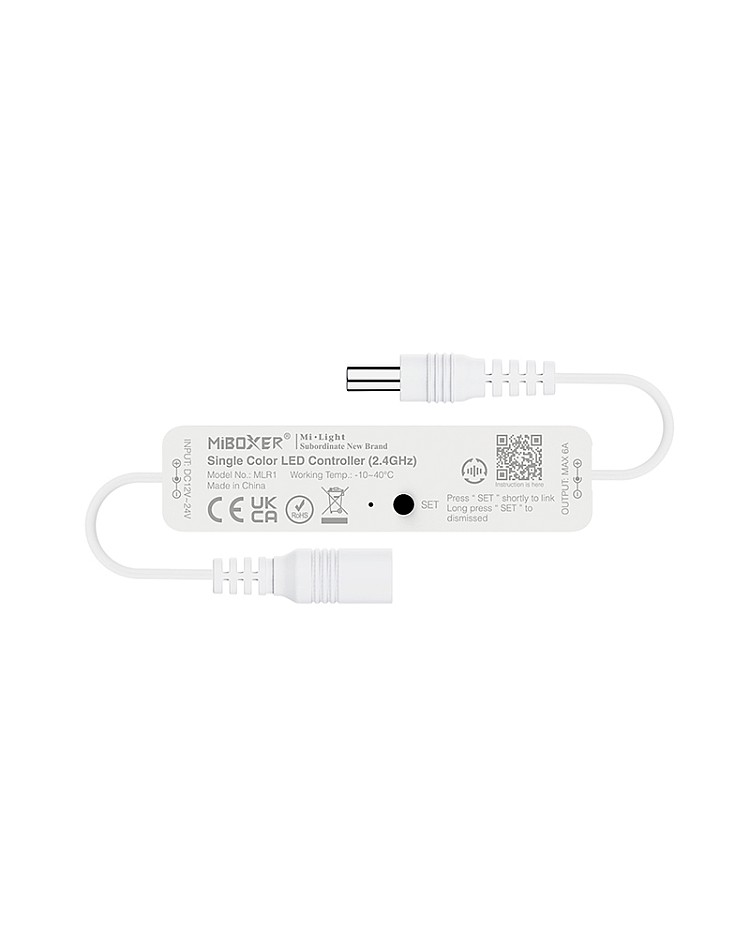

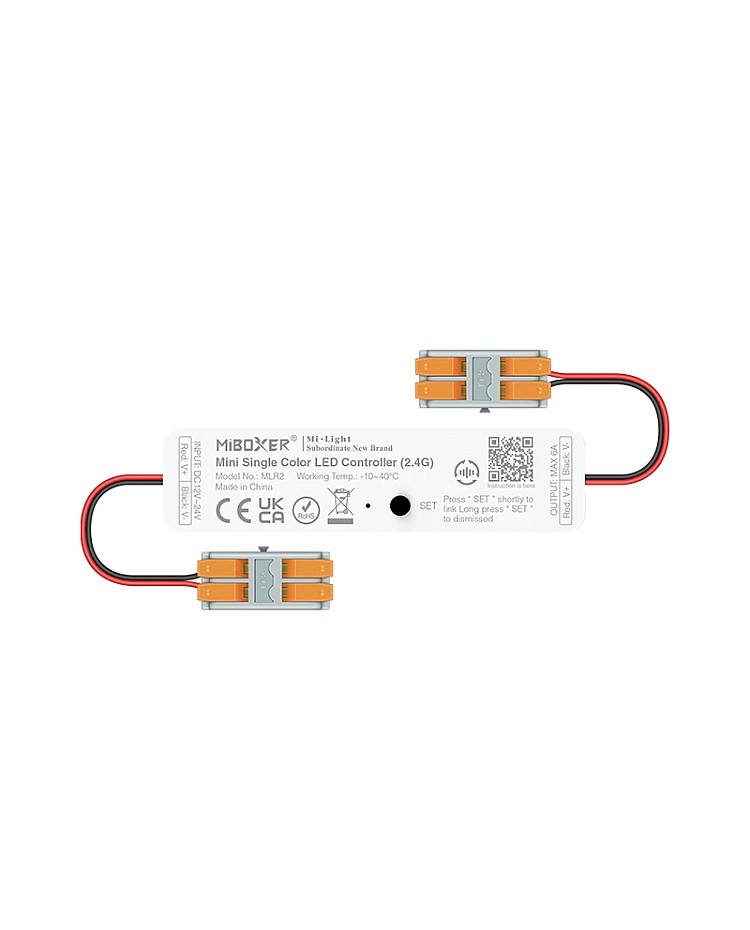

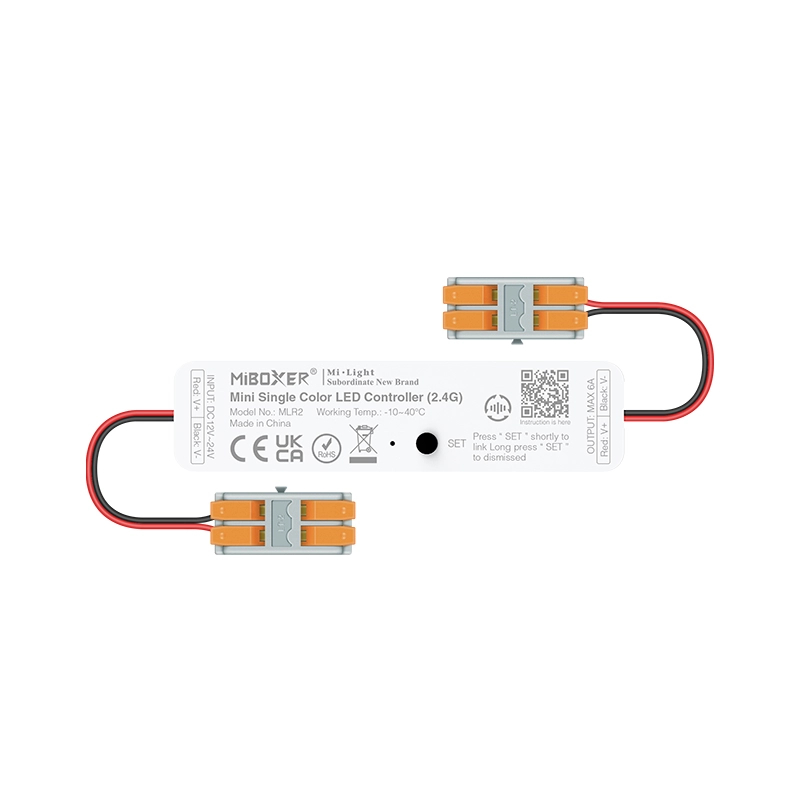

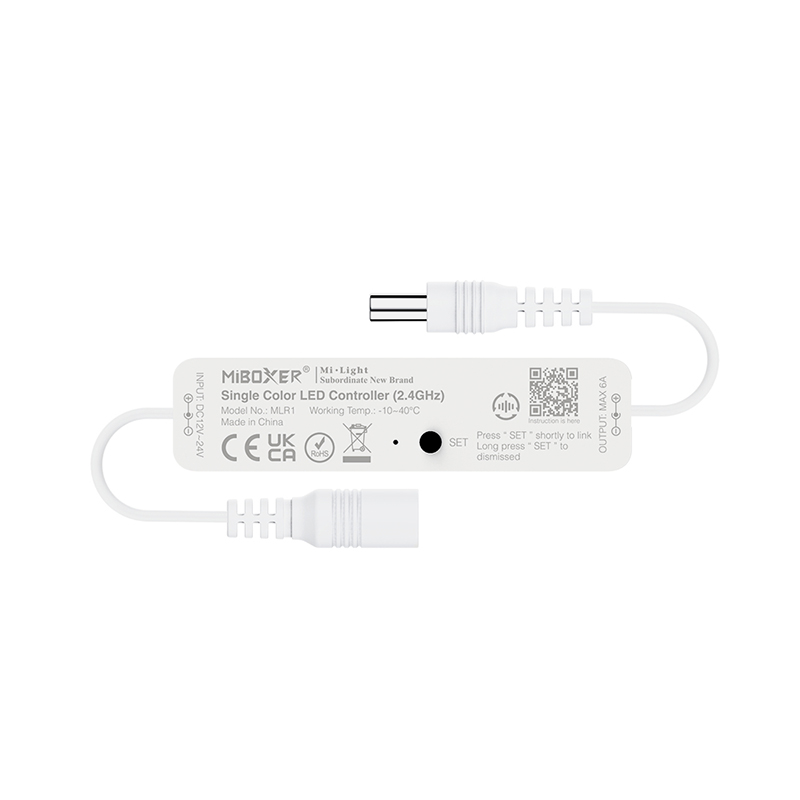

- Model: MLR1(With DC Connectors) / MTR2(With Bare Wire Connectors)

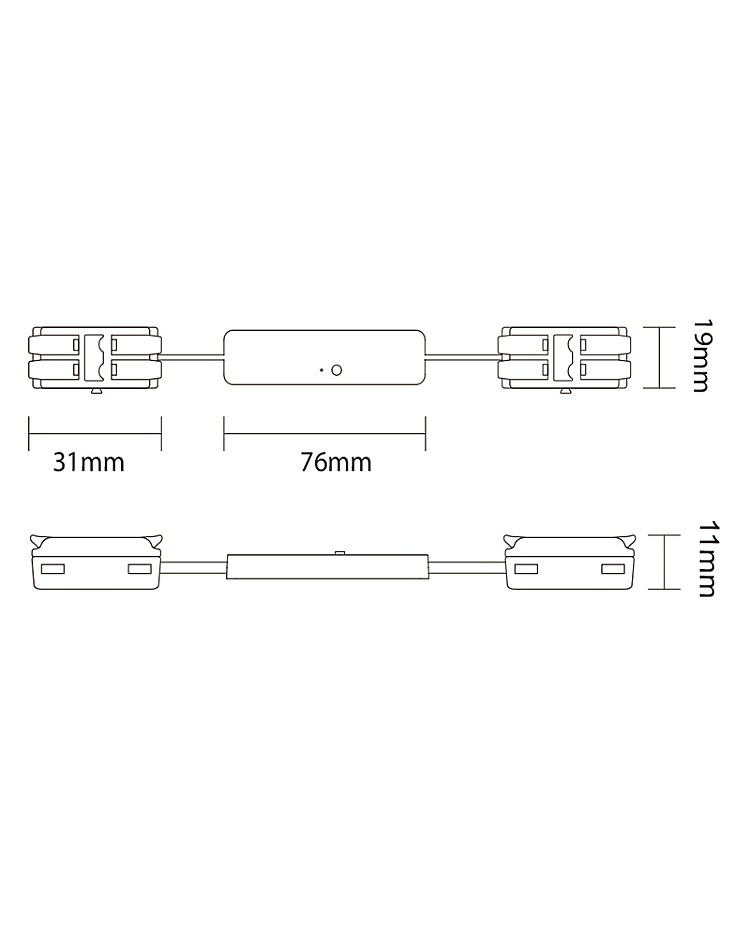

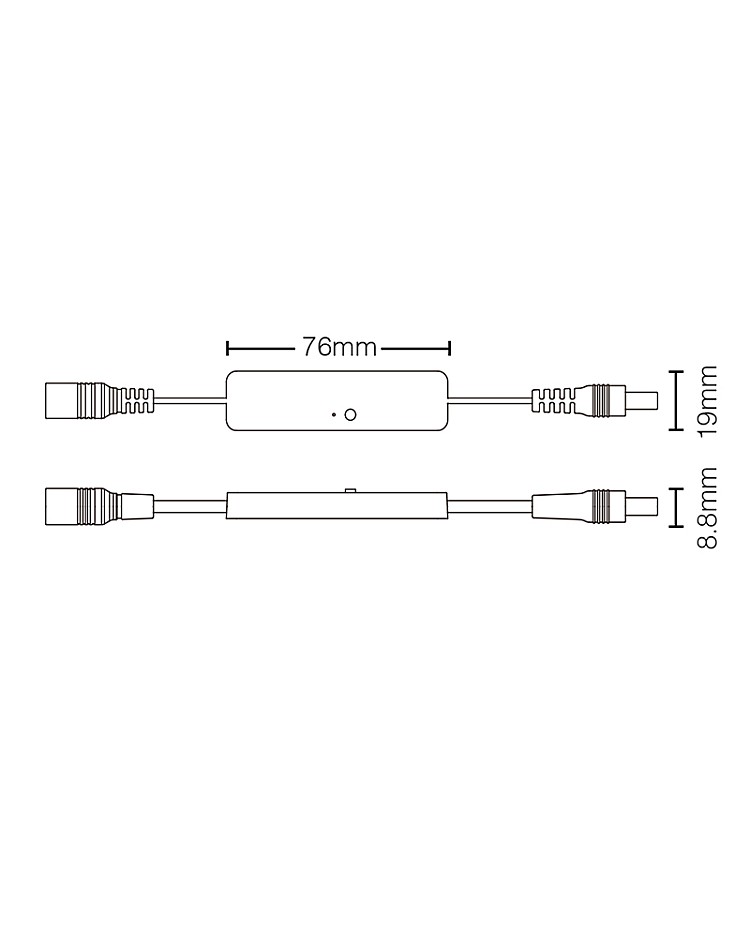

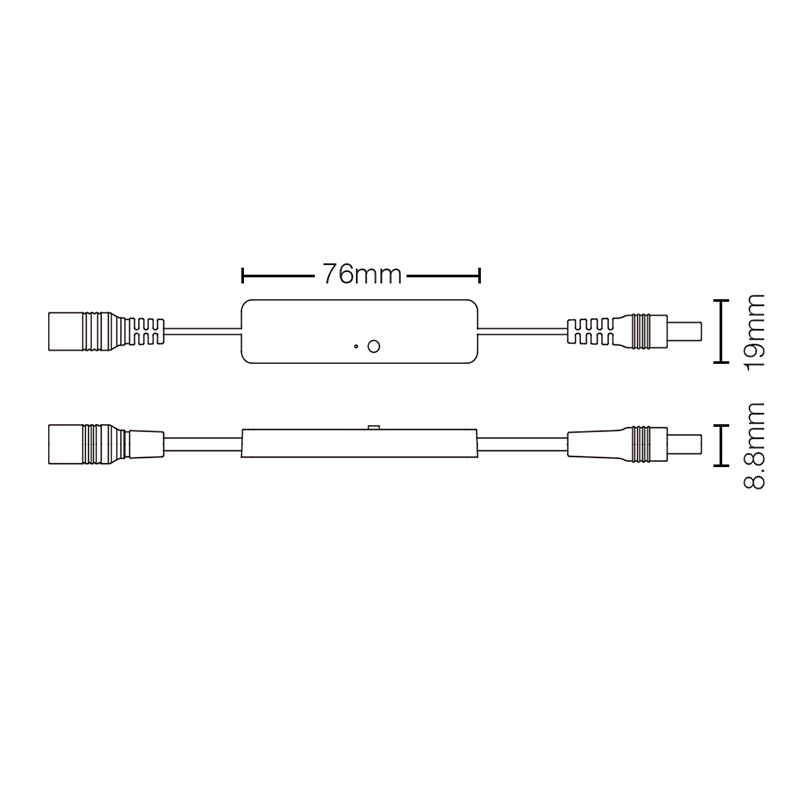

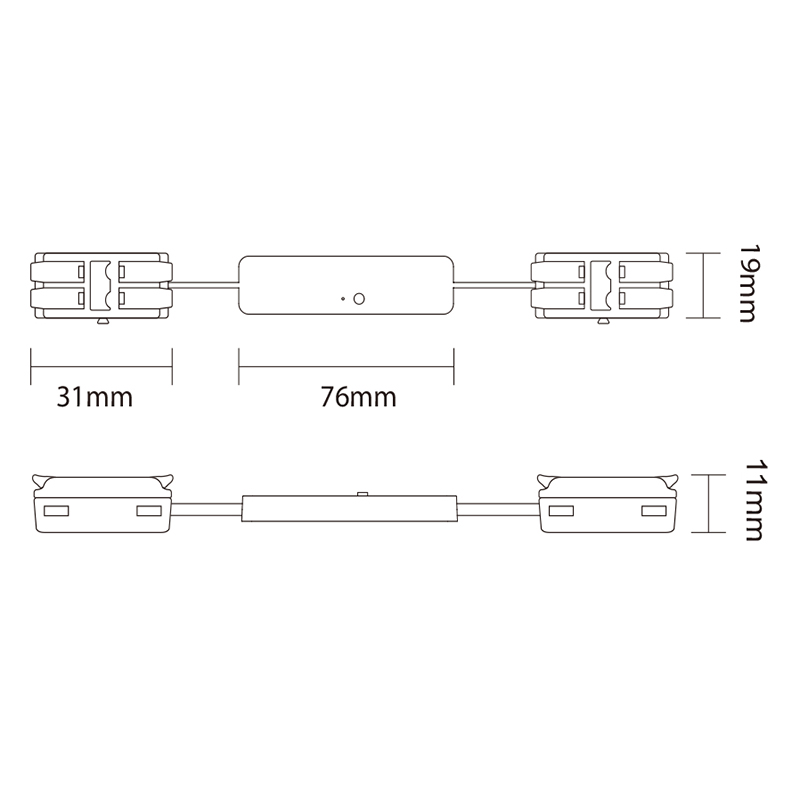

- Size: 76*18*8.8mm(L*W*H)
- Input Voltage: DC12-24V
- Output Current: 6A Max
- Output Power: 144W
- Output Type: Constant Voltage
- Control Signal: 2.4GHz RF
- Control Distance: ≤30m
- Dimming Gratscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Compatible With Remotes Controls: C3, Y1,Y2, C1, K0, K3, K3S, K2S, K2, K1, T1, T2, B1, B5, B2, FUT006, FUT007, FUT094, S1W+, S1W
- Support Tuya Smart APP Control(2.4G Gateway Needed)
- Support Third-Party Voice Control(2.4G Gateway Needed)(Alexa, Google Assistant, Yandex Alice)
- IP Rate: IP20 Non-waterproof
- Certification: CE, EMC, RED
- Working Temperature: -10-40℃
- 5 Years Warranty

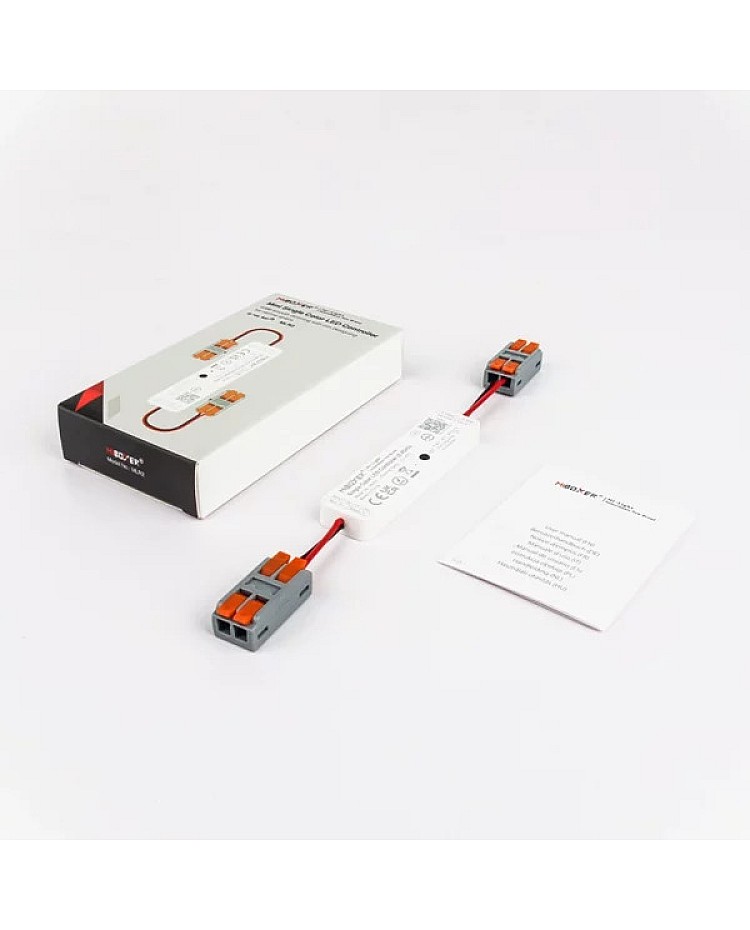

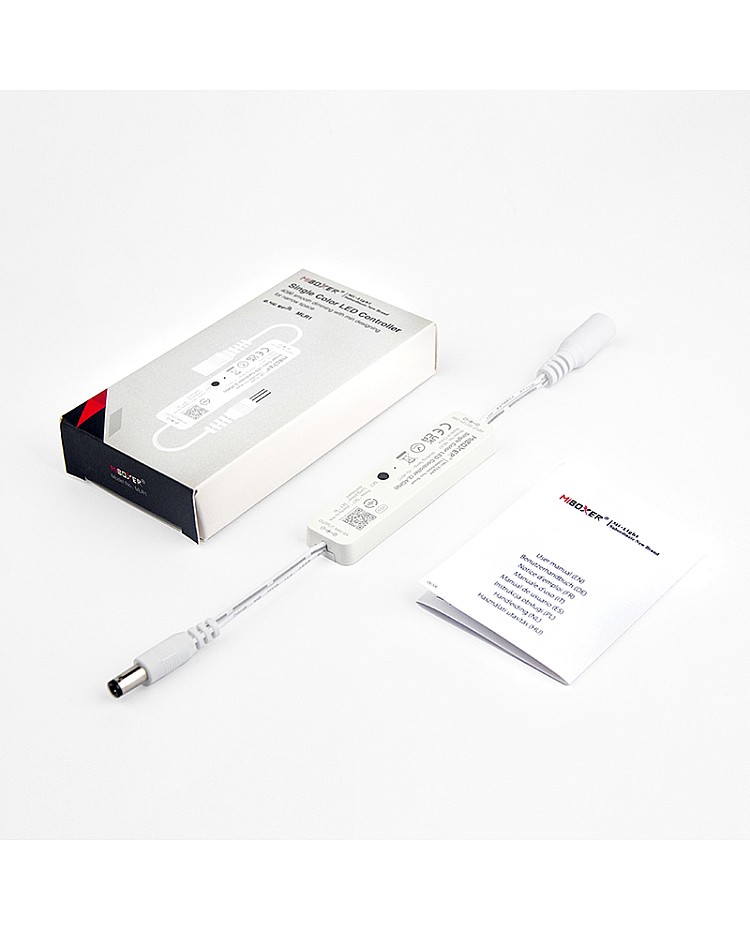

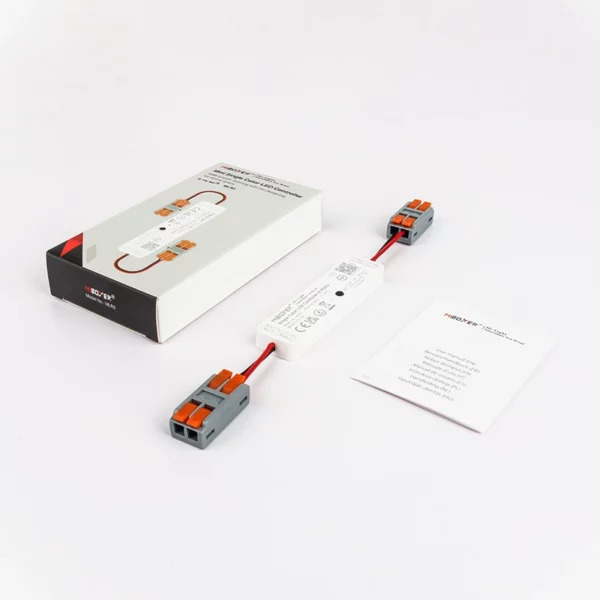

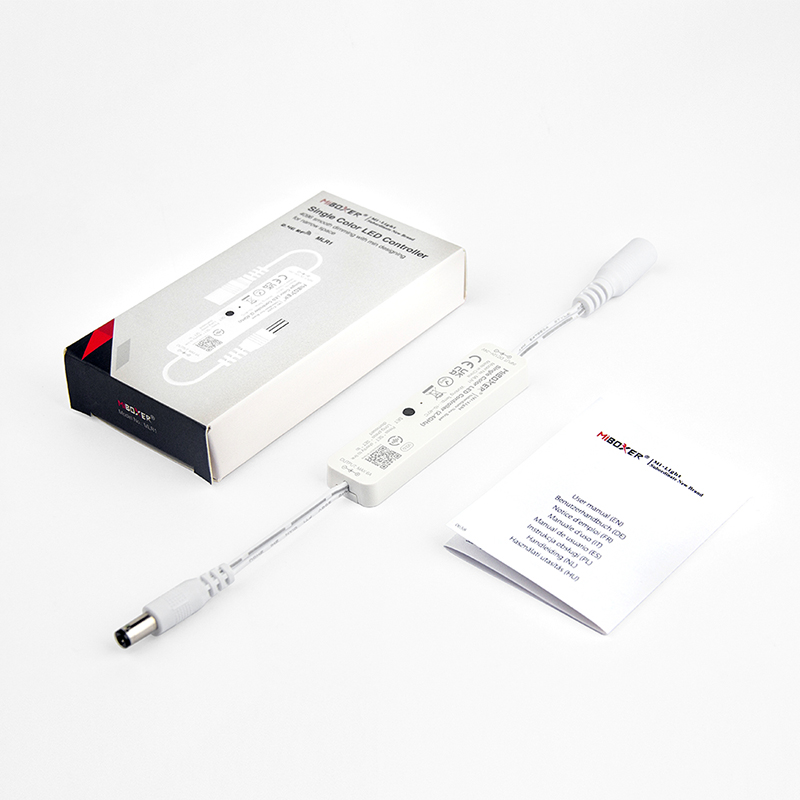

Includes:
1*MiBoxer Inline Light Dimmer
