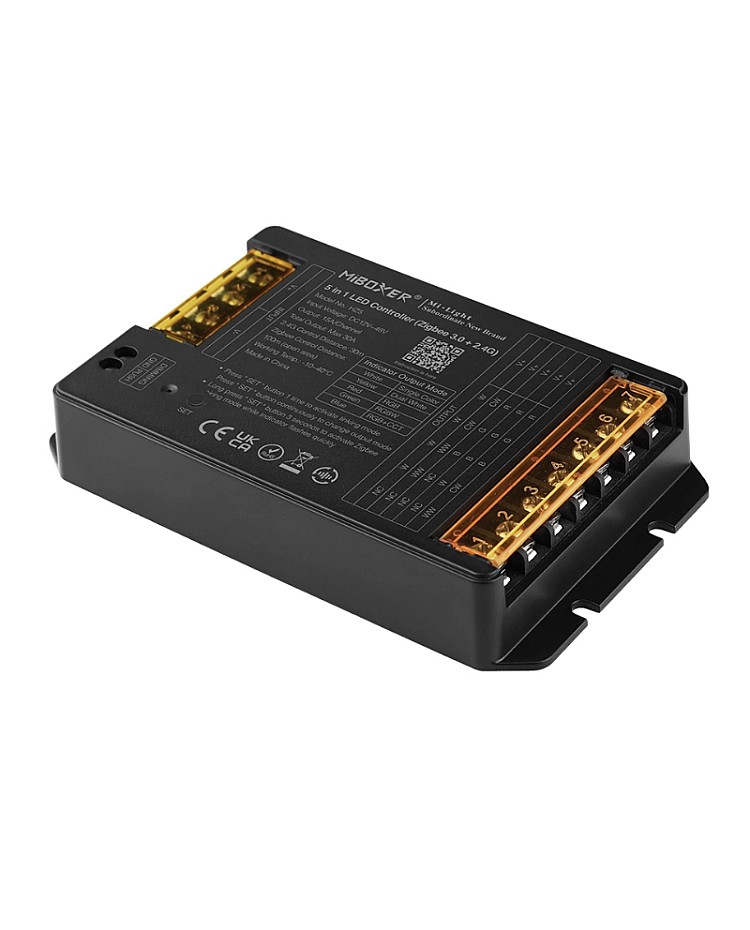

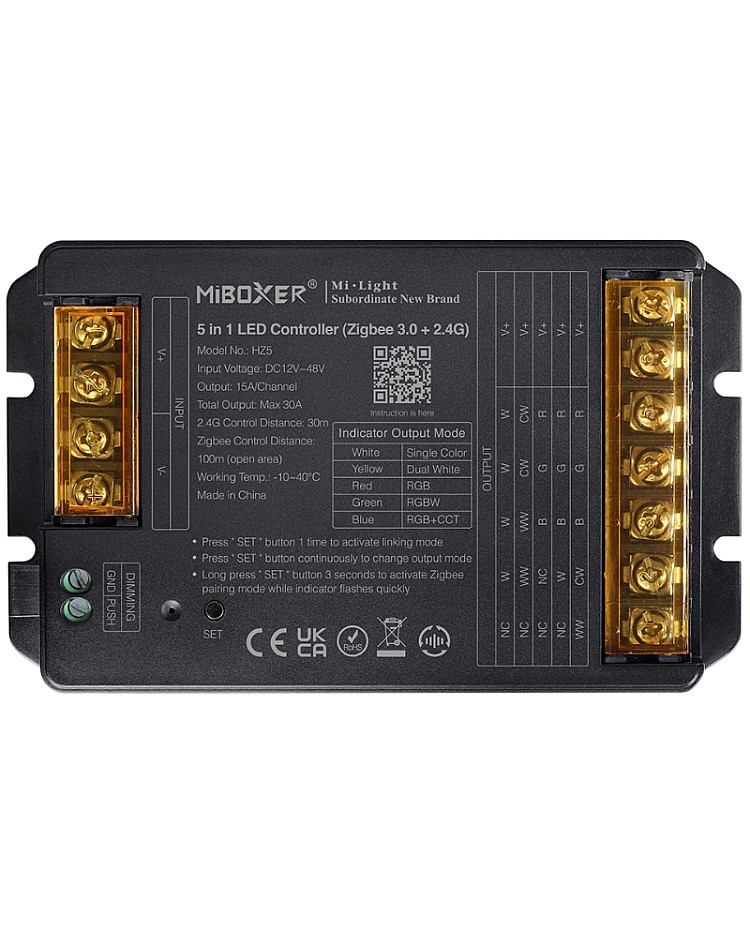

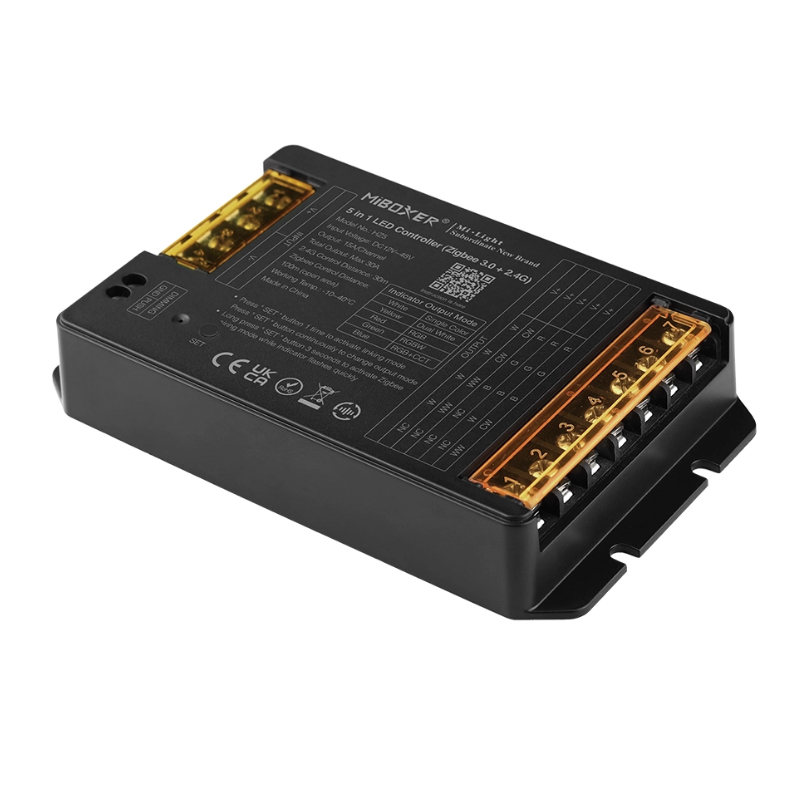

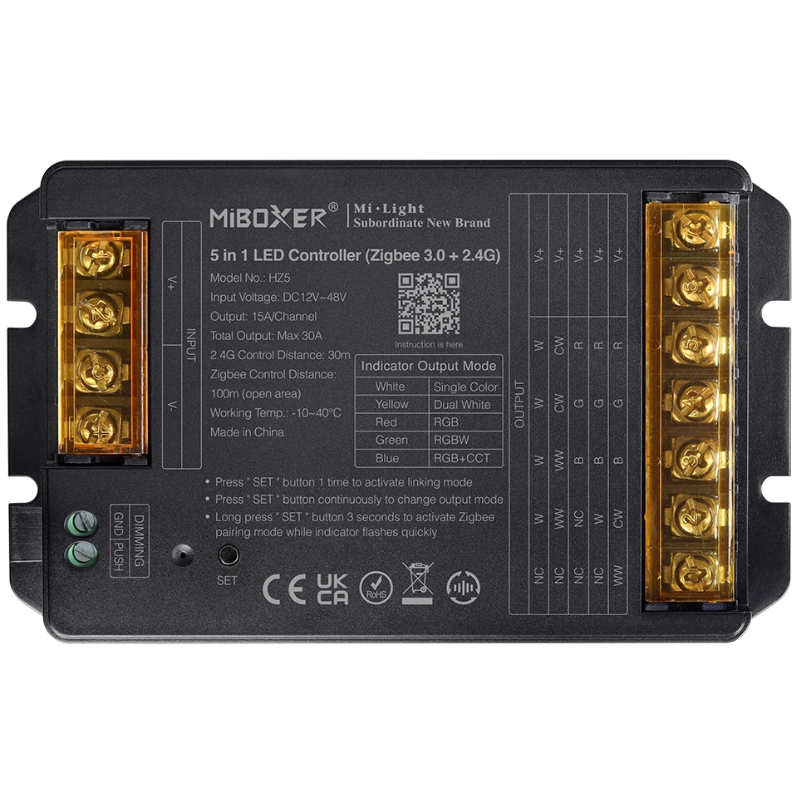

The MiBoxer HZ5 Zigbee remote controller has a 5-in-1 design. Press the "SET" button on the controller to switch the output mode from single color, dual white, RGB, RGBW, and RGB+CCT. It supports individual or multi-zone control and is widely used for home or commercial applications. The max output current is up to 30A, allowing more LED lights per unit. The HZ5 integrates Zigbee 3.0 and 2.4G standard wireless transmission technology with lower power consumption and a mesh network with a strong ability for anti-interference. MiBoxer 2.4G remote controls can control them to adjust the static color or dynamic mode and adjust the color temperature or brightness of your LED Lighting for various scenes. There are 16 million colors and 18 dynamic modes available. The Zigbee controller will forward the remote control signal to another 30A controller within 30 meters, making the control distance infinite. And all controllers will work in synchronization. After being paired with the Zigbee 3.0 gateway, the Zigbee 3.0 controller can be controlled by Tuya Smart APP to achieve more functions like wireless dimming, timmer, group control, music rhythm, etc. And support third-party voice control commands. It can enter into Philips Hue, IKEA TRADFRI, and Amazon series standard Zigbee 3.0 gateways.
Features:
- Type: 5 In 1 Zigbee 3.0 + 2.4G RF LED Controller
- Model: HZ5

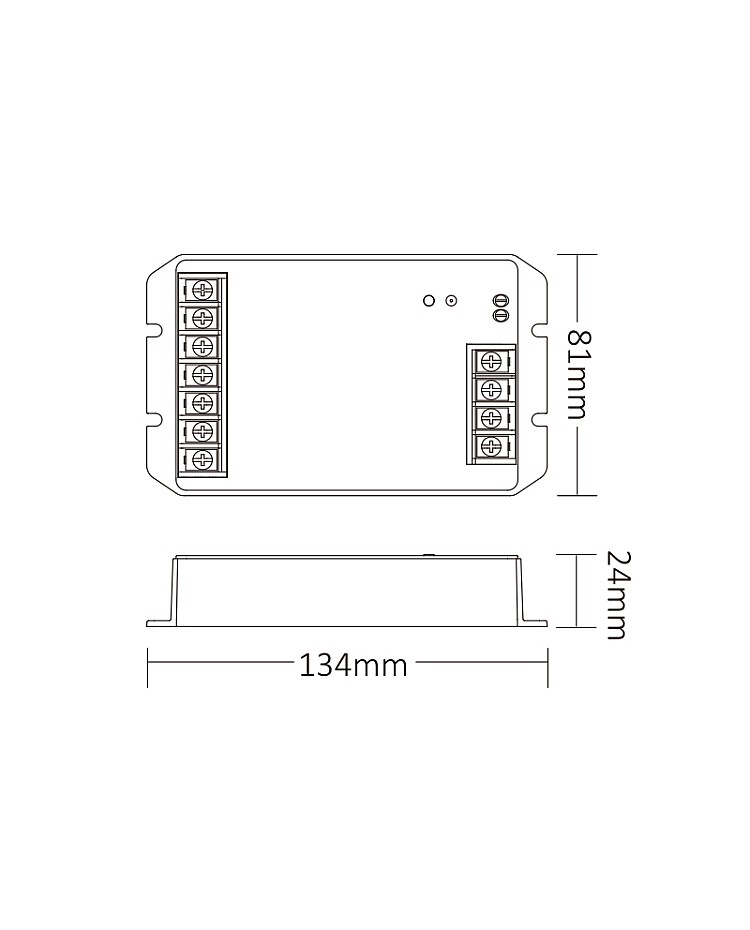

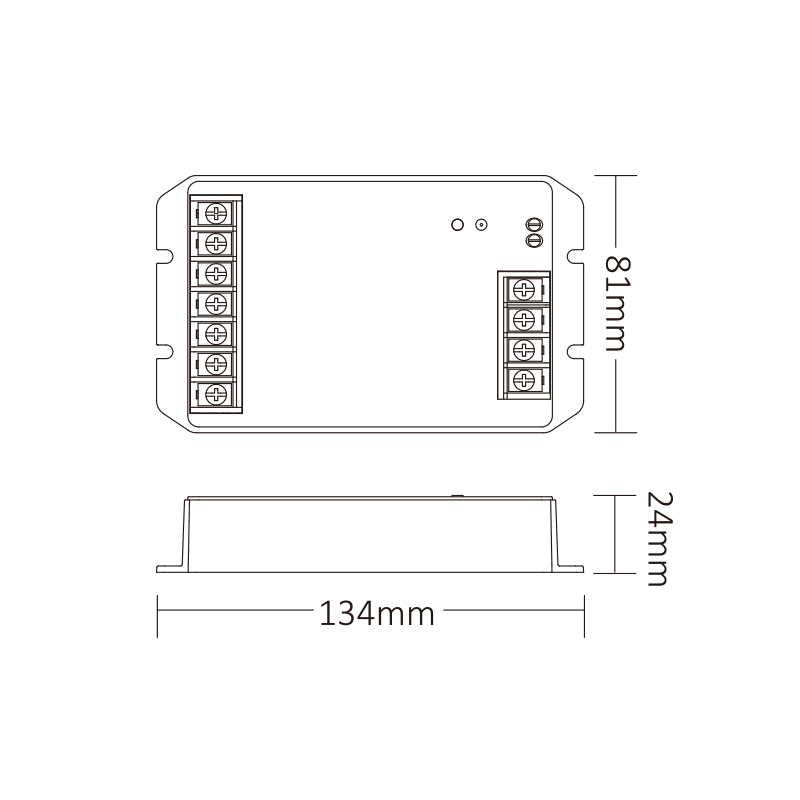

- Size: 134*81*24mm(L*W*H)
- Input Voltage: DC12-48V
- Output Current: 30A
- 16 Million Colors Adjustable / Saturation Adjustable / Color Temperature And Brightness Adjustable
- Built-in 18 Dynamic Modes With Jumping, Gradually Changing(Only For 2.4G Remote Control)
- Support PUSH Dimming
- Auto-forwarding
- Automatic Synchronization
- Have DND Function
- Control Signal: Zigbee 3.0 + 2.4GHz RF
- Control Distance: Zigbee: ≤100m(Open Area) / 2.4G RF: ≤30m
- Support TUYA SMART APP Control(Zigbee 3.0 Gateway Needed)
- Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu And Xiaomi
- Support DMX512 Control(DMX512 LED Transmitter Needed)
- Can Enter Into Philips Hue, IKEA TRADFRI, Amazon Echo Plus(2nd Gen), Echo(4th Gen), Echo Studio, Echo Show(2.Gen) Standard Zigbee 3.0 Gateways
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Certification: CE, EMC, RED
- 2 Years Warranty
Includes:
1*HZ5 Zigbee Remote Controller
