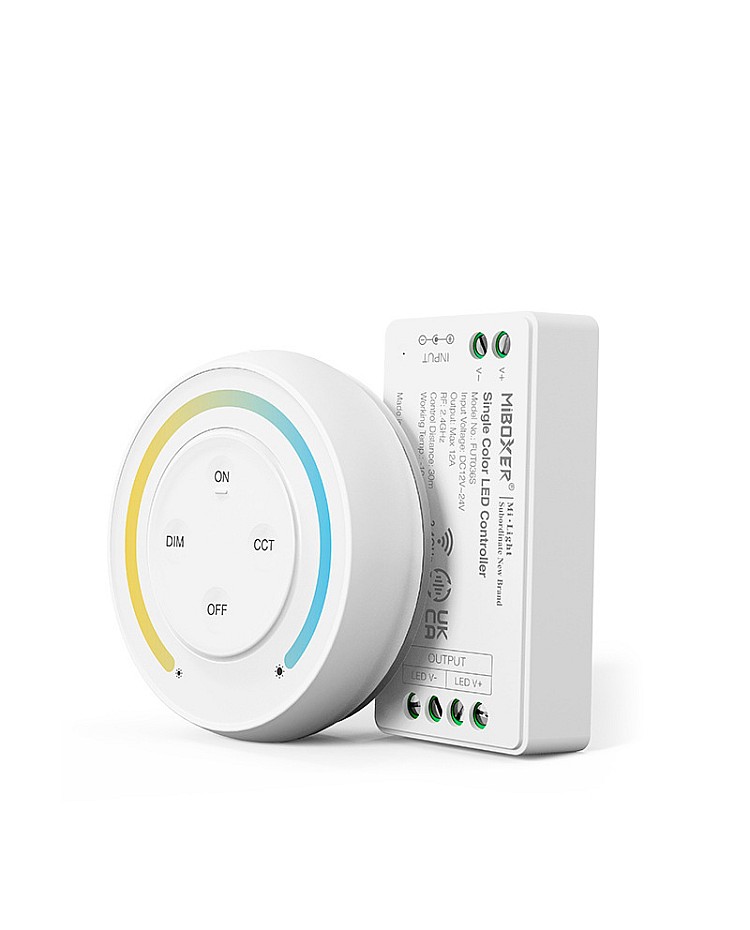

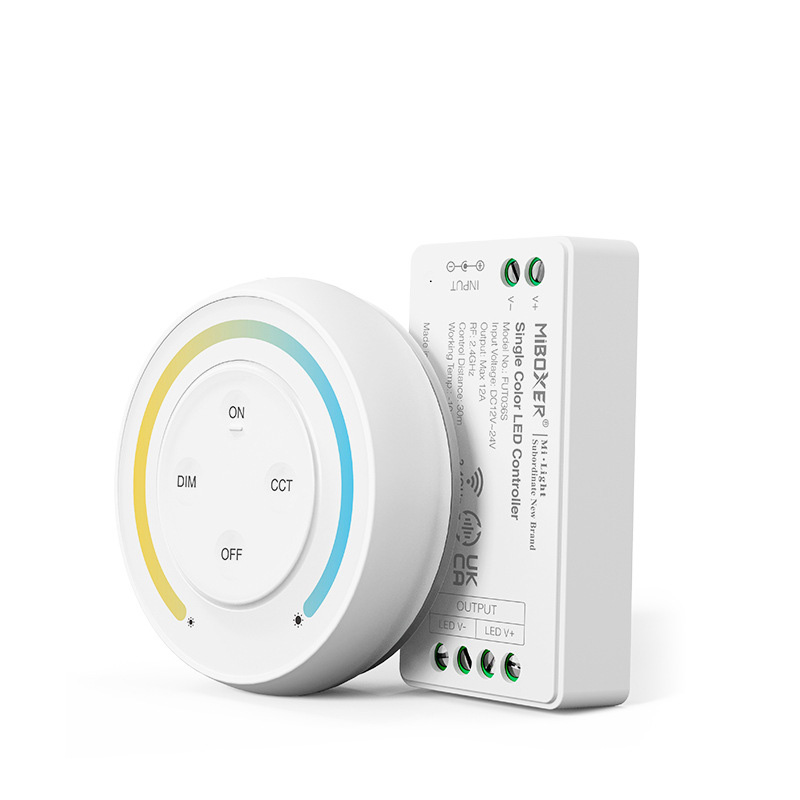

The MiBoxer FUT036SA PWM Dimmer is a versatile, adjustable dimmer switch that can be used to control the brightness of LED Lights. It features a 2.4G remote control that allows you to adjust the light levels easily without having to adjust the switch physically. Working in DC12V or DC24V, the max output current is 12A and adopts 2.4G transmitting technology, with strong anti-interference, long-distance transmission, and control distance of up to 30 meters. The 24V LED Dimmer can be controlled by a smartphone APP and third-party voice control after adding a 2.4G Gateway, which can work with Amazon Alexa and Google Assistant. You can use the voice commands to turn ON/OFF and adjust the brightness. You can touch the dimming slider on the Remote Control to adjust the brightness from 1% to 100% and press the buttons to turn ON/OFF the LED Lights. The Remote Control comes with a magnetic base holder, which you can easily remove and put back. The working frequency of the PWM Dimmer is switchable, and you can choose the 8KHz high frequency or 500Hz low frequency. The Remote Dimmer For LED Lights will receive the signals from the remote control and transmit to other Dimmers within 30 meters; all of the LED Dimmers will work at the same status. This device is an excellent choice for those looking for an easy way to control the lighting in their home or office.
Quick Links:

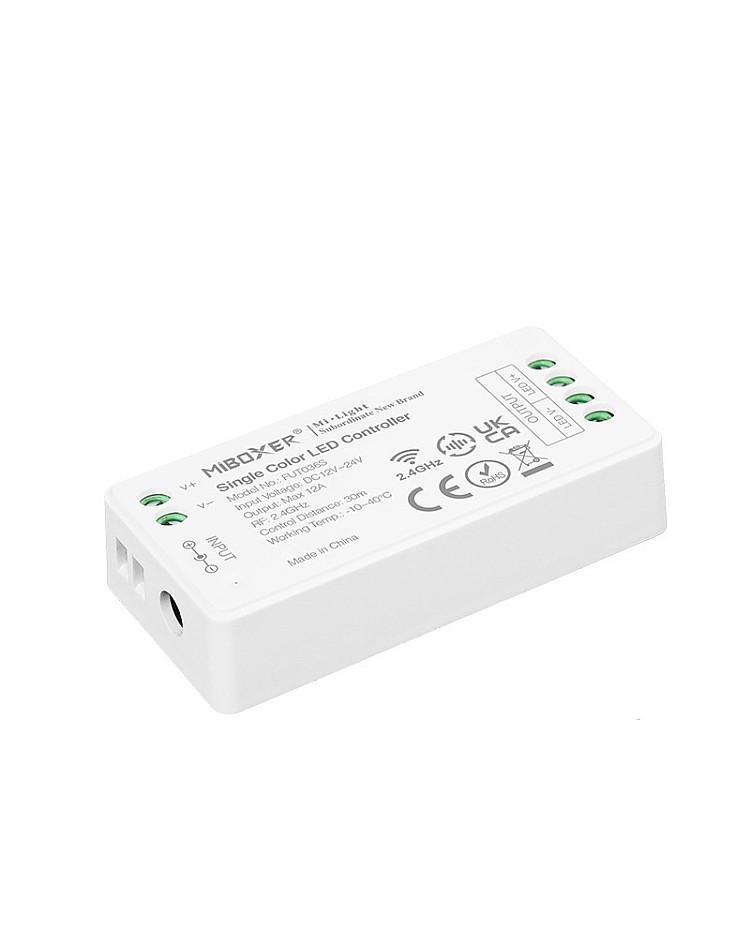

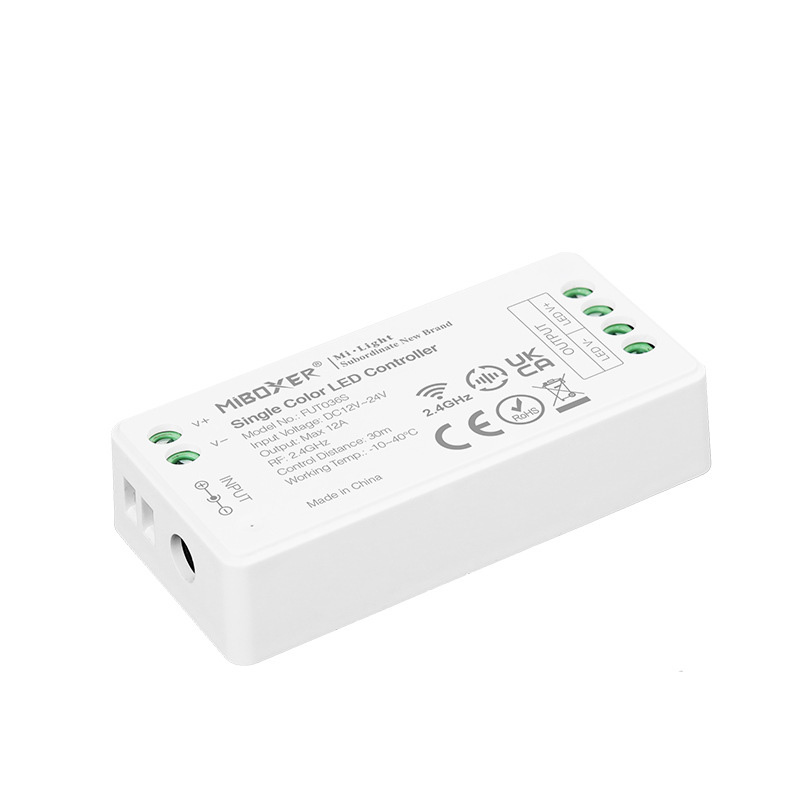

12V LED Dimmer Features:
- Models: FUT036SA(Single Color), FUT035SA(Dual White)
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: DC12-24V
- Total Output Current: 12A
- RF: 2.4GHz
- Output Connection: Common Anode
- Control Distance: ≤30m
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
- PWM High Frequency(8KHz0 And Low Frequency(500Hz) Can Be Switched
- Signal Transmitting
- Working Temperature: -10-40℃
- 2 Years Warranty

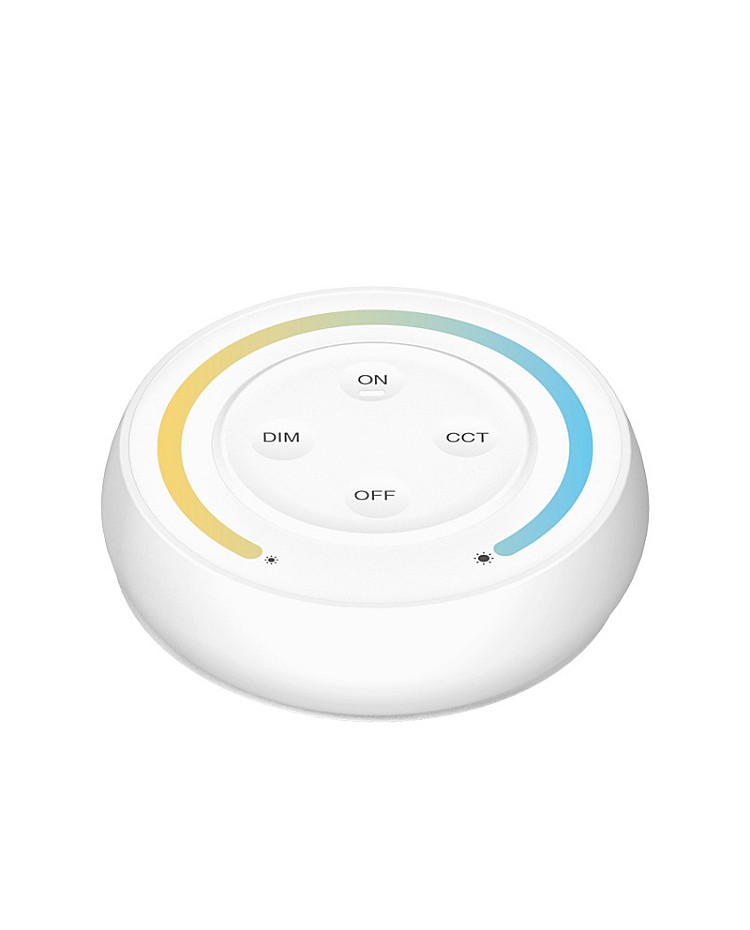

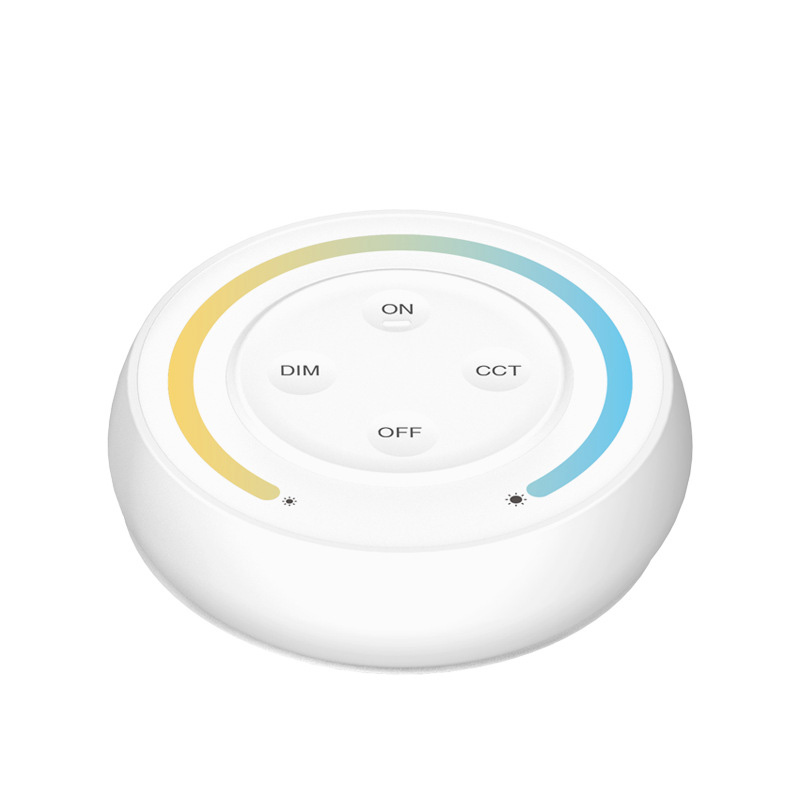

RF Remote Features:
- Size: Φ70*24mm

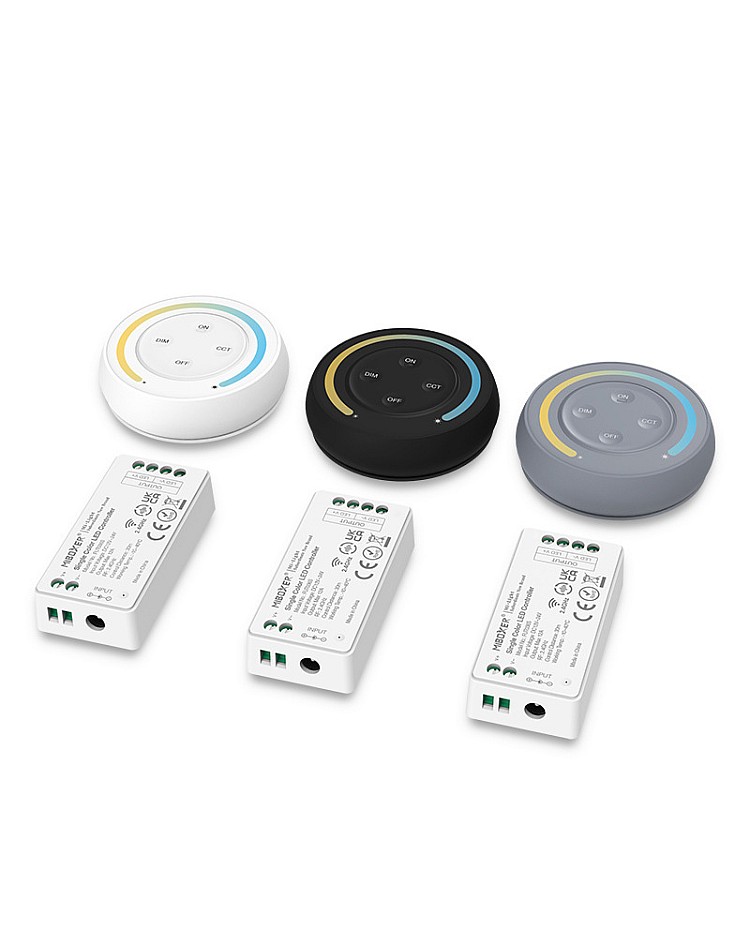

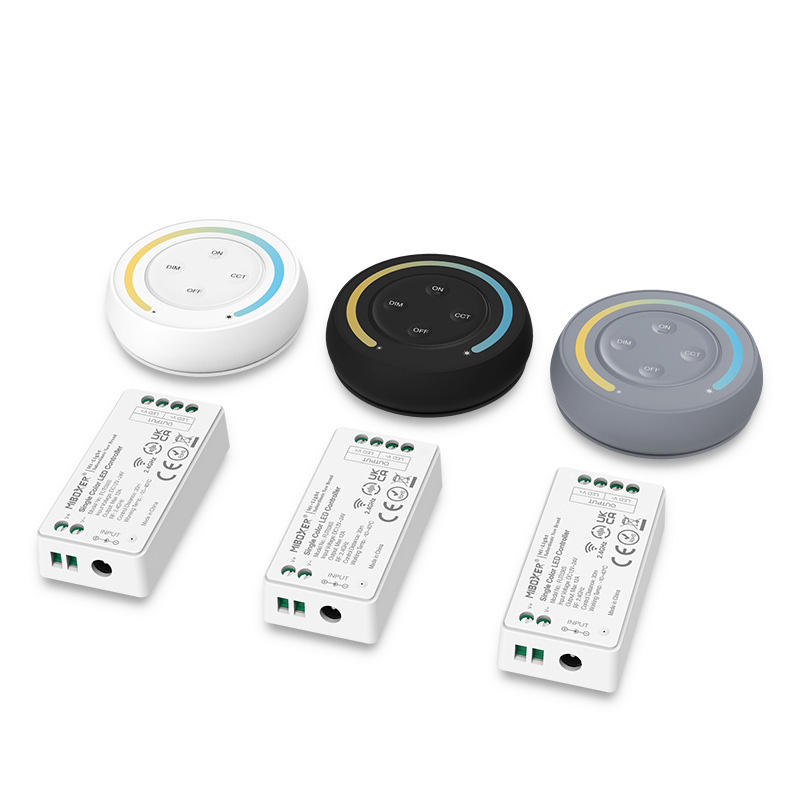

- Colors: Black, White, Grey
- Working Voltage: DC3V
- Powered By 2PCS AAA Batteries
- Transmitting Power: 6dBm
- Standby Power: 20uA
- RF: 2.4GHz
- Modulation Method: GFSK
- Control Distance: ≤30m
- Magnetic Base Holder
Includes:
1*PWM Dimmer
1*User Manual
