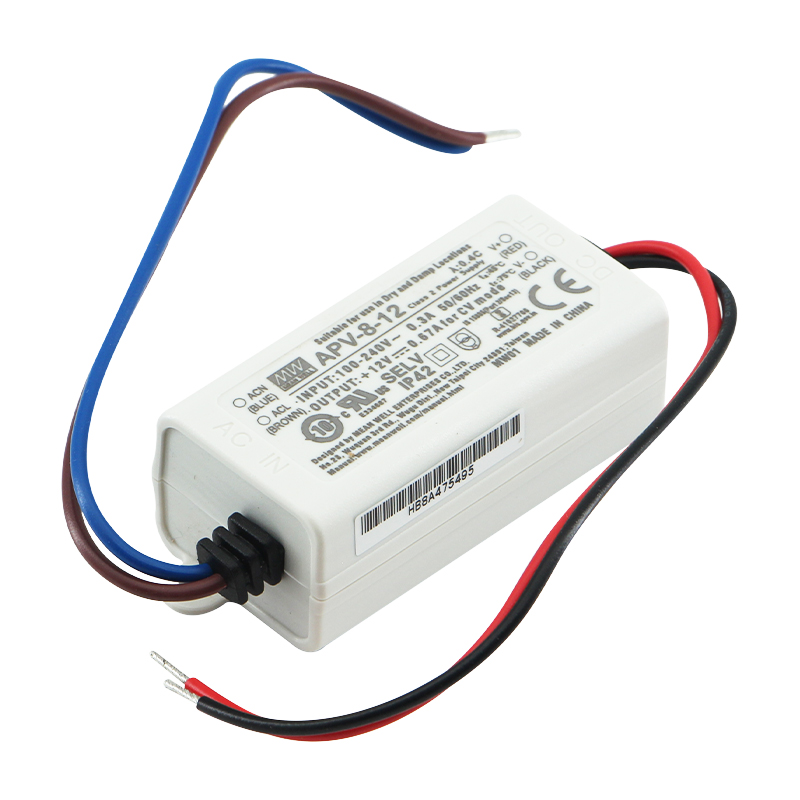

Check the Mean Well APV-8 Series Power Supply, with the constant output voltage design, you can choose the various output voltage products from DC5V, DC12V and DC24V. the Power Supply with single output design, max loading power only 8W when working in DC12V and DC24V, with the small and compact size, you can install them in a narrow place, the Power Supply was enclosed in a fully isolated plastic case, suitable for the dry and damp locations. you can use them for the LED Lamps, LED Decorations or Advertisement Devices.

  • Constant Voltage Design
  • Universal AC Input / Full Range
  • Class II Power Unit, no FG
  • Fully Isolated Plastic Case
  • IP42 Design
  • Small And Compact Size
  • Cooling By Free Air Convection
  • Protections: Short Circuit / Over Load / Over Voltage
  • No Load Power Consumption: <0.5W
  • 100% Full Load Burn-In Test
  • Low Cost, High Reliability
  • 2 Years Warranty

Quick Links:

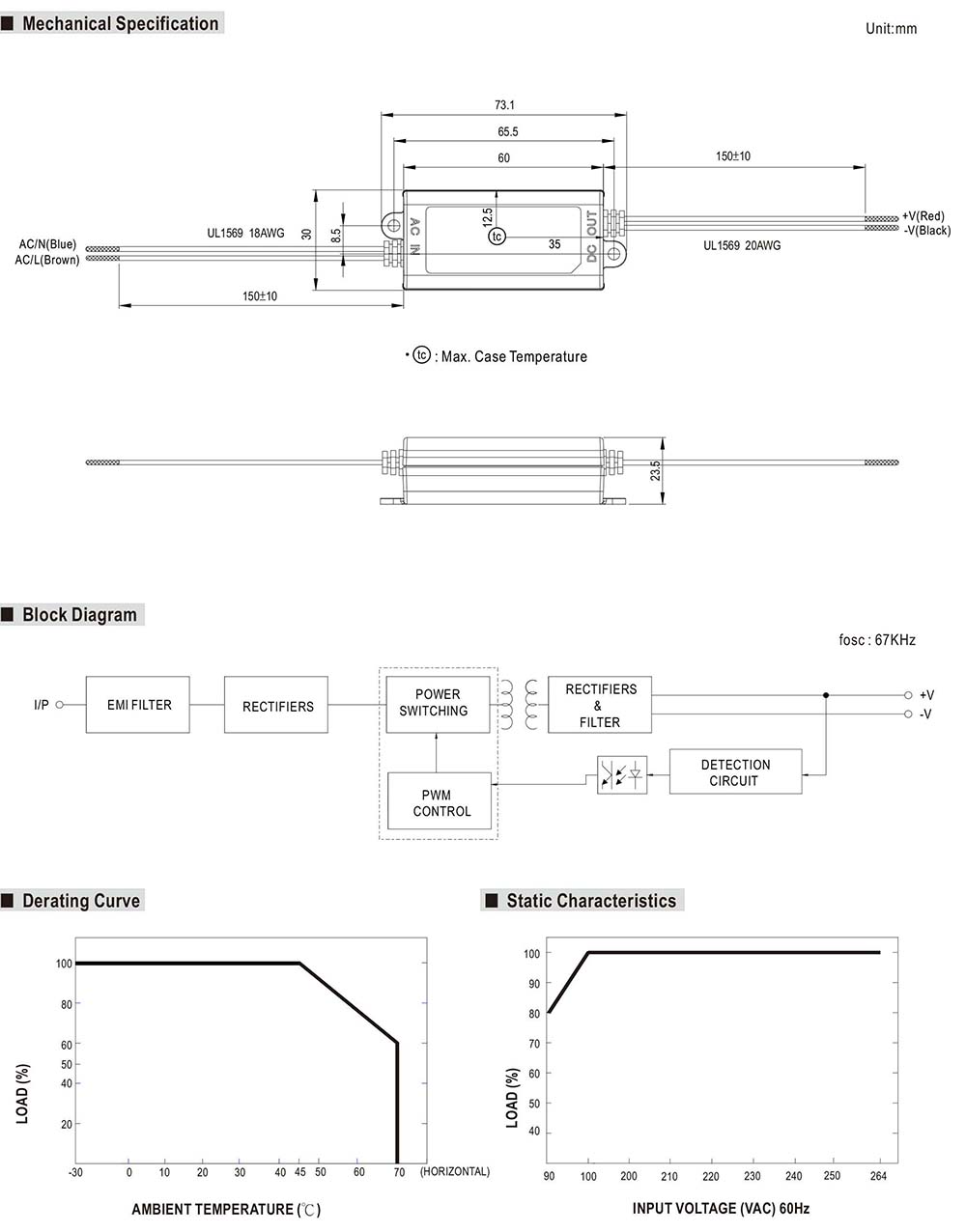

Meanwell APV-8 Specification Document


Features:

  • Mode: APV-8
  • Size: 60*30*23.5mm(L*W*H)
  • Input Voltage: 90-264VAC
  • Frequency Range: 47-63Hz
  • Efficiency: 74%(DC5V), 80%(DC12V), 81%(DC24V)
  • AC Current: 0.15A/230VAC 0.3A/115VAC
  • Output Voltage: DC5V, DC12V, DC24V
  • Rated Current: 1.4A(DC5V), 0.67A(DC12V), 0.34A(DC24V)
  • Rated Power: 7W(DC5V), 8.04W(DC12V), 8.16W(DC24V)
  • Working Temperature: -30-+70℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, the period for 60min. each along X, Y, Z axes
  • Safety Standards: UL8750, CSA C22.2 NO.250.0-08, BIS IS 15885(Except For 5V), EAC TP TC 004 Approved; Design Refer To EN62368-1, EN61347-1, EN61347-2-13
  • Short Circuit Protection
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection


Includes:

1*Mean Well APV-8 Power Supply

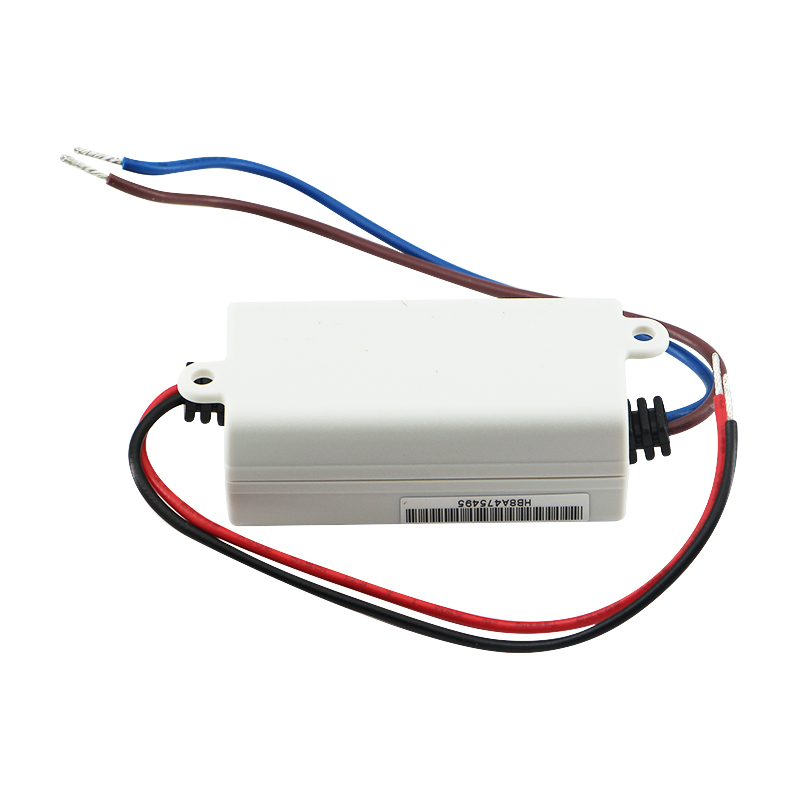

APV-8 LED Power Supply 24V
