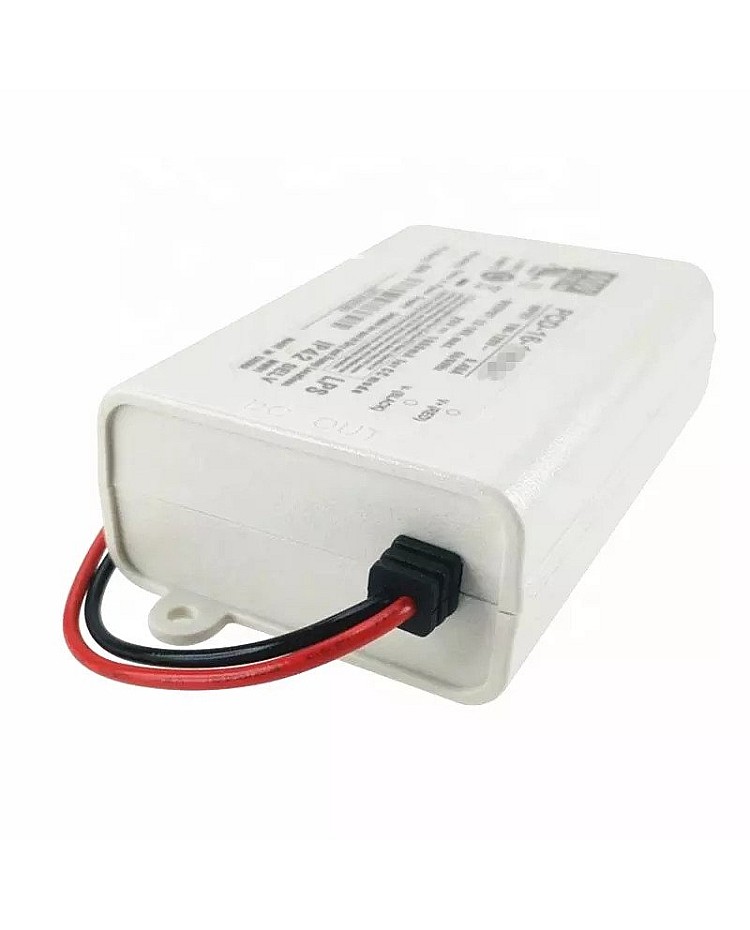

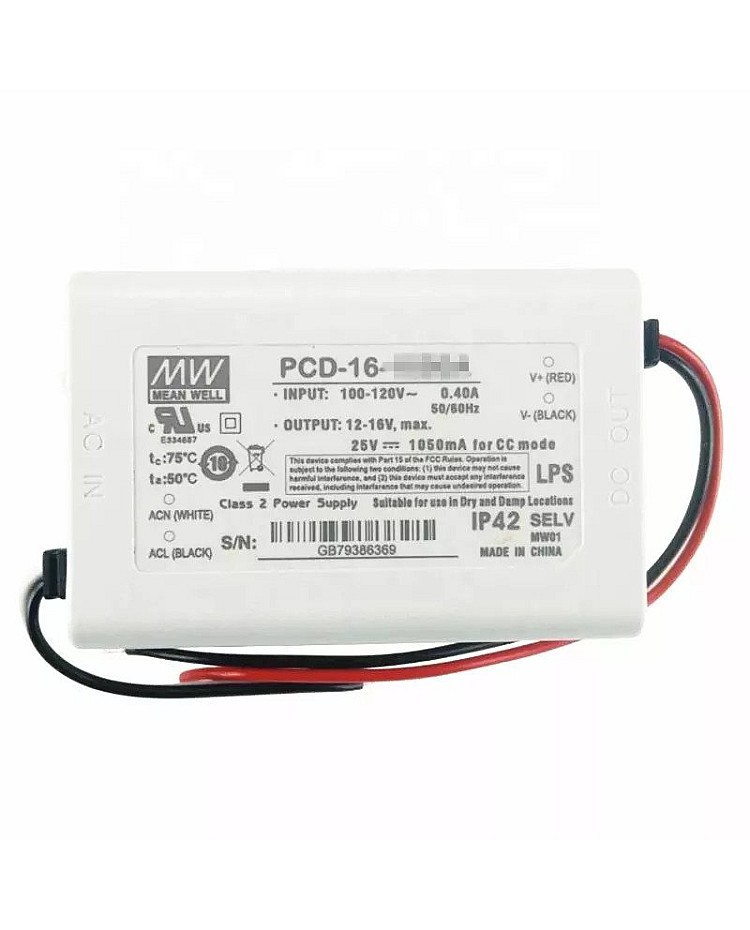

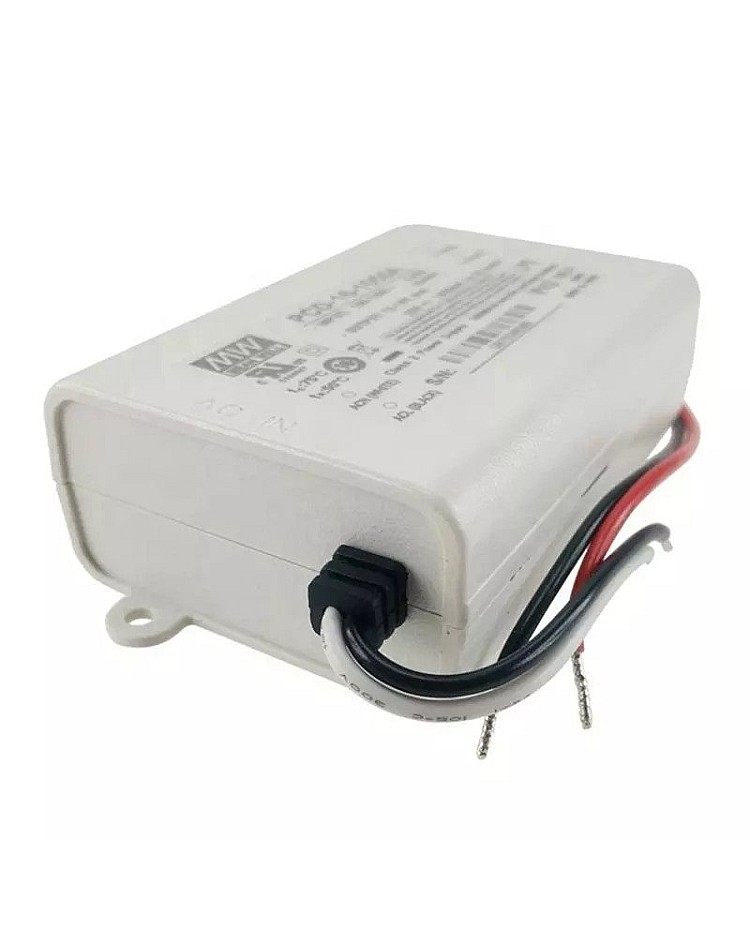

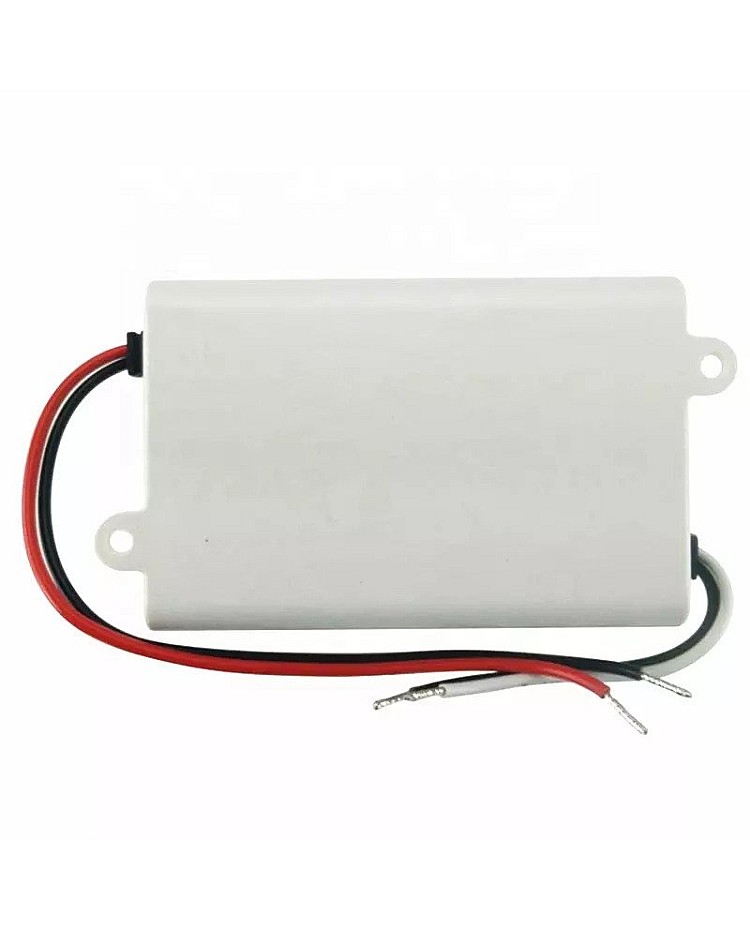

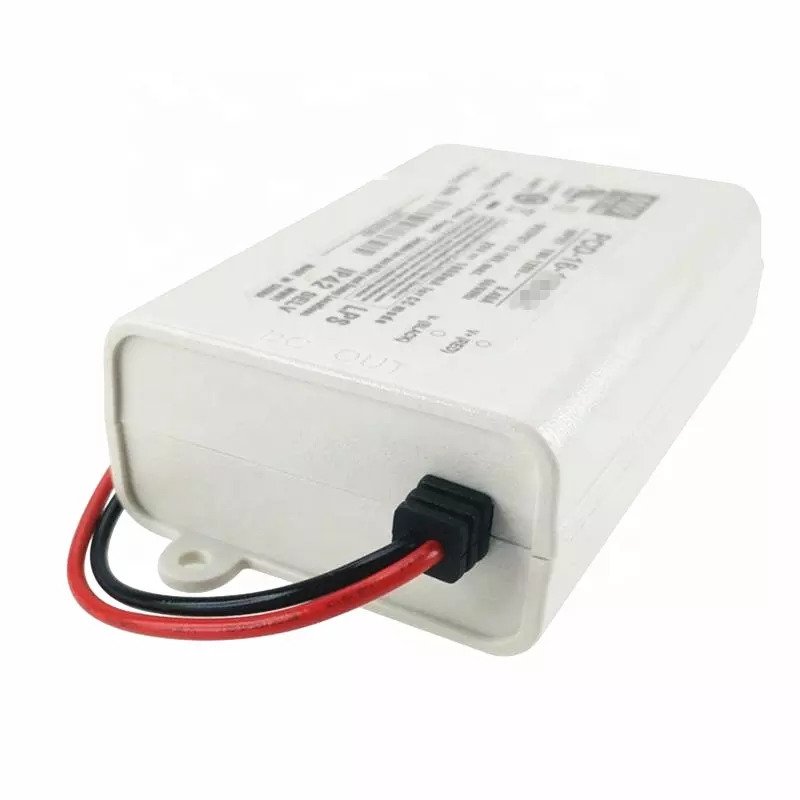

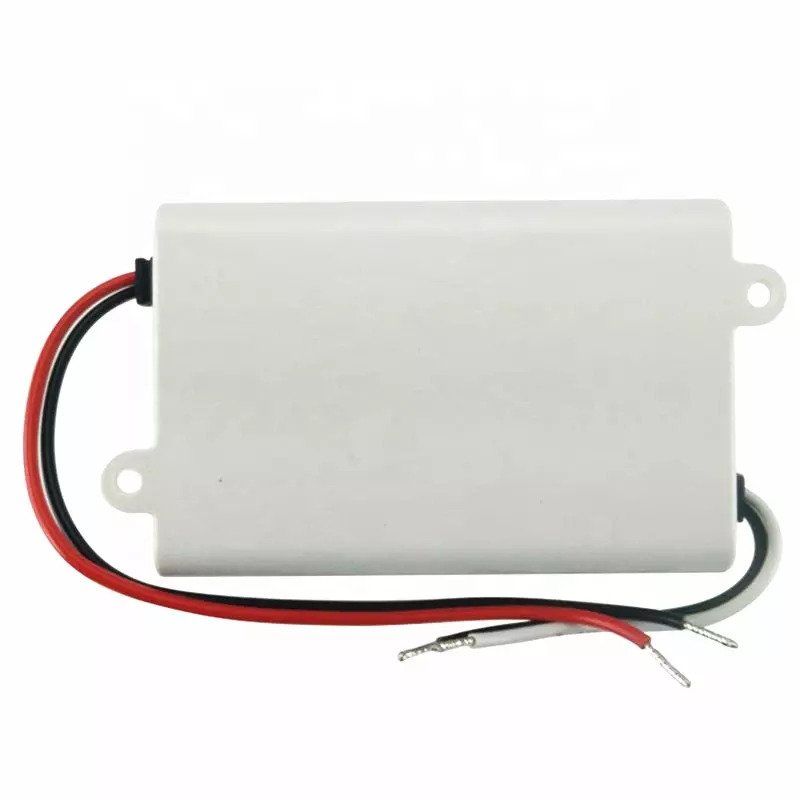

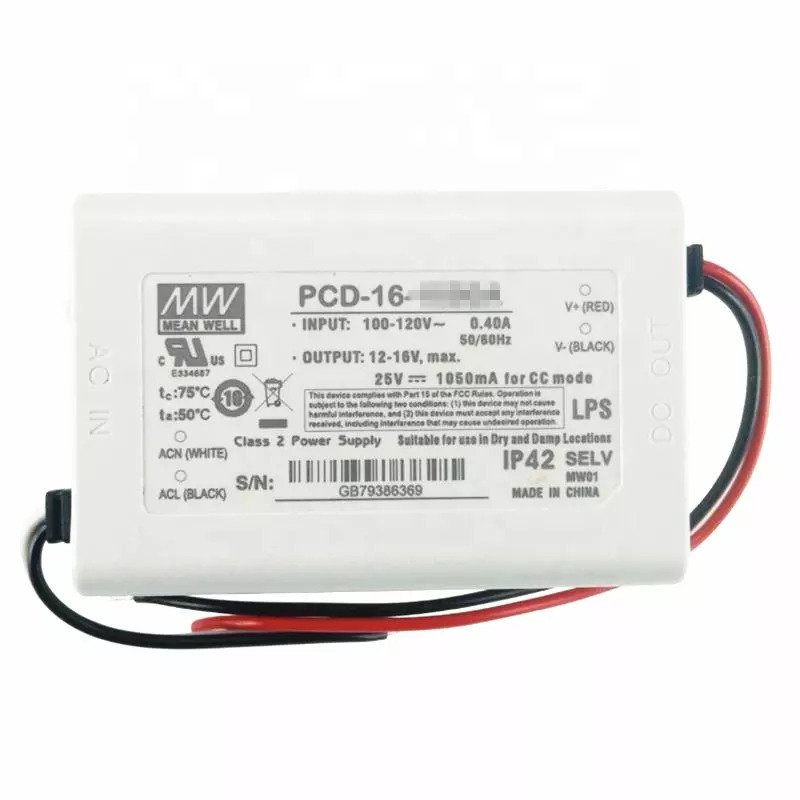

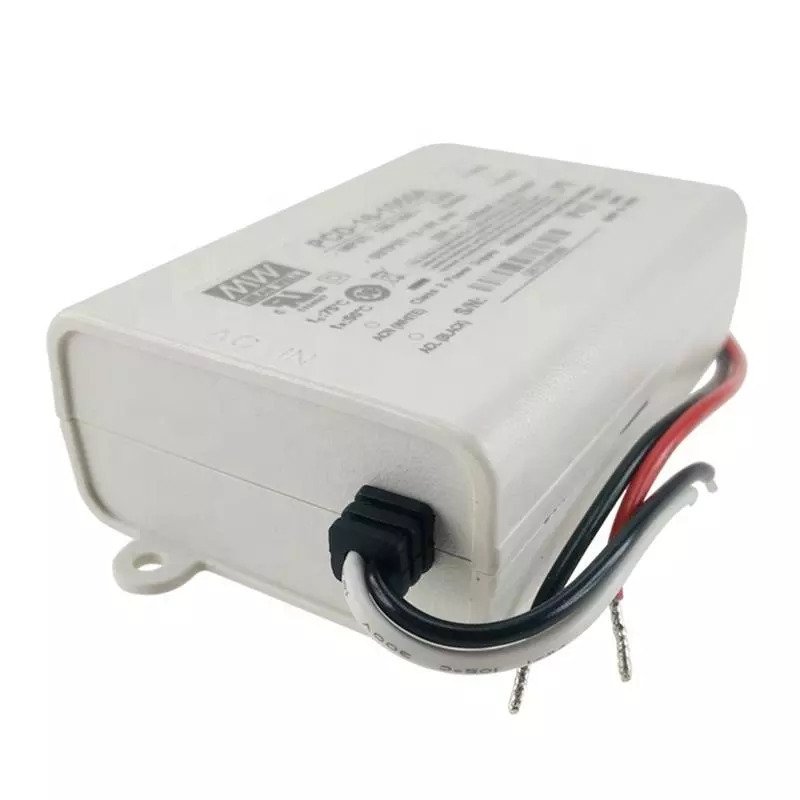

Check the Mean Well PCD-16 Triac Dimming LED Drivers, which with constant current design and are suitable for LED Related fixtures, LED Decoration or Advertisement Devices. offers AC phase-cut dimming, can work with leading-edge and trailing-edge Triac Dimmers. there are A series and B series available for 115VAC or 230VAC input. you can choose the various rated current Triac Drivers from 350mA, 700mA, 1050mA and 1400mA. the Mean Well Dimming Driver is fully isolated in a plastic case and with an IP42 design, waterproof and dustproof. with multiple protections to ensure safety and reliability, low cost and 3 years warranty.
- AC Phase-Cut Dimming
- Work With Leading Edge And Trailing Edge Triac Dimmers
- 115VAC Or 230VAC Models Available
- Built-in Active PFC Function
- Constant Current Design
- Cooling By Free Air Convection
- Full Isolated Plastic Case
- Class II Power Unit, no FG
- IP42 Design
- 100% Full Load Burn-in Test
- Low Cost, High Reliability
- Suitable For LED Related Fixture Or Appliance
Features:
- Model: PCD-16
- Brand: Mean Well
- Size: 84*57*29.5mm(L*W*H)
- Models: PCD-16-350, PCD-16-700, PCD-16-1050, PCD-16-1400
- Type: A: With AC Input 90-135VAC; B: With AC Input 180-295VAC
- Rated Current: 350mA(PCD-16-350), 700mA(PCD-16-700), 1050mA(PCD-16-1050), 1400mA(PCD-16-1400)
- Working Voltage Range: 24-48V(PCD-16-350), 16-24V(PCD-16-700), 12-16V(PCD-16-1050), 8-12V(PCD-16-1400)
- Current Accuracy: ±5%
- Rated Power: 16.8W
- Ripple & Noise (Max.) note.1: 4.6Vp-p(PCD-16-350), 2.7Vp-p(PCD-16-700), 2.2Vp-p(PCD-16-1050), 2Vp-p(PCD-16-1400)
- No Load Output Voltage(Max): 60V(PCD-16-350), 35V(PCD-16-700), 25V(PCD-16-1050), 16V(PCD-16-1400)
- Setup Time: 500ms/230VAC, 2000ms/115VAC At Full Load
- Frequency Range: 47-63Hz
- Power Factor: PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC At Full Load
- Total Harmonic Distortion: THD<20% When Output Loading ≥70% And Output Loading ≥80% At 277VAC Input
- Efficiency: 84.5%(PCD-16-350), 84.5%(PCD-16-700), 84%(PCD-16-1050), 82.5%(PCD-16-1400)
- AC Current: 0.4A/115VAC, 0.2A/230VAC, 0.15A/277VAC
- Inrush Current: Cold Start 20A At 230VAC
- Max NO. Of PSUs On 16A Circuit Breaker: A Series: 58 Units At 115VAC; B Series: 128 Units At 230VAC
- Leakage Current: <0.5mA/240VAC
- Working Temperature: -30℃-+50℃
- Working Humidity: 20-95% RH Non-condensing
- Storage Temp., HUMIDITY: -40-+80℃, 10-95% RH
- Temp.Coefficient: ±0.03%/℃(0-50℃)
- Vibration: 10-500Hz, 2G 12min./1 cycle, period for 72 min.each along X, Y, and Z axes
- Safety Standards: UL8750, CSA C22.2 No.250.0-08; ENEC BS EN/EN 613471-1, BS EN/EN 61347-2-13 Independent, BS EN/EN62384(For B Type Only), EAC TP TC 004, IP42 Approved
- Short Circuit Protection
- Over Temperature Protection
- 3 Years Warranty
Includes:
1*Meanwell PCD-16 Triac Dimming Driver
