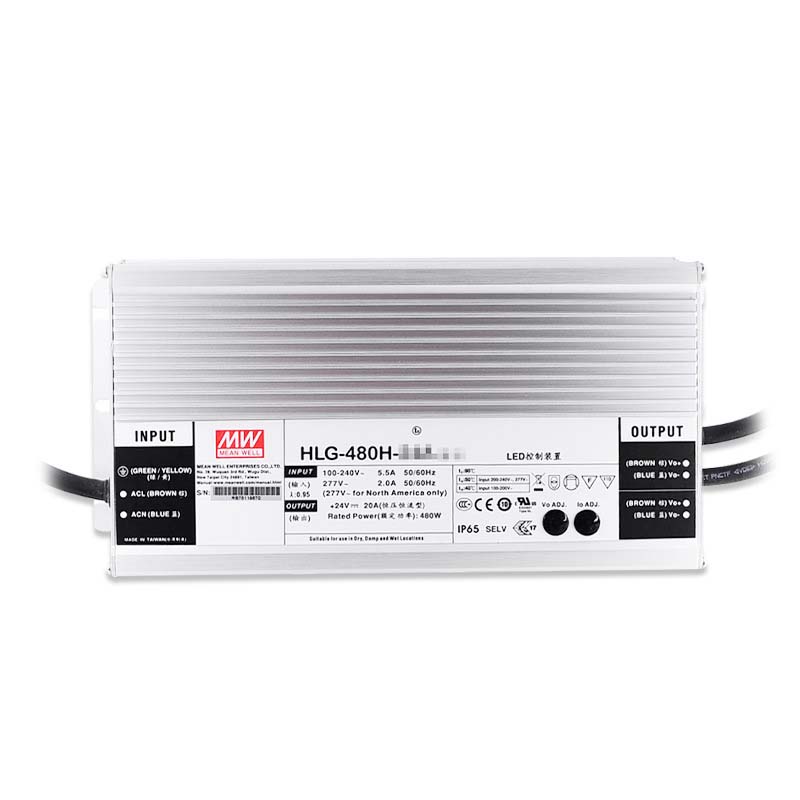

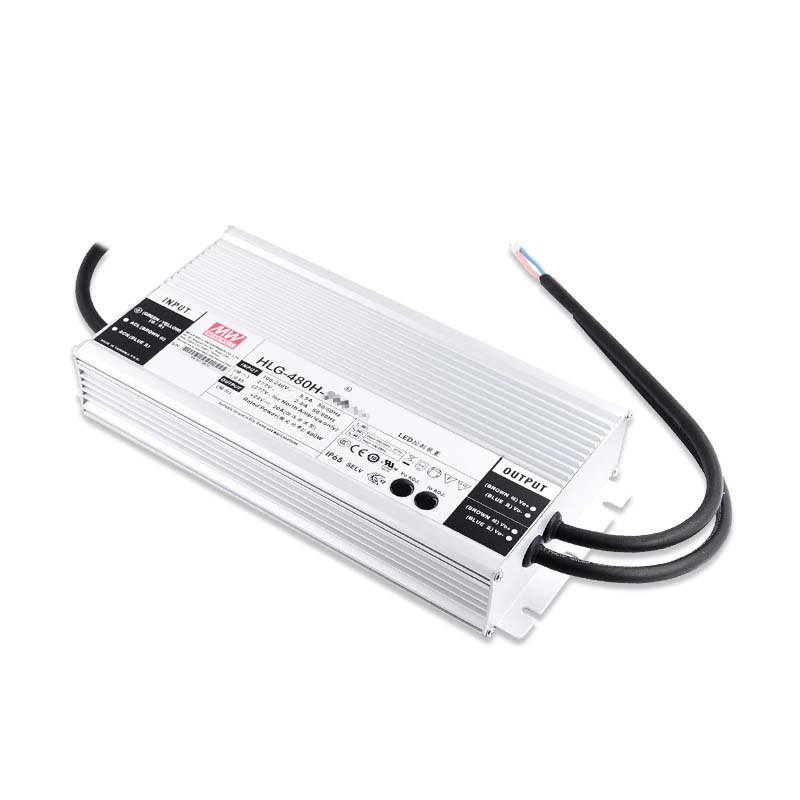

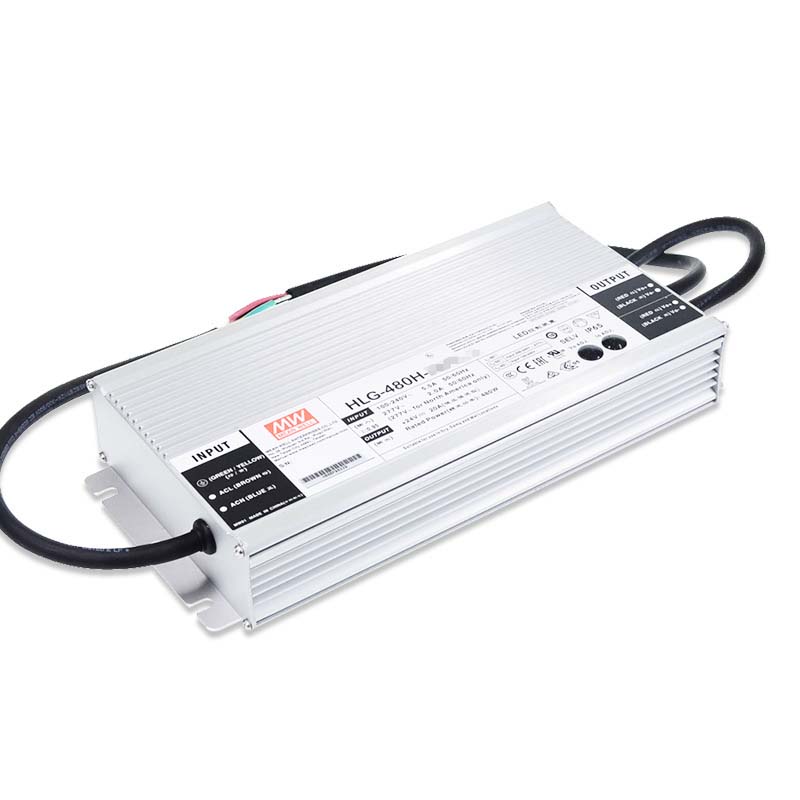

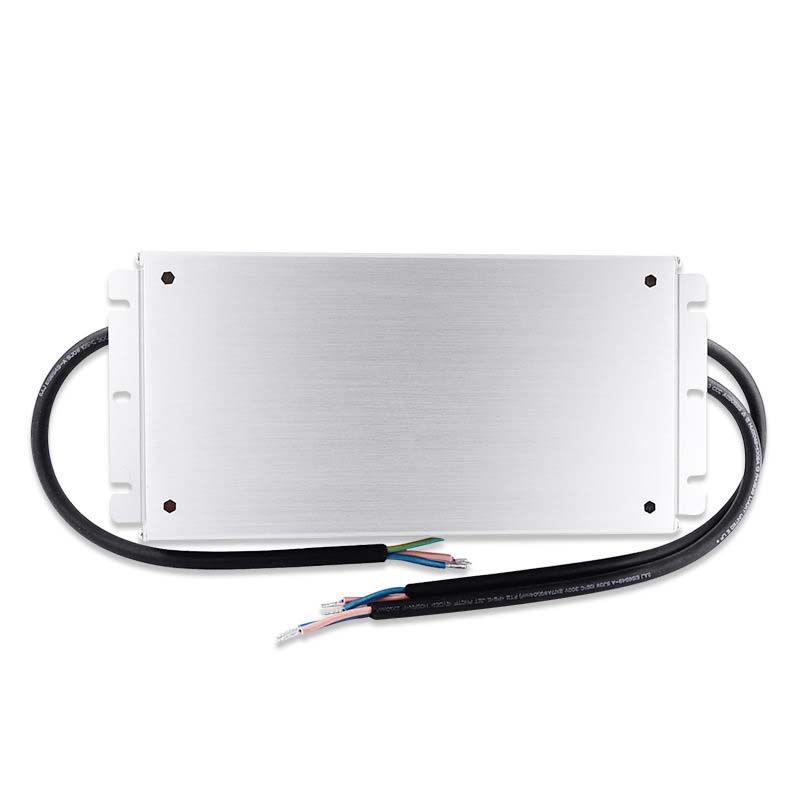

Check the Mean Well HLG-480H DC Converter, which is the 480W AC/DC Converter featuring the dual-mode constant voltage and constant current output design, there are 5 types of LED Converters available, A and AB tyes with output voltage and current adjustable design, the B and AB types with 3 in 1 dimming function. Dx and D2 with built-in smart timer dimming function. the input voltage between AC90V to AC305V and offers models with different rated voltage ranging between DC24V to DC54V. thanks to the high-efficiency rate up to 95.5%, without fan design, the HLG 480H series are able to operate for -40℃ to 90℃ case temperature under free air convection. the Mean Well AC DC Converters with the design of metal housing and IP67/IP65 ingress protection level allows to fit both indoor and outdoor applications, you can use them for Harbour, Greenhouse, Statium, Mining, etc. the longer lifespan over 62,000 hours and get 7 years warranty.

  • Constant Voltage + Constant Current Mode Output
  • Metal Housing With Class I Design
  • Built-in Active PFC Function
  • IP67/IP65 Design For Indoor Or Outdoor Installations
  • Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming(Dim-To-Off, Isolated Design); Smart Timer Dimming; Junction Box
  • Lifespan: >62,000 Hours
  • 7 Years Warranty
  • Suitable For LED Harbour, Greenhouse Lighting, Stadium Lights, Mining Lights

Quick Links:

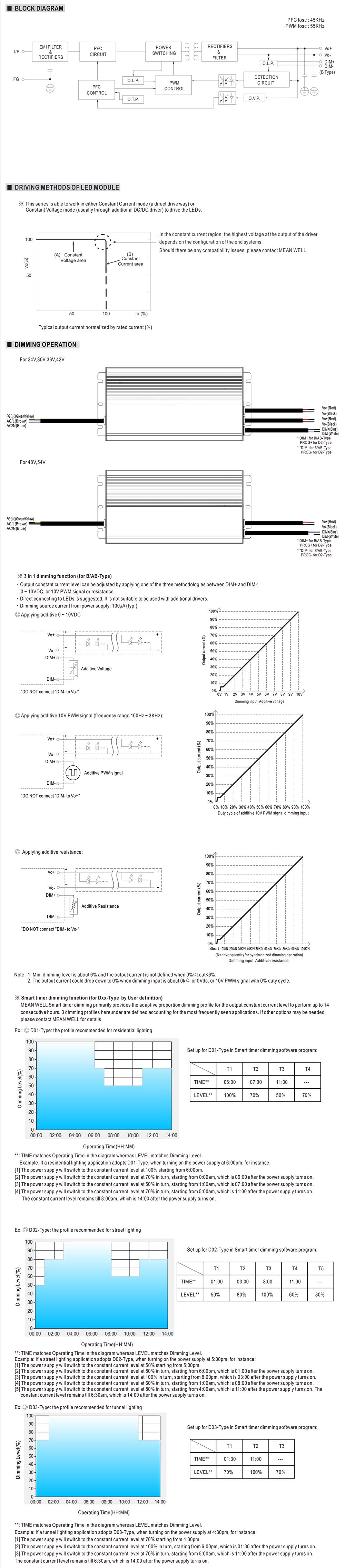

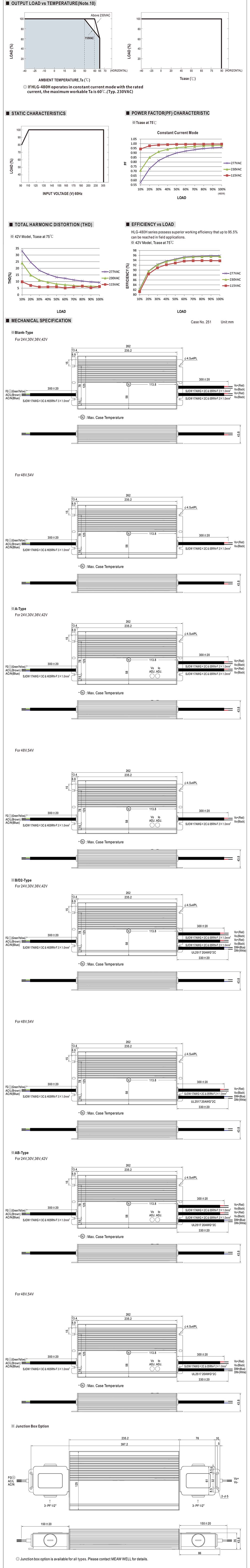

Mean Well HLG-480H Series Specification Document


Features:

  • Model: HLG-480H

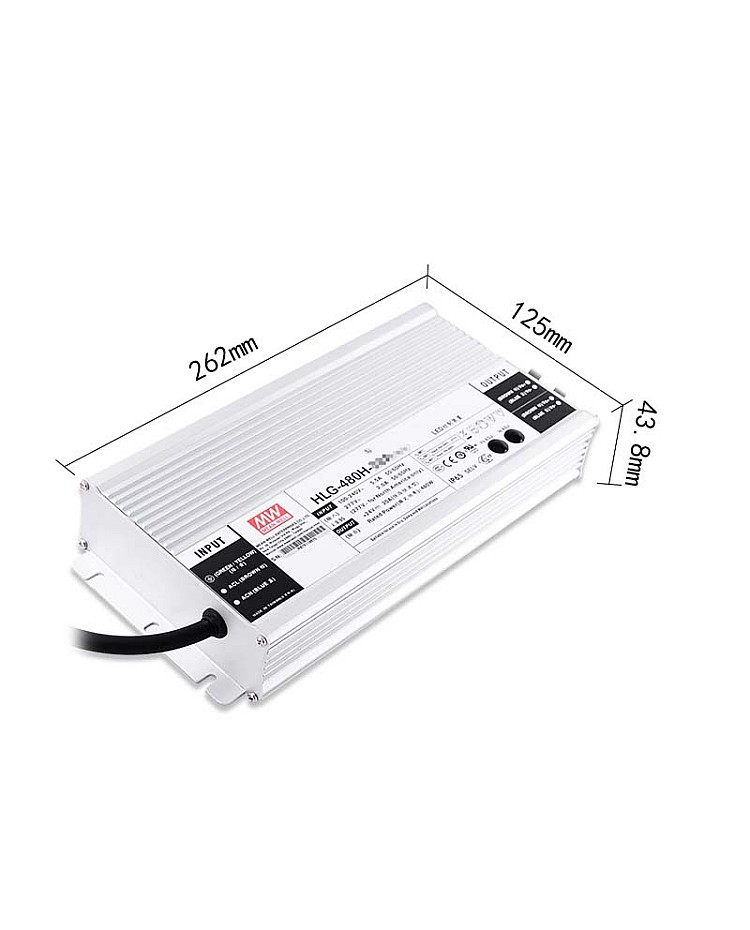

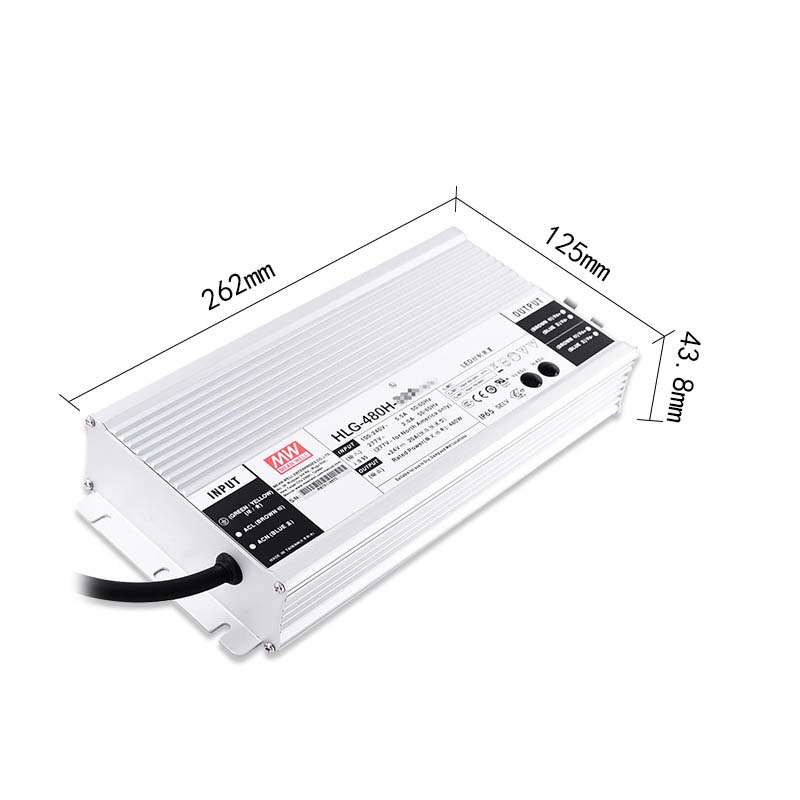

  • Size: 262*125*43.8mm(L*W*H)
  • Types:
  • Blank: IP67 Waterproof Level, Voltage And Current Fixed
  • A: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer
  • B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • AB: IP65 Waterproof Level, Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • Dx: IP67 Waterproof Level, Built-in Smart Timer Dimming Function By User Request
  • D2: IP67 Waterproof Level, Built-in Smart Timer Dimming And Programmable Function
  • D: IP67 Waterproof Level, Timer Dimming Function
  • Input Voltage Range: 90-305VAC
  • Frequency Range: 47-63Hz
  • Power Factor: PF≥0.98/115VAC, PF≥0.97/230VAC, PF0.95≥277VAC
  • Efficiency: 94%(DC24V), 94.5%(DC30V), 95%(DC36V), 95%(DC42V), 94.5%(DC48V), 95%(DC54V)
  • AC Current: 5A/115VAC, 2.45A/230VAC, 2A/277VAC
  • Output Voltage: DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
  • Rated Current: 20A(DC24V), 16A(DC30V), 13.3A(DC36V), 11.4A(DC42V), 10A(DC48V), 8.9A(DC54V)
  • Rated Power: 480W(DC24V), 480W(DC30V),478.8W(DC36V), 478.8W(DC42V), 480W(DC48V), 480.6W(DC54V)
  • Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 10-20A(DC24V), 8-16A(DC30V), 6.6-13.3A(DC36V), 5.7-11.4A(DC42V), 5-10A(DC48V), 4.4-8.9A(DC54V)
  • Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 20.4-25.2V(DC24V), 25.5-31.5V(DC30V), 30.6-37.8V(DC36V), 35.7-44.1V(DC42V), 40.8-50.4V(DC48V), 45.9-56.7V(DC54V)
  • Working Temperature: -40℃-+80℃
  • Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
  • Safety Standards: UL8750(type "HL"), CSA C22.2 No.250.13-12; ENEC EN61347-1, EN61347-1, EN61347-2-13 Independent, EN62384; GB19510.14, GB19510.1; IP65 Or IP67, EAC TP TC 004, AS/NZS IEC 61347.2.13:2013, AS/NZS 61347.1:2016; KC61347-1, KC61347-2-13(Except For AB, Dx, D2-Type), J61347-1(H29), J61347-2-13(H29)(For Blank/A-Type) Approved
  • Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 7 Years Warranty


Includes:

1*Mean Well DC Converter
