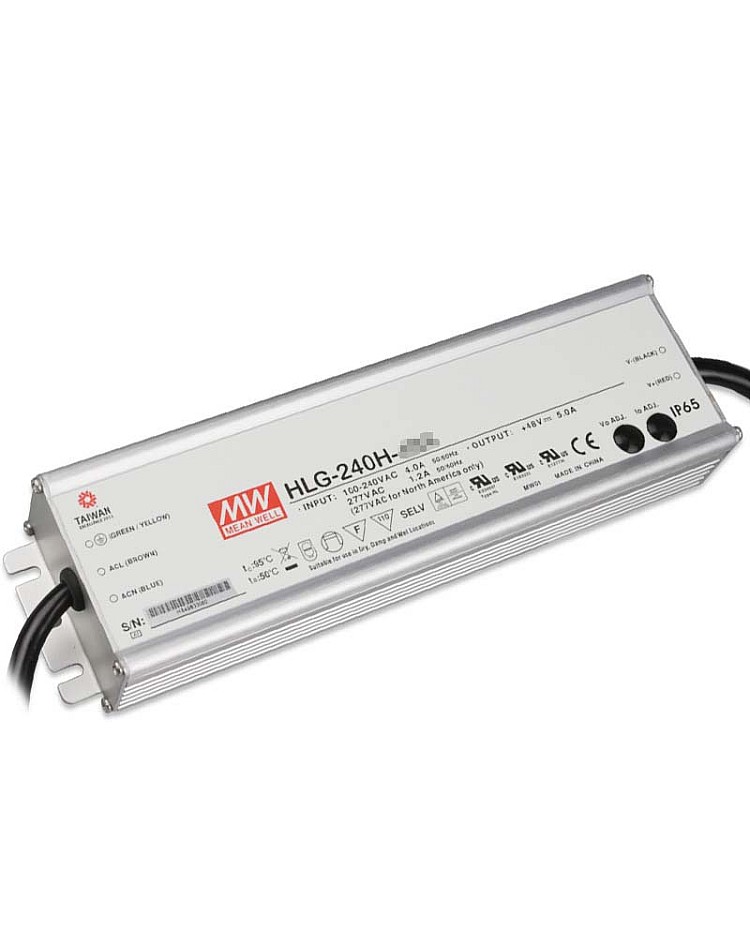

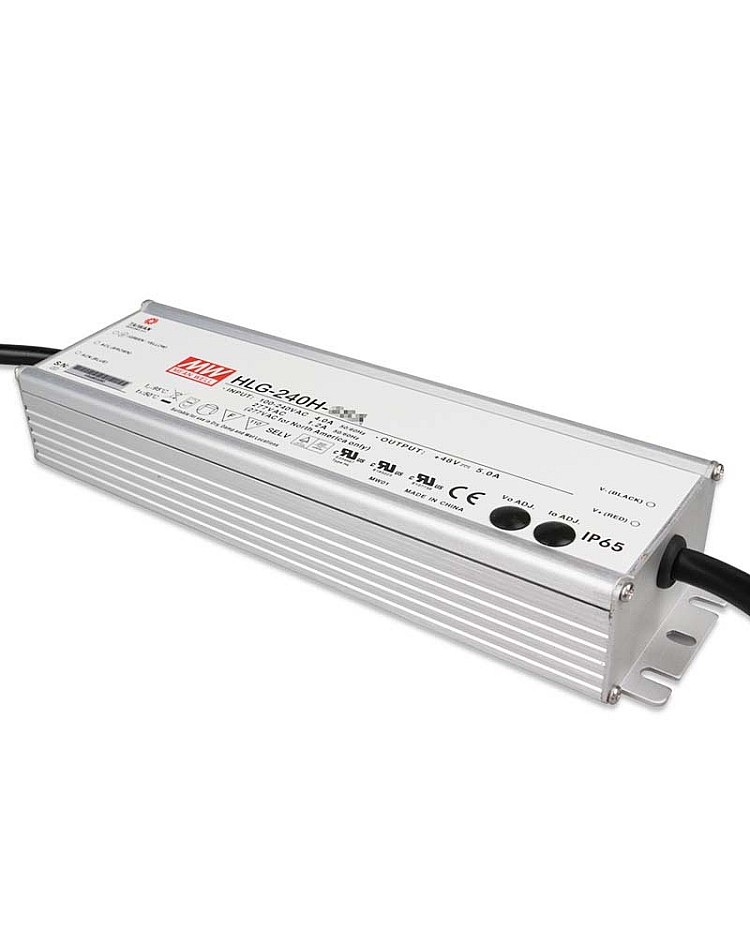

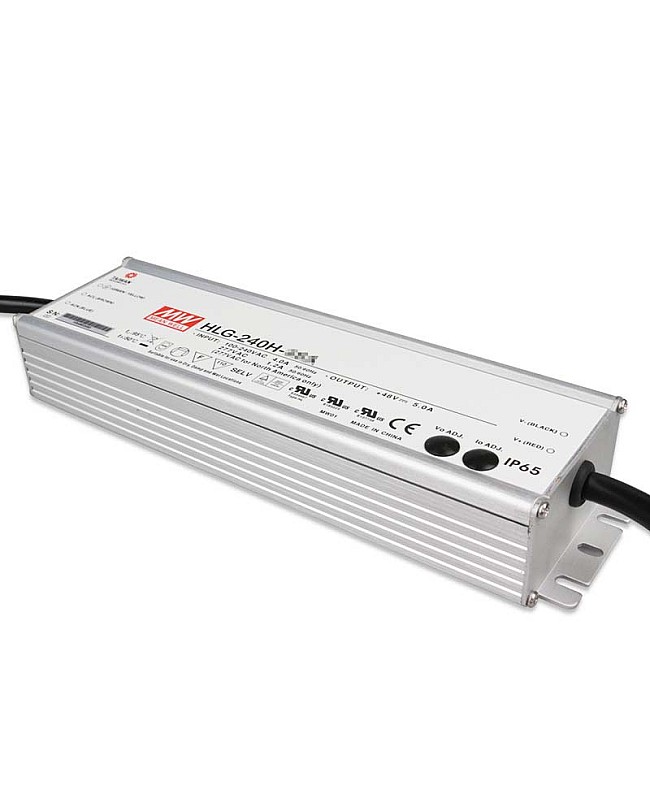

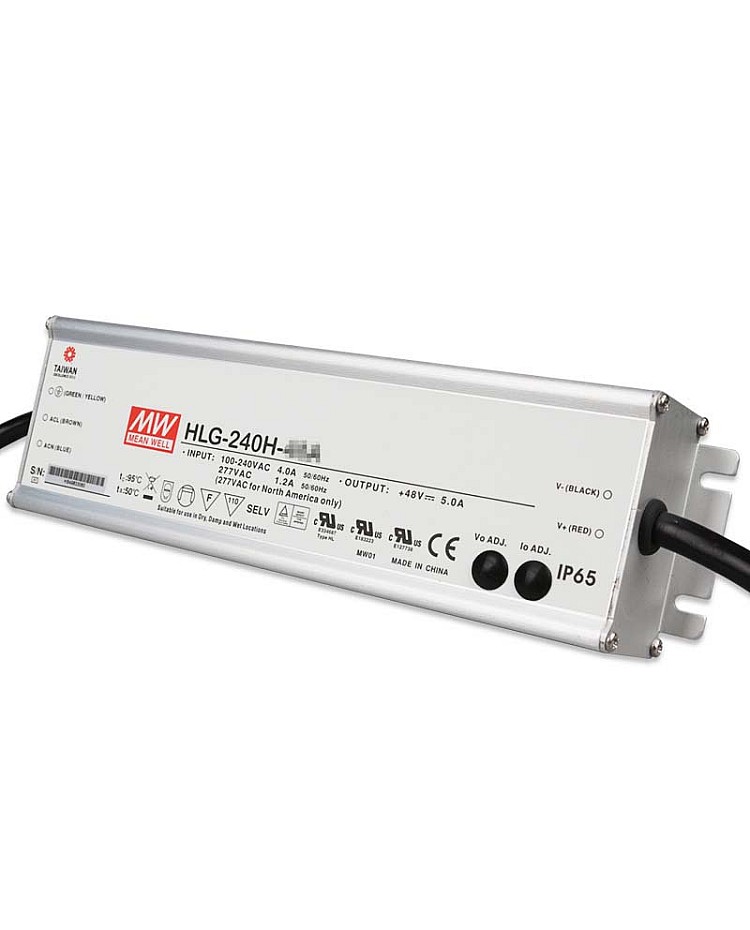

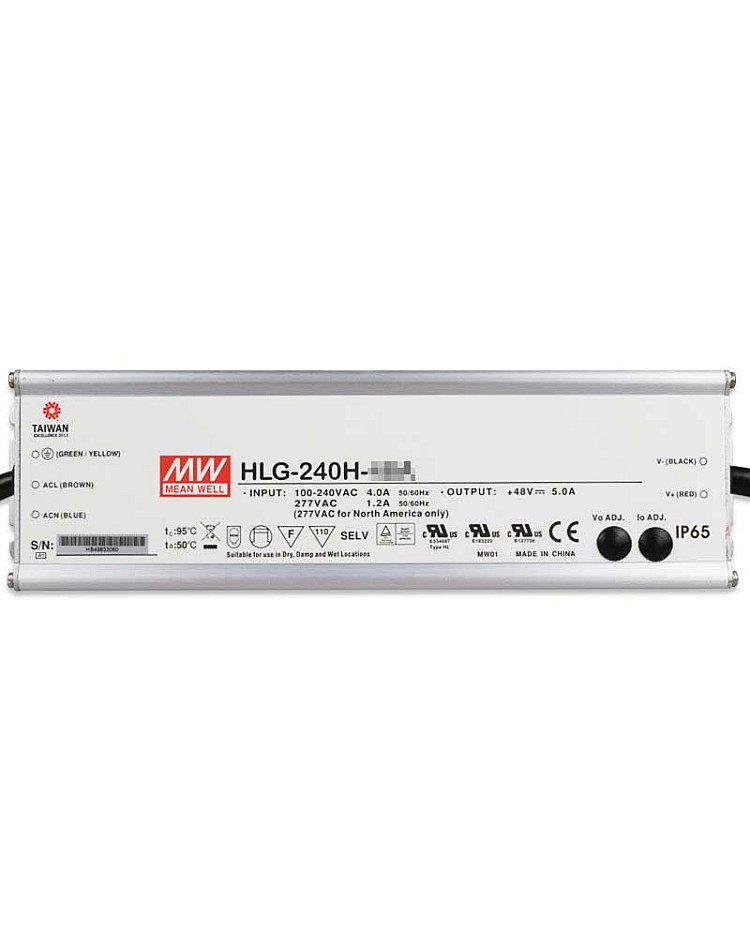

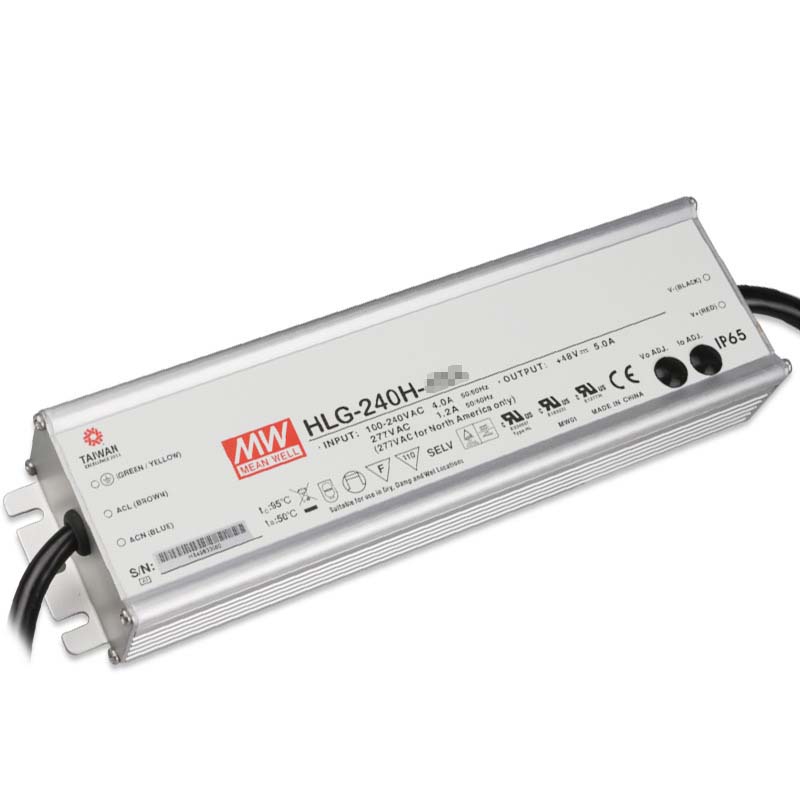

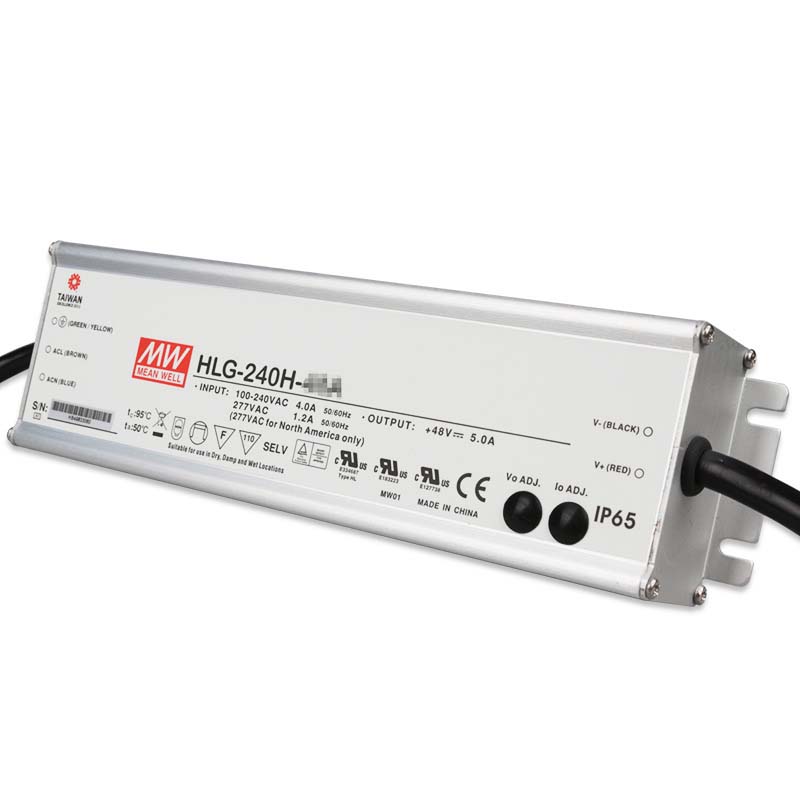

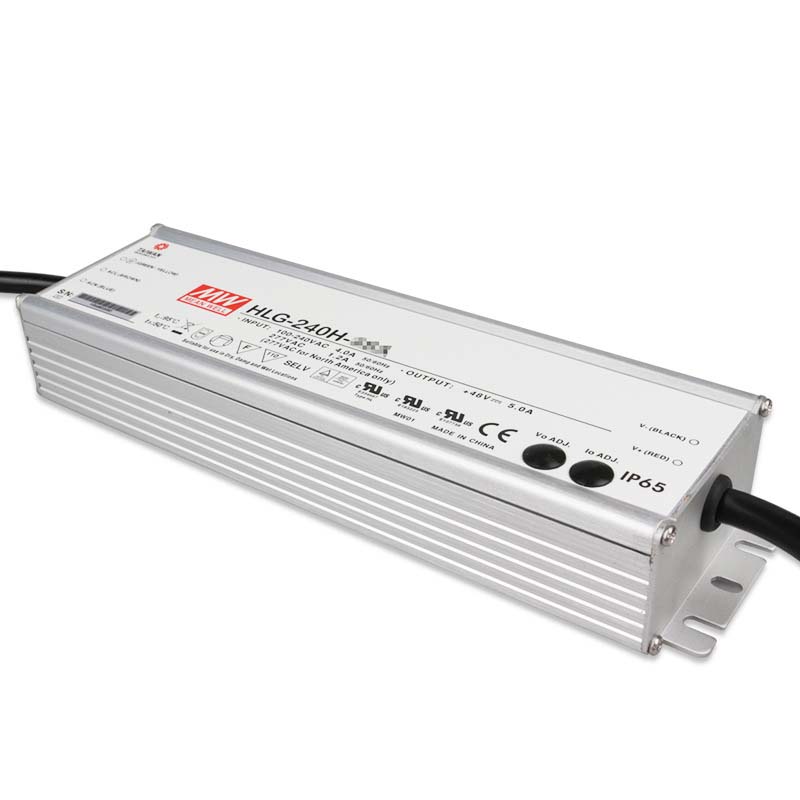

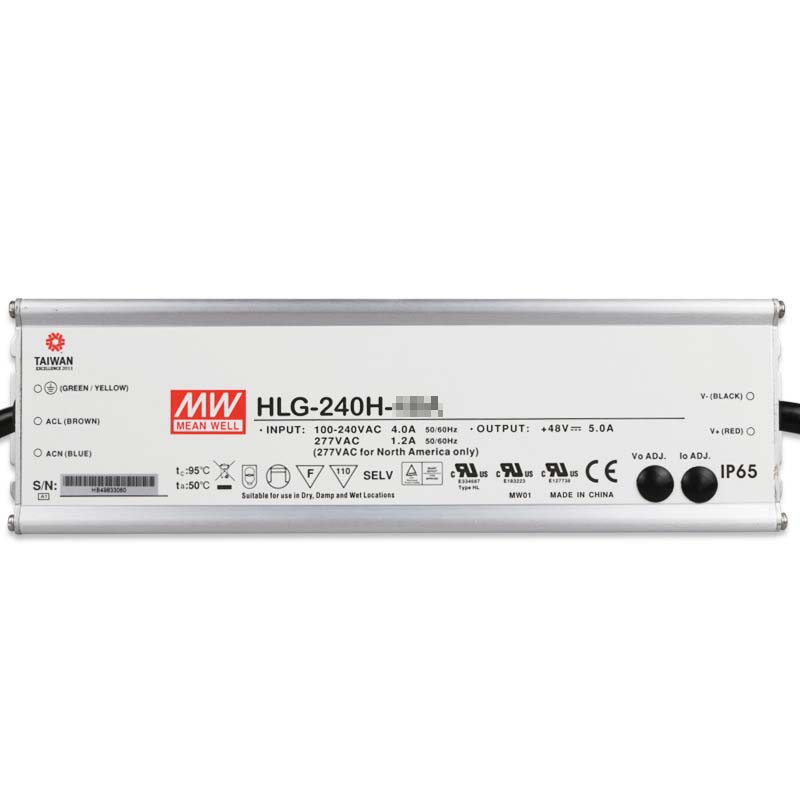

Mean Well HLG-240H AC DC Power Converter

Check the Mean Well HLG-240H AC DC Power Converters, the LED Converters were enclosed in a metal housing with class I design, the waterproof level can reach IP65 or IP67, only the Type C NO IP ASSIGNED, you can use them in the wet or damp locations in indoor or outdoor for the LED Street Lamps, High-Bay Lamps, Fishing Lighting, Greenhouse Light. there are 5 types of DC Power Converters available, the A, AB and C with output voltage and output current adjustable through the internal potentiometer, the B, AB and D with dimming function. the HLG-240H can operate from AC90V to AC305V, can connect to the public power system without extra adapters. the high-efficiency rate up to 93.5%, with the fanless design, the entire series AC DC Power Supplies can able to operate for -40℃ to 90℃ case temperature under free air convection. offers models with different rated voltage ranging between DC12V to DC54V.

• Various Output Voltage Products Available
• 5 Types Of AC DC Power Converters Available
• Constant Voltage And Constant Current Mode Output
• Metal Housing With Class I Design
• IP67 / IP65 Rating For Indoor Or Outdoor Installations
• Max Loading Power 240W
• Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
• Lifespan: >62,000 Hours
• Applications: Street Lamps, High-Bay Lights, Fish Lighting, Greenhouse Lights

Quick Links:

Mean Well HLG-240H Series Specification Document

Features:

• Model: HLG-240H

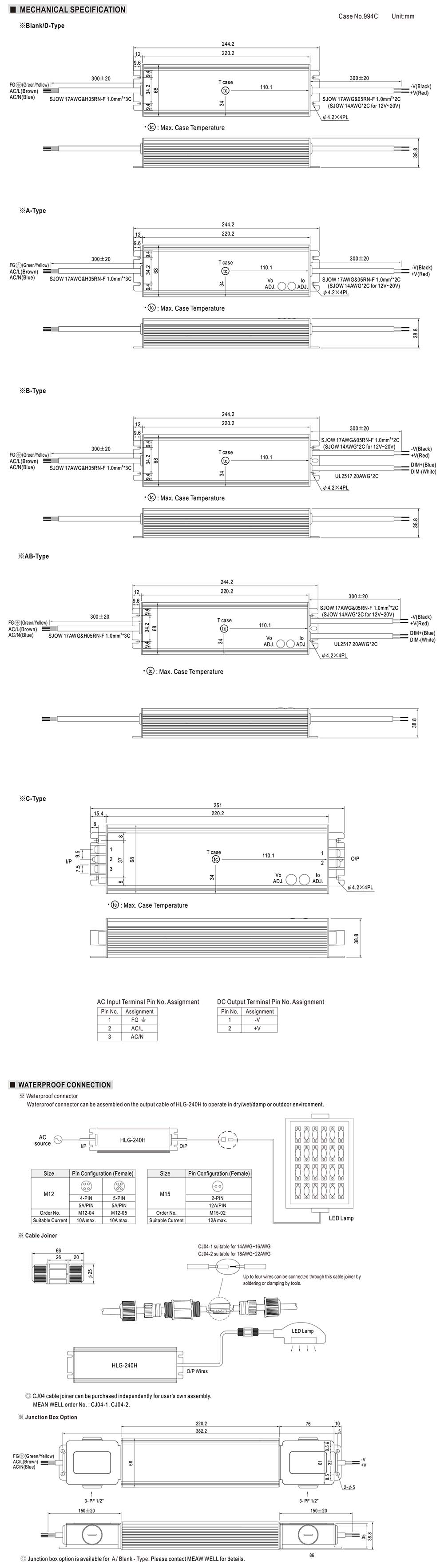

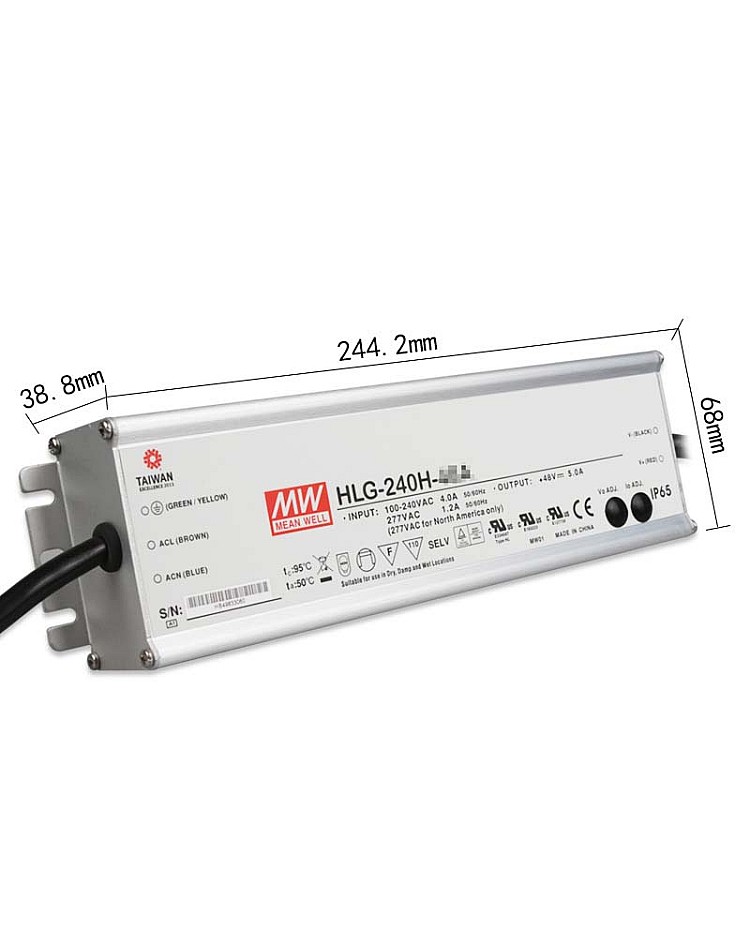

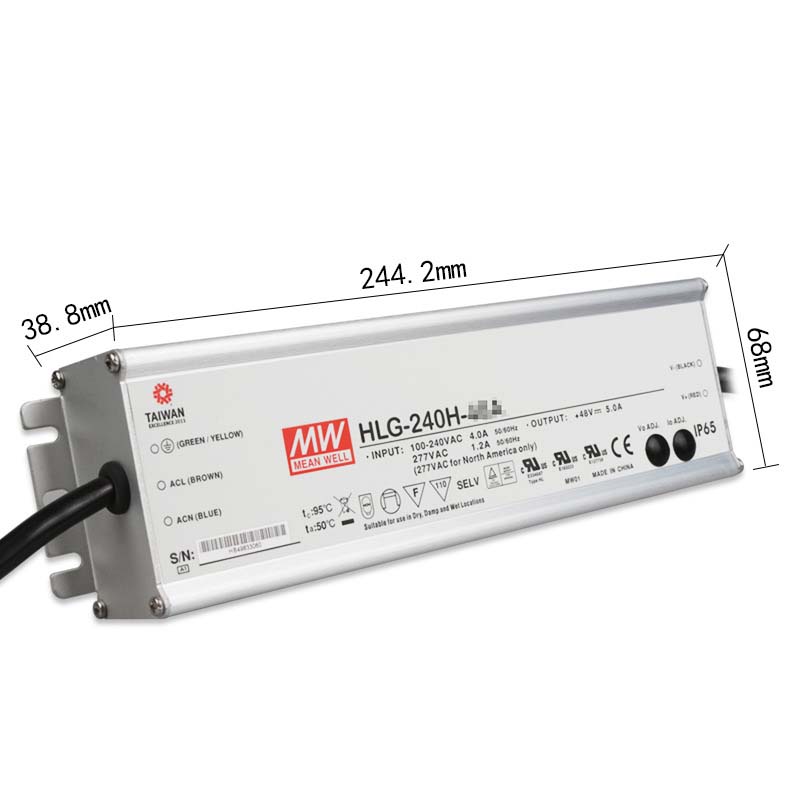

• Size: 244.2*68*38.8mm(L*W*H)
• Types:
• Blank: IP67 Waterproof Level, Voltage And Current Fixed
• A: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer

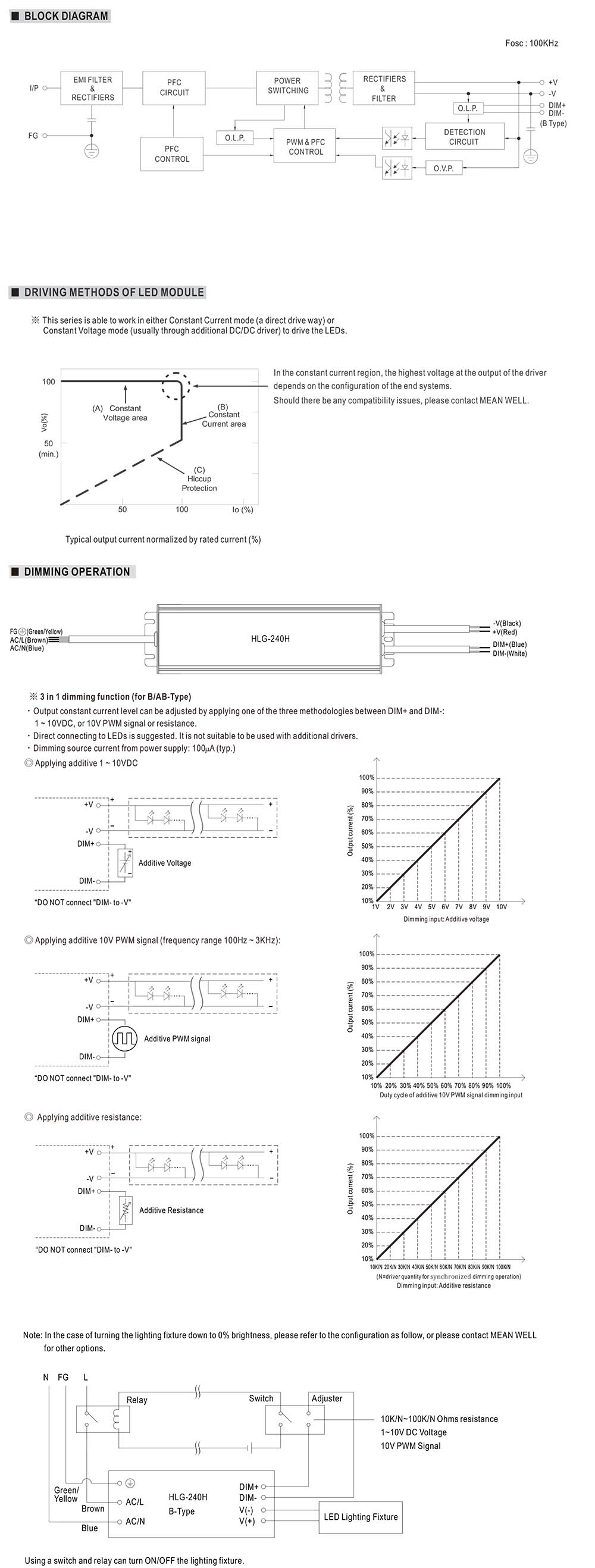

• B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
• AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
• C: NO IP Assigned, Terminal Block For I/O Connection. Output Voltage And Constant Current Level Can Be Adjusted Through Internal Potentiometer
• D: IP67 Waterproof Level, Timer Dimming Function
• Input Voltage Range: 90-305VAC
• Frequency Range: 47-63Hz
• Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC
• Efficiency: 90%(DC12V), 90%(DC15V), 91.5%(DC20V), 92.5%(DC24V), 92.5%(DC30V), 92.5%(DC36V), 92.5%(DC42V), 93%(DC48V), 93.5%(DC54V)
• AC Current: 4A/115VAC, 2A/230VAC, 1.2A/277VAC
• Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
• Rated Current: 16A(DC12V), 15A(DC15V), 12A(DC20V), 10A(DC24V), 8A(DC30V), 6.7A(DC36V), 5.72A(DC42V), 5A(DC48V), 4.45A(DC54V)
• Rated Power: 192W(DC12V), 225W(DC15V), 240W(DC20V), 240W(DC24V), 240W(DC30V), 241.2W(DC36V), 240.24W(DC42V), 240W(DC48V), 240.3W(DC54V)
• Current Adjustable Range(For A/AB/C Type Only Via Built-in Potentiometer): 8-16A(DC12V), 7.5-15A(DC15V), 6-12A(DC20V), 5-10A(DC24V), 4-8A(DC30V), 3.3-6.7A(DC36V), 2.86-5.72A(DC42V), 2.5-5A(DC48V), 2.23-4.45A(DC54V)
• Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 11.2-12.8V(DC12V), 14-16V(DC15V), 18.6-21.4V(DC20V), 22.4-25.6V(DC24V), 28-32V(DC30V), 33.5-38.5V(DC36V), 39-45V(DC42V), 44.8-51.2V(DC48V), 50-57V(DC54V)
• Working Temperature: -40℃-+80℃
• Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
• Safety Standards: UL1012, CAN/CSA-C22.2 N0.107.1-01, UL8750(type "HL"), CSA C22.2 NO.250.0-08; EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-12 independent(Except For HLG-240H C Type), IEC/UL/EN62368-1(except for AB.D Type), UL8750;GB19510.14(except for C Type); IP65 or IP67; J61347-1, J61347-2-13(except for B, AB and D type), BIS IS15885(for 48V only), EAC TP TC 004, KC61347-1, KC61347-2-13(except for AB, C, D type) approved
• Short Circuit Protection
• Over Voltage Protection
• Over Temperature Protection
• 7 Years Warranty

Includes:

1*Mean Well HLG-240H AC DC Power Converters
