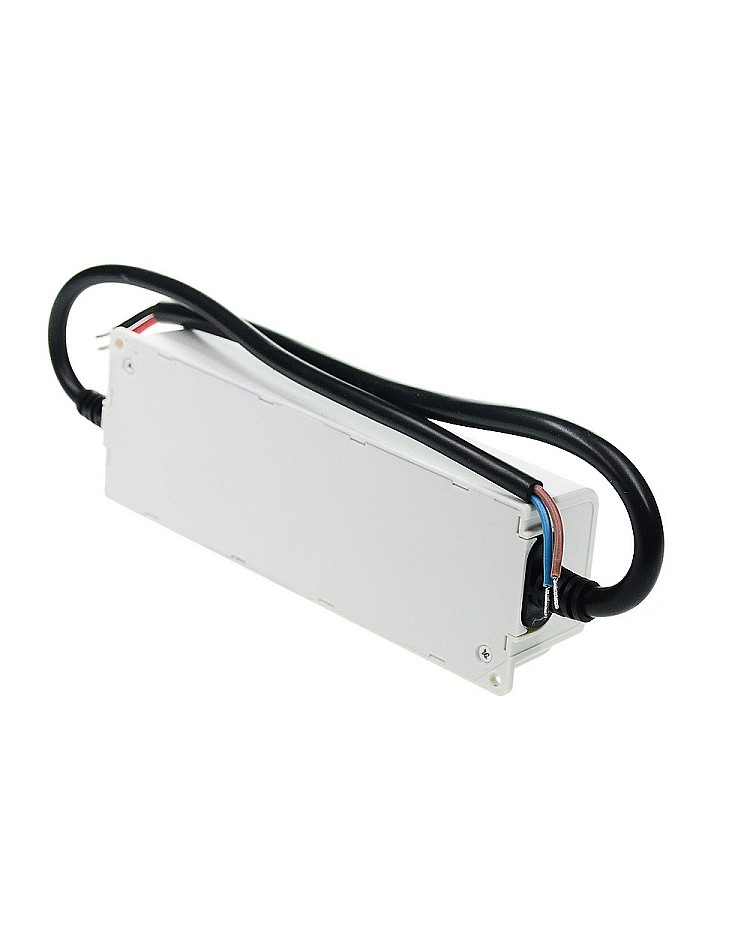

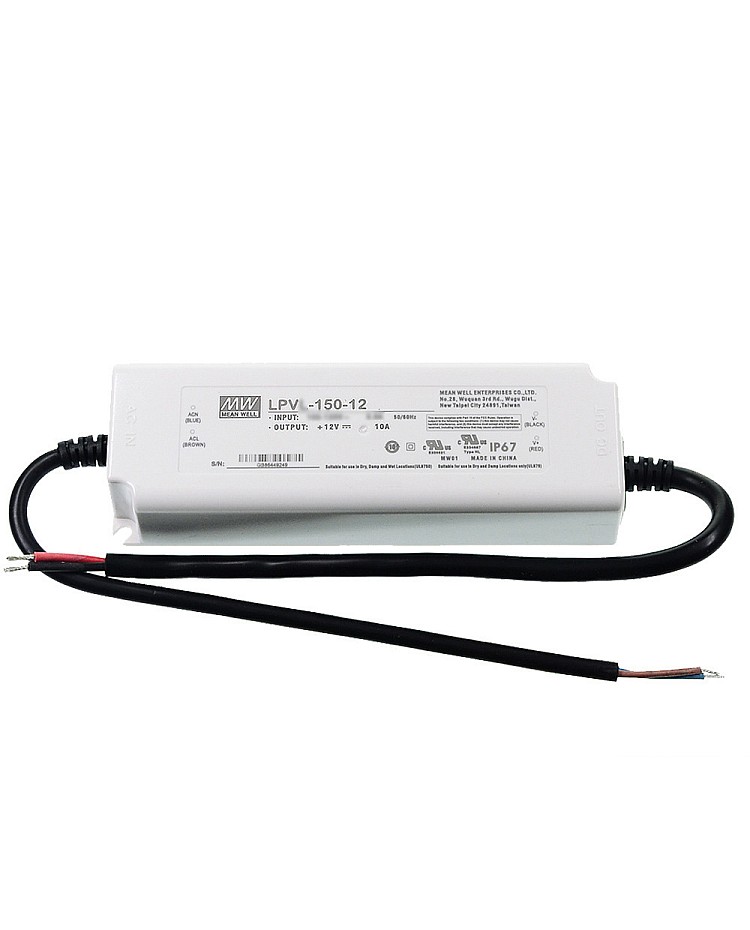

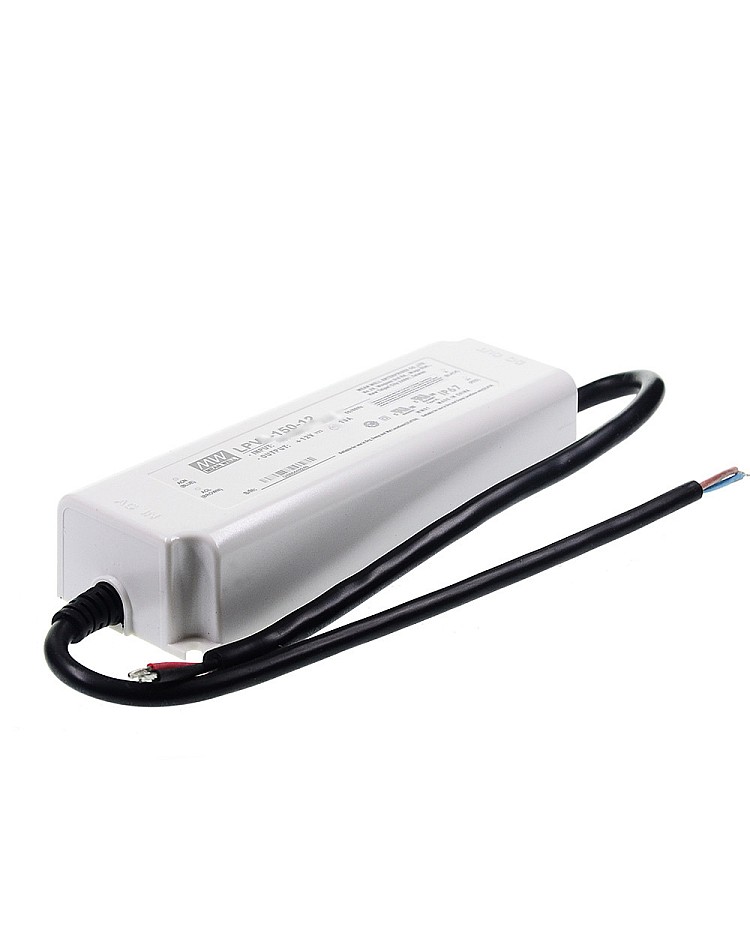

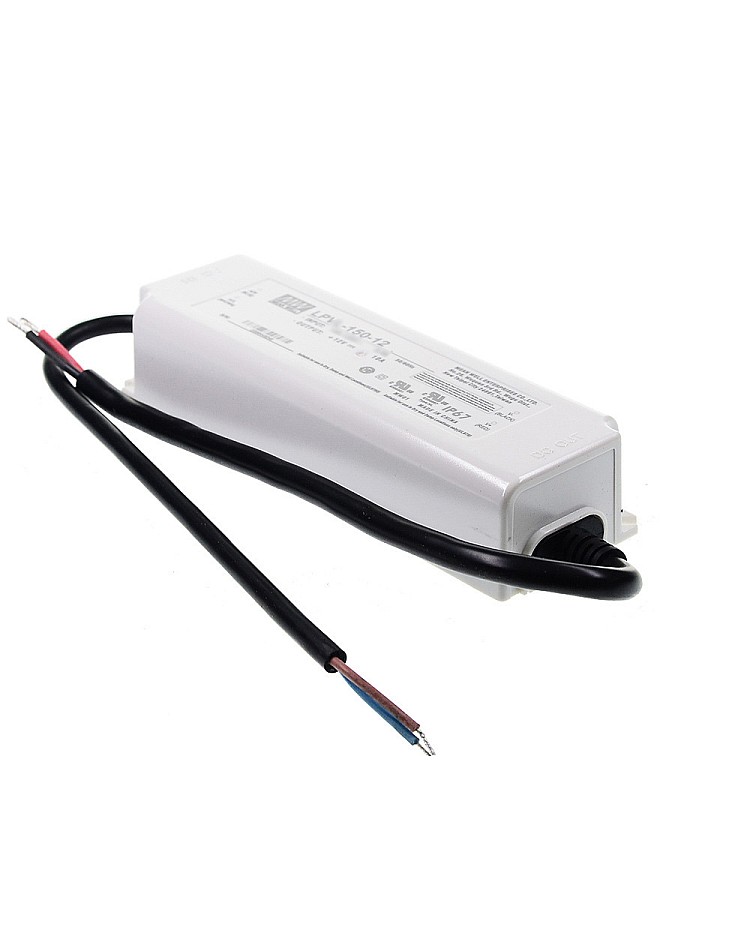

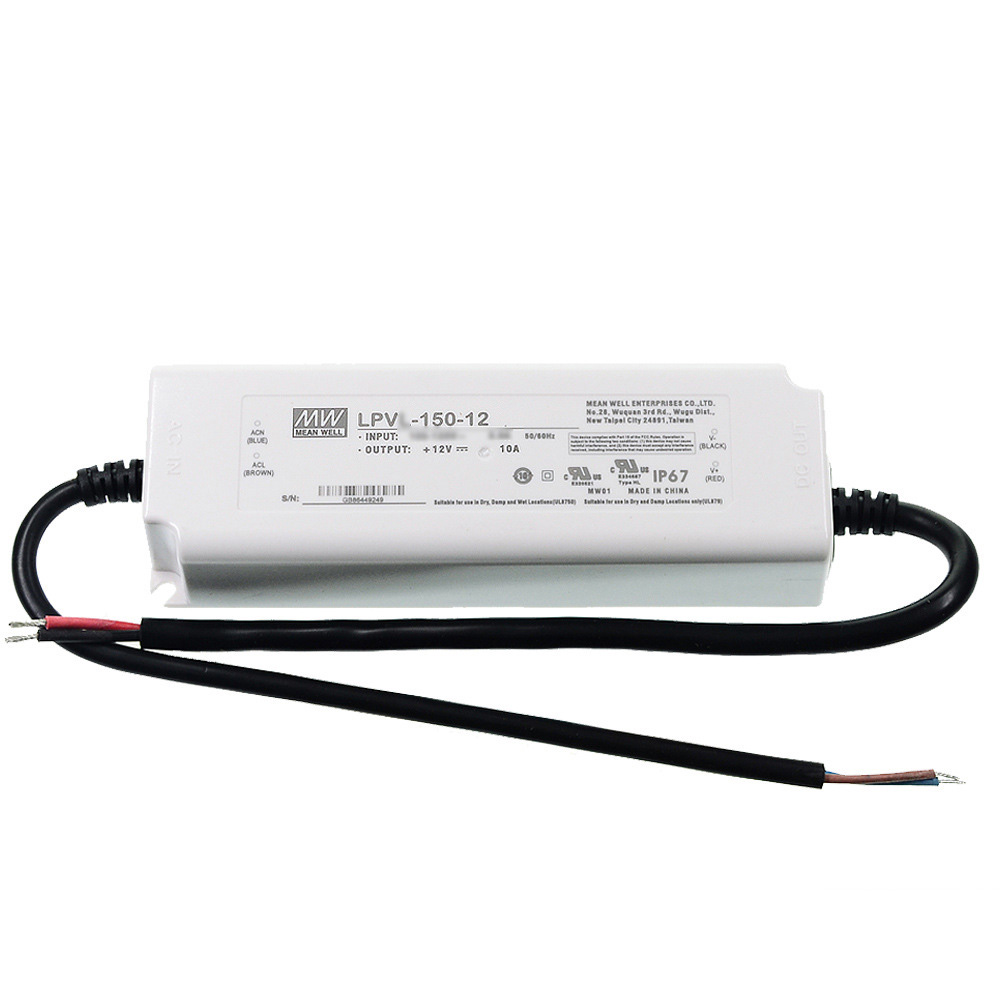

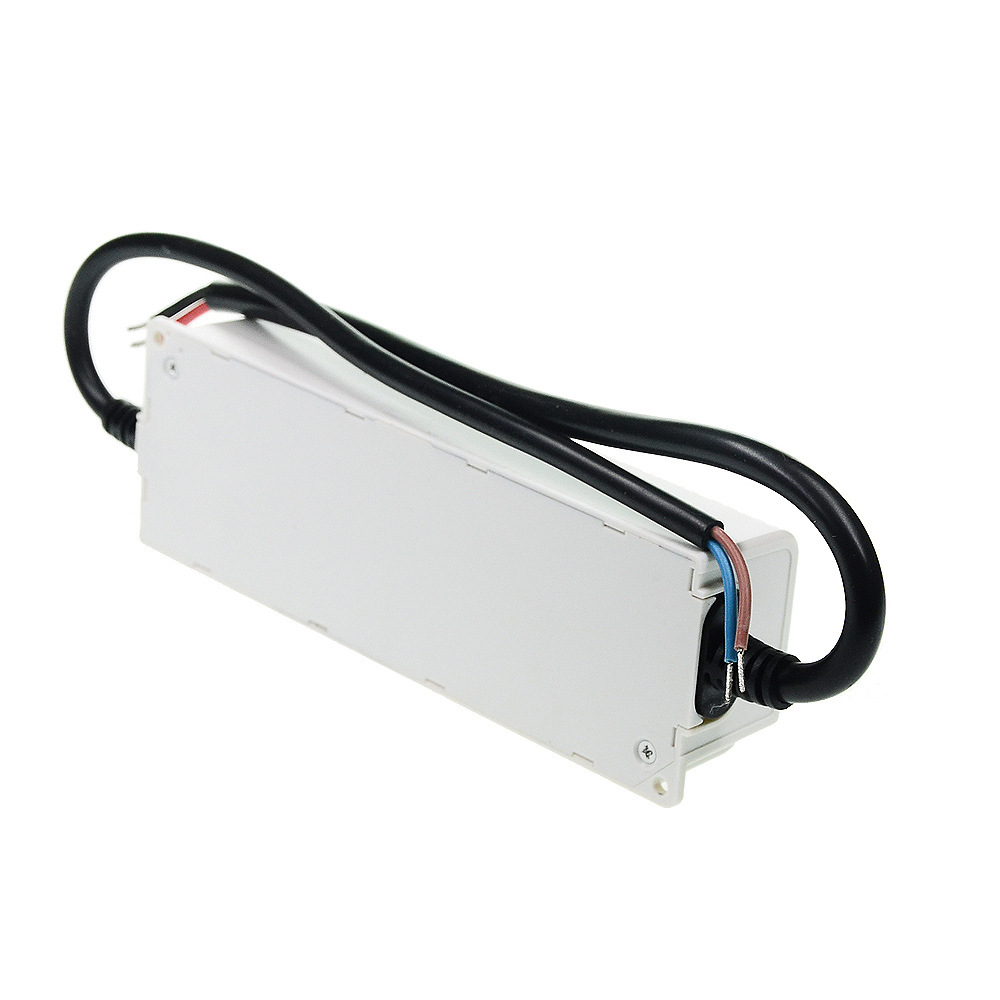

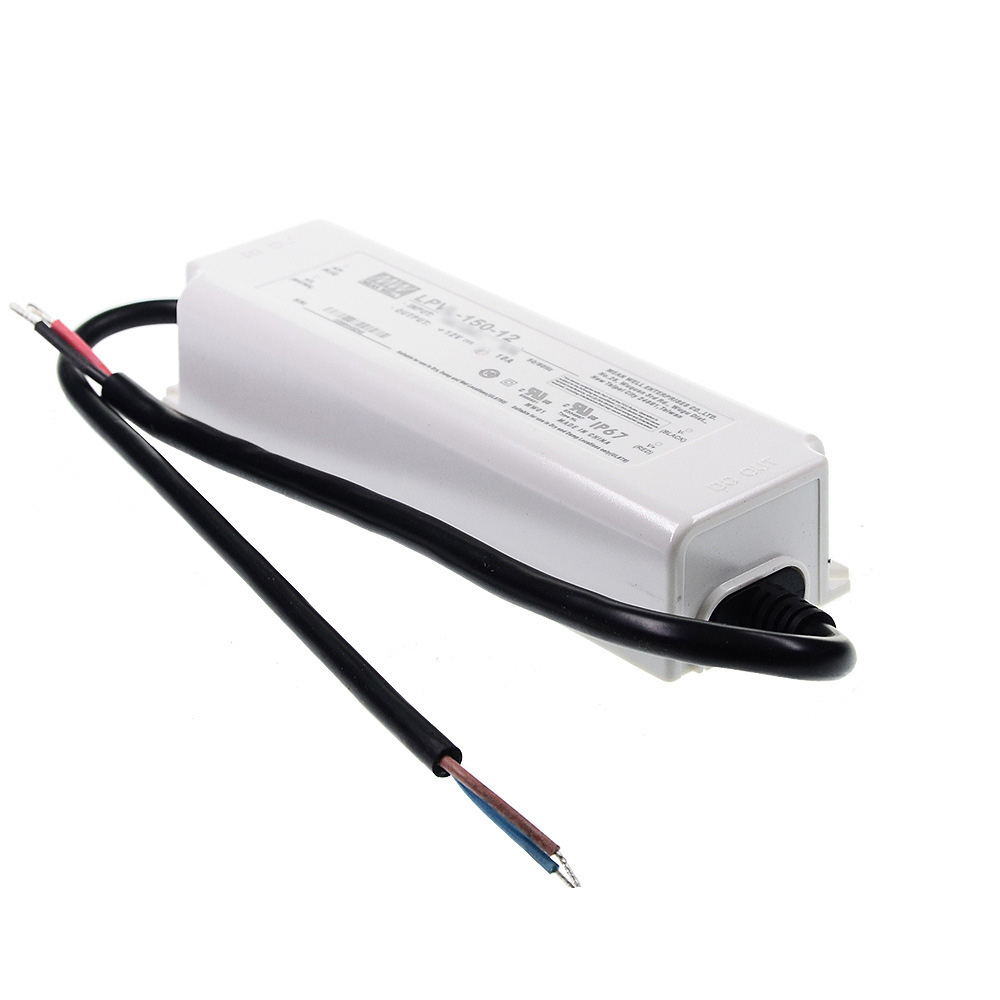

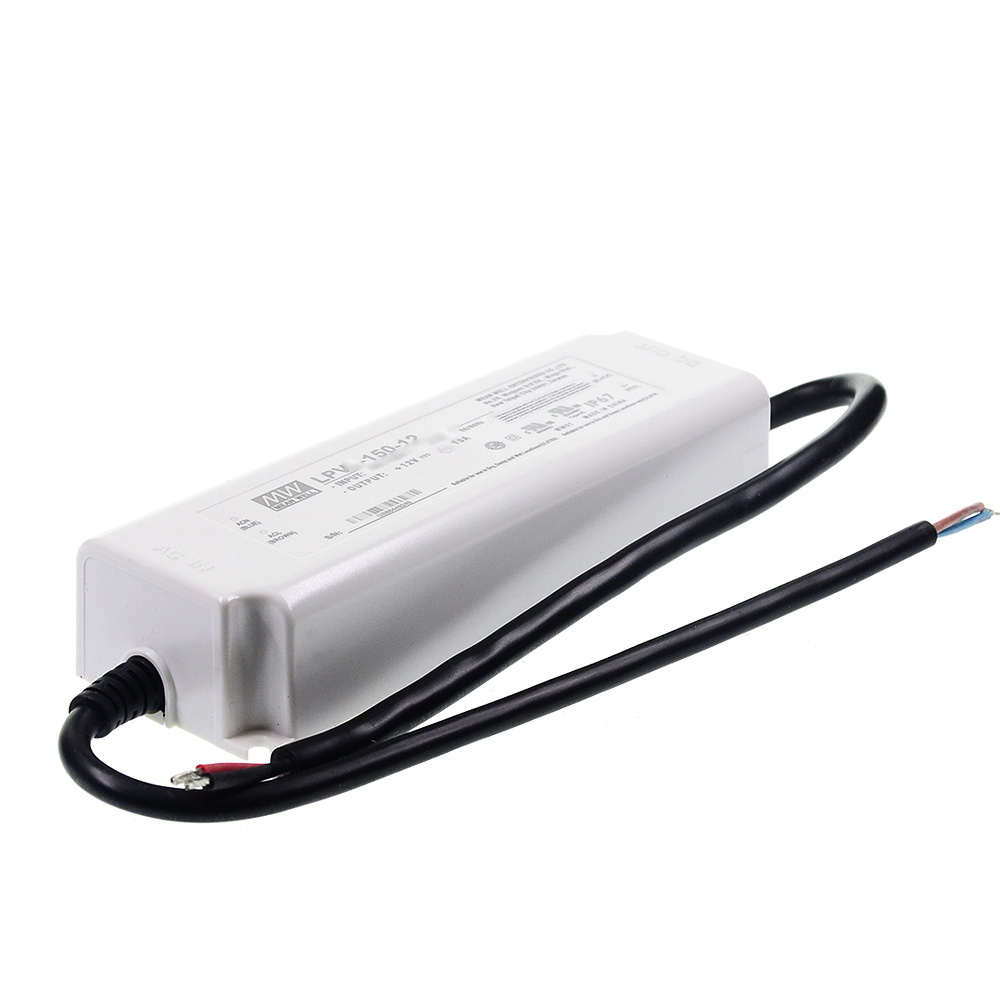

Check the 150W Mean Well DC Power Supply, which will change the AC Input to DC output. There are two versions available, LPV-150 and LPVL-150. The difference is the input voltage range. the input range of LPV-150 is 180VAC to 305VAC, LPVL-150 is 90VAC to 132VAC, and various output voltage products are available from DC12V to DC48V, with constant voltage output and IP67 waterproof level design. You can use them for outdoor LED Lighting. The Meanwell DC Power Supply with high efficiency and low cost. Multiple protections to ensure high reliability. You can use them in wet, rainy, or harsh locations with 2 years warranty.
- Constant Voltage Design
- Fully Encapsulated With IP67 Waterproof Level
- Class II Power Unit, no FG
- Fully Isolated Plastic Case
- Fanless Design, Cooling By Free Air Convection
- 100% Full Load Burn-in Test
- Low Cost, High Reliability

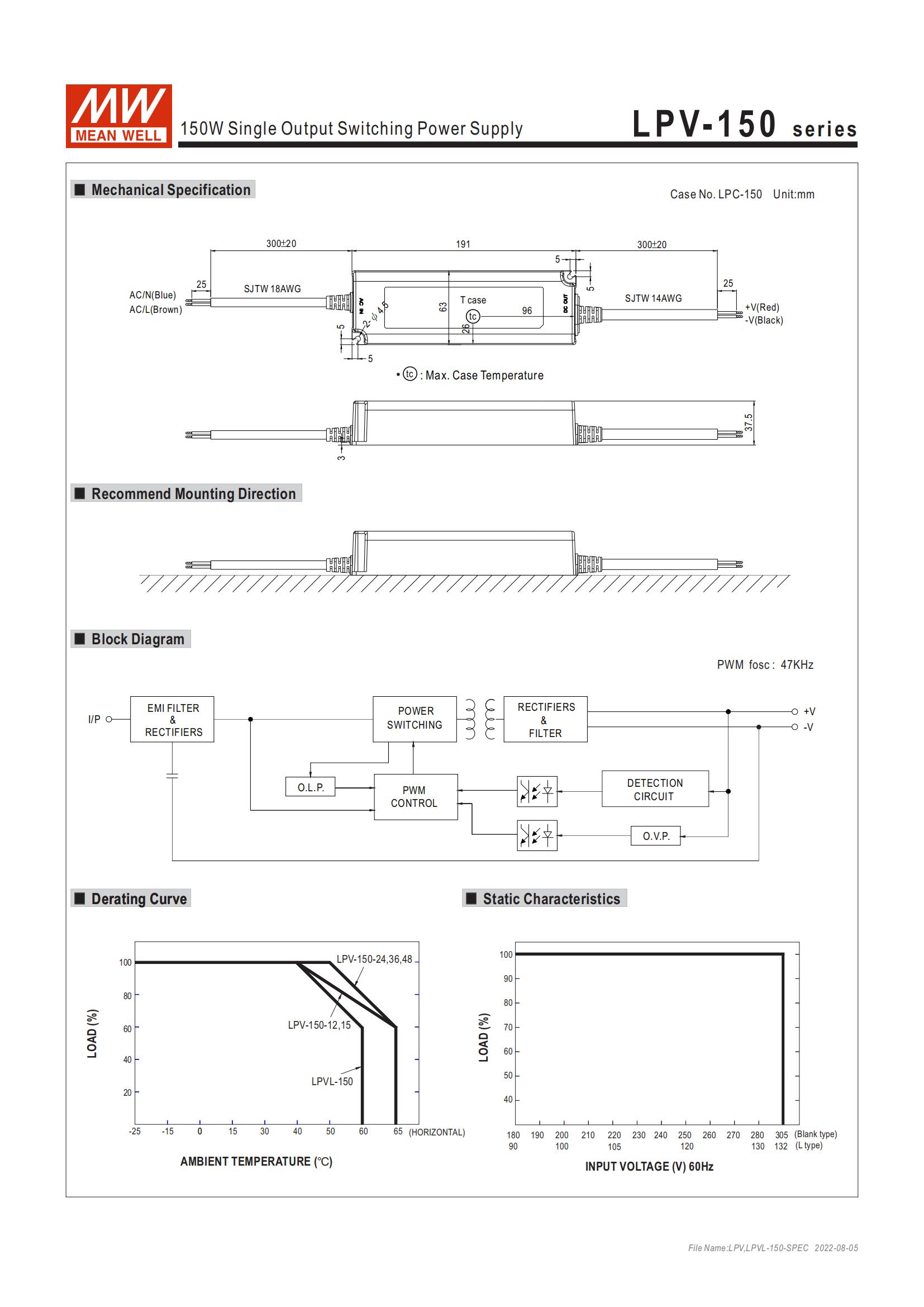

Link: Mean Well LPV-150 / LPVL-150 Manual
Features:
- Model: LPV-150 / LPVL-150
- Size: 191*63*37.5mm(L*W*H)
- Input Voltage: 180-305VAC(LPV-150), 90-132VAC(LPVL-150)
- Output Voltage: DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 10A(12V), 8A(15V), 6.3A(24V), 4.2A(36V), 3.2A(48V)
- Rated Power: 120W(12V), 120W(15V), 151.2W(24V), 151.2W(36V), 153.6W(48V)
- Setup, Rise Time: 500ms, 50ms/240VAC, 500ms, 50ms/277VAC
- Hold Up Time: 18ms/230VAC, 20ms/277VAC At Full Load
- Frequency Range: 47-63Hz
- Efficiency: 87%(12V), 88%(15V), 89%(24V), 89%(36V), 90%(48V)
- AC Current: 1.7A/230VAC, 1.5A/277VAC
- Working Temperature: -25-65℃
- Working Humidity: 20-90% RH Non-condensing
- Vibration: 10-500Hz, 2G 10min./1 cycle, Period For 60min. each Along X, Y, Z axes
- Safety Standards: UL8750, CSA C22.2 No.250.13-12, UL879, CSA C22.2 No.207-M89, BIS IS 15885(For LPV-150-12, 24 Only), EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 Approved
- Over Load Protection
- over Voltage Protection
- Short Circuit Protection
- Over Temperature Protection
- 2 Years Warranty
Includes:
1*150W Mean Well DC Power Supply
