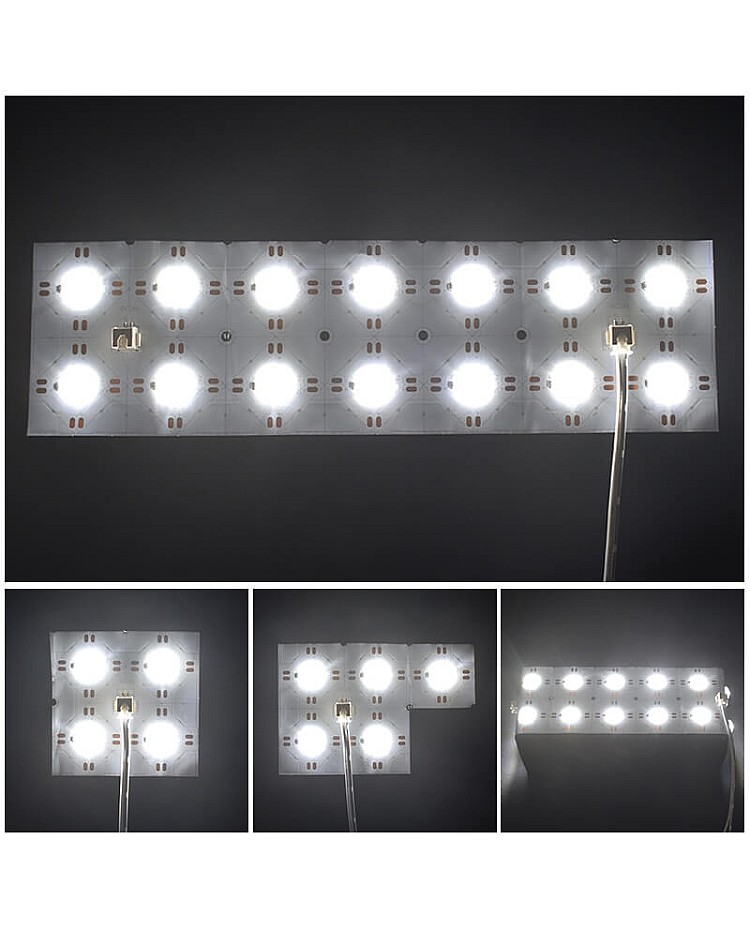

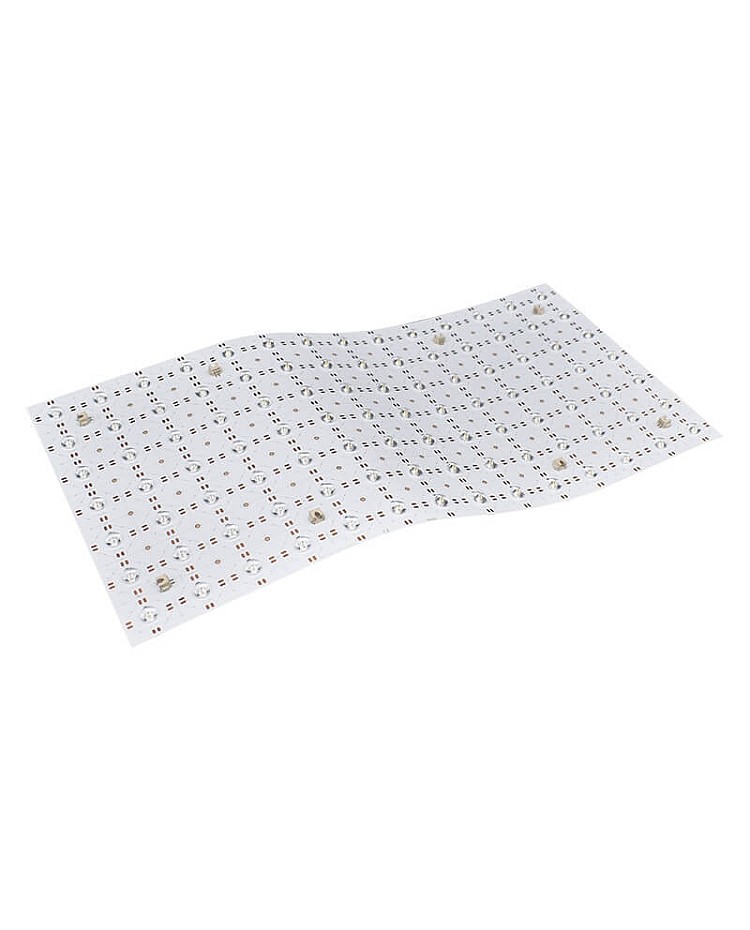

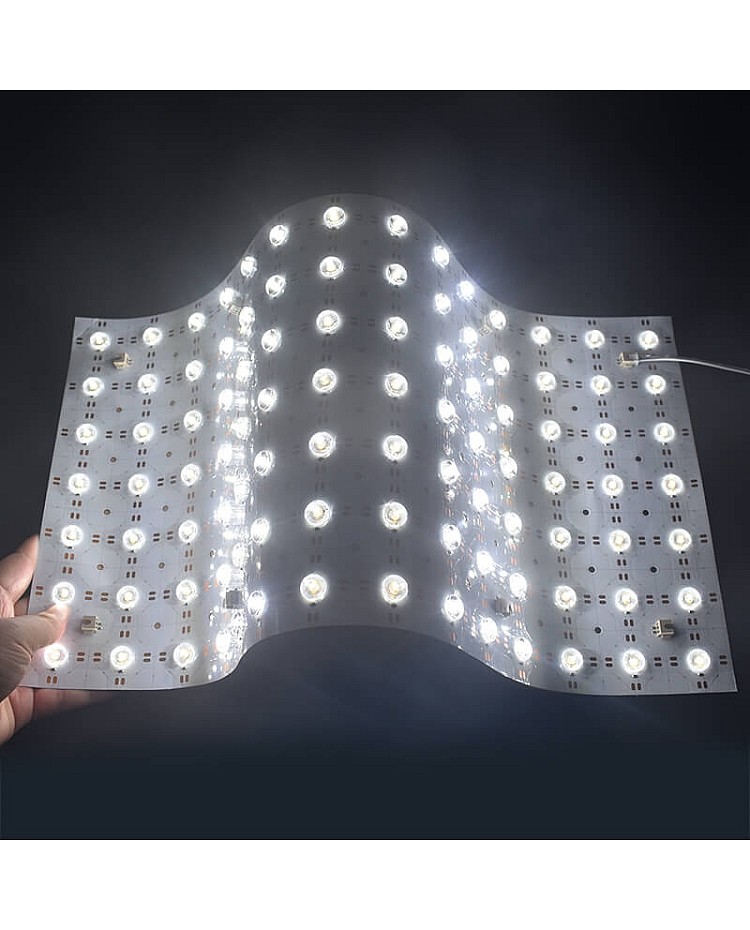

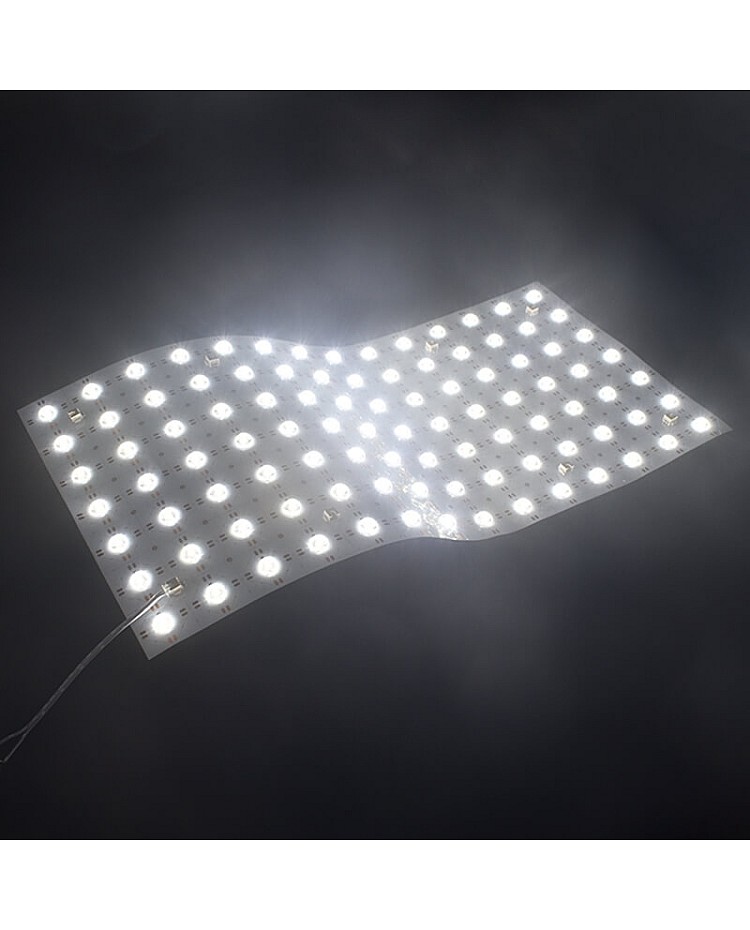

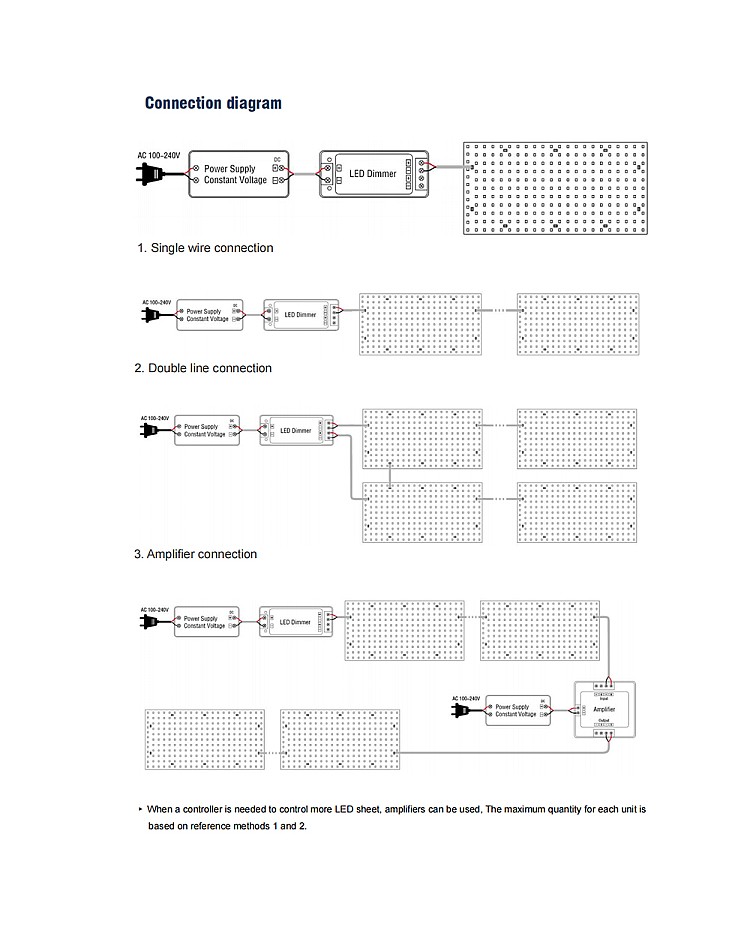

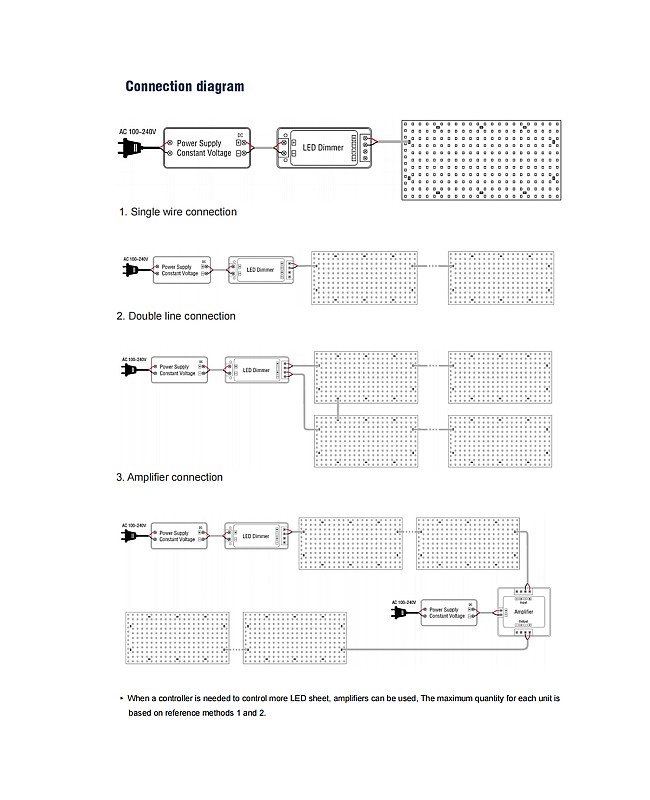

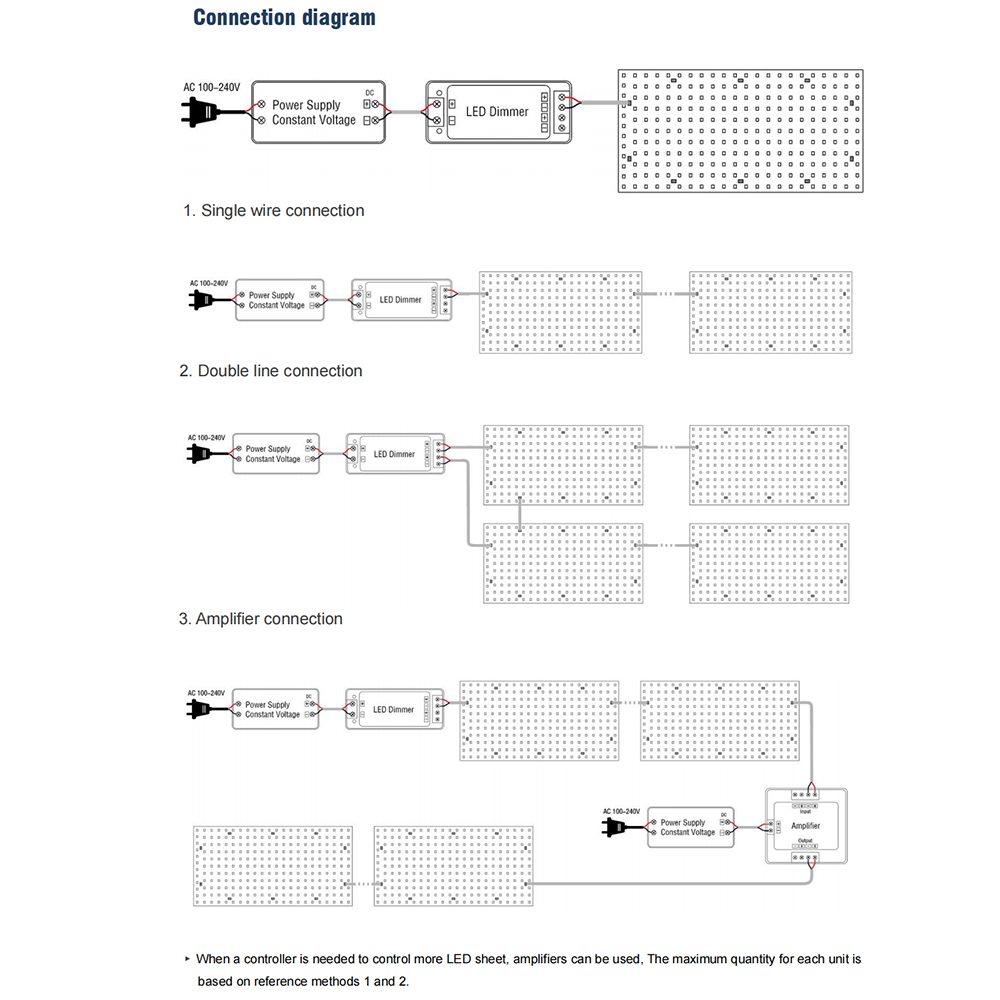

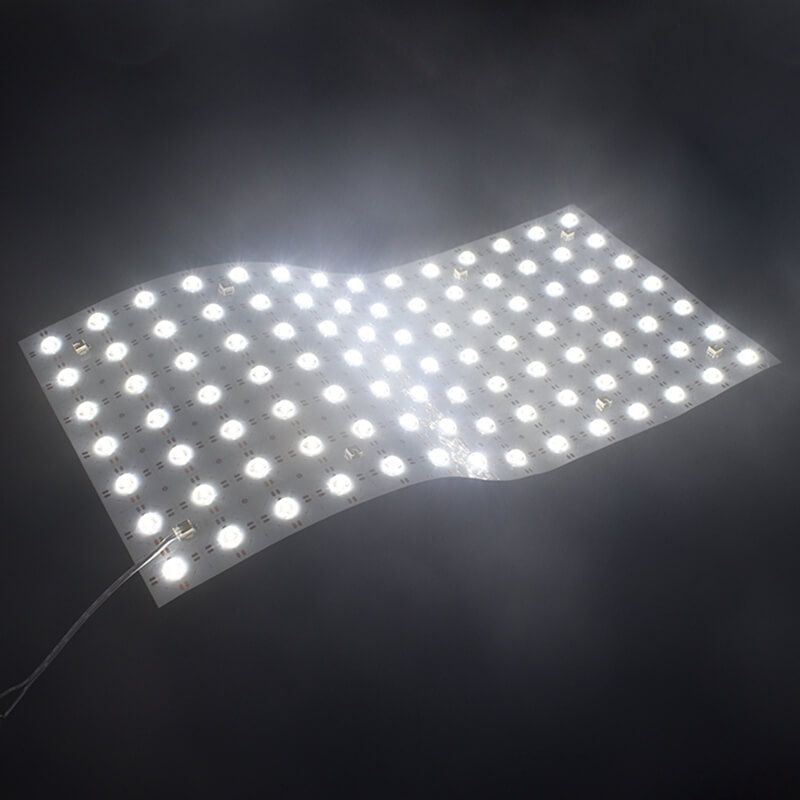

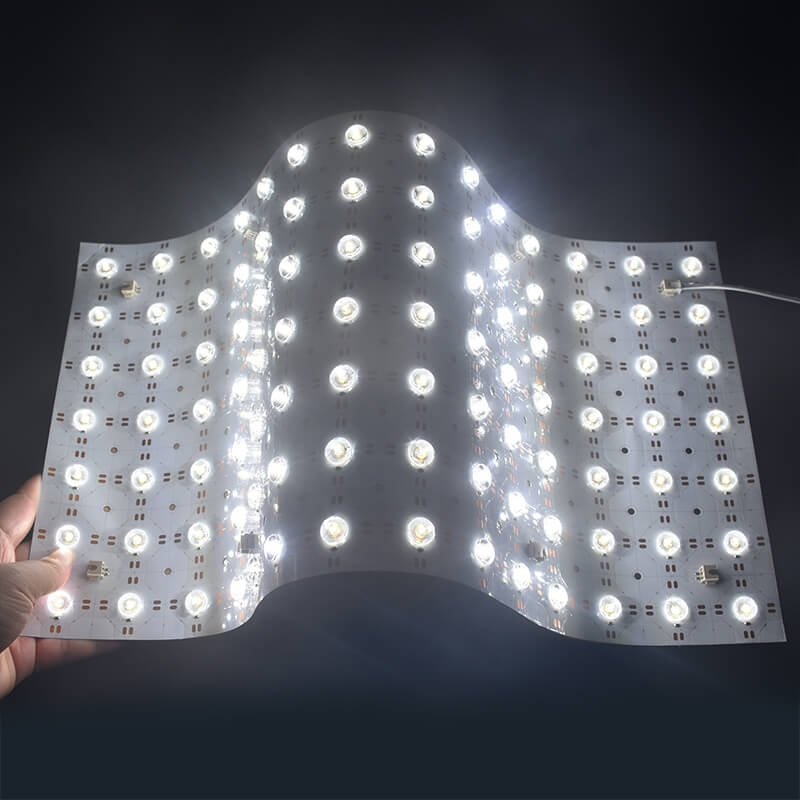

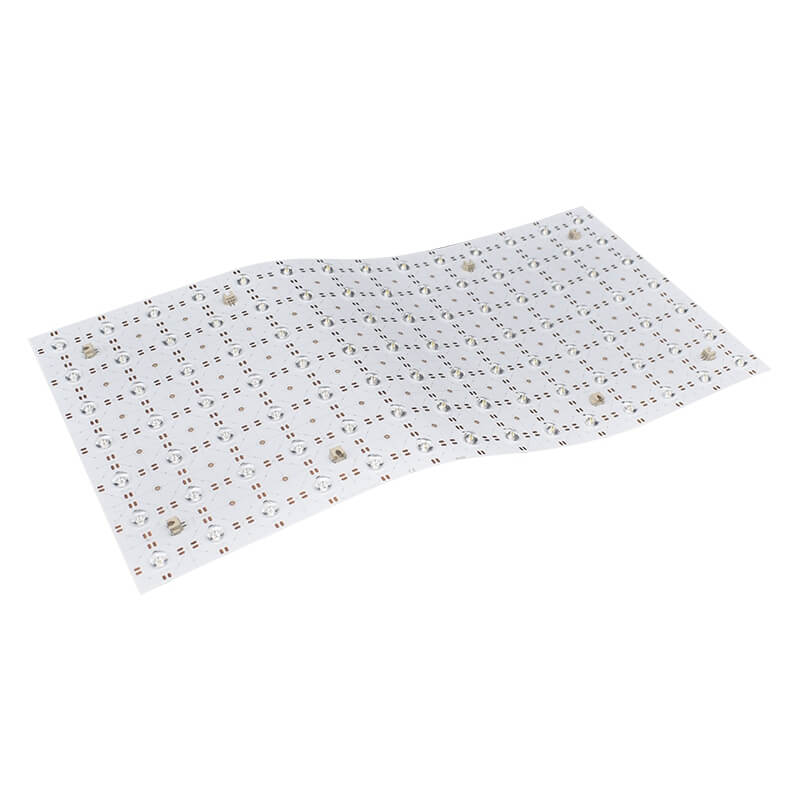

The flexible LED sheet has optical lenses on the 2835 SMD LEDs, increasing the beam angle to 180° and creating bright and even illumination. They are easy to install for residential settings, commercial spaces, or other creative projects, especially backlighting for countertops, display boxes, signs, etc. The high-quality SMD LEDs are arranged uniformly on the dual-layer PCB board, which is flexible, bendable, and cuttable, which makes them excellent choices for curved or irregular spaces. The minimum cuttable unit is one LED, and you can connect to a 24V LED driver to light up or lighting dimmers to adjust the brightness. There are 4 emitting color products available: 2700K and 3000K warm white, 4000K natural white, and 6000K cool white. The back has double-sided adhesive tape and with screw holes to make them can be easily installed. They are non-waterproof, so you can only use them in dry environments. Multiple power adapters are on them, allowing for convenient connecting multiple pieces for large projects.
Link: LED Sheet Light With Lens Data Sheet
Features:
- Type: Single Color LED Sheet With Lens
- Model: LB-298-2835-98

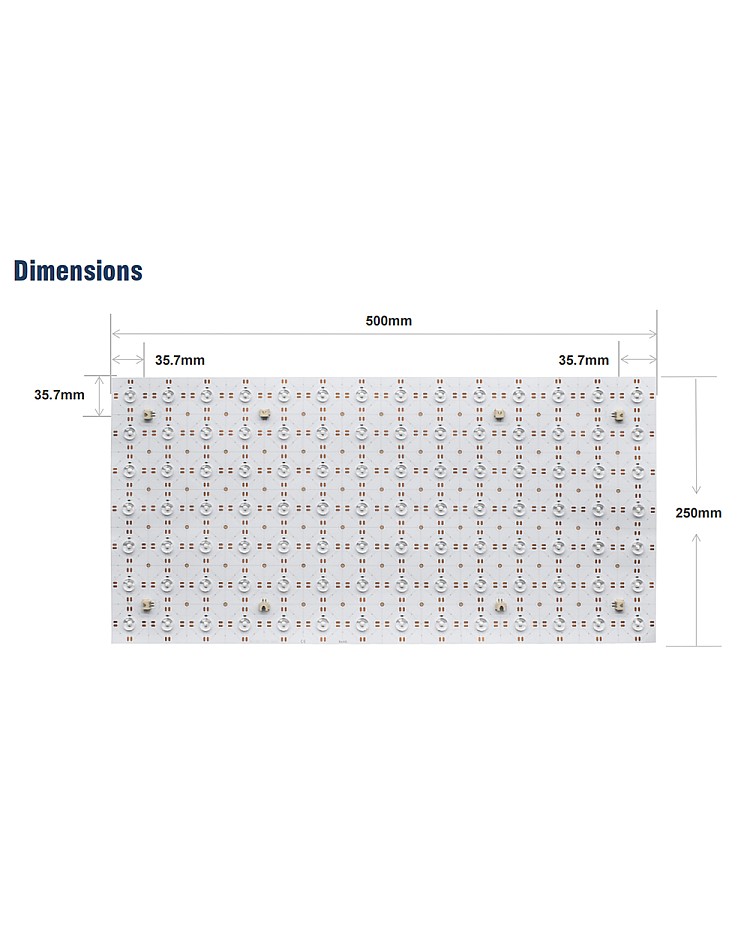

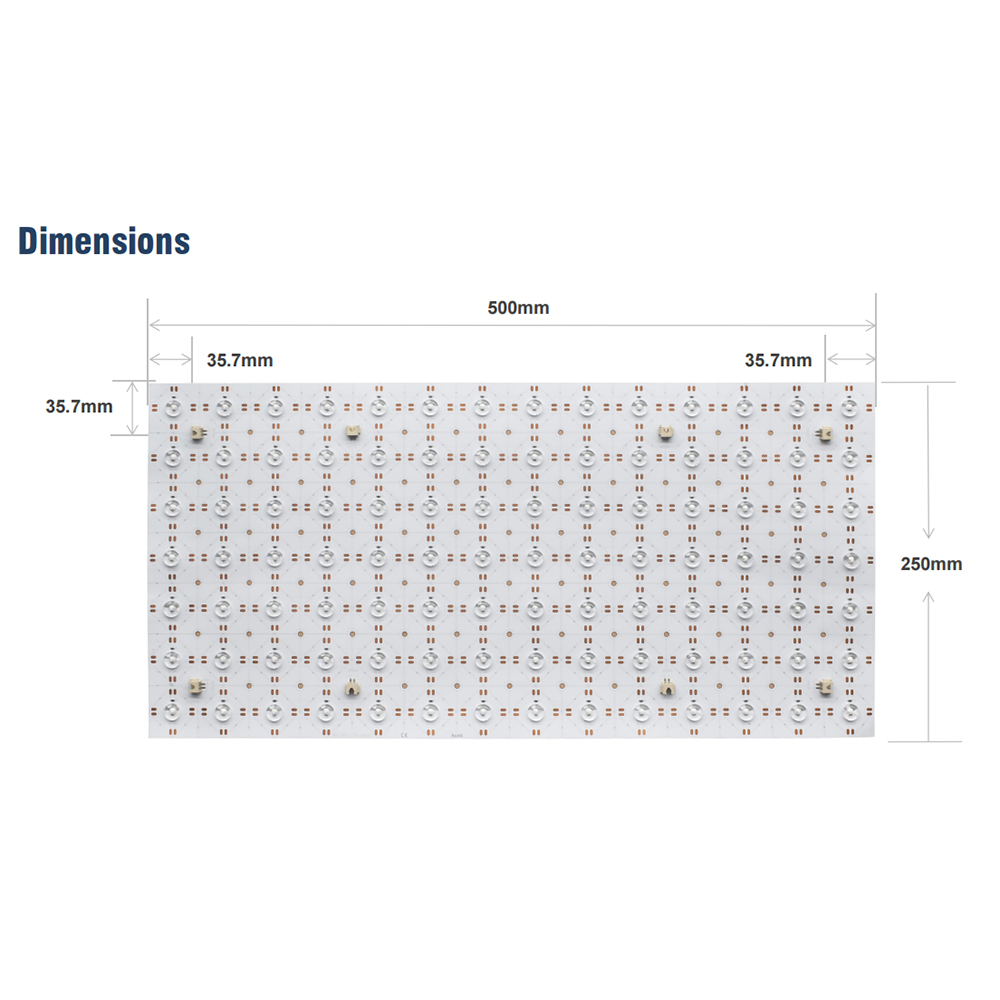

- Size(L*W*H): 500*250*8mm/19.69"*9.84"*0.31"
- LED Type: 2835 SMD LEDs
- LED QTY: 98PCS
- Working Voltage: DC24V
- Power: 20W
- Colors: 2700K Warm White, 3000K Warm White, 4000K Natural White, 6000K Cool White
- Illuminous Flux: 1800LM
- CRI: >90Ra
- Beam Angle:180°

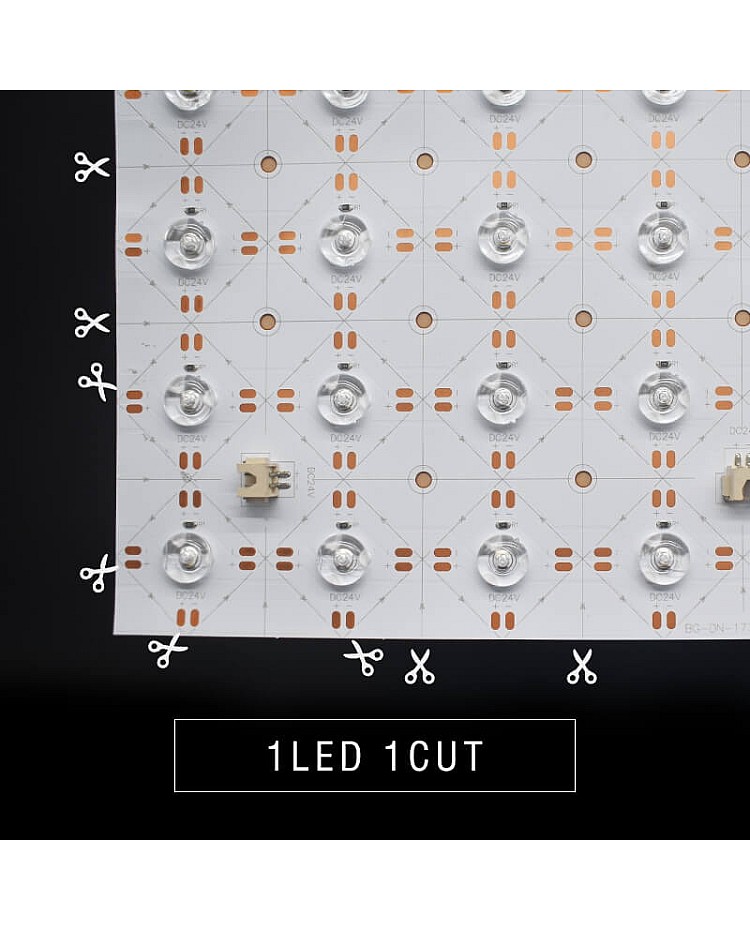

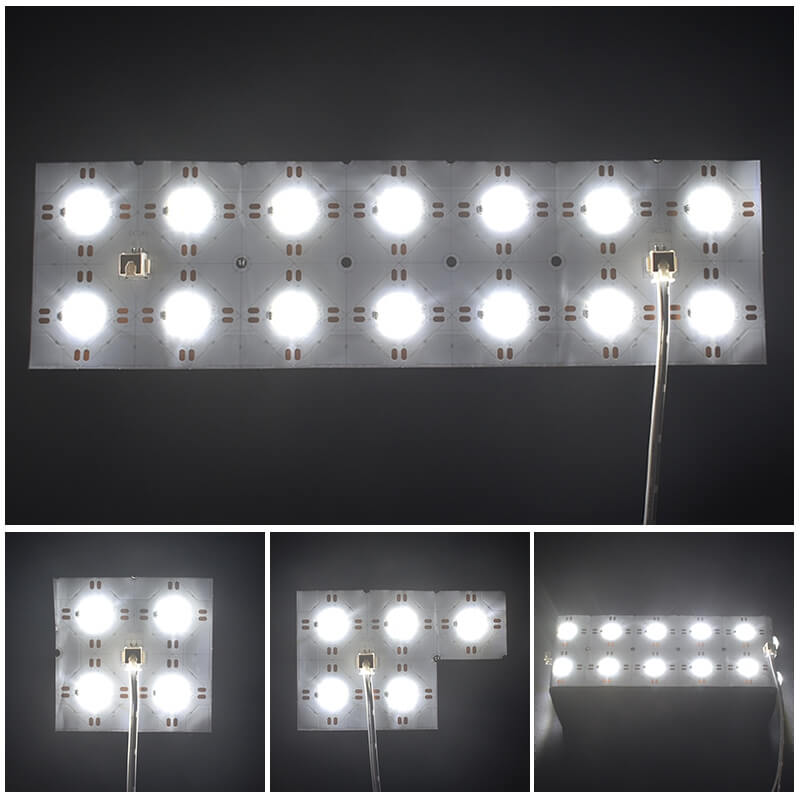

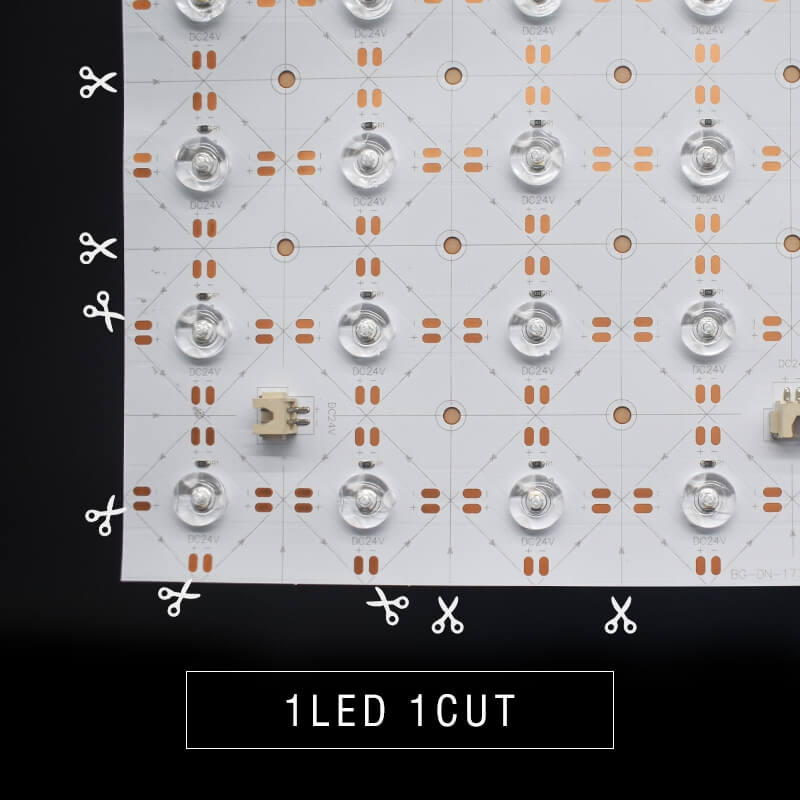

- Cut Size: 1 LED(1.41"*1.41")
- IP Grade: IP20 Non-waterproof
- Storage Temperature; -20℃-+65℃(-4°F-113°F)
- Working Temperature: -20℃-+45℃(-4°F-149°F)
- Certifications: CE, ROHS
- Lifespan: >35,000 Hours
- Warranty: 3 Years Replacement

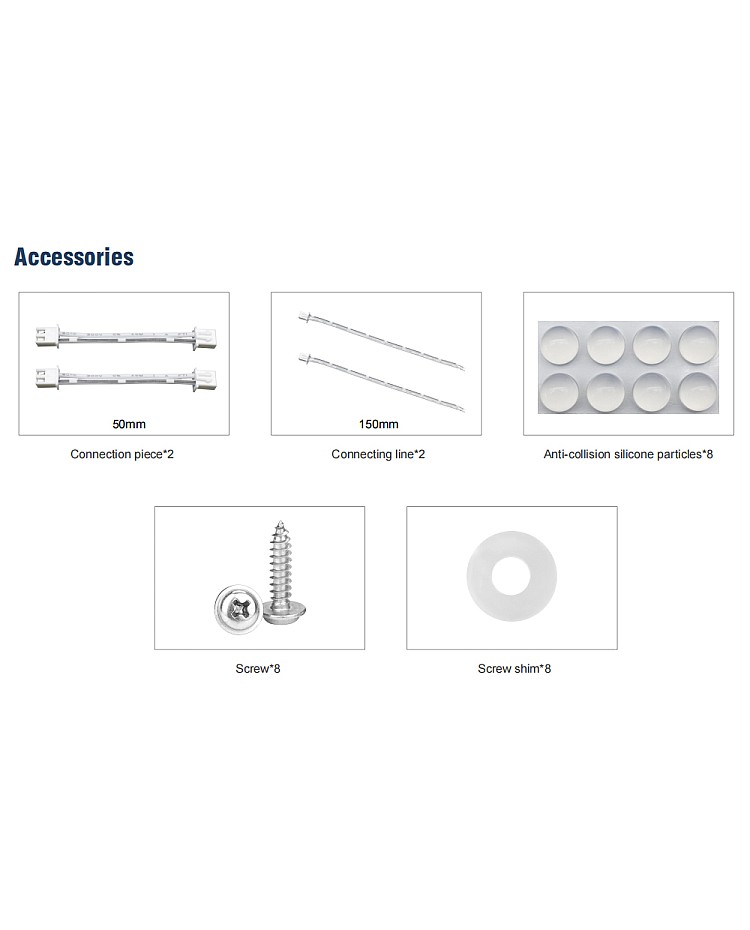

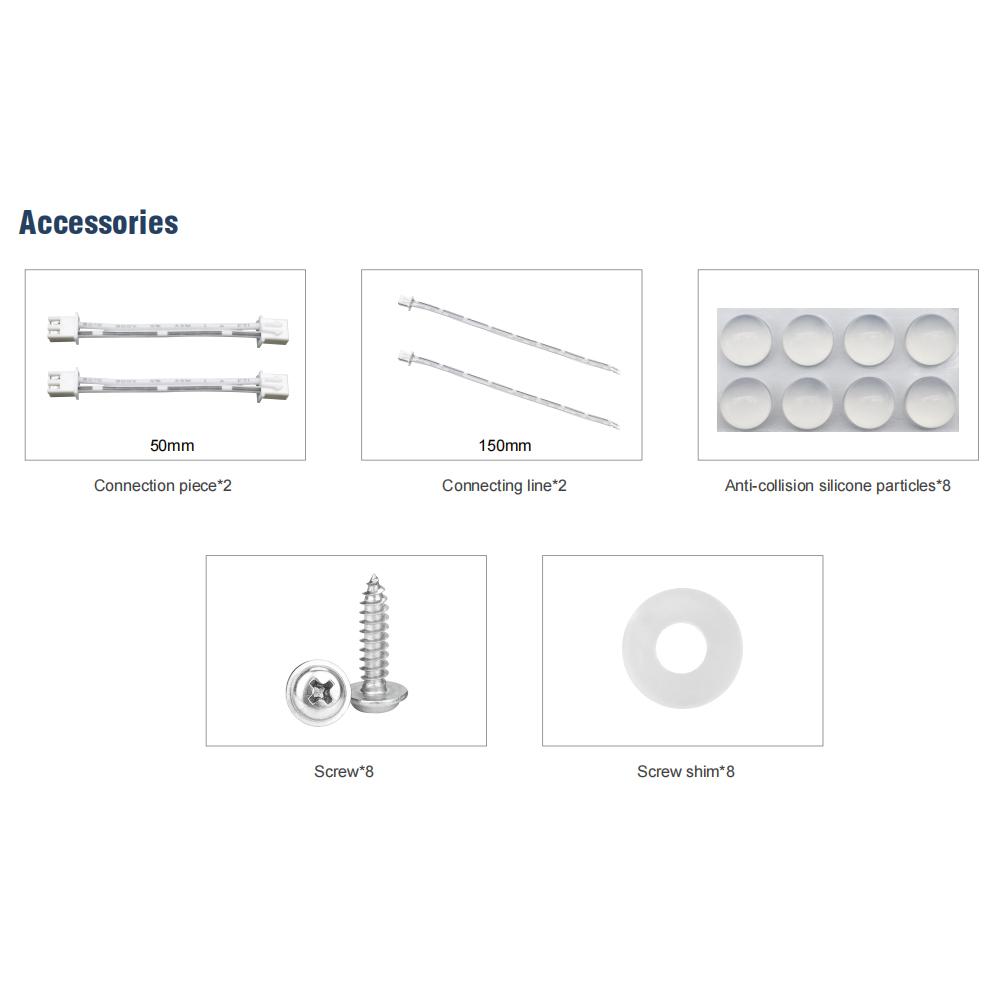

Includes:
1*LED Sheet With Optical Lens
8*Anti-collision Silicone Particles
2*5CM 2P Connecting Lines(Both Ends Have Connections)
2*15CM 2P Connection Pieces(Single End Has Connector)
8*Screws
8*Screw Shims
