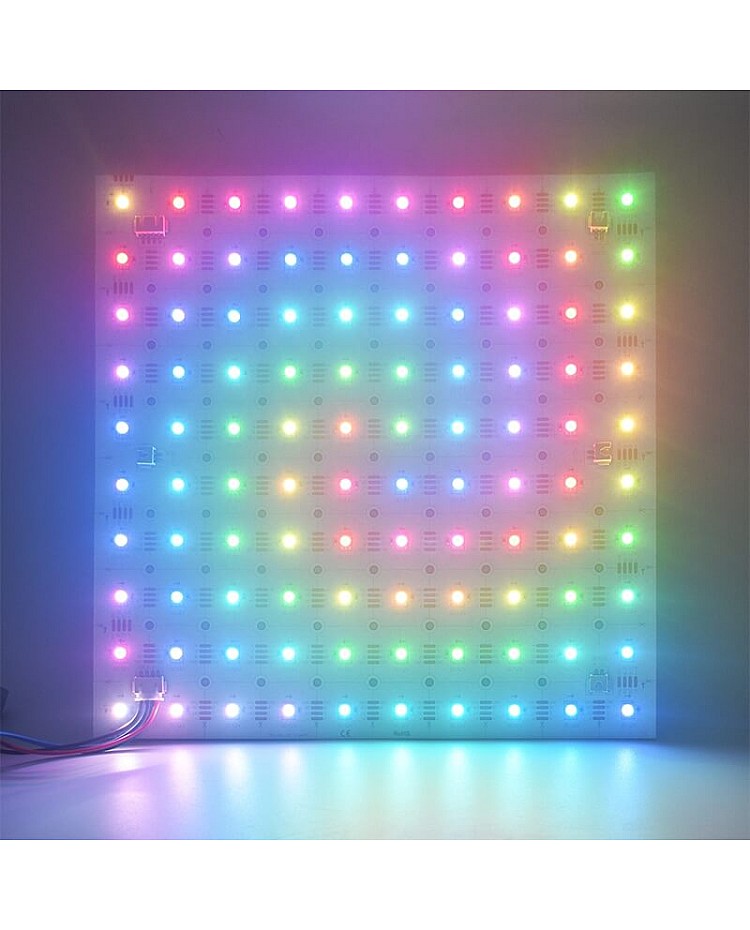

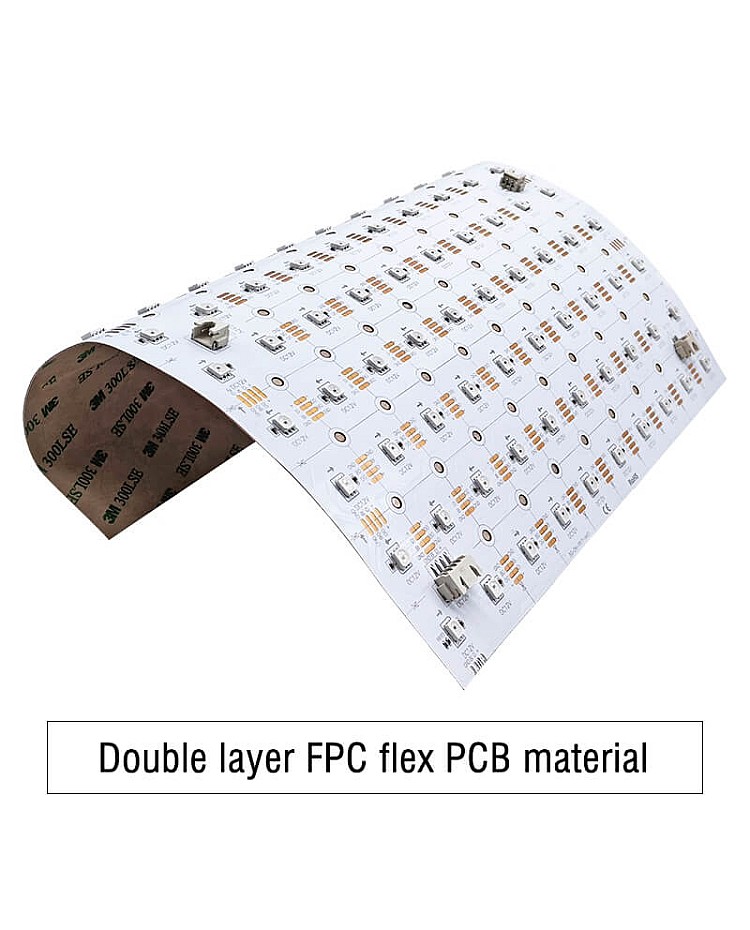

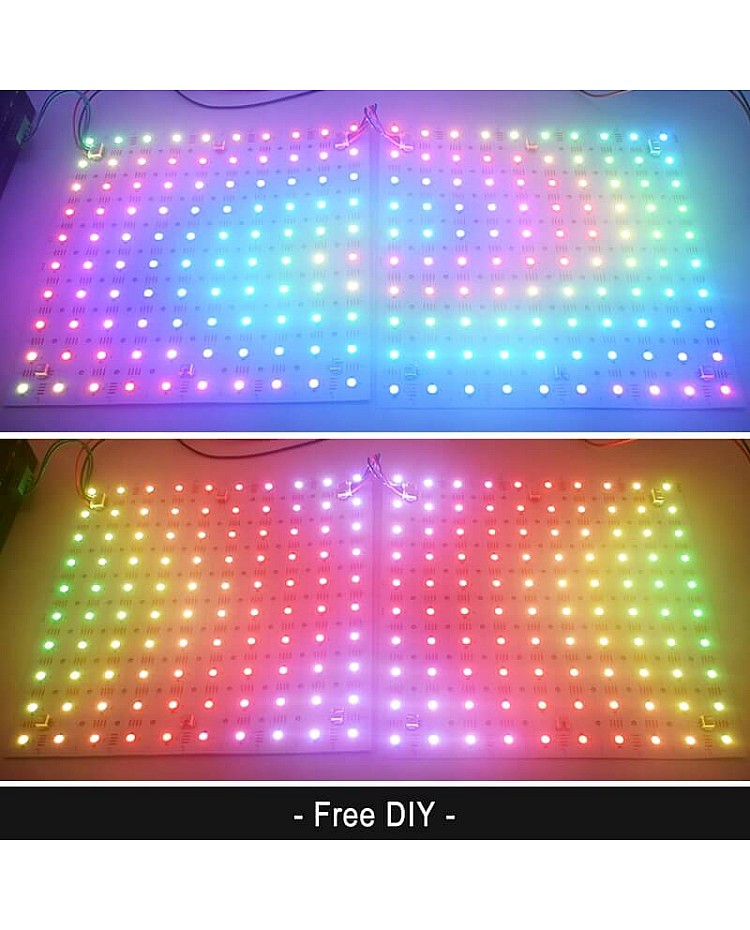

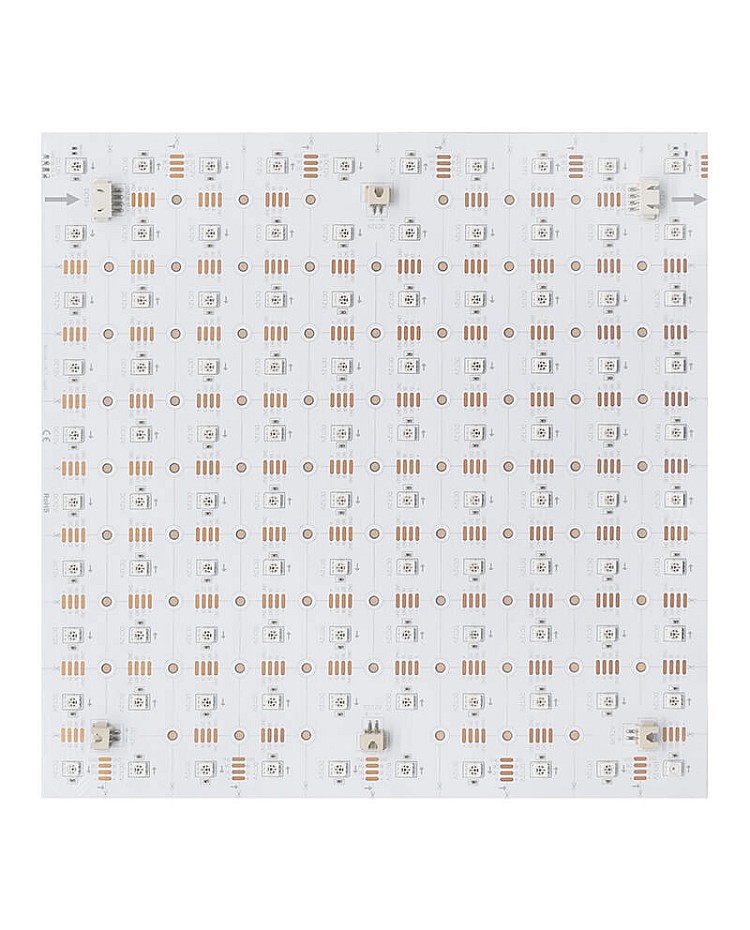

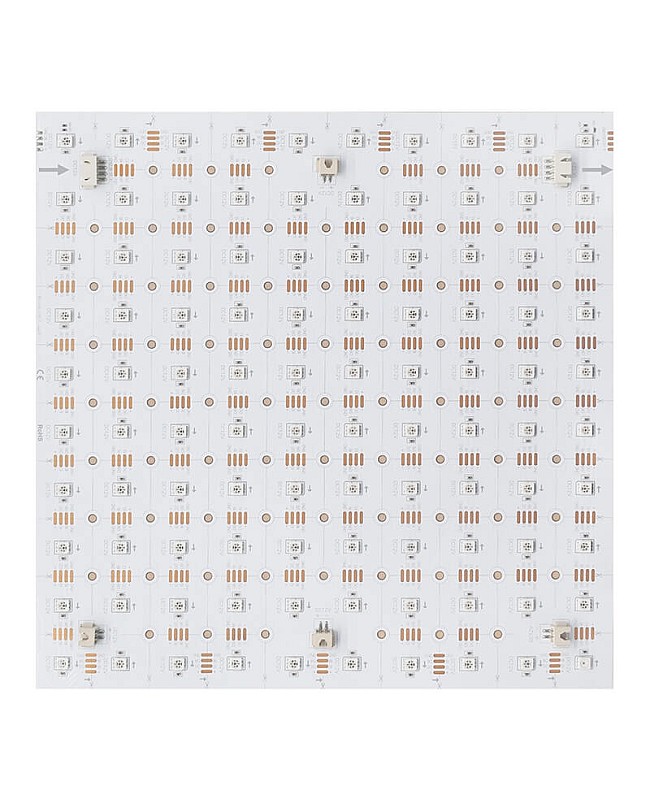

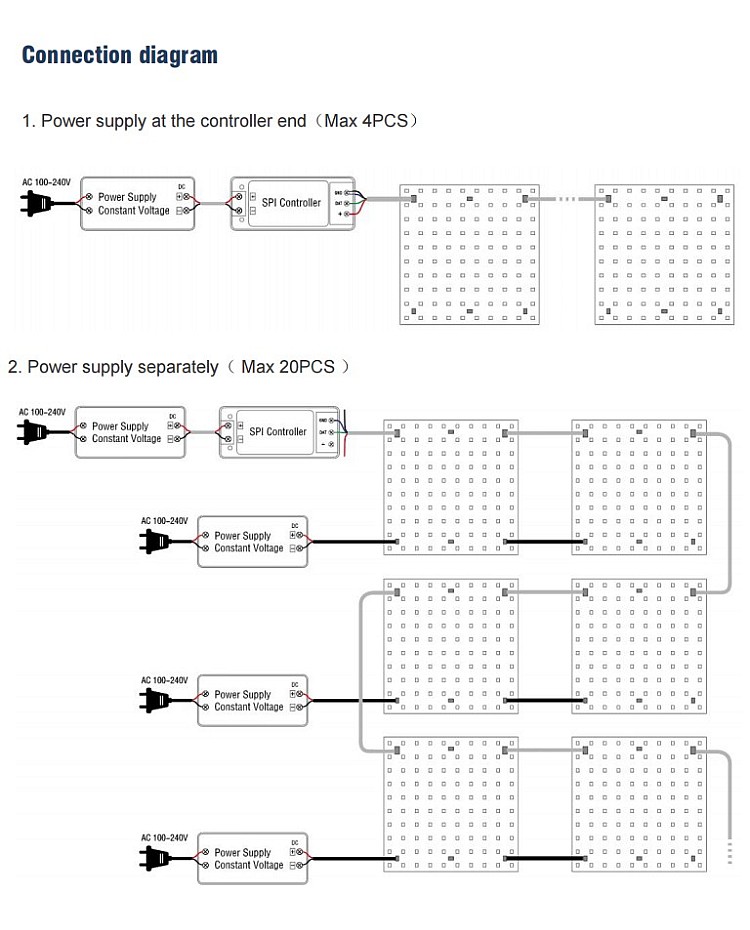

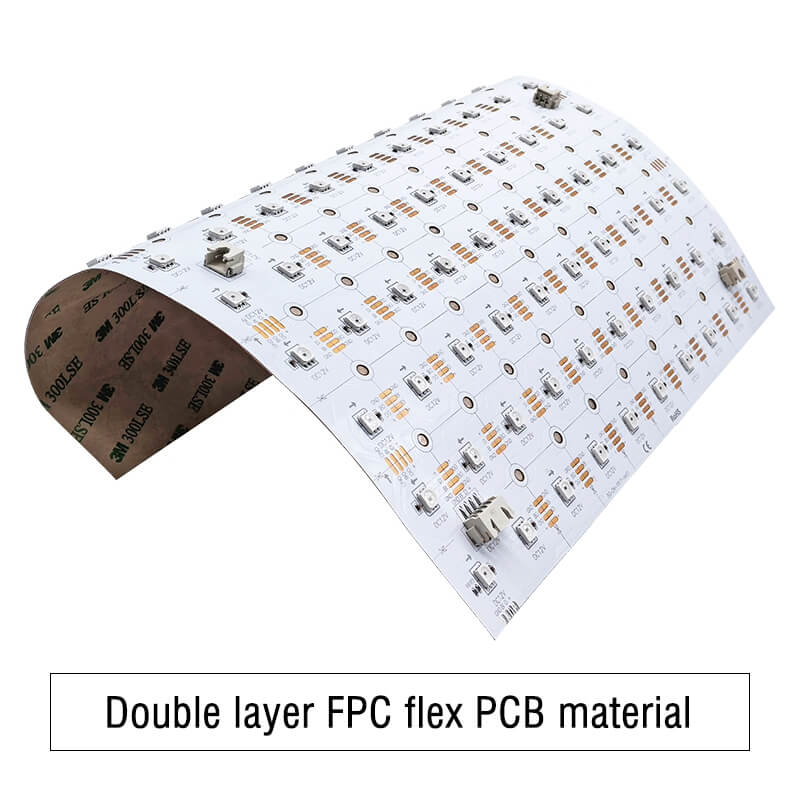

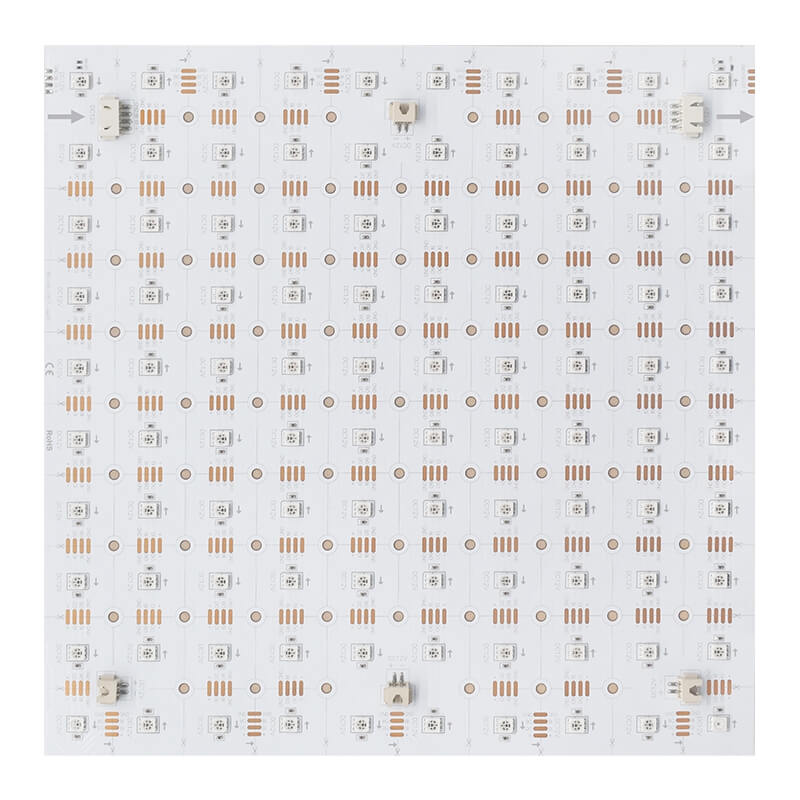

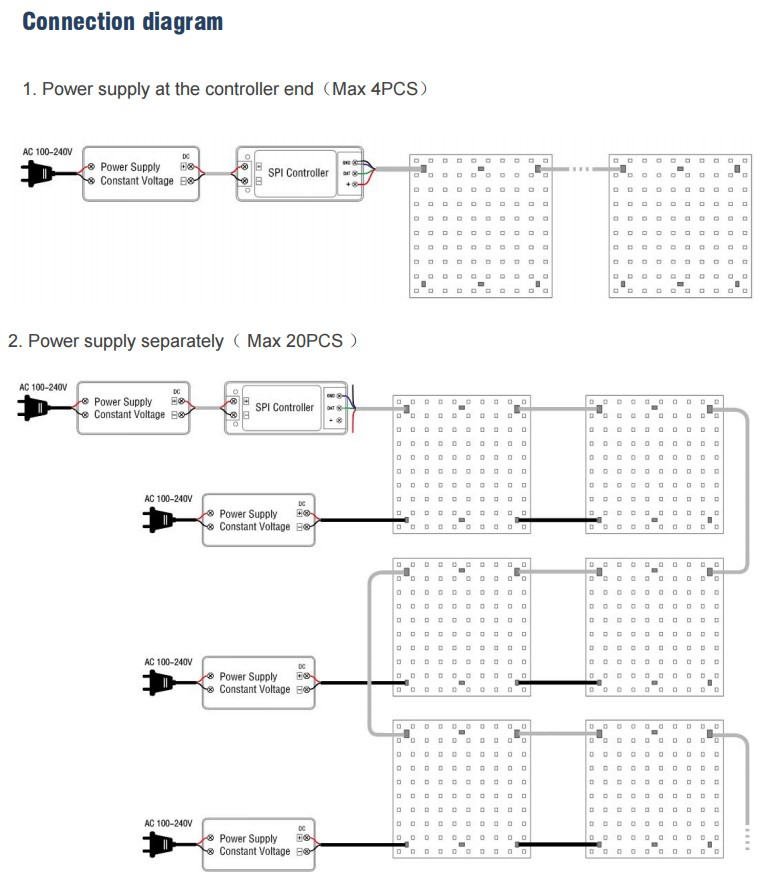

The individual addressable light sheets are the improved solution for backlighting. They have flexible, bendable, cuttable, and connectable features. It can be easily installed or connected as backlighting for marble countertops, display boxes, signs, and DIYs. 5050 SMDs arranged on the square dual-layer PCB boards and the LED built-in WS2812 ICs make them addressable individually to achieve hundreds of dynamic color changes and patterns. They can be cut to the desired size following the cutting lines and bent to conform to irregular surfaces. They have 6PCS connectors(Input, Output, and Power) to connect multiple pieces of programmable sheets for large lighting projects. The back has double-sided adhesive tape and screws holes for easy installation. There are IP20 non-waterproof and IP54 waterproof products available.
Link: Individually Addressable Sheet Panel Data Sheet
Features:
- Type: Addressable Cuttable Light Sheets
- Model: LB-5050-100-IC

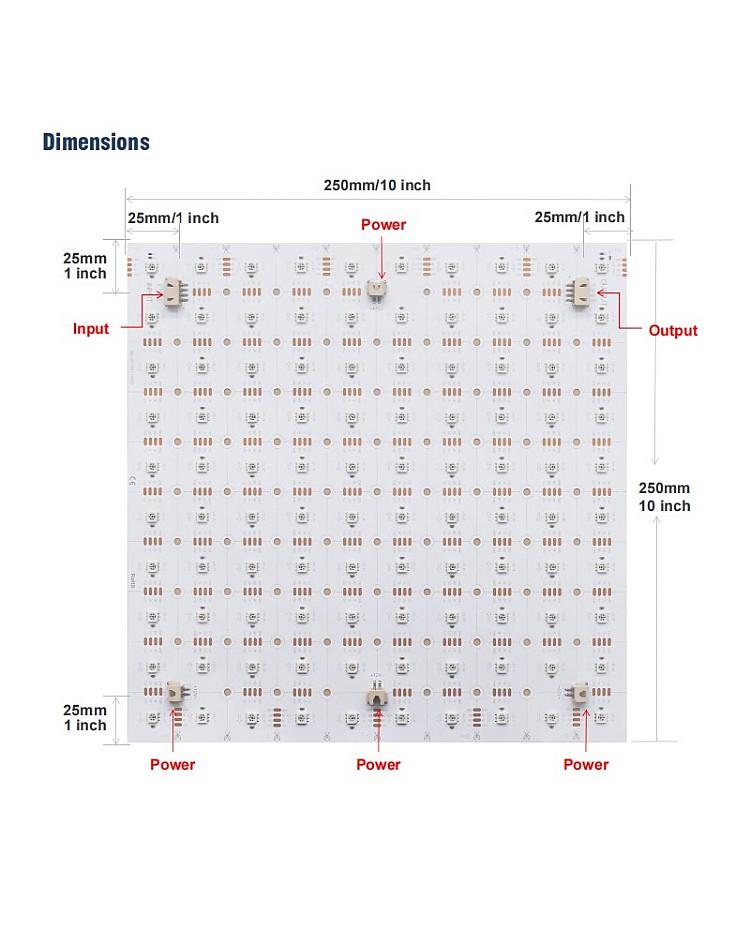

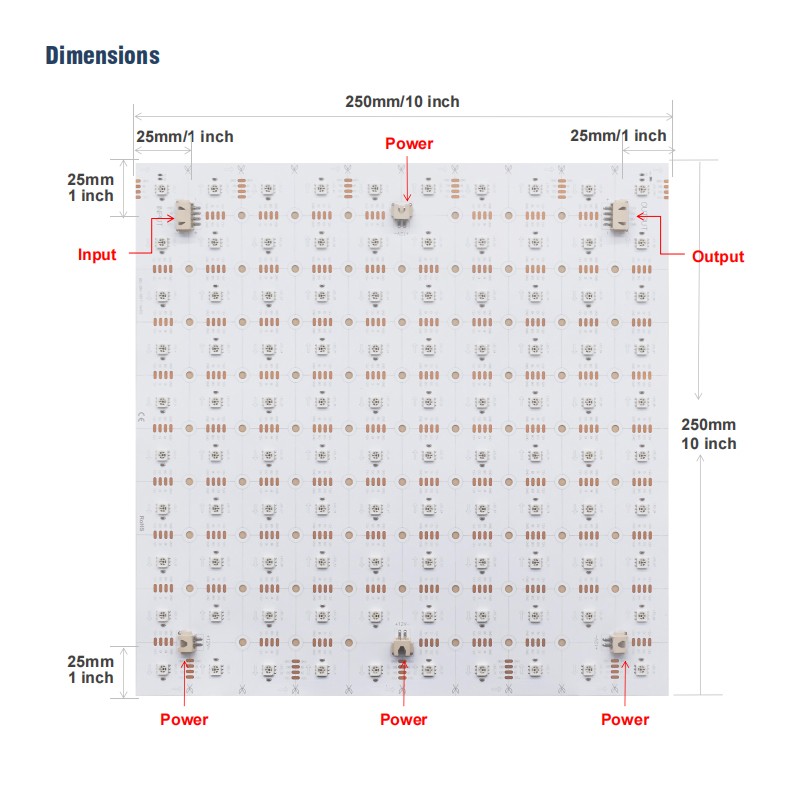

- Size(L*W): 250*250MM/0.98"*0.98"
- LEDs: 100PCS 5050 SMDs
- IC Type: Built-in WS2812
- IC QTY: 100PCS
- Color: RGBIC
- Working Voltage: DC12V
- Current: 1.08A
- Power: 13W
- Luminous Flux: 20LM/LED
- Wavelength: 620-625nm(Red), 520-525nm(Green), 465-470nm(Blue)
- Beam Angle: 120°
- Flexible, Bendable, And Cuttable
- Back With Double-sided Adhesive Tape
- Surface With Screw Holes And Multiple Connectors
- Waterproof Level: IP20 Non-waterproof, IP54 Waterproof
- Storage Temperature; -20℃-+65℃(-4°F-113°F)
- Working Temperature: -20℃-+45℃(-4°F-149°F)
- Certifications: CE, ROHS
- Lifespan: >35,000 Hours
- Warranty: 3 Years Replacement

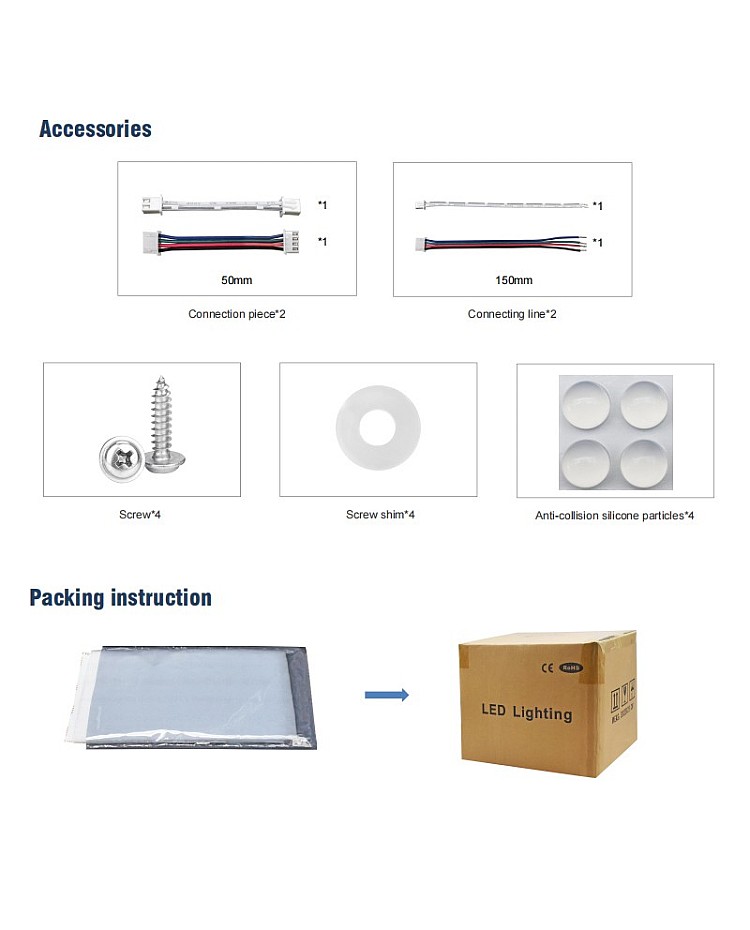

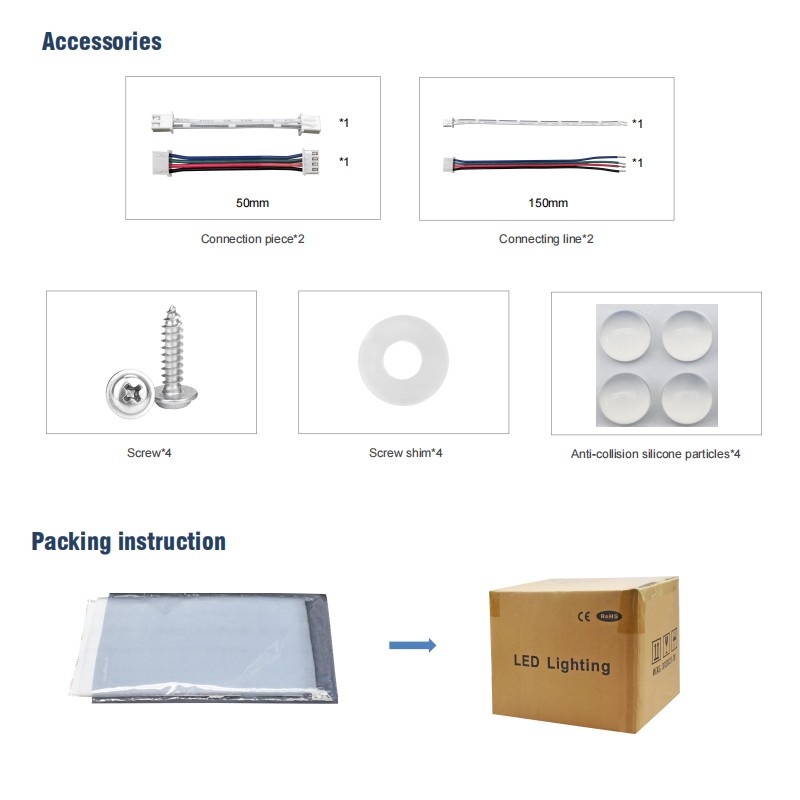

Includes:
1*Programmable Lighting Sheet
1*5cm 4P Connection Wire(Both Ends Have Connectors)
1*5cm 2P Connection Wire(Both Ends Have Connectors)
1*15cm 4P Connection Wire(Single End Has Connectors)
1*15cm 2P Connection Wire(Single End Has Connector)
4*Screws
4*Screw Shims
4*Anti-collision Silicone Particles
FAQs:
1. What is the advantage of sheet panels over lighting strips?
2. Can those be used for outdoor projects?
No, they can only be used for indoor projects. The IP54 waterproof products have silicone coated on the surface, allowing you to use them in wet environments.

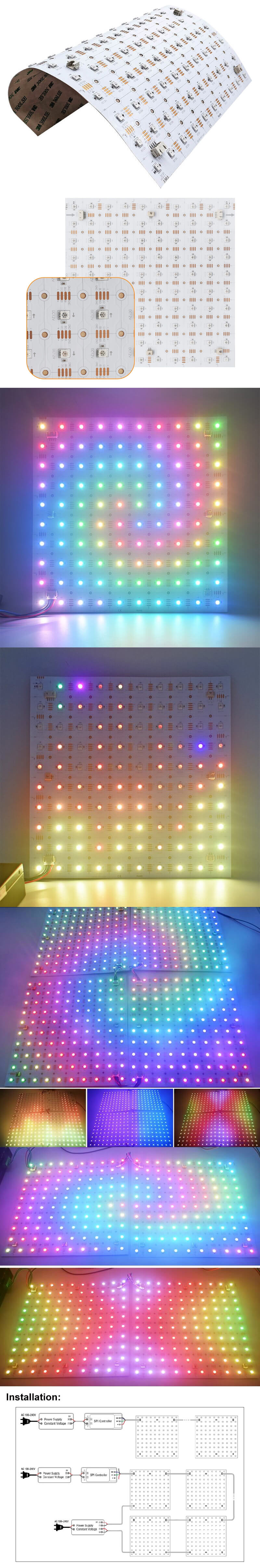

3. How can I install them?
They have screw holes and double-sided adhesive tape on the back. The screws are included in the accessory bag. You can stick them on the place that you want to install or use the screws to mount. Before the installation, please clean the surface of the area to ensure it is dry and not dirty. The accessory bag is included, which includes the connection wires, screws, and anti-collision silicone particles.

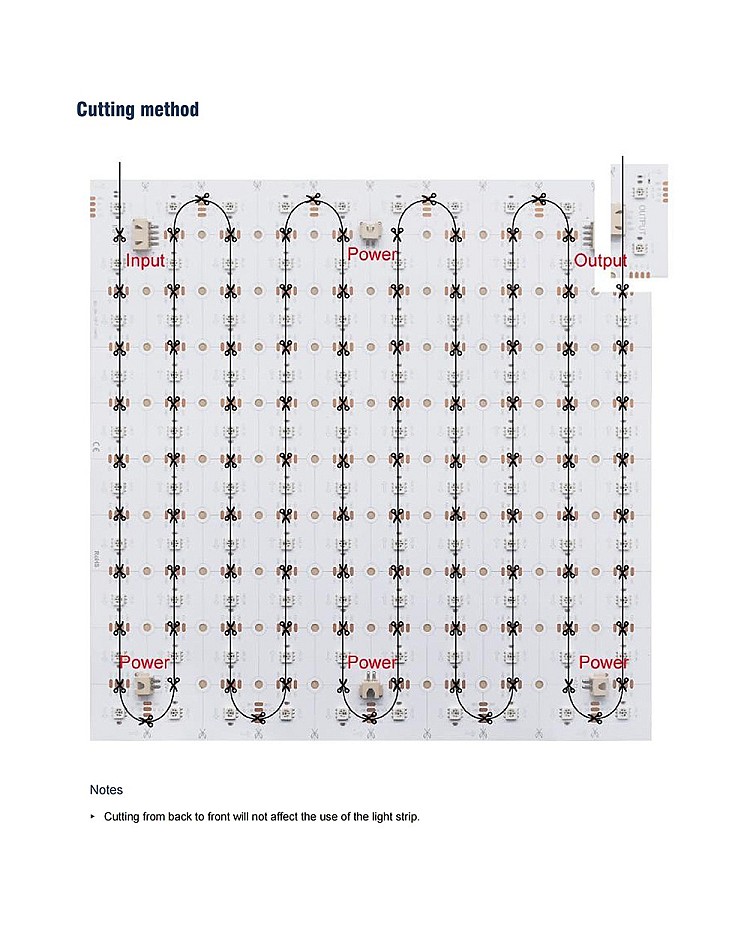

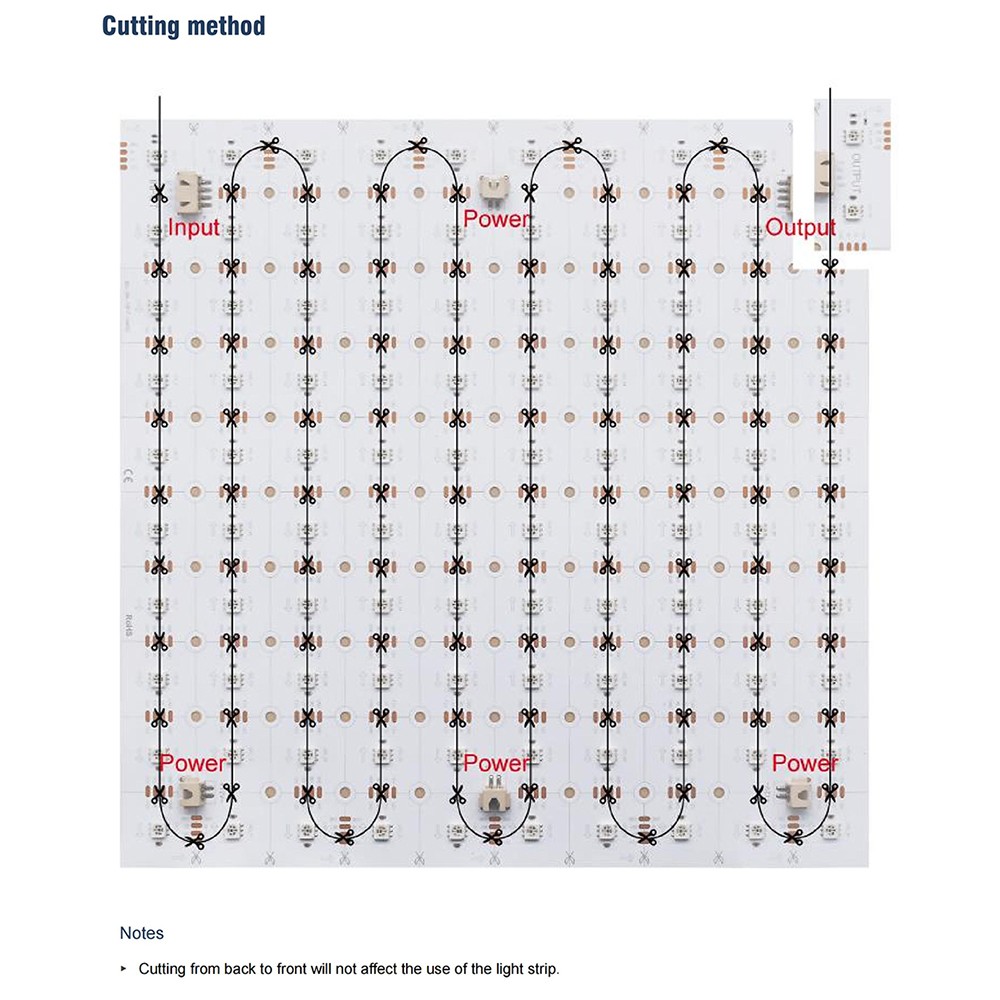

4. Can I cut them to the desired size by myself?
Yes, you can. You can use a knife to cut any size from the cutting marks. The cutting marks are vertical and horizontal lines on the PCB boards. Please cut from back to front to avoid damage to it. If you are unsure how to do it, please contact us.
5. Should we need a SPI controller to control them?
Yes, you will need a SPI controller to adjust the dynamic modes or customize the lighting effect. We will recommend the SP105E, SP107E, SP108E, SP530E, etc. We recommend our Mean Well series if you want to purchase 12V power supplies for them. Please contact us if you want us to pick one for you.
6. Certifications and warranty.
They have CE and ROHS certifications, and the UL listed await approval. They will get 3 years replacement.
