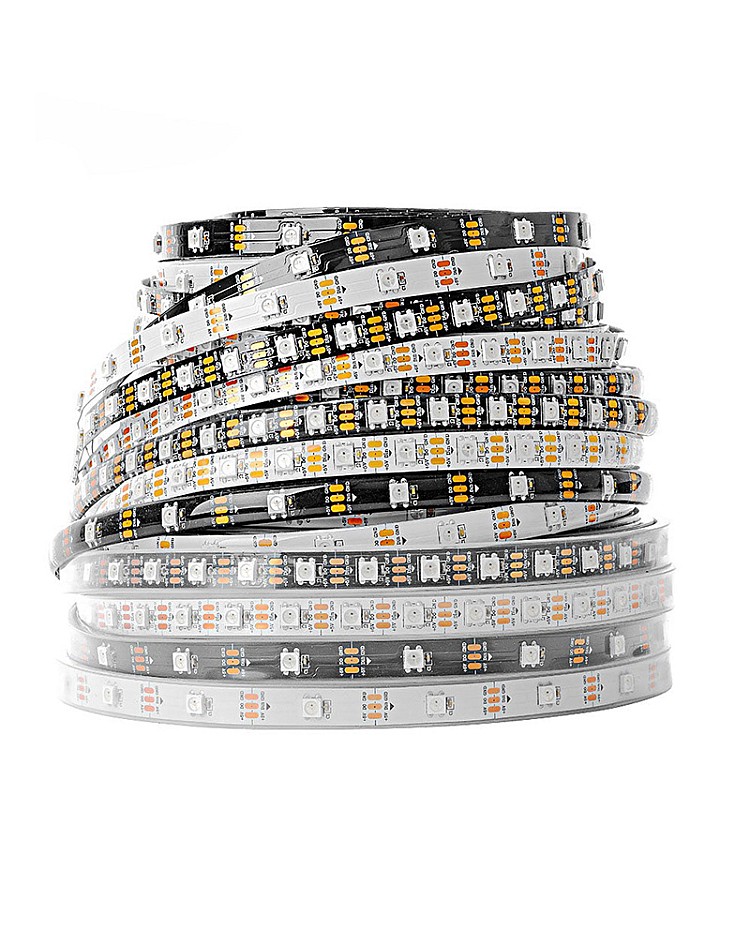

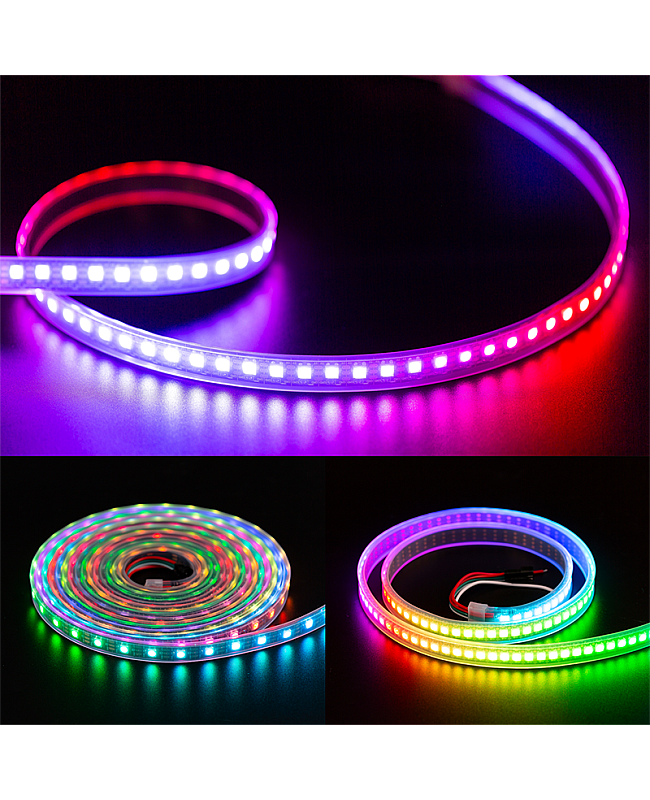

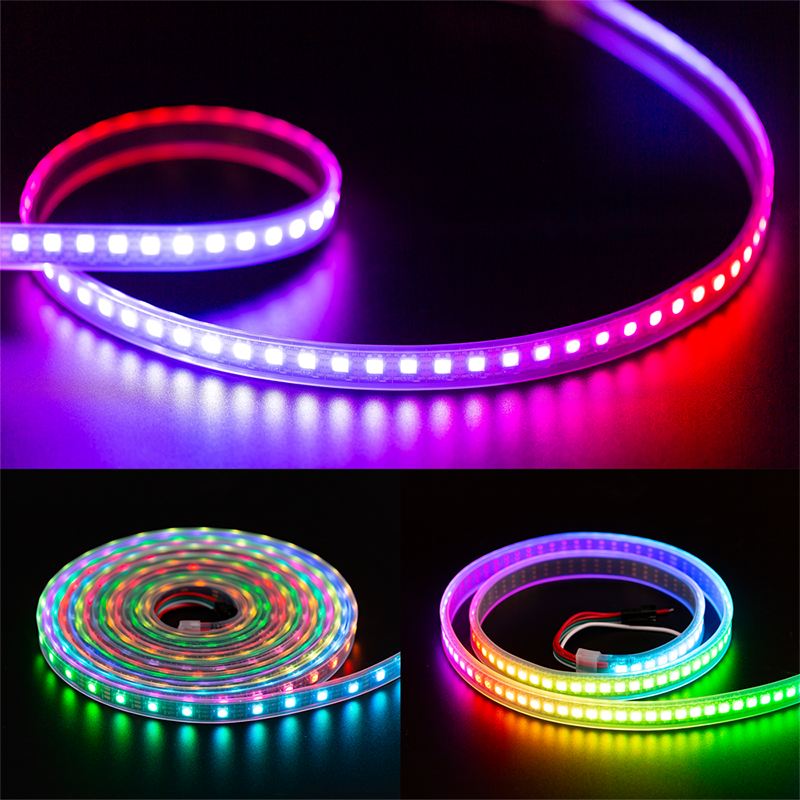

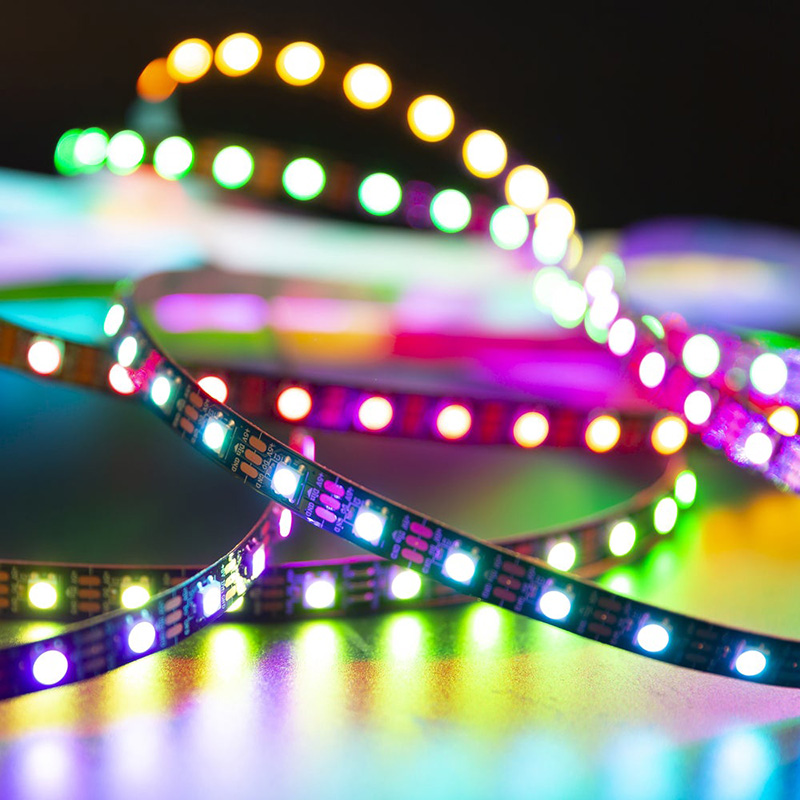

+The WS2812B ECO Programmable LED Strips are the economical version of the WS2812 B LED Strips. The LEDs, accompanied by 9PCS alloy wires (not pure gold wires), are cost-effective for beginners and small projects. The Programming LED Strips use 5050 RGB SMD LEDs as the light source, each LED built-in the WS2812B IC for individually addressable function, and great to work with Pixel LED Controllers to achieve fantastic lighting effects, chasing, rainbow, fire, meteor, rhythm, etc. hundreds of lighting styles, 256 brightness display and 24-bit color display, both ends of the Programmable LED Light Strips with 3 Pin JST-SM Connectors, easy to install and light up, each LED can be cut off and reconnected for your project without damaging the rest of Strips. There are various colors of PCB Boards, LED quantities, and product lengths available for your project. There are 3 types of waterproof products available: IP30 non-waterproof, IP65, and IP67 waterproof. The back of IP30 and IP65 products features double-sided adhesive tape, making it easy to remove the protective paper from the tape and stick it to the desired installation location. The IP67 Digital RGB LED Strip Lights come with Clips, allowing for installation in damp places for outdoor projects. The WS2812B ECO LED Strips are compatible with most Pixel LED Controllers, including Arduino, Raspberry Pi, Teensy, T1000S, K1000C, SP110E, SP105E, SP108E, and SP601E. The WS2812B ECO Strip Lights operate on DC 5V, are safe for kids and pets, and can be used to create LED Screens, advertising panels, LED Matrices, Backlights, Laser Words, light sticks, and more for hotels, KTVs, Bars, Holidays, Outdoor Projects, and other applications.
Notes:

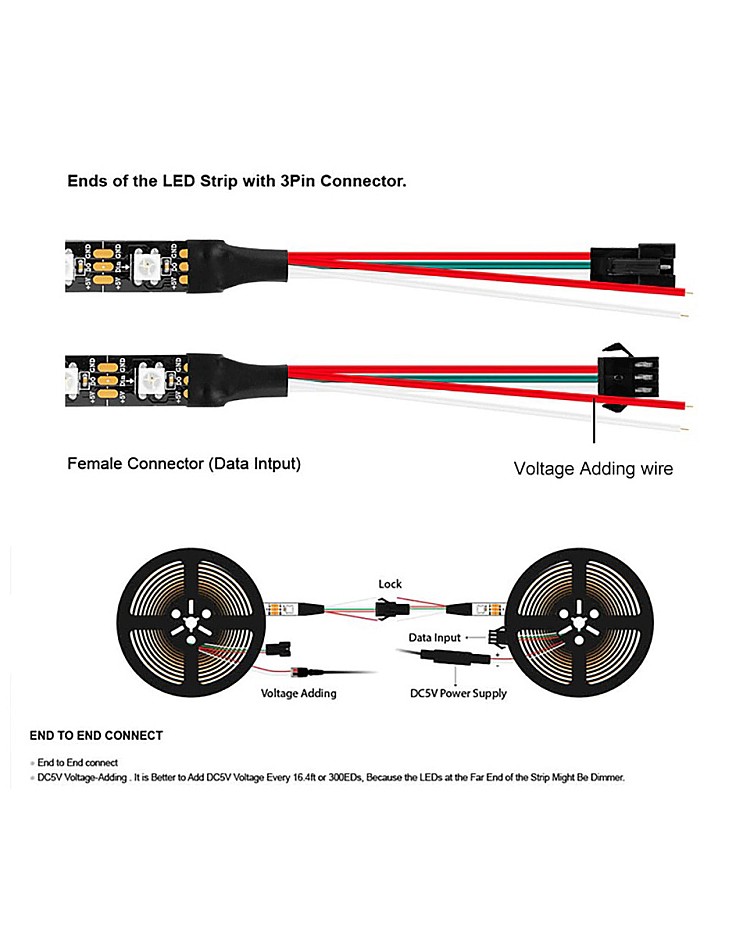

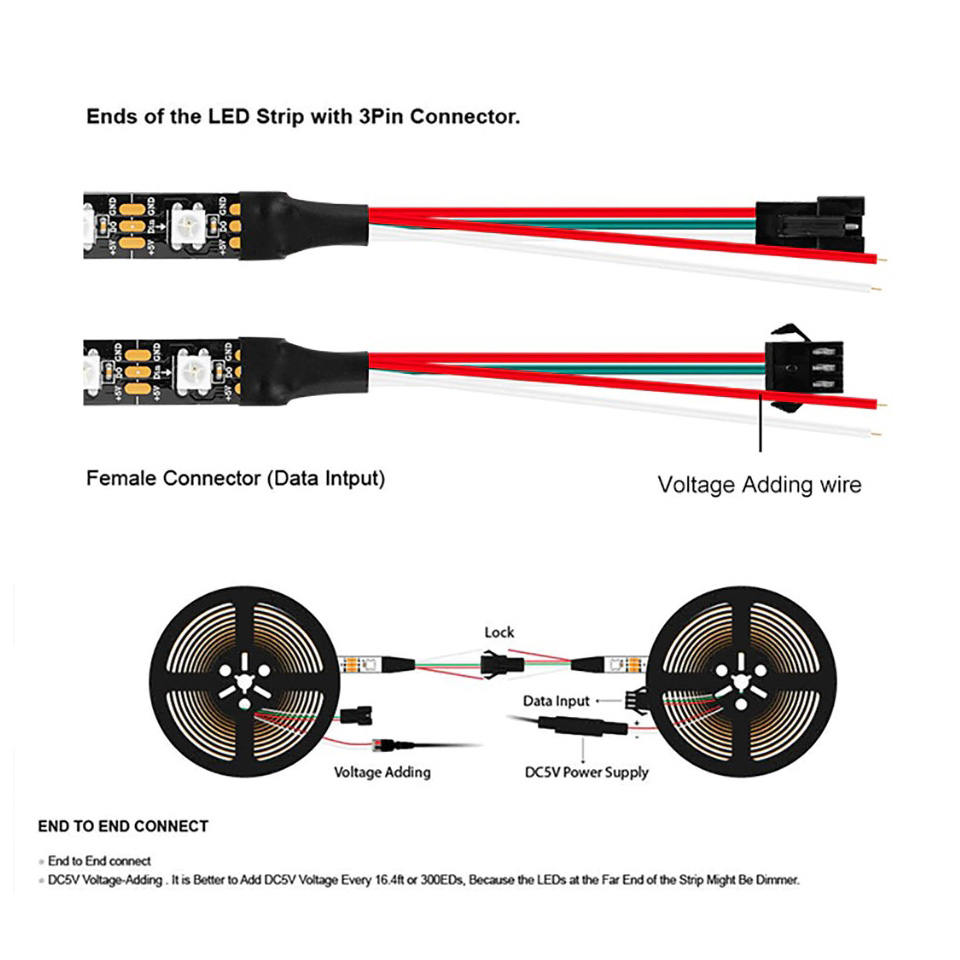

To maintain uniform brightness across all LEDs, we recommend adding a 5V DC voltage every 5 meters (16.4 feet). This is necessary because the LEDs at the far end will be dimmer due to the added resistance and voltage drop.
Specifications:
- Model: WS2812B ECO
- Working Voltage: DC5V

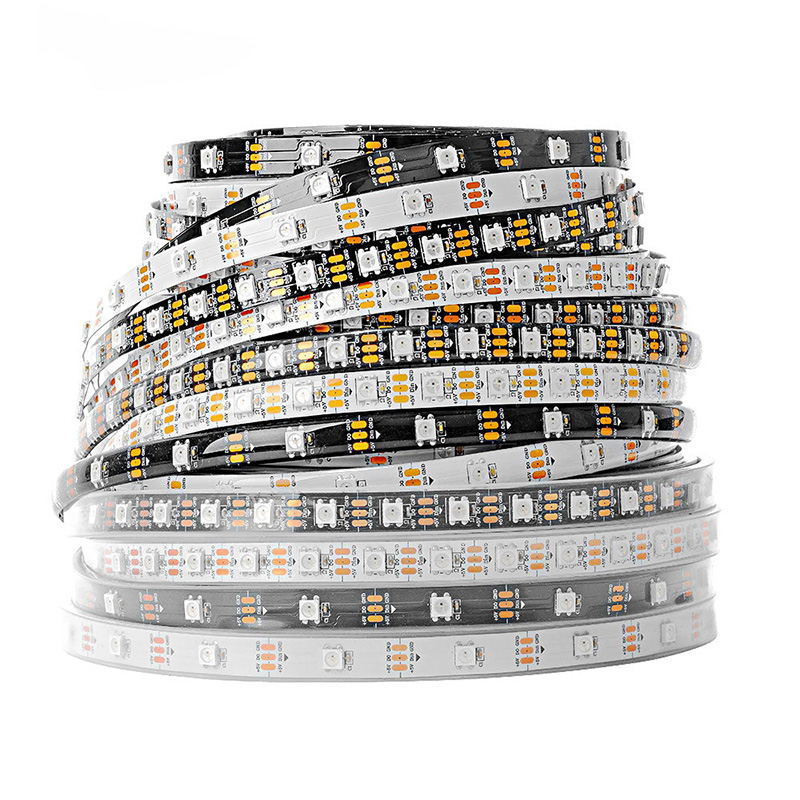

- Colors Of Flexible PCB Board: Black/White
- LED: 5050 RGB SMD LEDs

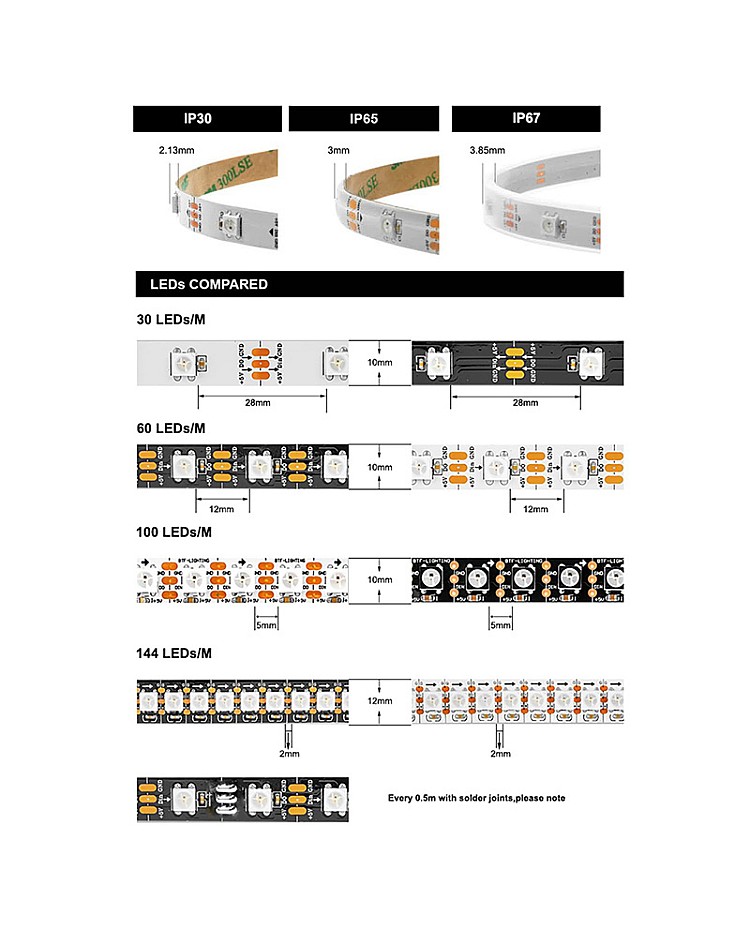

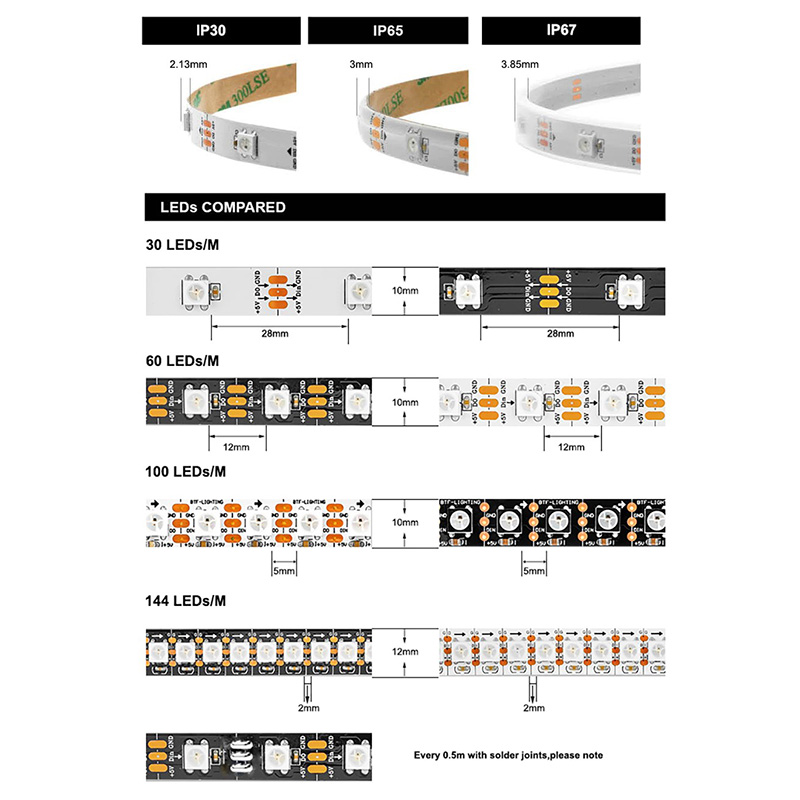

- LED Quantity(Per Meter): 30LEDs/60LEDs/100LEDs/144LEDs

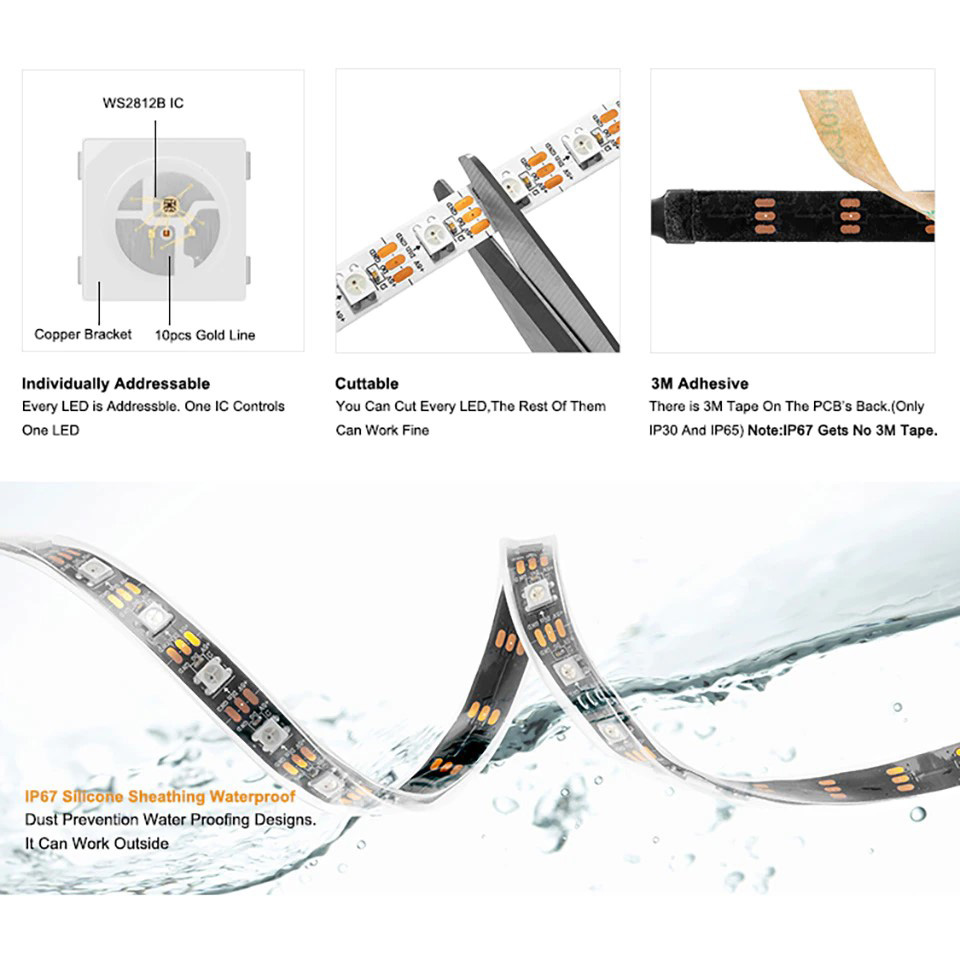

- IC Type: Built-In WS2812B (Individually Addressable: One IC Controls One LED)
- Width: 10mm(30LEDs/60LEDs/100LEDs)/12mm(144LEDs)

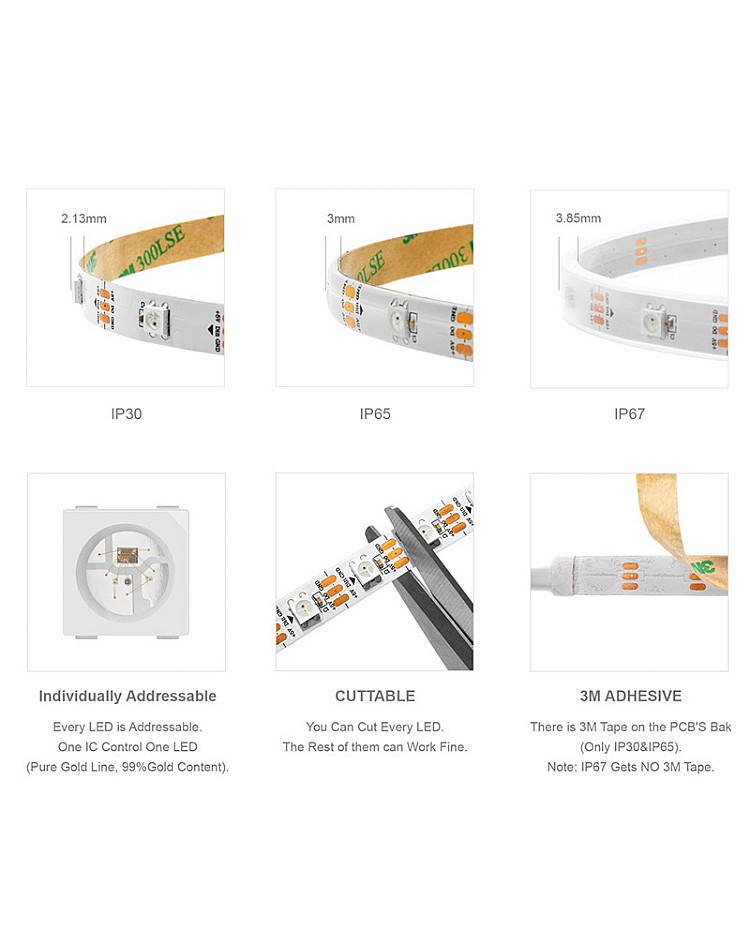

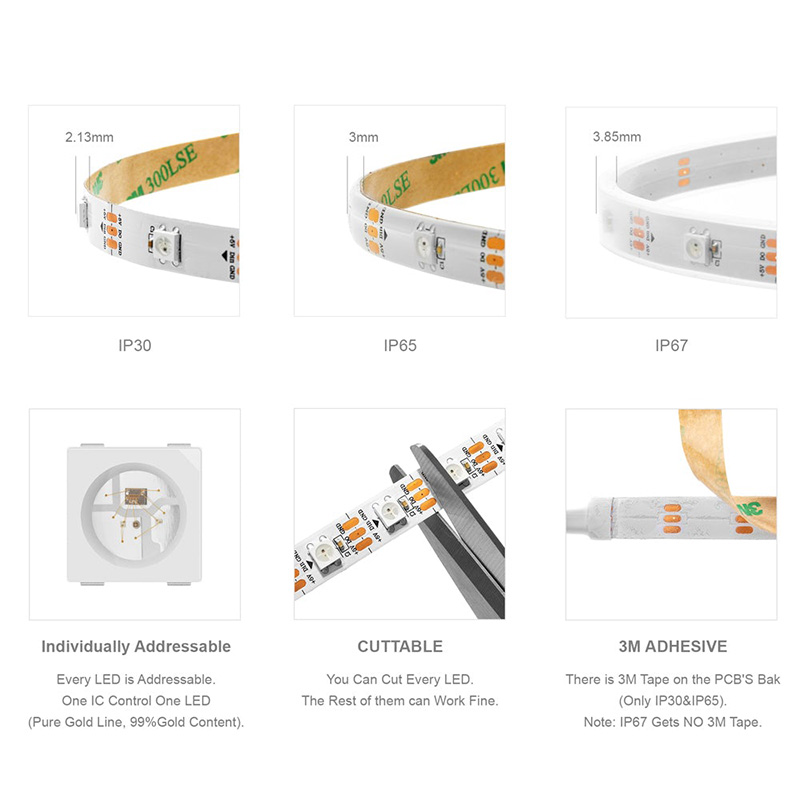

- Thickness: 2.13mm(IP30), 3mm(IP65), 3.85mm(IP67)
- Length: 1M, 2M, 5M
- Waterproof Levels: IP30(Non-Waterproof), IP65(Surface Coated Waterproof), IP67(Silicone Tube Waterproof)
- Color: Full-Color 24-Bit
- Color Order: G R B (Not RGB)
- Gray Levels: 256
- View Angle: 120°
- Power: 0.1-0.3W/LED
- Luminous Intensity: Red(500-700MCD), Green(1300-1800MCD), Blue(300-500MCD)
- Wavelength: 620-630nm(Red), 515-530nm(Green), 465-475nm(Blue)

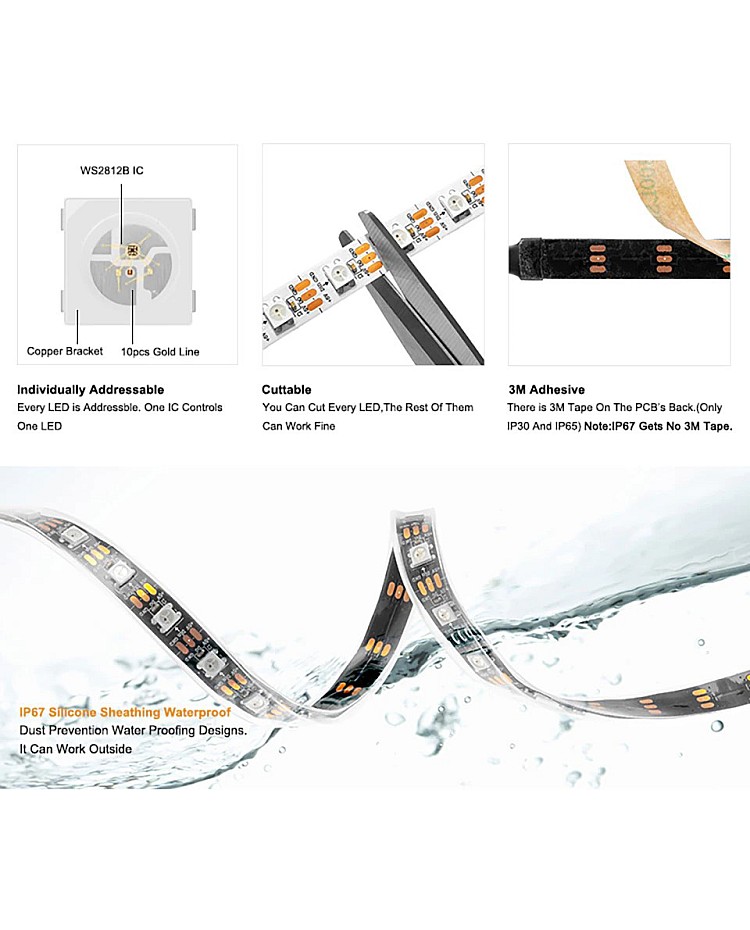

- Every LED Can Be Cut Off
- The Back Of IP30 And IP67 LED Strips With Double-Sided Adhesive Tape
- The IP67 LED Strips Come With LED Clips
- 3 Pin Connector On Both Ends Of Programming LED Strips
- Compatible With Addressable LED Controllers: SP105E, SP110E, SP107E, CSY08, SP108E, SP501E, K-1000C, Arduino, Raspberry Pi, Teensy, etc
- Applications: LED Matrix Panel, Backlights, Laser Sword, Light Sticks, DIY Projects, etc
- Working Temperature: -20℃-+40℃
- Lifespan: 50,000 Hours
- 3 Years Warranty
Includes:
1 * WS2812B Programmable LED Strips
1 * 3 Pin Male Connector
