When you try to search LED strips on the internet, you will see the ADs of sheet lights, which are similar to LED tapes but not the same.They are new products that not all people know. But they are hot sales and are welcomed by more and more users. So today, let me tell you everything about the sheet lights.
- What are Sheet Lights?

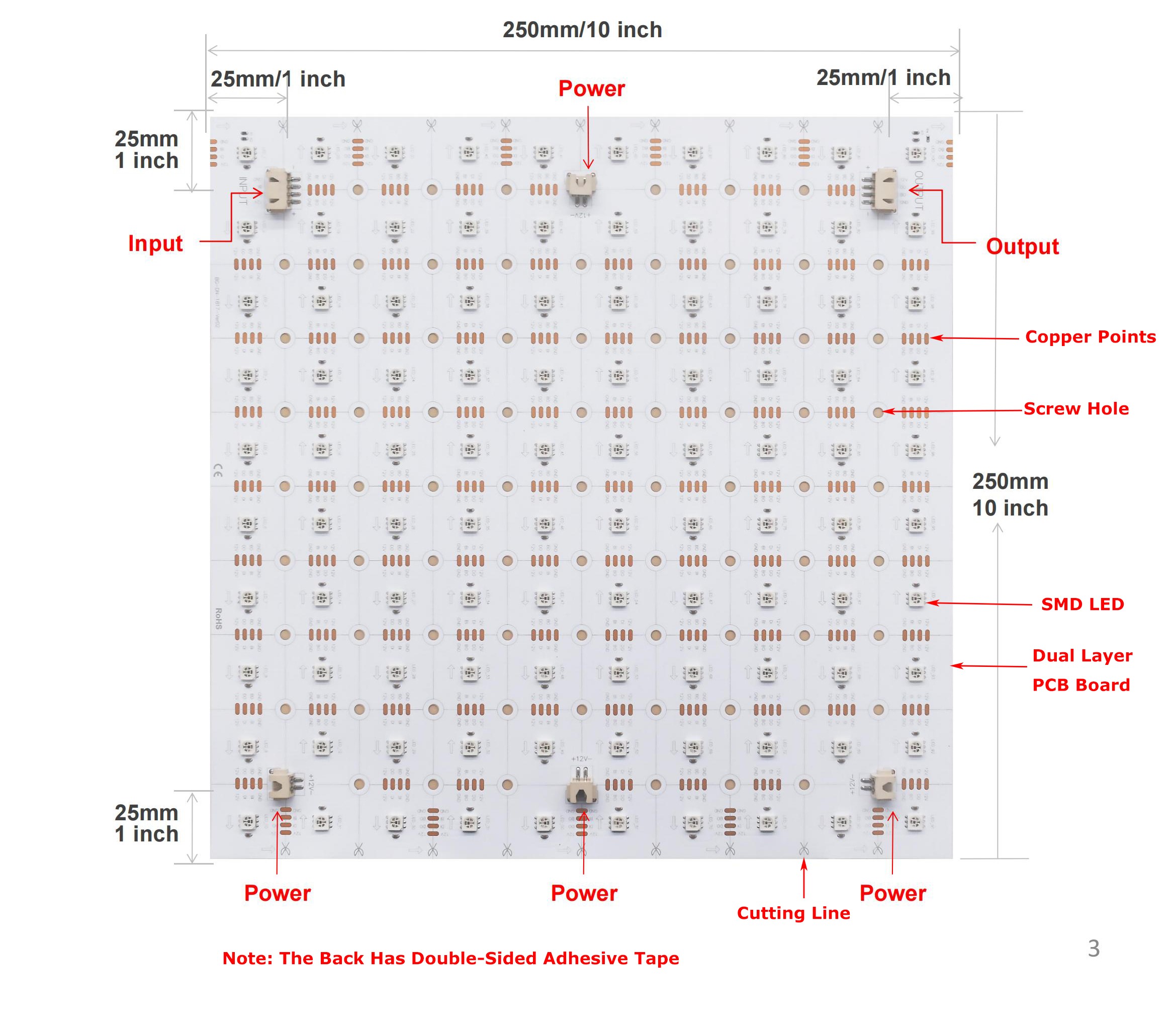

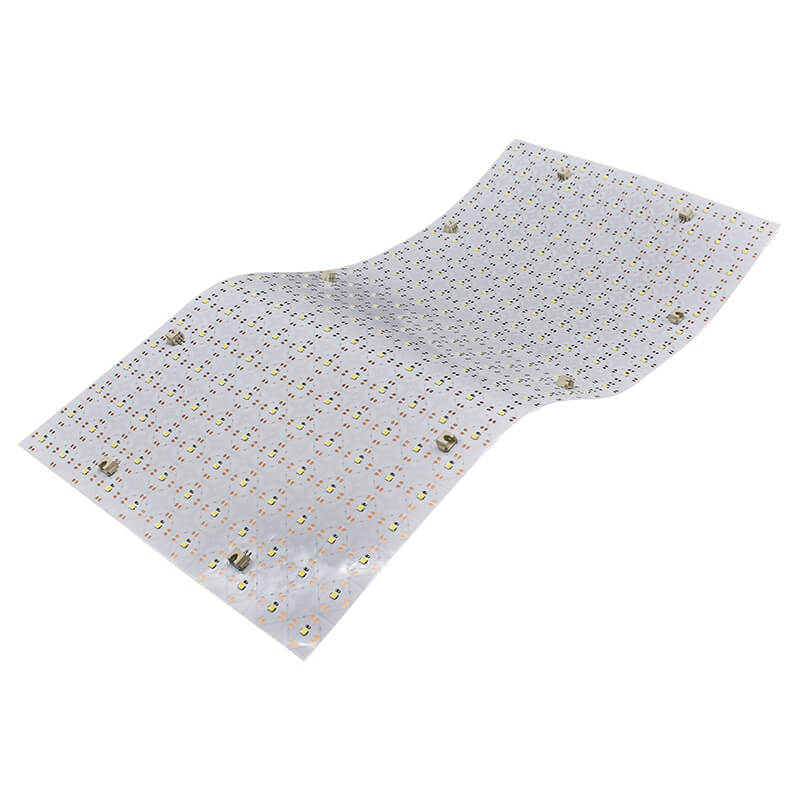

Like its name, the sheet lights have an ultra-thin structure and sheet shape. The SMD LEDs are arranged on the dual-layer PCB boards evenly to make them flexible and bendable. Multiple connectors are soldered on for easy power or connection to each other. There are cutting lines on the board to make them cuttable, and you can cut to your desired size following the cutting lines. Those sheet panels will create a bright and even glow, highly efficient and customizable for applications, especially as backlighting under marble countertops, in advertising boxes or signs, under shopping windows, etc.
2. The Benifit Of The Sheet Panels:

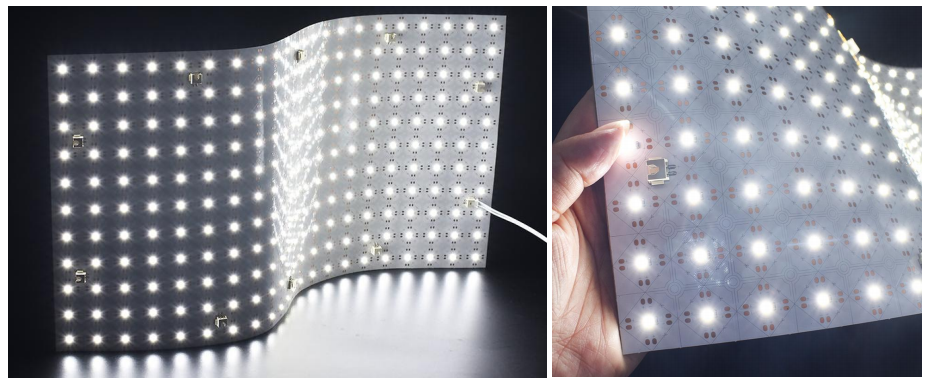

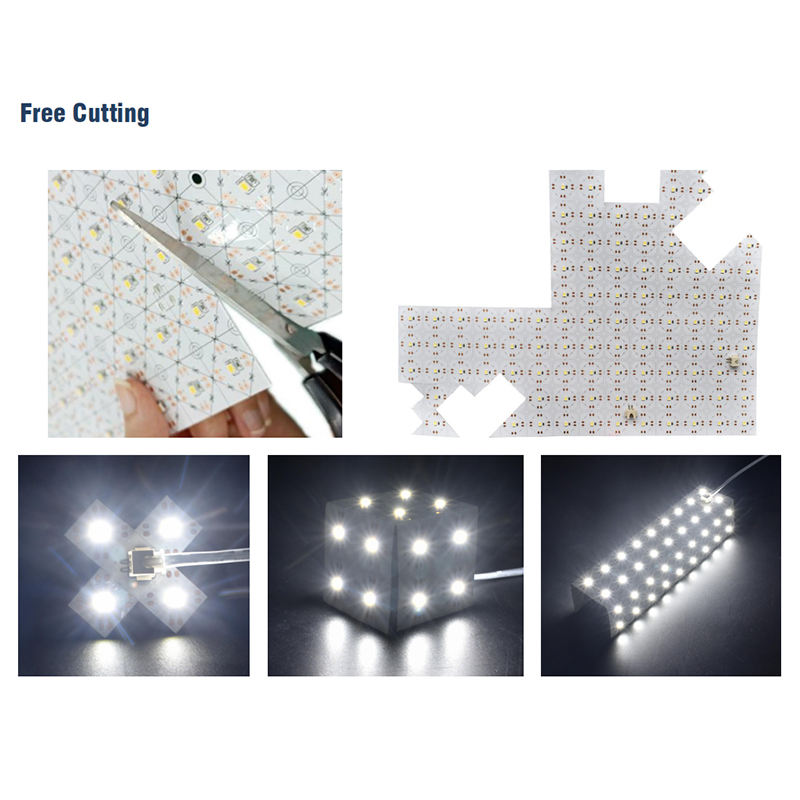

- Flexibility And Customization: Because the LEDs on the flexible dual-layer PCB board, which make them bendable. The light sheets are cuttable and linkable, which allows them are easy customize for various projects.
- Lightweight & Slim: The thickness is only 8mm, which makes them lightweight and slim like paper. They can be installed in limited spaces.
- Uniform Illumination: The high-quality LEDs on the PCB board are evenly to create uniform and shadow-free lighting, making them perfect for high-end applications, especially backlighting.
- Conveniently Linkable: The LED sheets have extra power adapters, allowing them to connect easily for large projects, cut to the desired size, or bent to the DIY shape.
- Longer Lifespan And Energy Efficiency: The LEDs are packaged with pure gold wires and large-size chips to make them have longer lifespan and higher energy efficiency. The double-layer PCB to ensure stable electrical performance.
3. What color products are available?

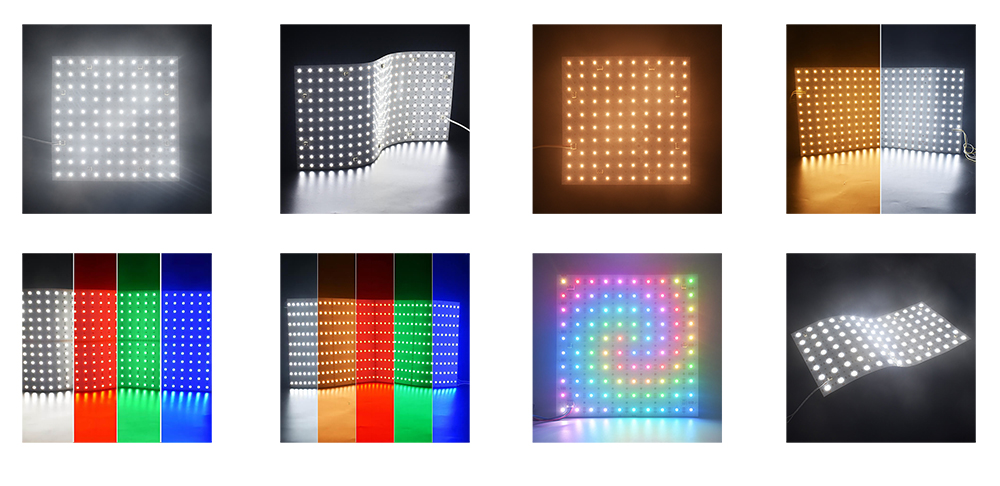

There are many color products available on the market, you can take the single color, dual white, RGB, RGBW, RGB+CCT, individually addressable, and addressable.
4. Where we can use them?

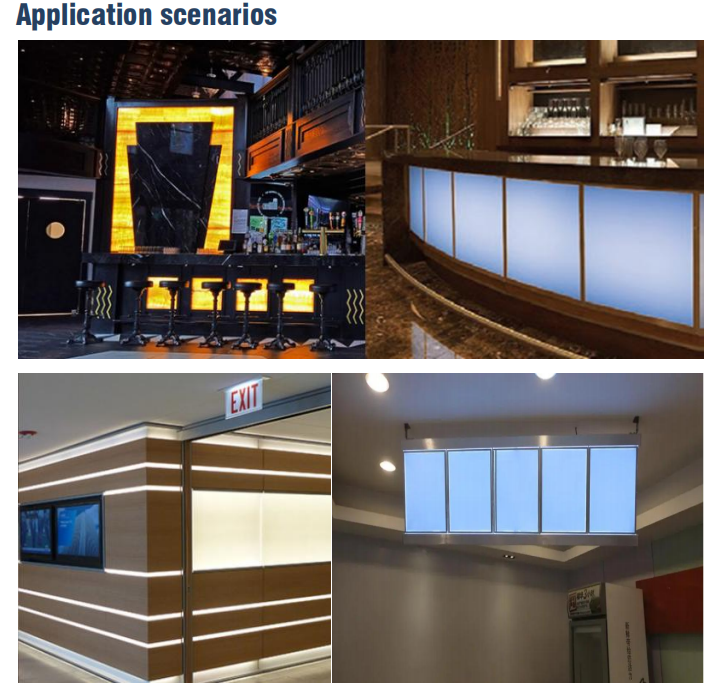

There are IP20 non-waterproof and IP54 surface coated waterproof products available. You can use them in lightboxes, signages, retail displays, backlighting in signs, marble countertops, etc. You can use the IP54 waterproof products in the wet environments like shopping windows, etc.
Architectural Lighting: They can be installed in ceilings, walls, and floors, you can add diffused cover above the sheet lighting to get a dotless and uniform illumination.
Retail Displays: Good option for backlighting in signages, advertisements, and showcases.
Interior Design: Enhances aesthetic appeal in homes, offices, etc.
5. What Sizes Are Available?

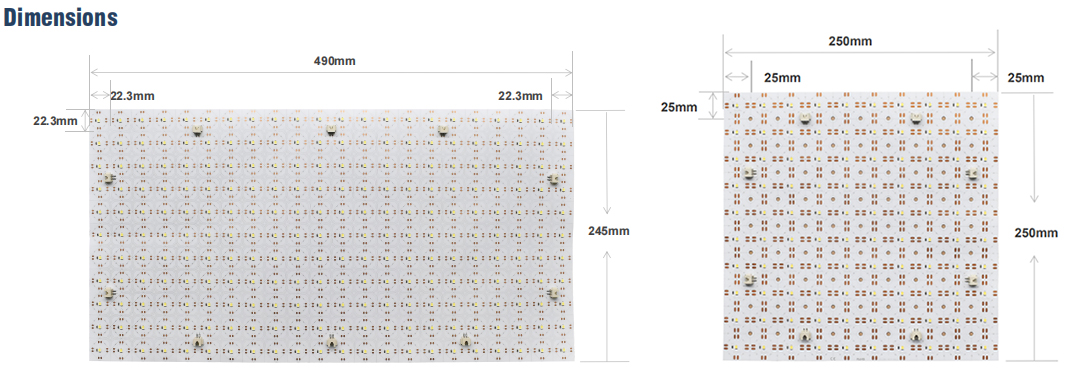

There are two standard sizes available: Rectangle(490*245mm/19.29″*9.65″) and Square(250mm*250mm/9.84″*9.84″). There are extra signal and power adapters on them, so you can connect them together for large projects or cut to small pieces and power on.
6. How You Install Them To Power Supply And Controller?

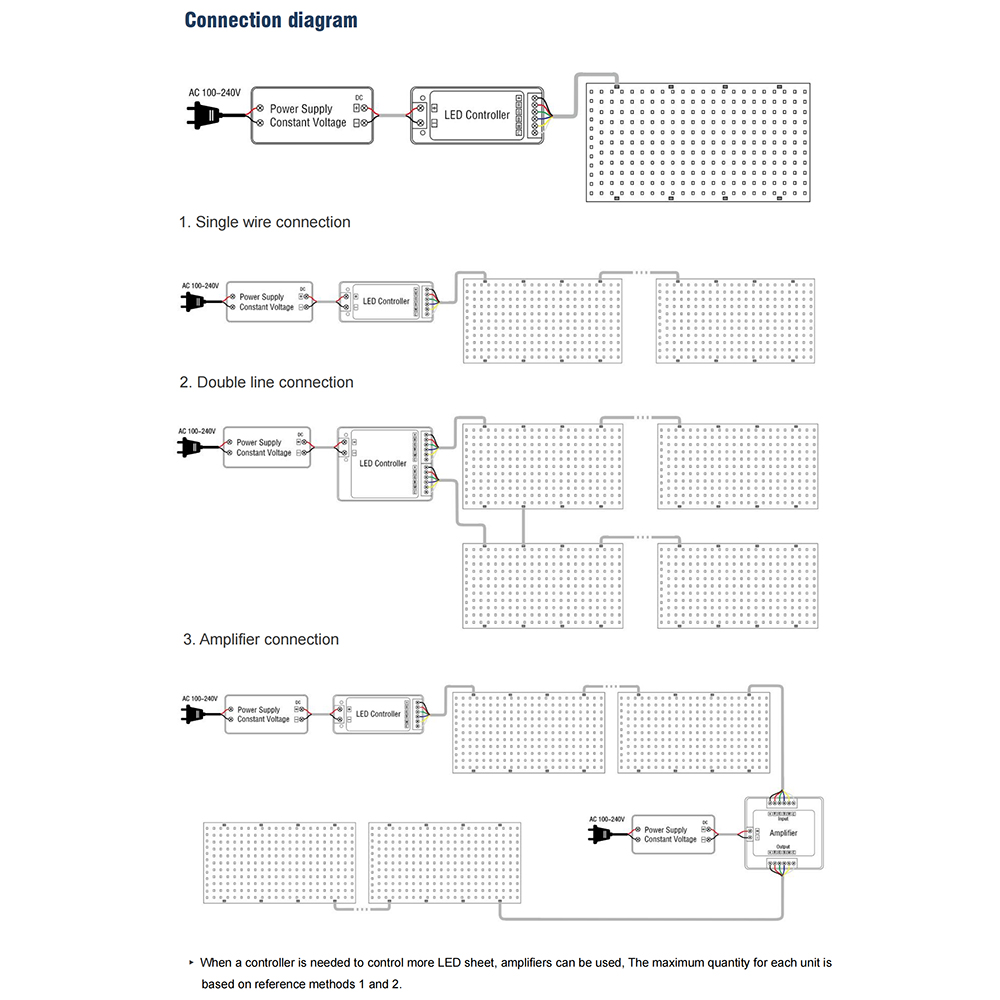

There are multiple power adapters and signal adapters(For addressable products), which allow you to connect them to power supply to power on or connect to controller to adjust the brightness and color temperature, or set the static colors or dynamic modes. You also can solder wires on the copper points and connect to LED driver or controller if you cut them to a very small piece. The accessory bag includes connection wires for easy installation.
7. How can we install them?
There are two methods to install them. The Sheet Panels have double-sided adhesive tape on the back side and they have screw holes on. After clean the surface of the place you want to install, you can remove the protector paper and stick on. Or you can use screws to mount them. The screws and screw shims are included in the accessory bag.
8. Conclusion:
Those sheet lights will be a new great option for lighting, especially backlighting. No matter large lighting projects or small DIY ones. Flexible, bendable, cuttable, and linkable features allow them to be installed and arranged conveniently and quickly. No matter large or small projects, you can choose them. Now you can order them on our website and use the code “sheet-lights” to get 10% off.
