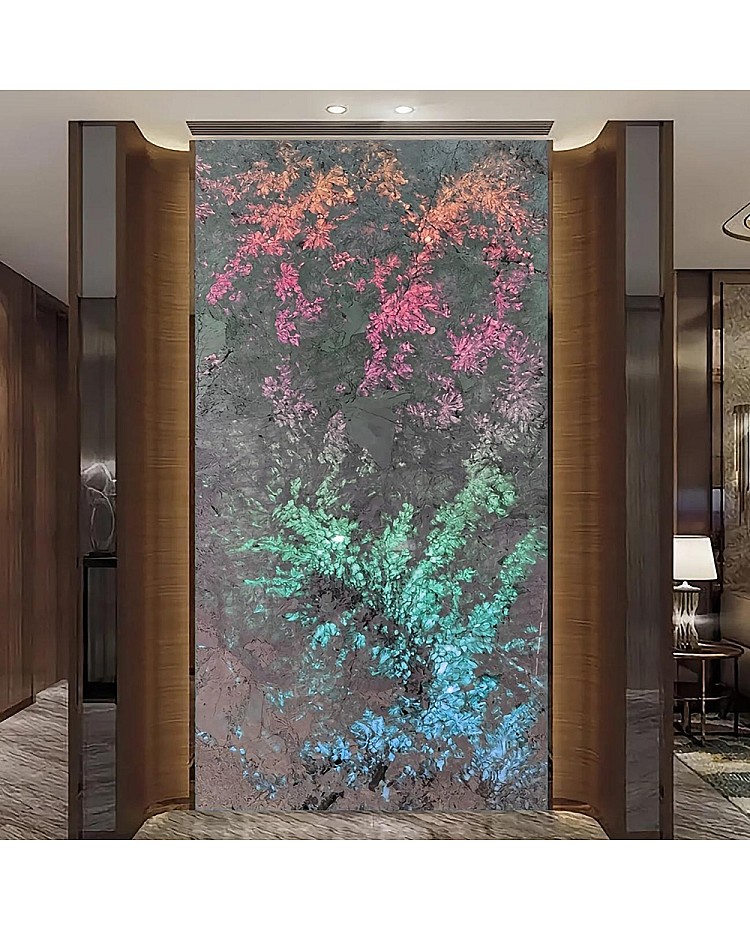

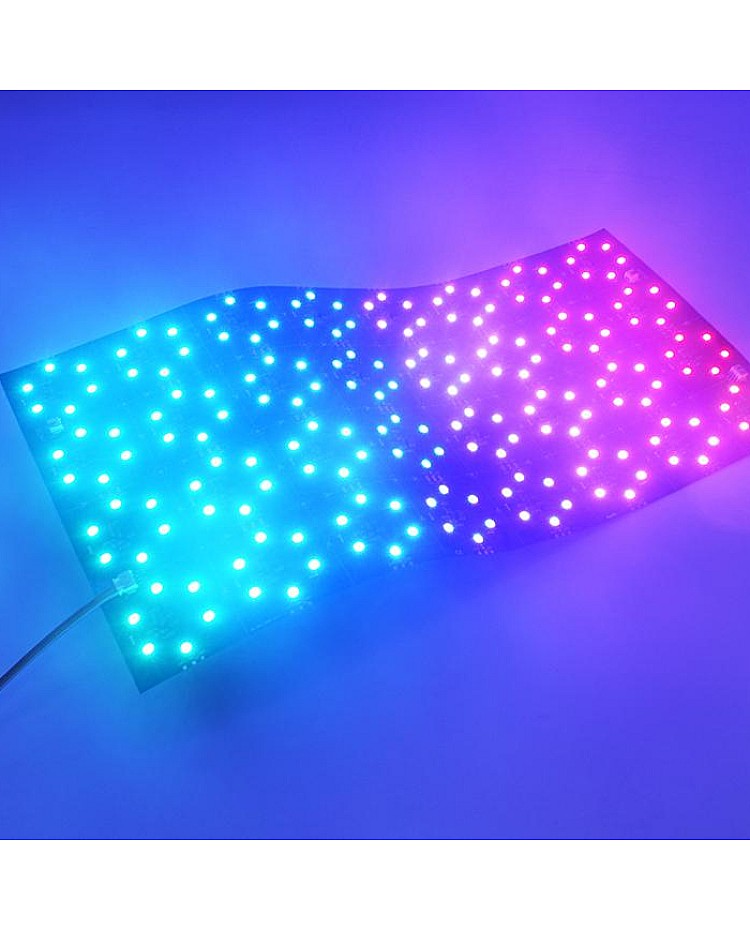

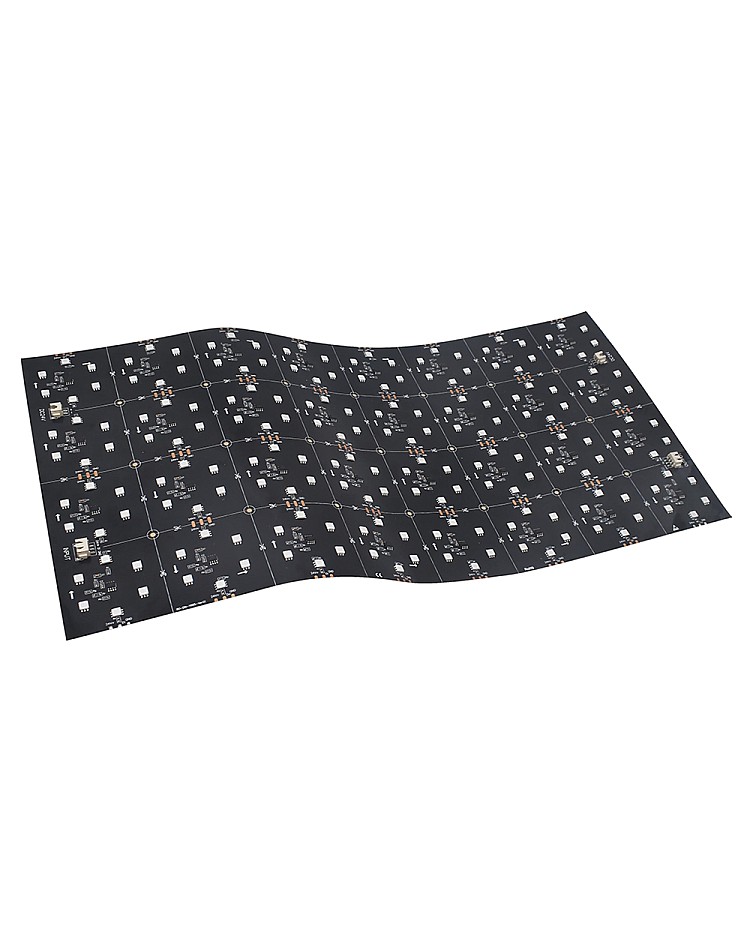

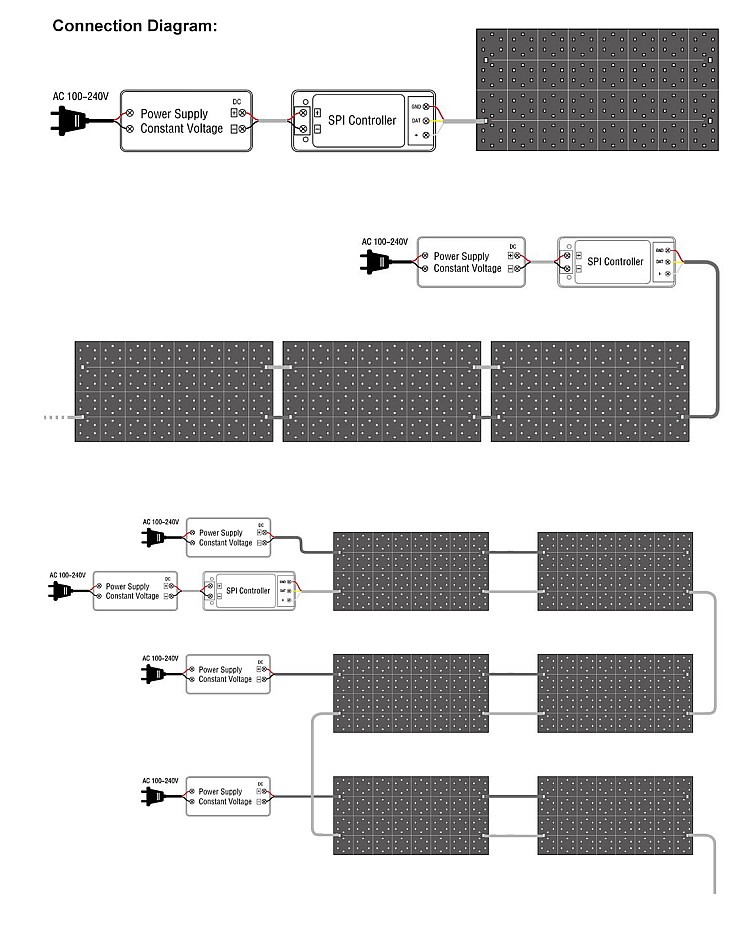

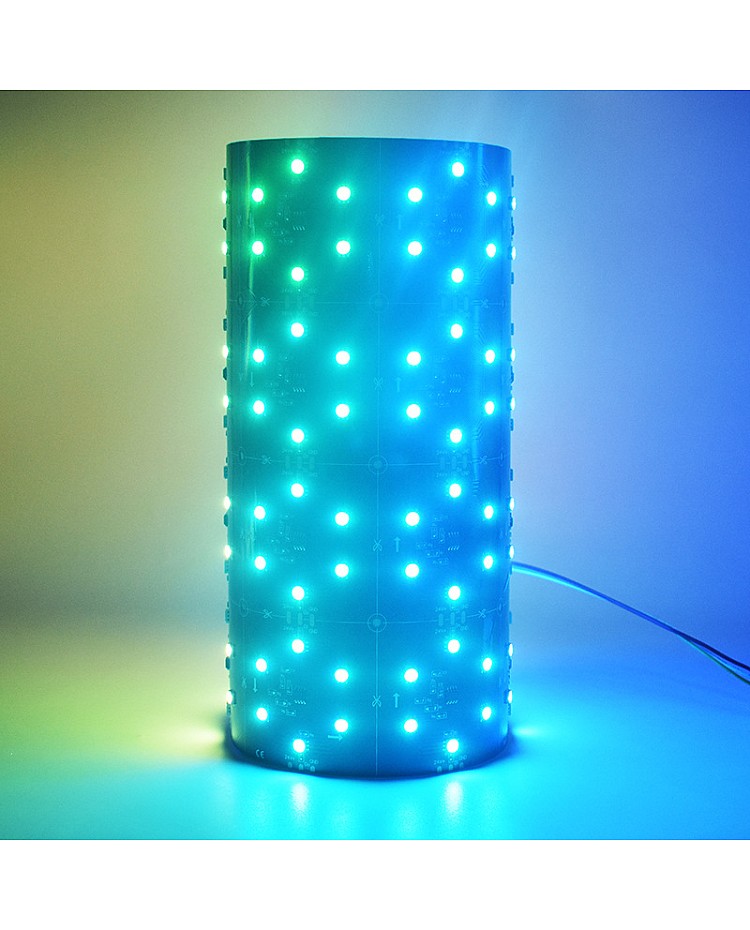

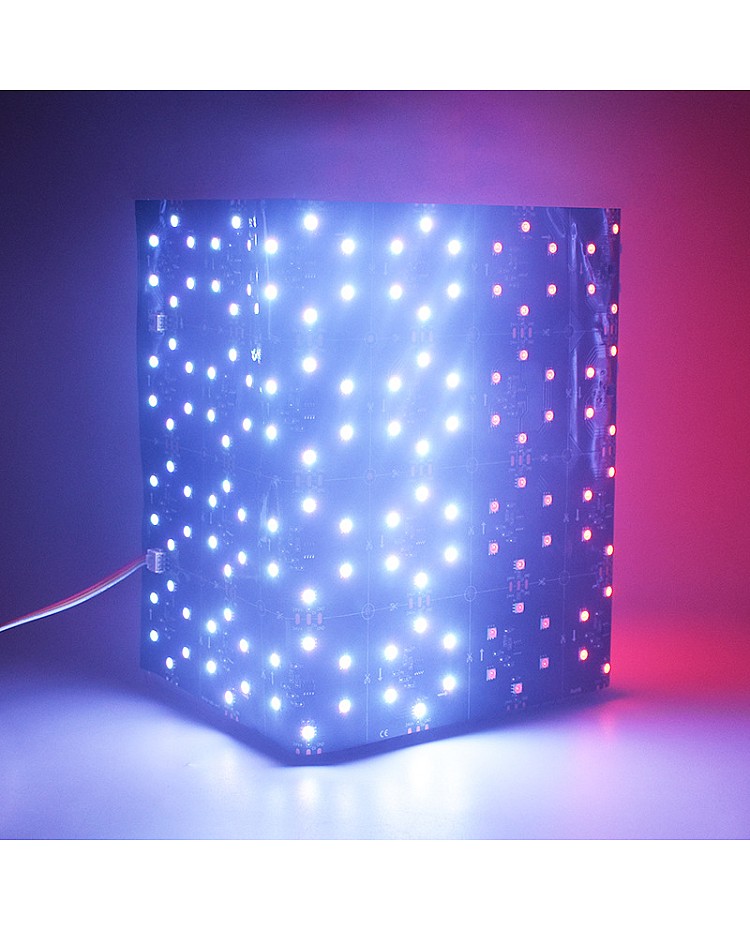

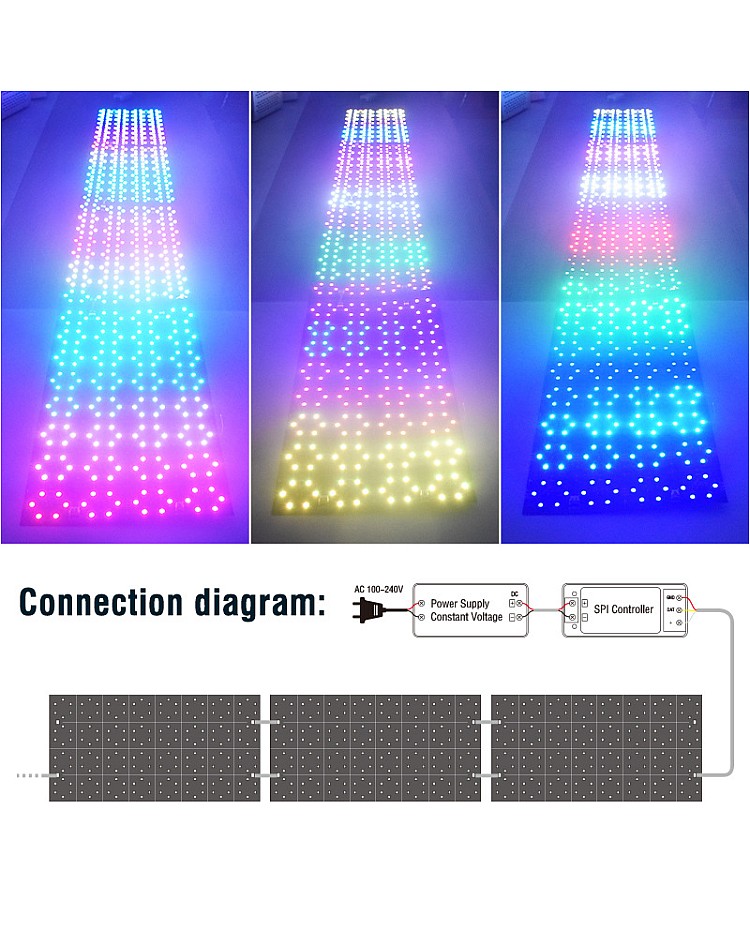

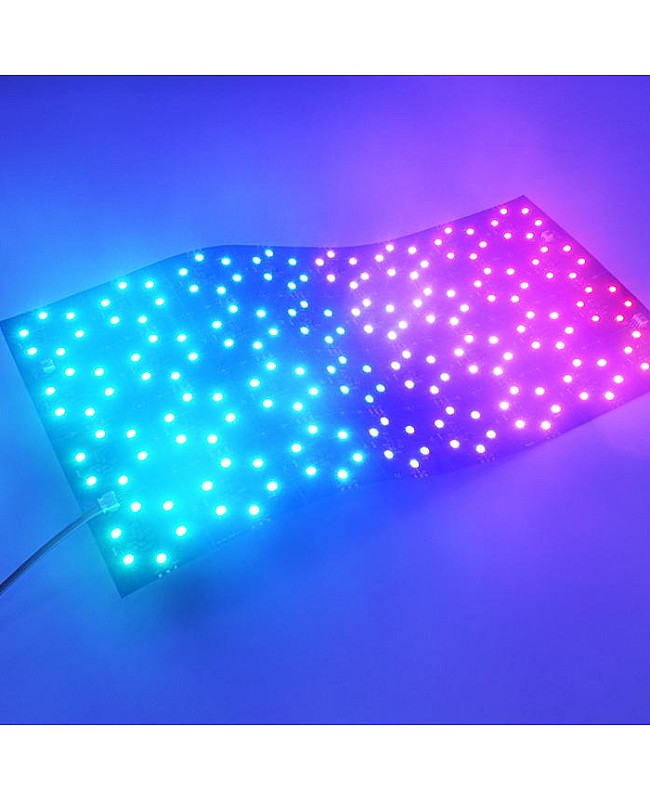

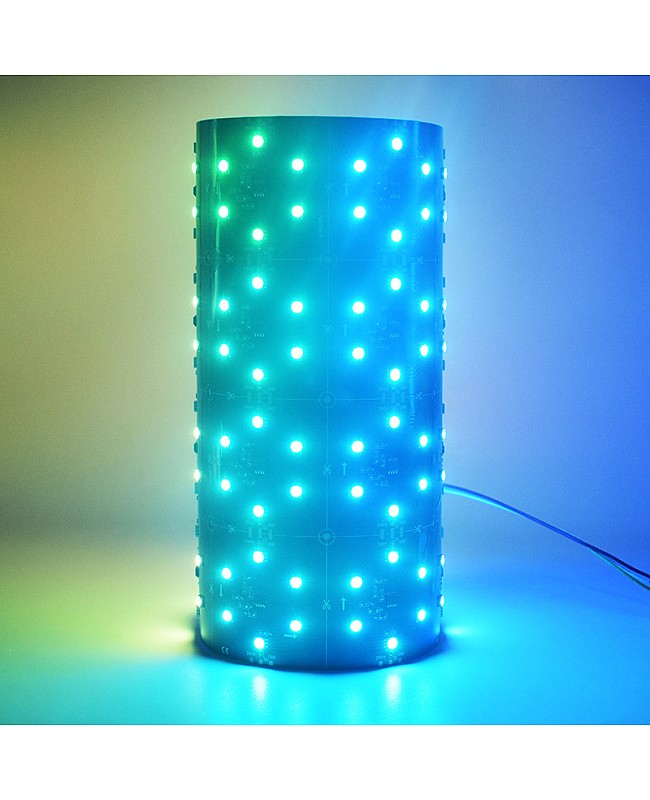

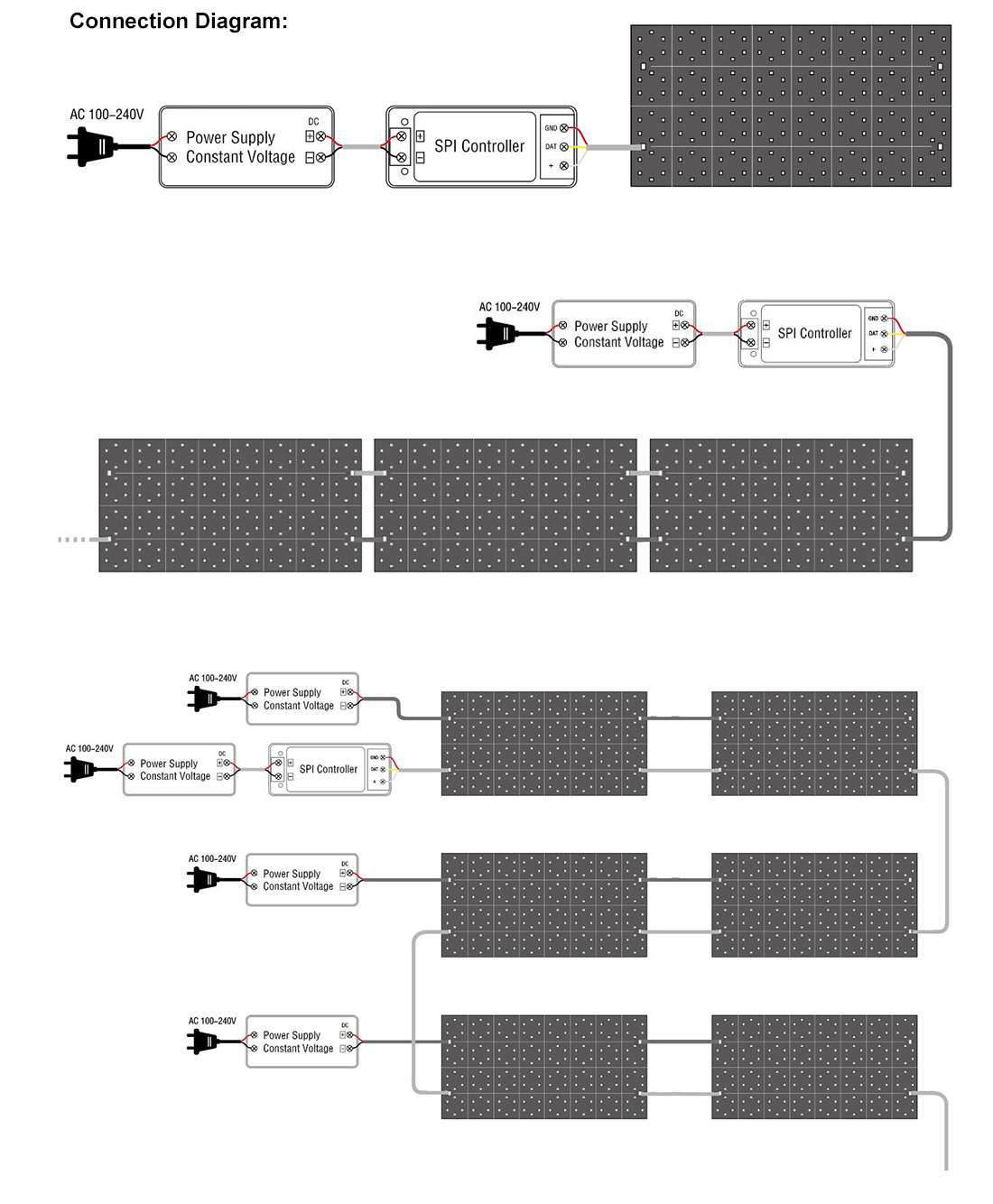

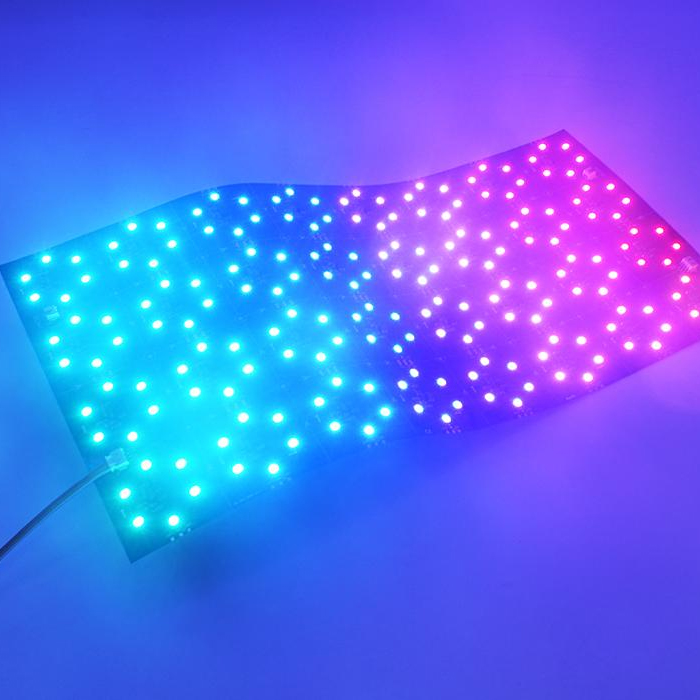

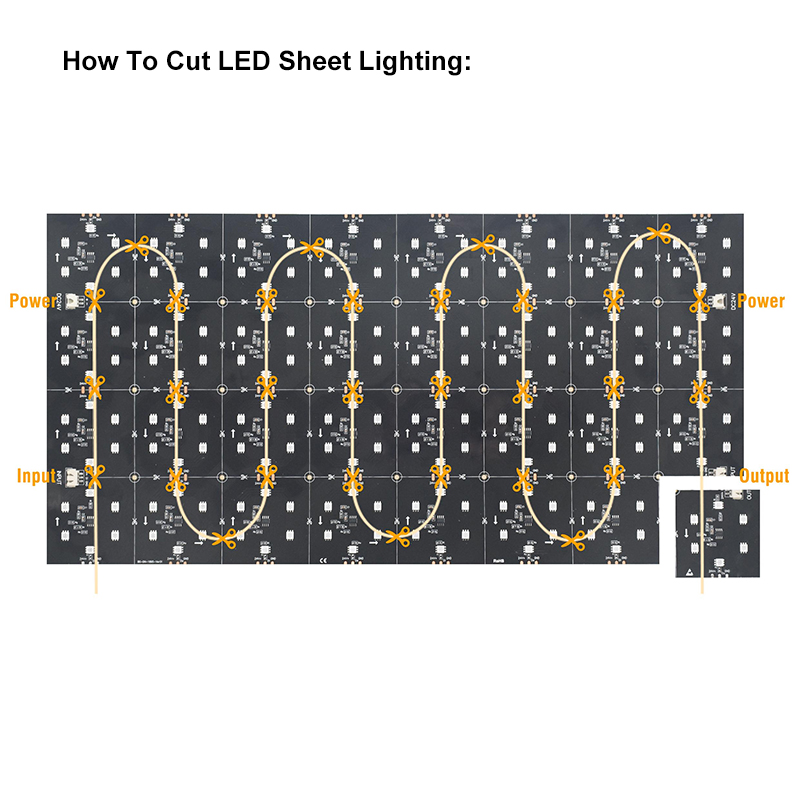

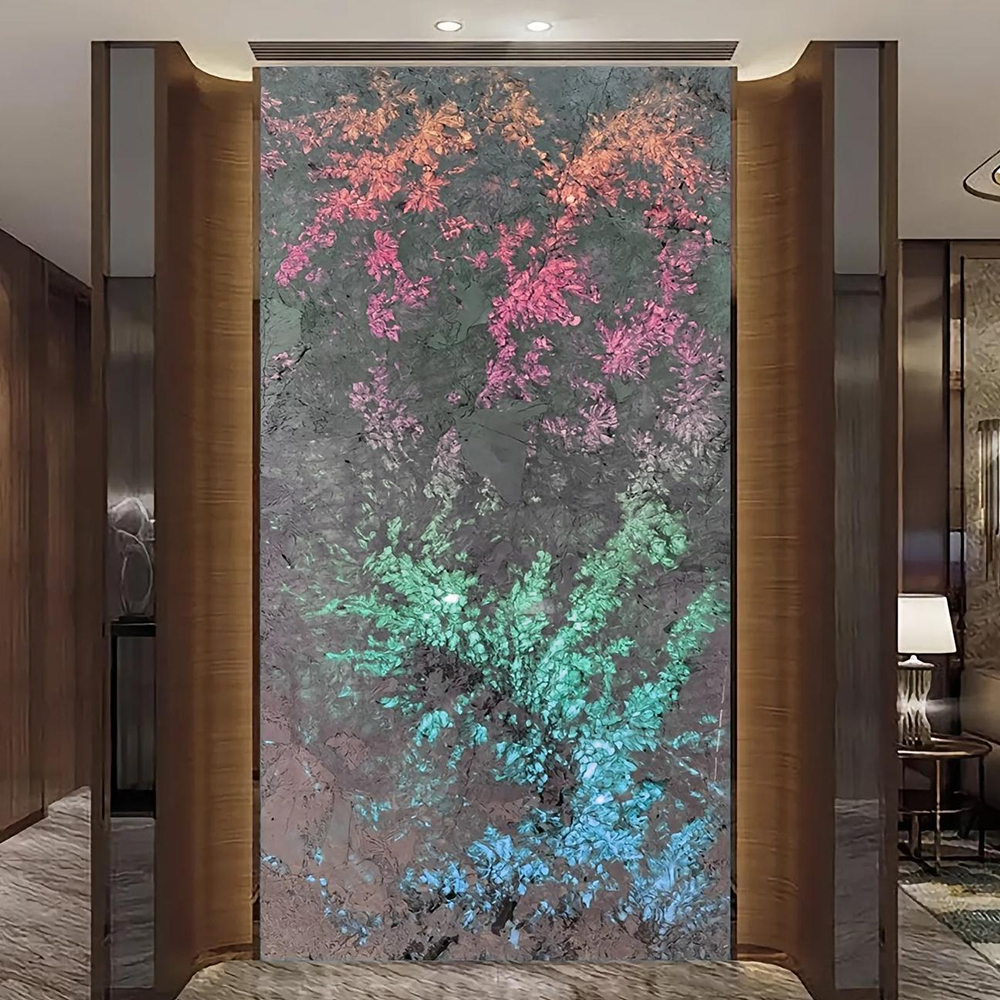

The addressable LED sheet lighting is the newest innovative product for backlighting in residential and commercial settings. They are super slim, flexible, bendable, cuttable, and connectable. The 5050 SMD LEDs are mounted on the black dual-layer PCB board to deliver uniform lighting. Each piece of the board has 32PCS of ICs that allow the LEDs to be addressable. It is easy to connect to SPI controllers to achieve hundreds of lighting effects, including dynamic single-color or color-changing modes. There are 2PCS power connectors, an input signal port, and an output signal port, allowing them to be conveniently linkable for large projects. Following the cutting lines, you can cut the light sheet paper for DIY projects. The digital LED sheets are flexible and bendable and can be shaped into various shapes or conform to curved places. The back has double-sided adhesive tape, and the surface has screw holes, and screws are included for easy installation. If you want them to work in a wet environment, you can take our IP54 waterproof products.
Link: Black Digital Sheet Panel Data Sheet
Features:
- Type: Digital LED Sheet Panel
- Model: LB-320-5050-192-IC

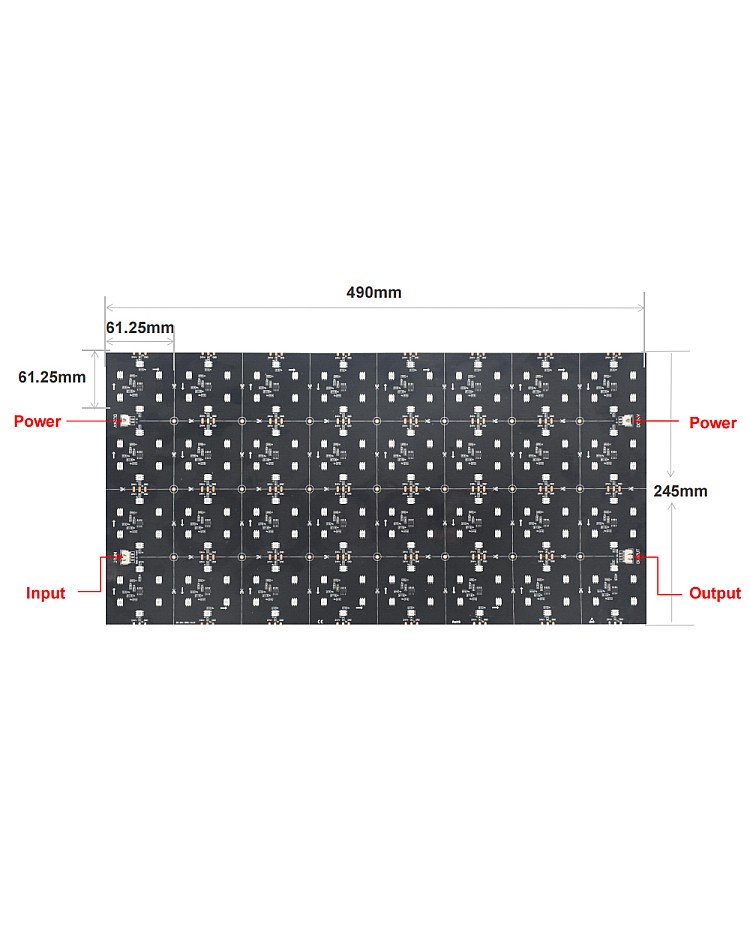

- Size(L*W): 490*250mm/ 19.29"*9.65"
- LED Type: 5050 SMDs
- LED QTY: 192PCS
- IC Type: SM16703
- IC QTY: 32PCS
- Working Voltage: DC24V
- Current: 1.75A
- Power: 42W
- Colors: Digital RGB
- Beam Angle: 120°

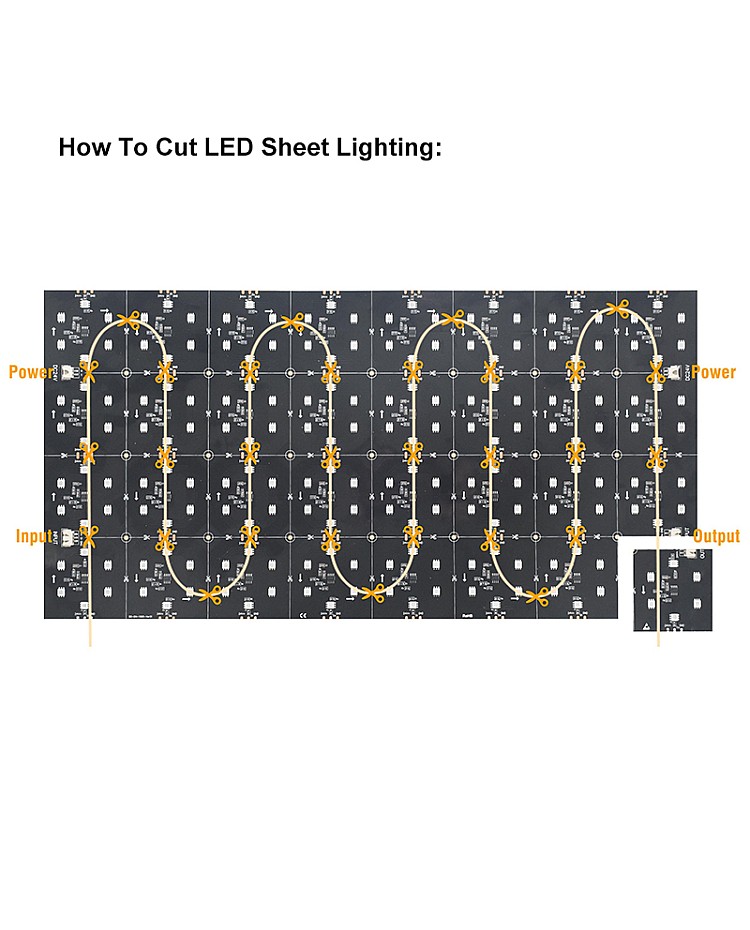

- Minimum Cut Length(L*W): Every 6LEDs / 61.25*61.25mm/2.41"*2.41"
- PCB Material: Double Layer FPC
- PCB Color: Black
- Wavelengths: 620-625nm(Red), 520-525nm(Green), 460-465nm(Blue)
- IP Rating: IP20 Non-waterproof; IP54 Waterproof
- 2PCS Power Connectors, 1PC Signal Input And 1PC Signal Output Connectors Are Included For Easy Connection
- Storage Temperature; -20℃-+65℃(-4°F-113°F)
- Working Temperature: -20℃-+45℃(-4°F-149°F)
- Certifications: CE, ROHS
- Lifespan: >35,000 Hours
- Warranty: 3 Years Replacement

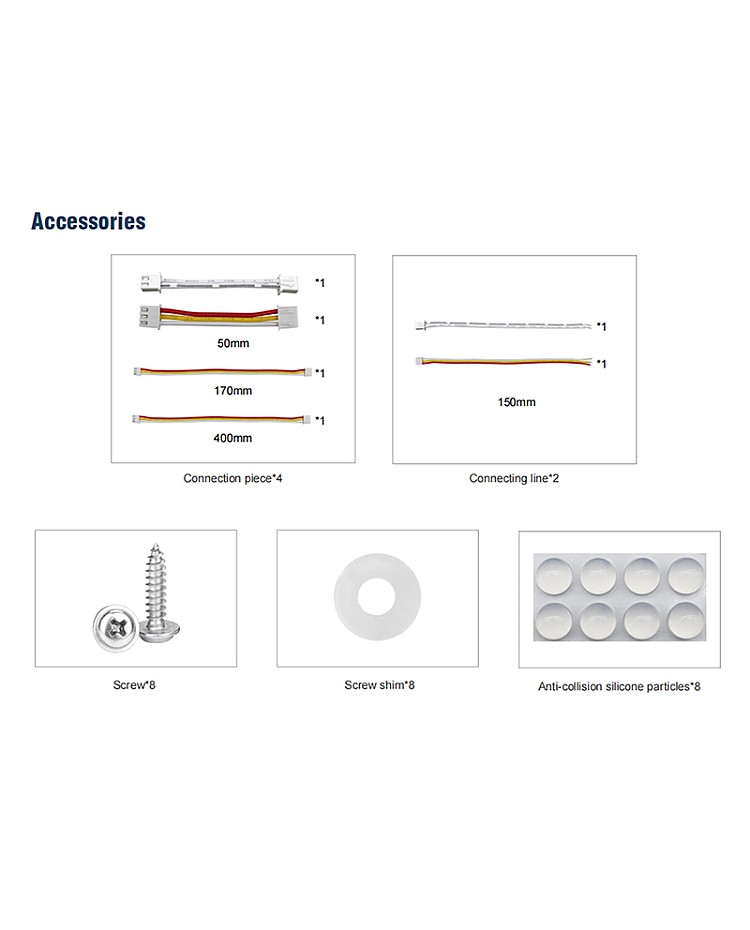

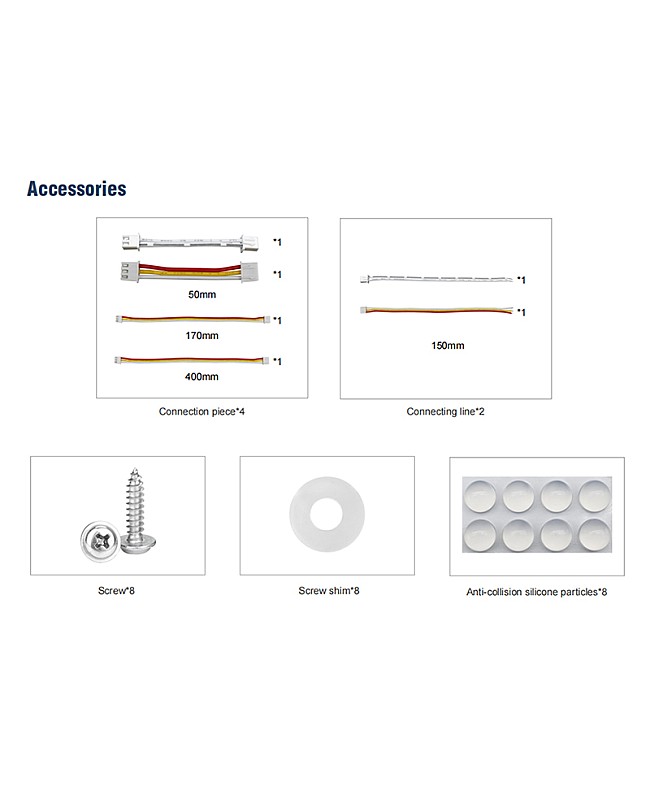

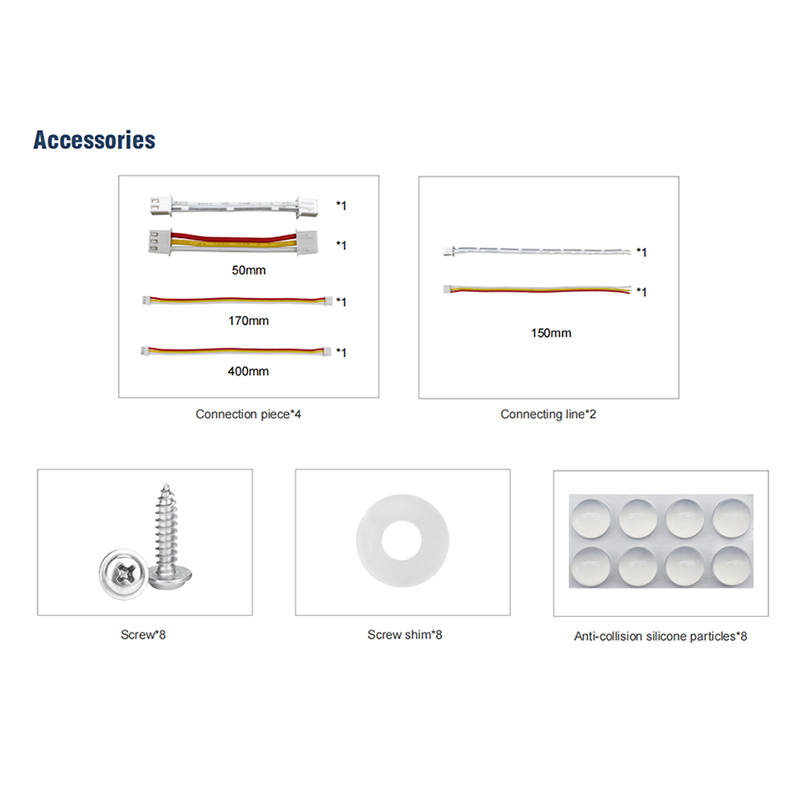

Includes:
1*Black Addressable LED Sheet
1*5CM 2P Connection Wire(Both Ends With Connectors)
1*5CM 3P Connection Wire(Both Ends With Connectors)
1*17CM 3P Connection Wire(Both Ends With Connectors)
1*40CM 3P Connection Wire(Both Ends With Connectors)
1*15CM 2P Connection Line(Single End With Connector)
1*15CM 3P Connection Line(Single End With Connector)
8*Screws
8*Screw Shims
8*Anti-collision Silicone Particles
