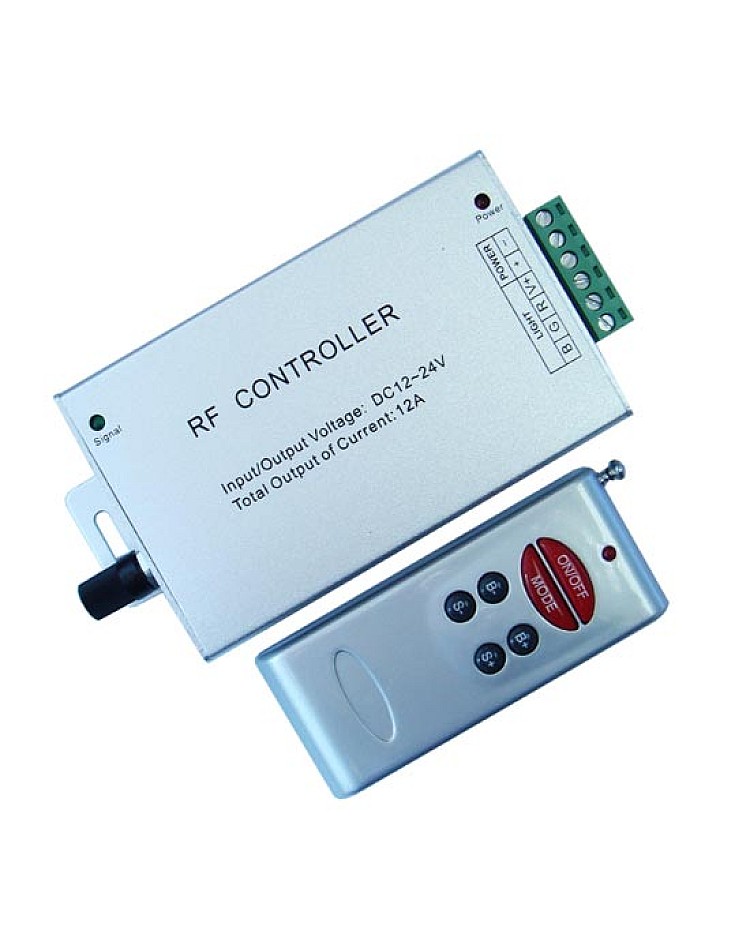

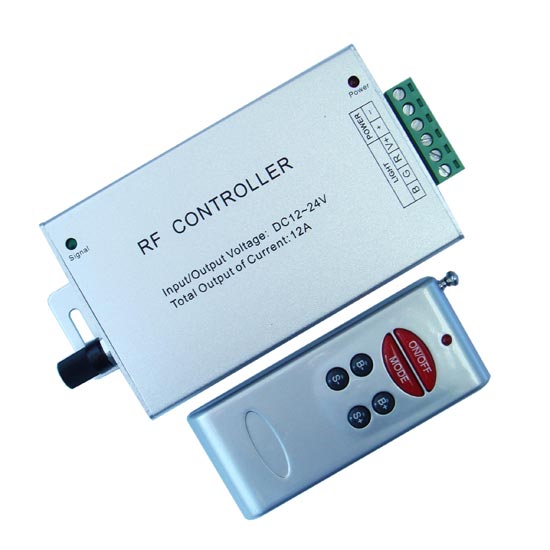

+Check the DC12V RF RGB LED Controller with 6 keys remote control, which adopts the advanced micro control unit, you can use it to control the variety of LED Lights like the Point Source Lights, Flexible LED Strips, Wall Washer Lights, Curtain Lights, etc. the input voltage is DC12V or DC24V, with 3 output channels design, the max output current of each channel is 4A, max loading power up to 288W when working in DC24V. the Sound LED Controller with microphone signal input port and audio signal input port, the color and brightness of the LED Light will change automatically follow the music changing. the 6 keys RF remote control included, 7 static colors, 4 dynamic modes and 6 sound working modes. can works with Color Changing LED Strips.
Features:
- Item NO: TY-L-C-010
- Working Temperature: -20-60℃
- Size: 128*64*25mm(L*W*H)
- Connecting Mode: Common Anode
- Working Voltage: DC12V-DC24V
- Output Channels: 3
- Max Output Current: 4A Each Channel
- Power: DC12V: ≤144W; 24V: ≤288W
- Static Power Consumption: <1W
- 6 Keys RF Remote Control Included
- 7 Static Colors, 4 Dynamic Modes And 4 Sound Control Modes

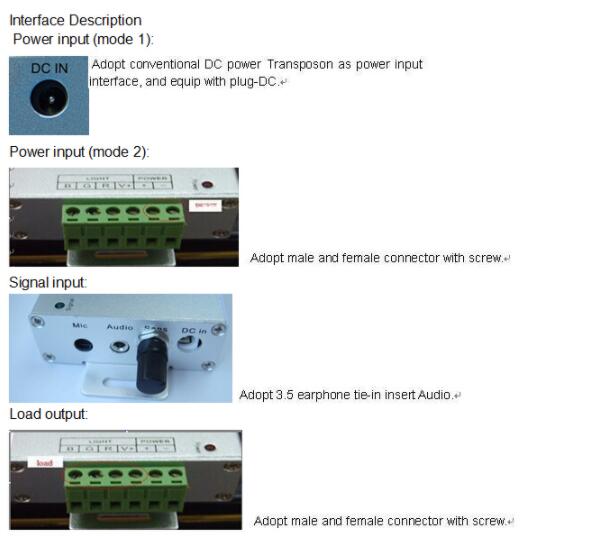

- Adopts Conventional DC Power Input Port, Male And Female Connectors With Screws
- Adopts 3.5mm Earphone Tie-In Insert Audio Signal Input Port
- Weight: 200g
Package:
1*RGB LED Controller
1*RF LED Remote
