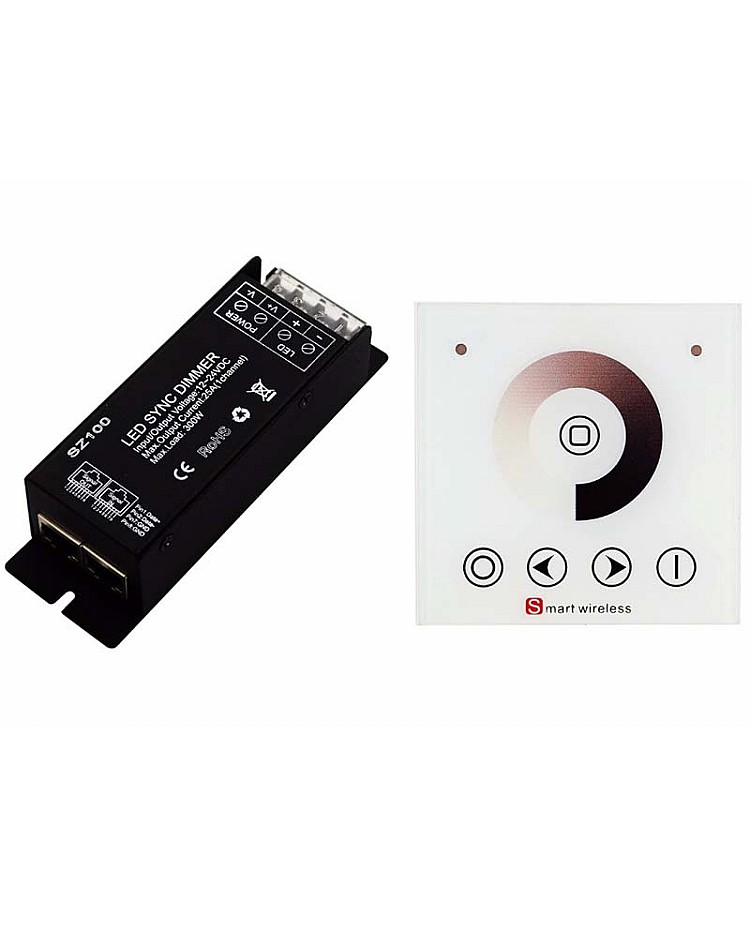

RF SYNC LED Dimmer With Touch Wall Panel Remote

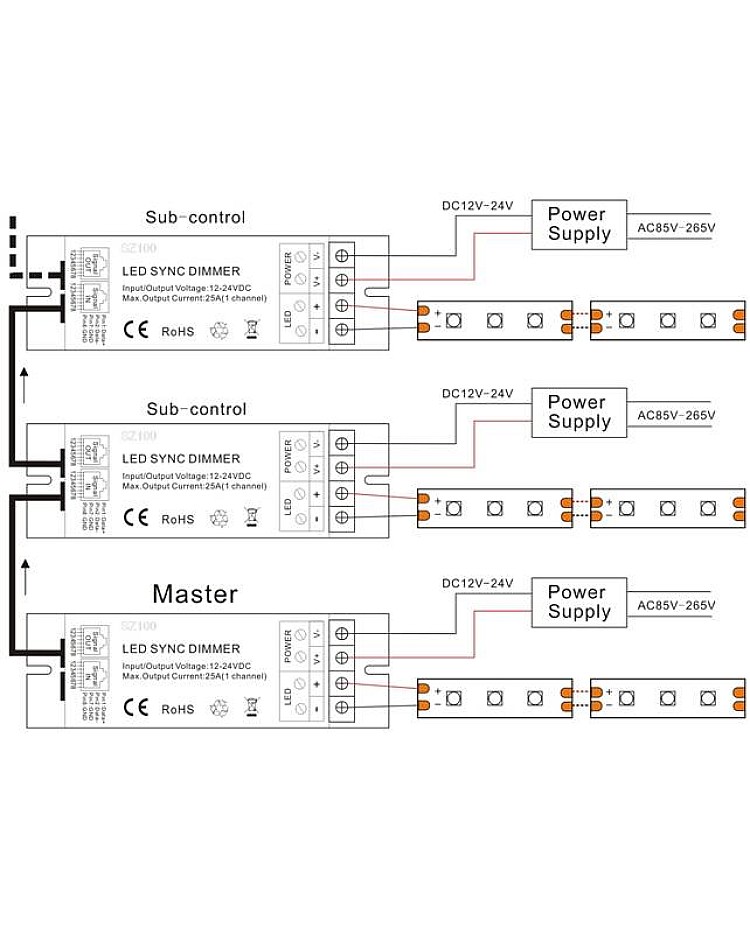

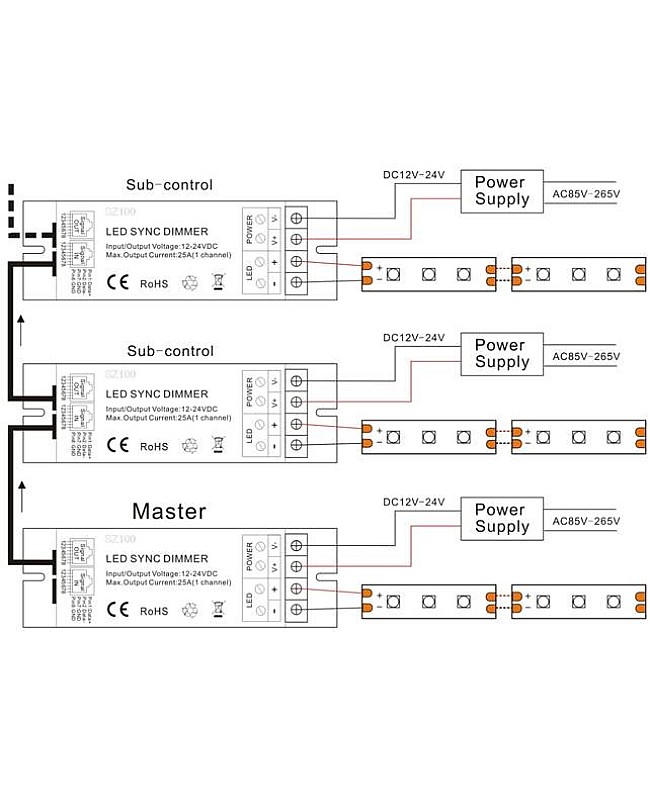

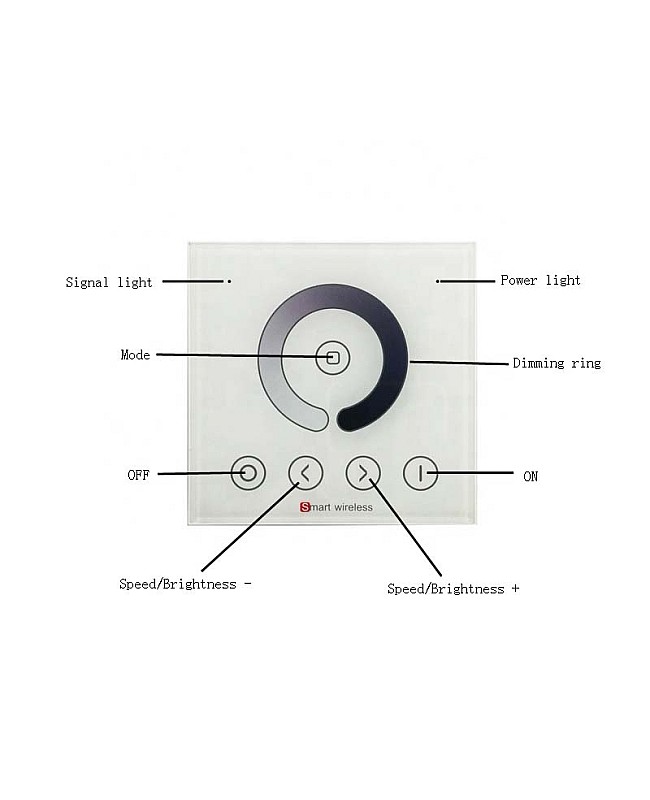

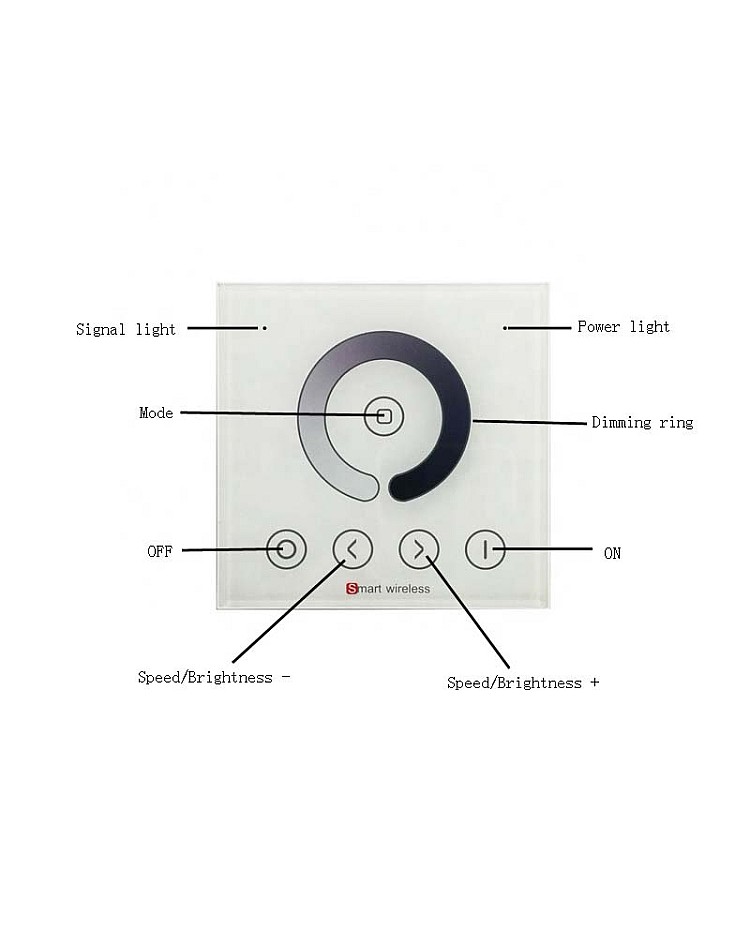

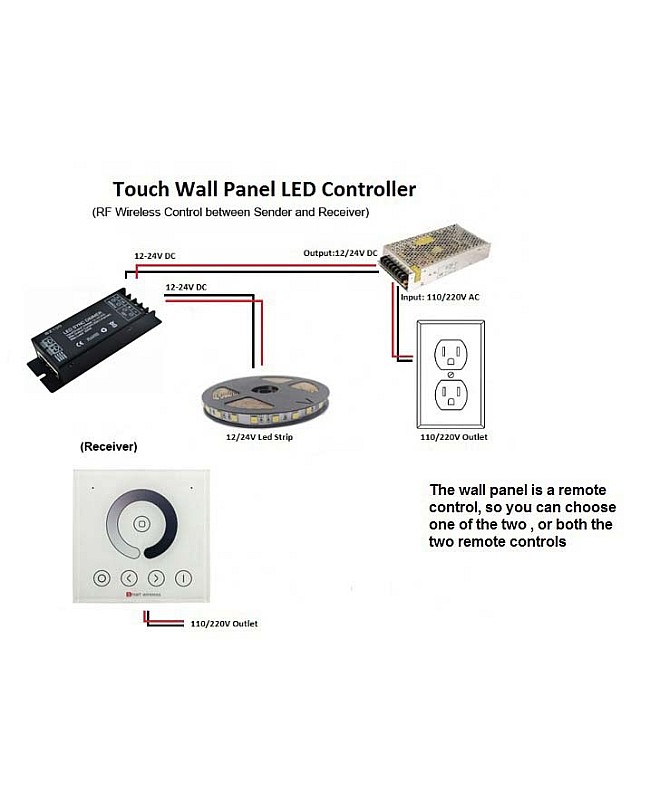

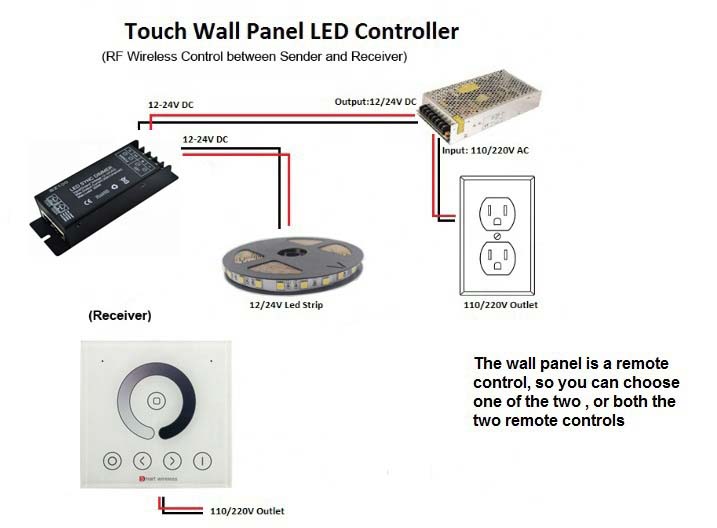

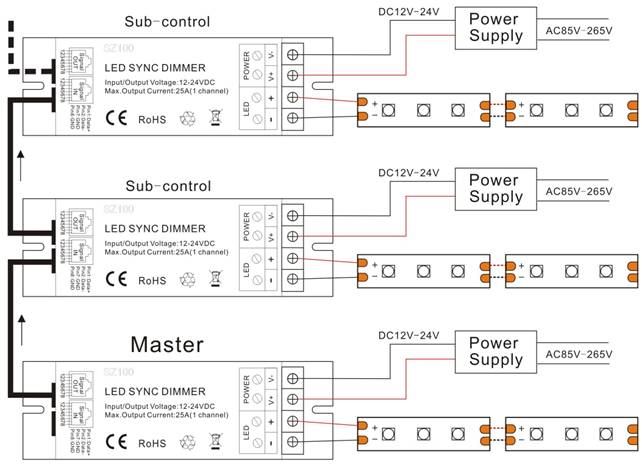

Check the RF SYNC LED Dimmer with Touch Wall Panel Remote, adopts the PWM technology and designed for the constant voltage LED Lights, includes the RF LED Dimmer and Wall Panel Remote, can use to adjust the brightness of Single Color LED Light, LED Strips, LED Modules, LED String Light, the LED Dimmer with one output design and the max output current up to 25A, the SYNC LED Dimmers with an RJ45 Port, easy connect to achieve multiple dimmers work synchronization through RJ45 Port. the RF Wall Panel Remote with 5 buttons and one dimming ring, all buttons are in the touch form, the dimming ring has 128 levels in different brightness level, you can touch the dimming ring to adjust the brightness easily. there are 3 dynamic modes in the mode button, the color-changing speed is adjustable.

RF SYNC LED Dimmer Features:

• Working Temperature: -20-60℃
• Size: L91*W88*H24mm
• Connecting Mode: Common Anode
• Working Voltage: DC12V-24V
• Static Power Consumption: <1W
• Mode: 3
• Output Channel: 1
• Max Output Current: 25A
• Output Power:  300W(DC12V)/600W(DC24V)
• Output Gray: 256 Levels
• Speed Stage: 100 Grade
• Frequency Of RF PWM Remote Control: 433.92MHz
• RF Distance: ≤20M
• Memory Function: YES

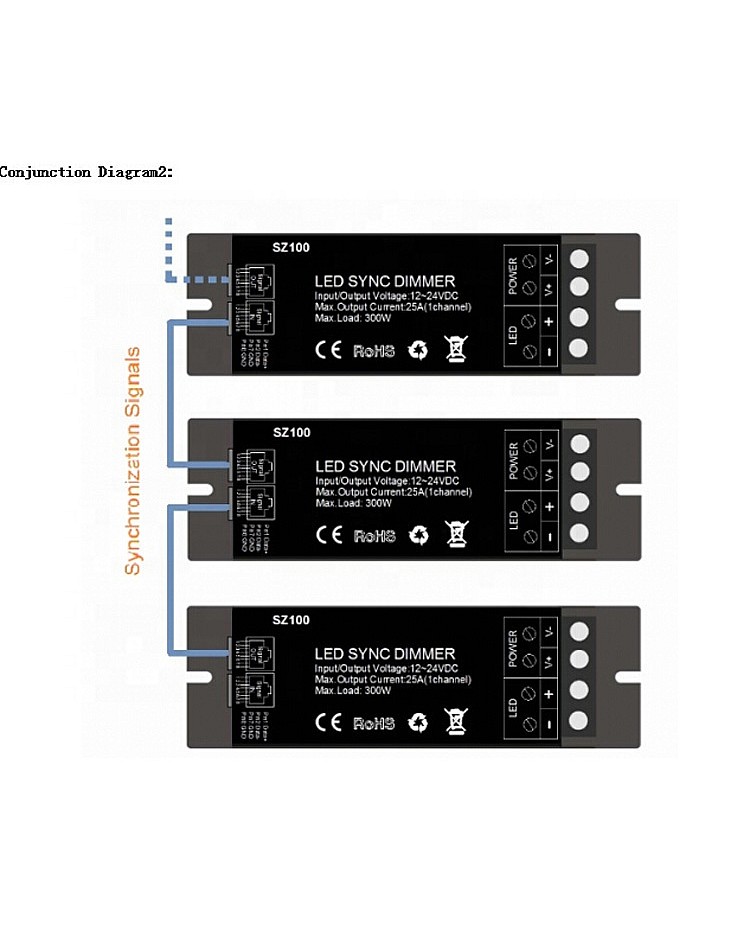

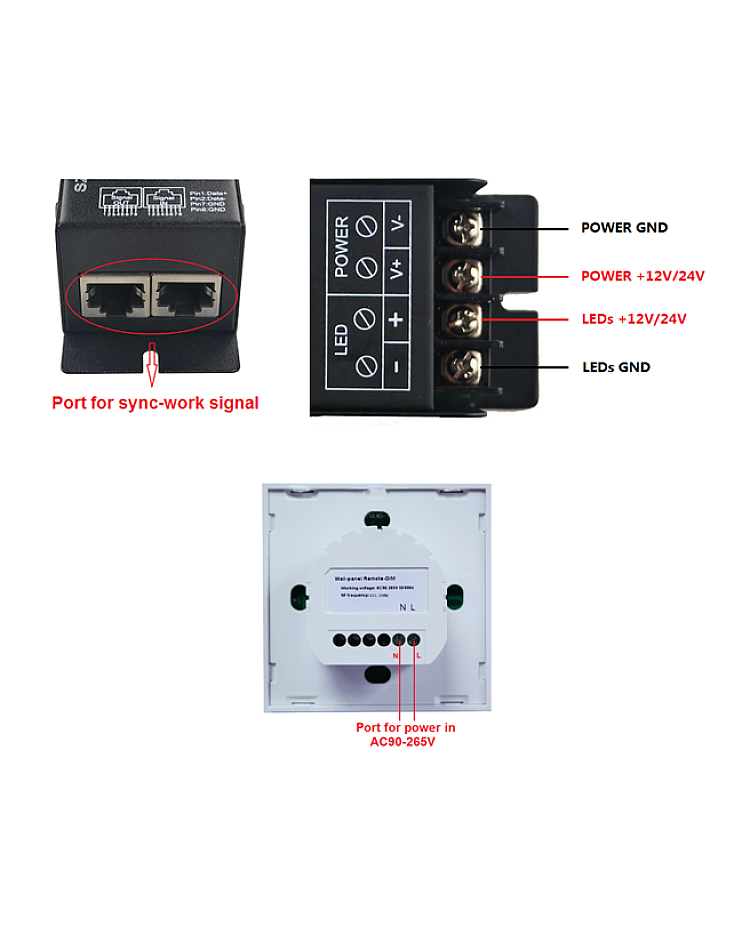

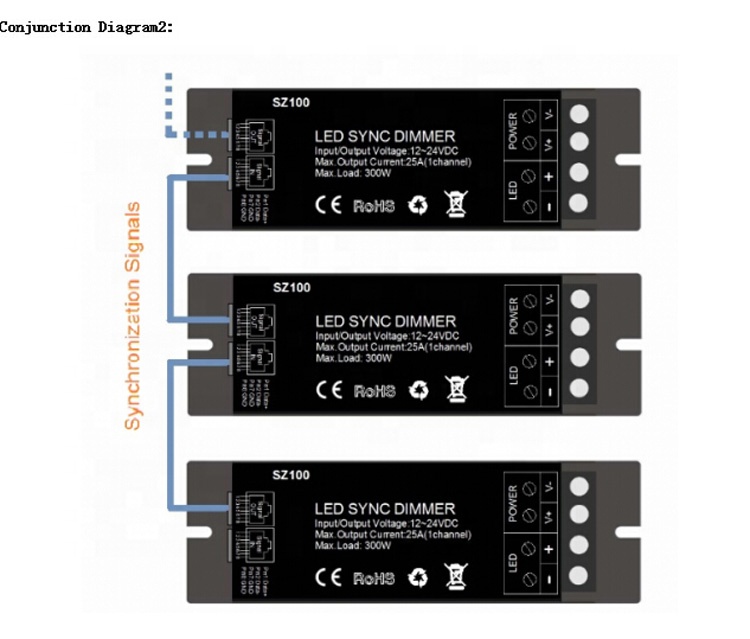

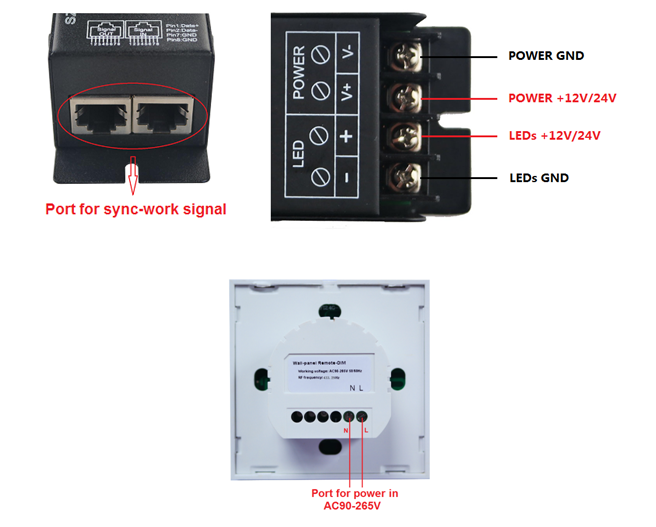

• RJ45 Port Included
• 2 Years Warranty

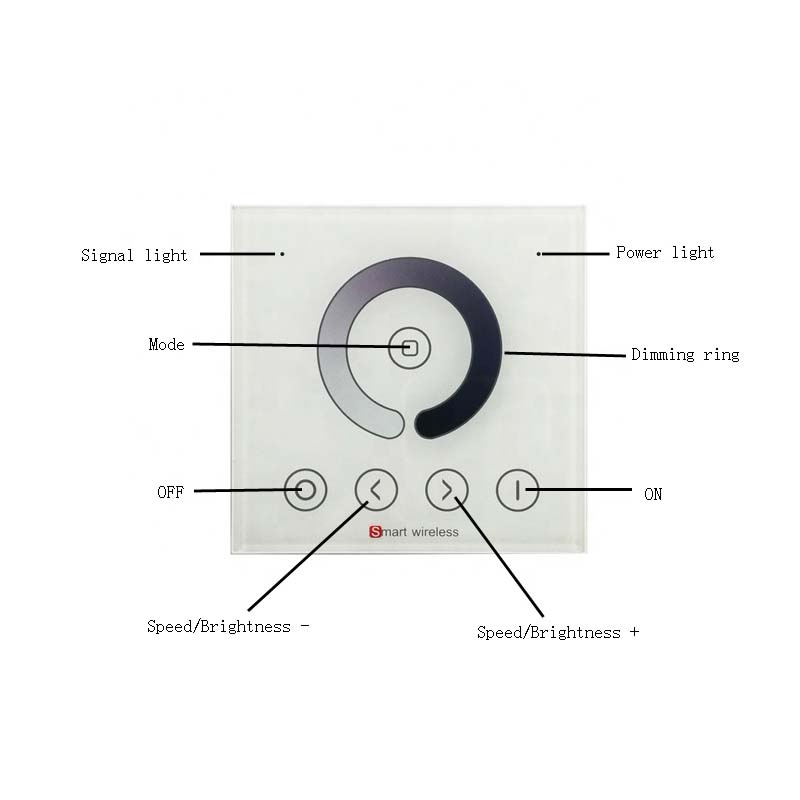

RF Wall Panel Remote Features:

• Size: L86*86*40mm
• Working Voltage: AC90-265V(50/60Hz)
• RF Signal Frequency: 433.92MHz
• Transmission Distance: Up To 30M
• Working Power: <2W
• Standby Power: <0.2W
• Output Power: 144W(DC12V)/288W(DC24V)
• Working Frequency: 433.9MHz

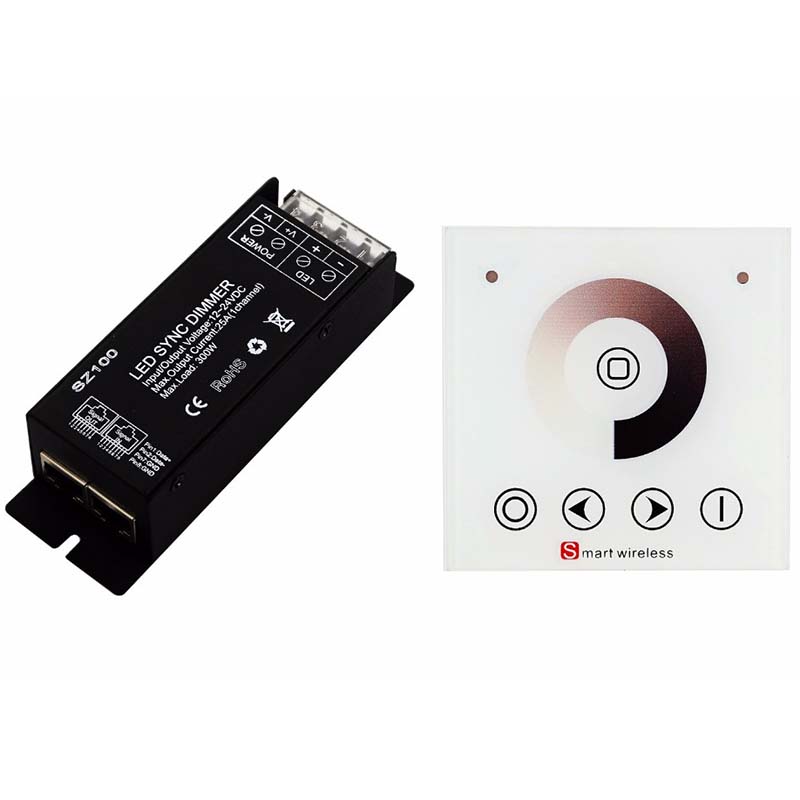

Includes:

1*RF SYNC LED Dimmer

1*Touch Wall Panel Remote
