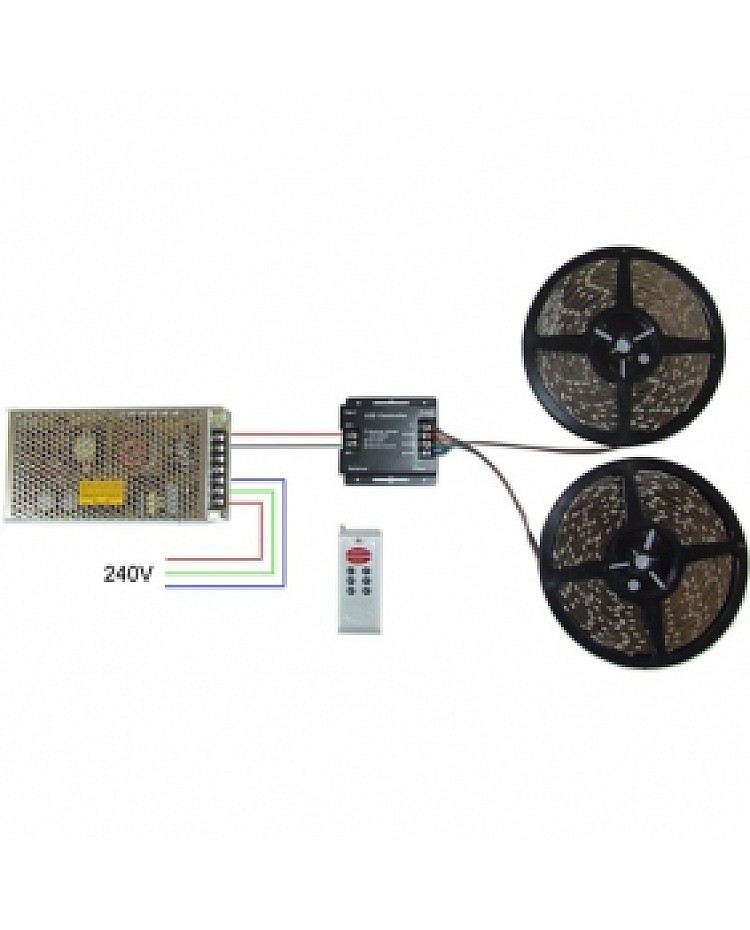

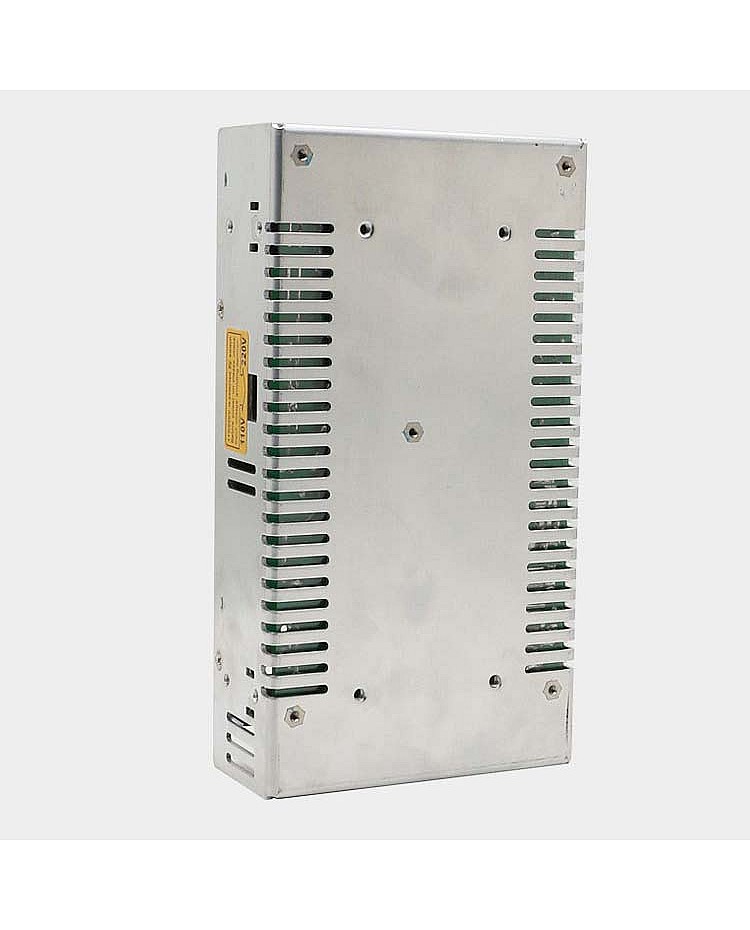

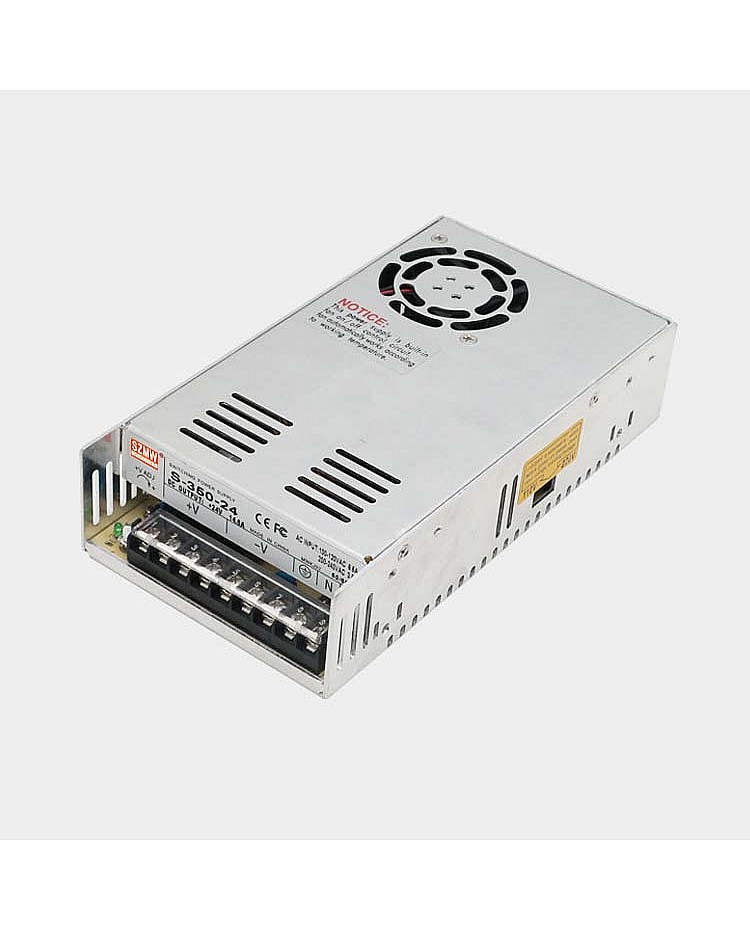

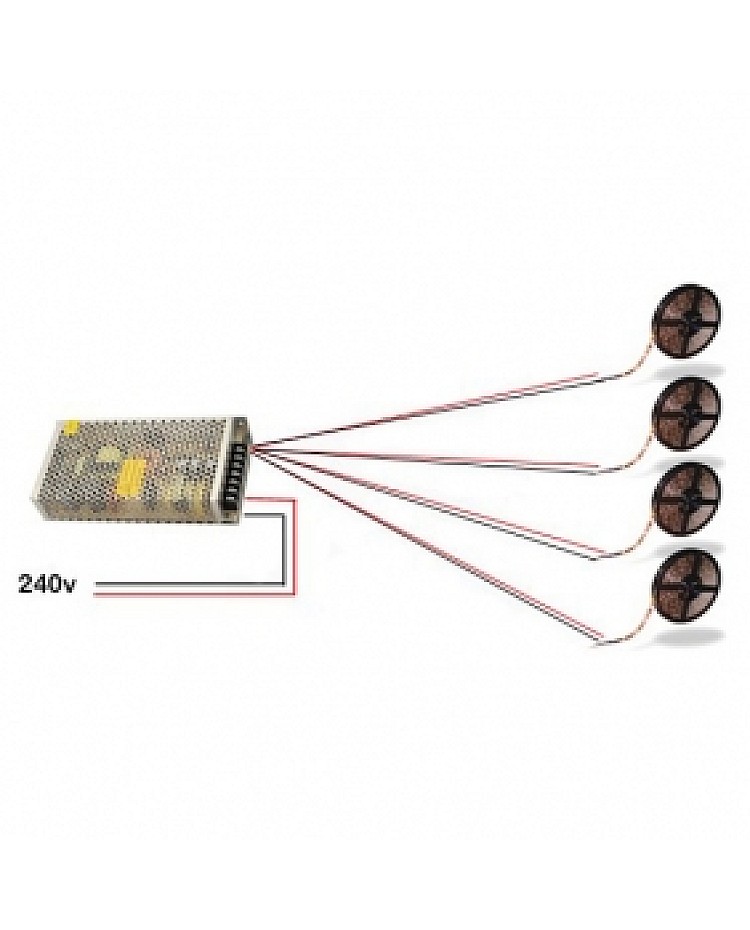

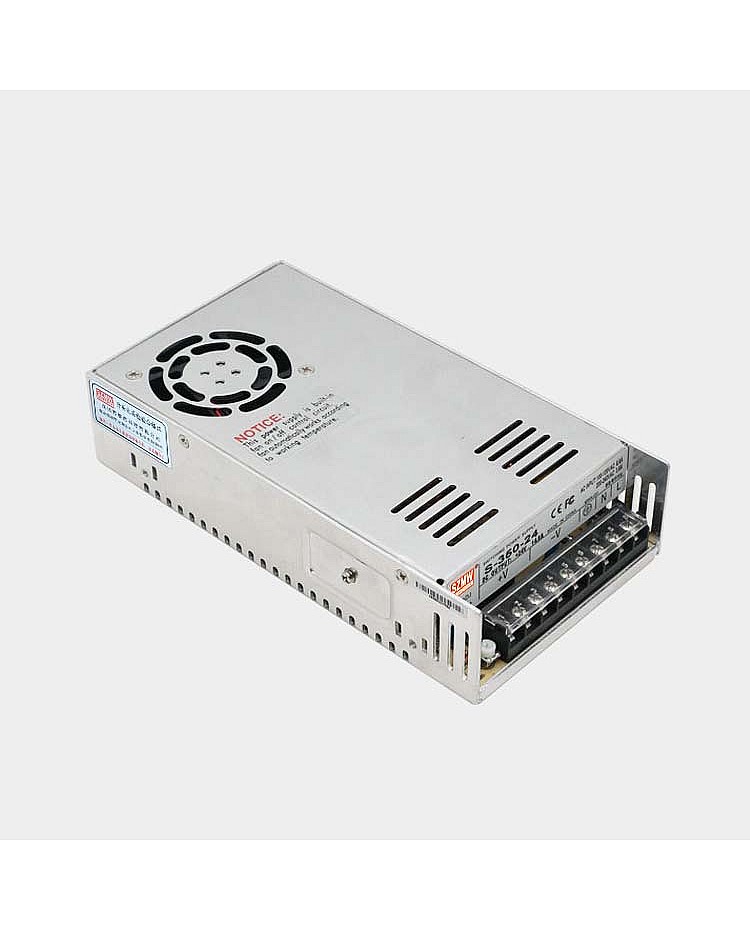

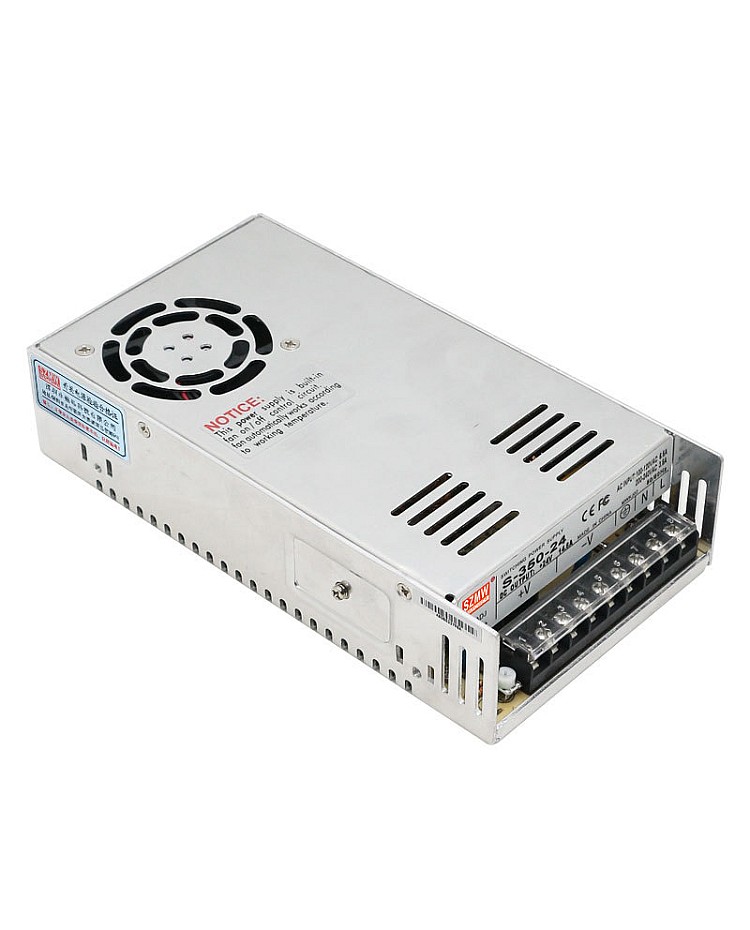

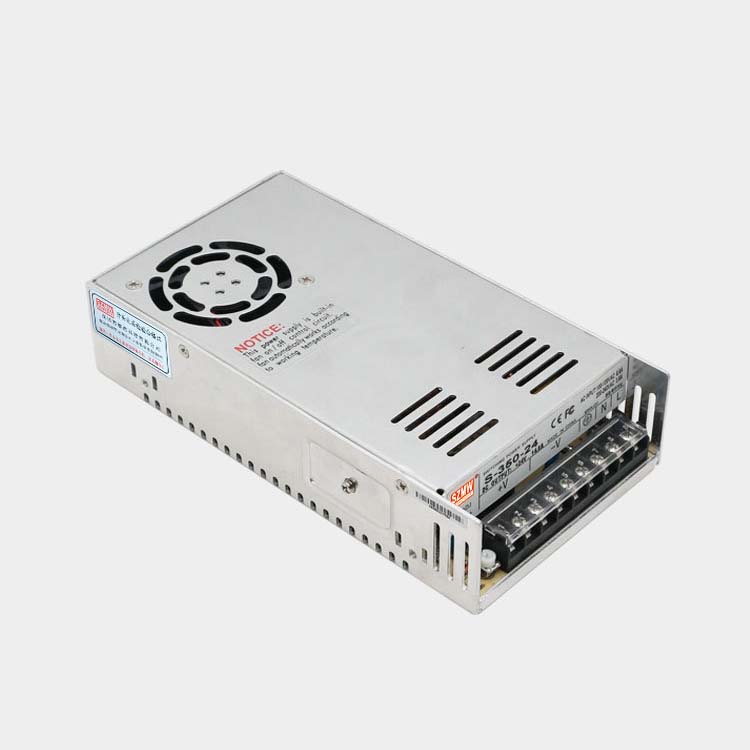

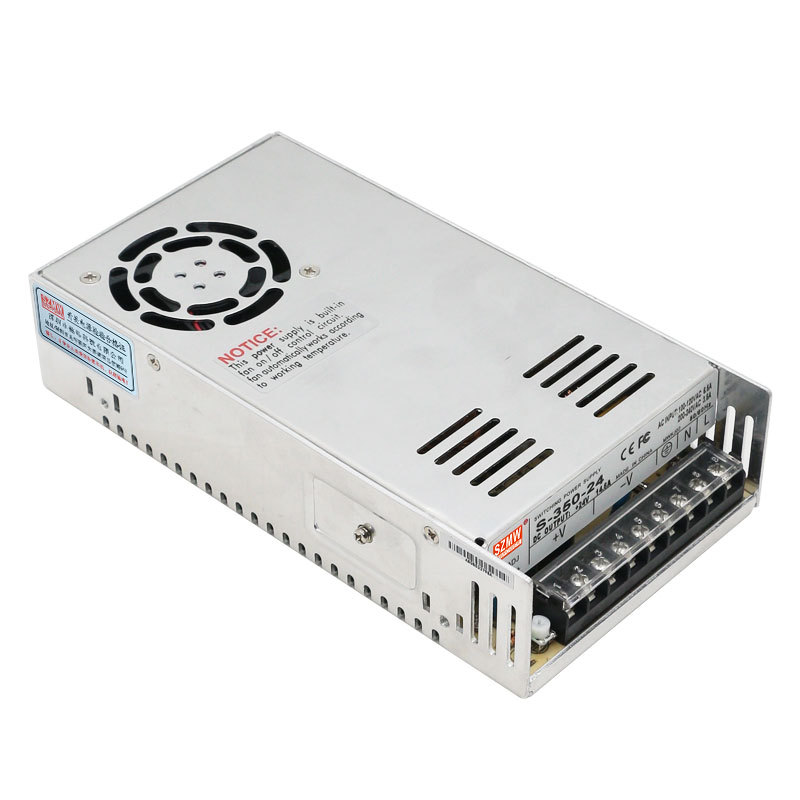

The 350W LED Power Supply, with the aluminum shell for the safer to conduct electricity and better heat dissipation. The input voltage between AC90V to AC264V, you can push the switch to select the working voltage section from AC90V-AC132V or AC180V-AC264V to match your country's public voltage standards. There are 3 output voltage products available, and you can choose the DC5V, DC12V, or DC24V. The max output power is up to 348W when working in DC12V. This LED Power Supply is non-waterproof, only recommended for work indoors, with multiple protections to ensure safety and reliability. Adopts the terminal with resistance to aging, impact and high temperature, and the box cover is protected to prevent the wrong contact and improve safety. The LED Driver uses imported components, reliable quality, longer service life, 6 years of warranty. You can use it for the Constant Voltage LED Strips and other LED Lights.
Features:
- Item NO: TY-L-P-002
- Item Type: LED Power Supply

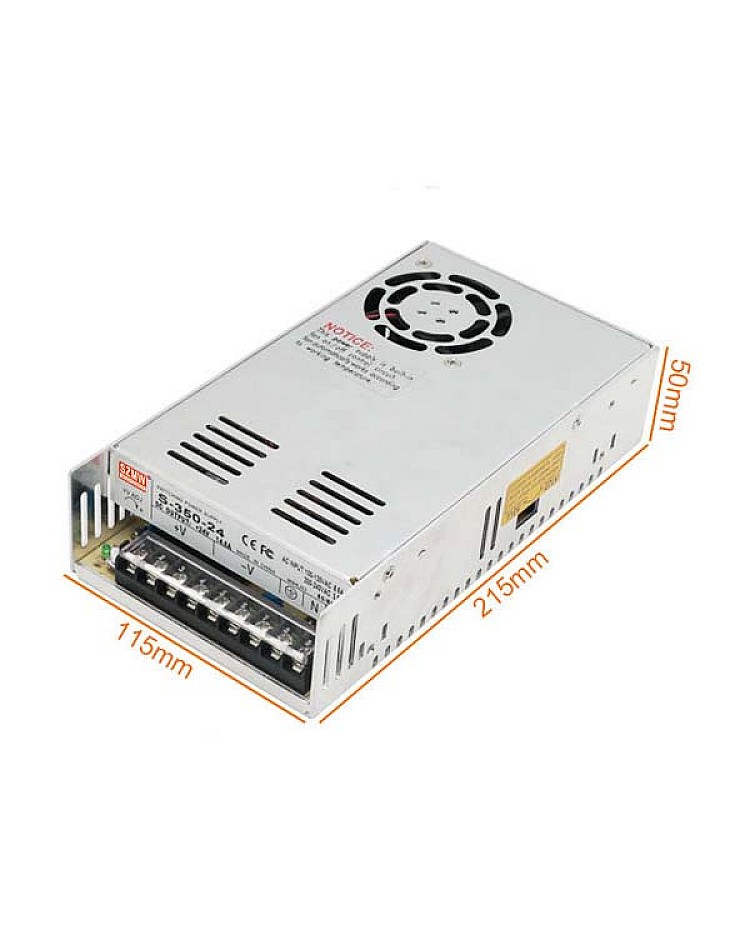

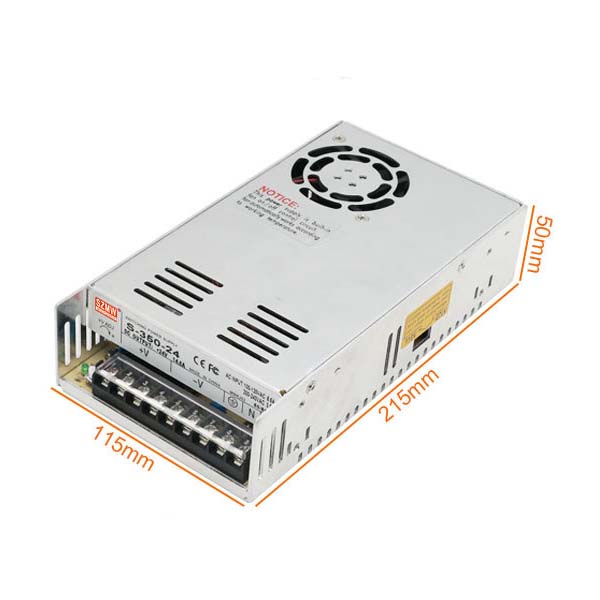

- Size: 215*115*50mm(L*W*H)
- Input Voltage: AC90V-AC132V/AC180V-AC264V(Switchable)
- Output Voltage: DC5V/DC12V/DC24V
- Max Output Current: 50A(DC5V)/29A(DC12V)/14.6A(DC24V)
- Power: 250W(DC5V)/348W(DC12V)/350.4W(DC24V)
- IP Rating: IP20 Non-Waterproof
- Input Frequency Range: 47-63Hz
- Input Connection Type: Screw Terminals
- Dimmable: NO
- Output Channels: 1
- Power plug: N/A
- Working Temperature: -10℃-60℃
- Intuitive LED Indicator Light
- Over Loading Protection
- Over Voltage Protection
- Short Circuit Protection
- Certificate: CE, ROHS, FCC
- Weight: 1.2kg
- 6 Years Warranty
Package:
1*12V LED Power Supply
