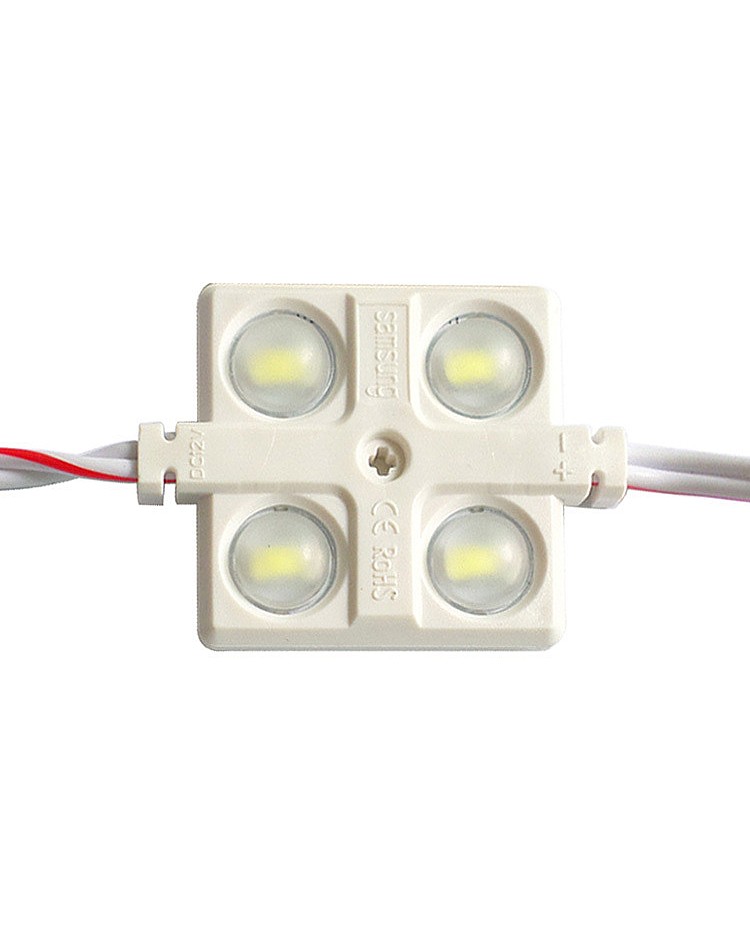

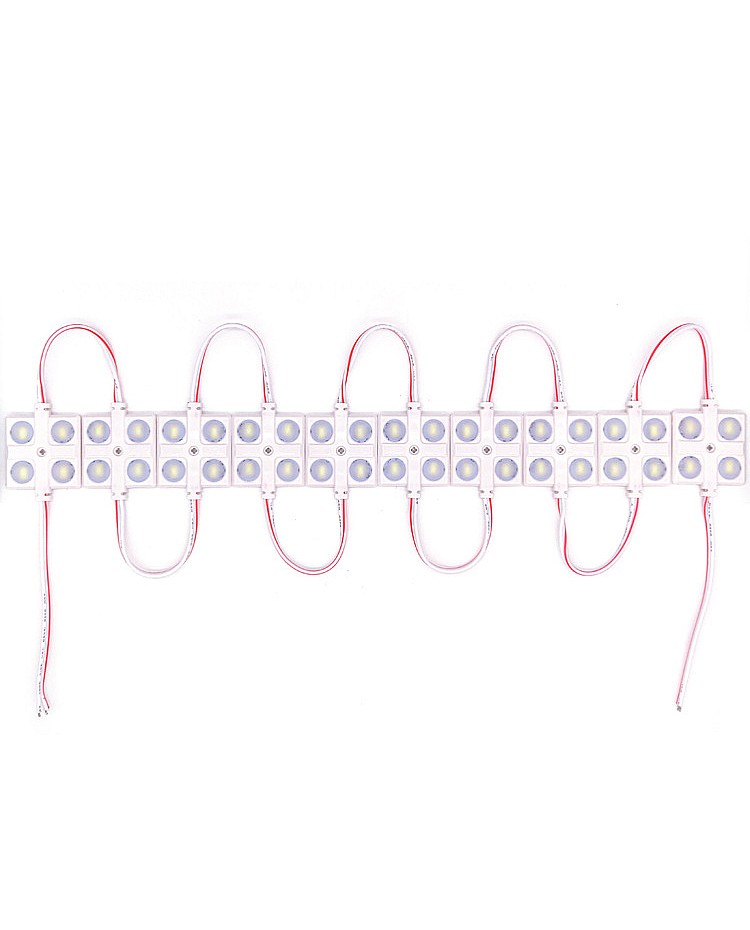

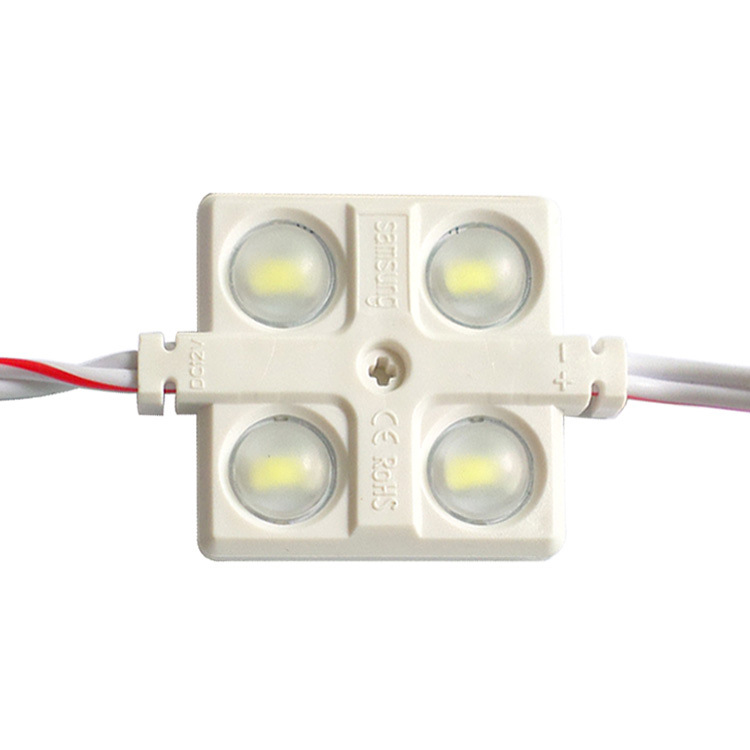

Injection Square 5730 LED Light Module With Lens

Check the Injection Square 5730 LED Light Modules, which with the injection molding process technology, uses 4PCS high-quality and super bright 5730 SMD LEDs as the light source, the LEDs mounted on the aluminum board and in the ABS shell, looks fashionable and fireproof, working in DC12V, safe to your children and pets, the surface with the PC lens for the wide beam angle. the IP rating is IP65, which can be used for indoor and outdoor light projects. 20PCS per string, cuttable and reconnectable, can be cut to any quantity and reconnect. the back with double-sided adhesive tape and the center with a screw hole, easy to fix them on the place you want to install by taking off the protector on the tape to stick on the project or using the screws. the SMD LED Light Modules working in DC12V, easy to connect to the LED Light Power Supply to light up or connect to the LED Light Dimmer to adjust the brightness. you can use the LED Light Modules as the backlight for the Signs, Channel Letters, Billboards, Advertisement boards, etc. also can be used for the reading light, ambient light for your cars, trucks, vans, pickup cars.

Features:

• Working Temperature: -40°-+50°
• Size: 50*37*9mm(L*W*H)
• Material: ABS+PC
• Working Voltage: DC12V
• LED Type: 5730 SMD LEDs
• LED QTY: 4PCS/PC
• Working Current: 150mA
• Wattage:2.4W/PC

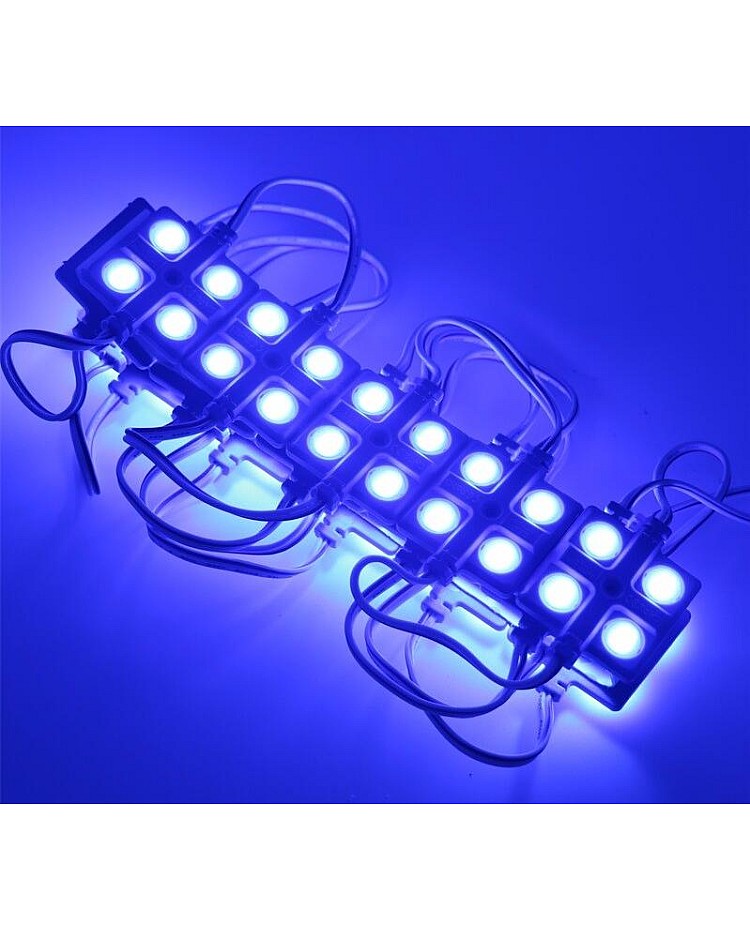

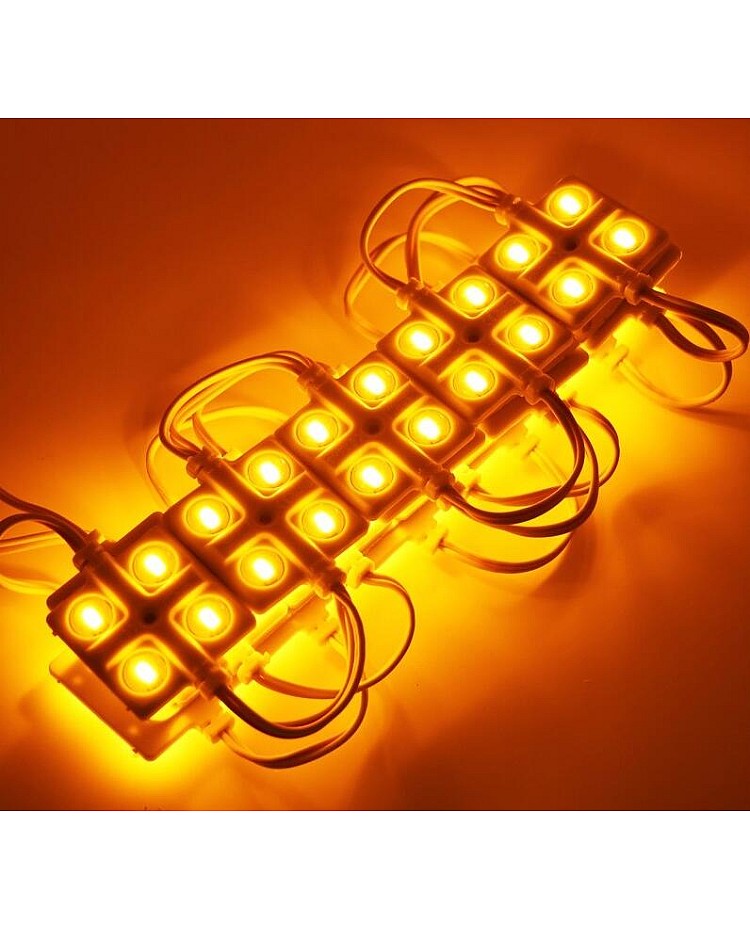

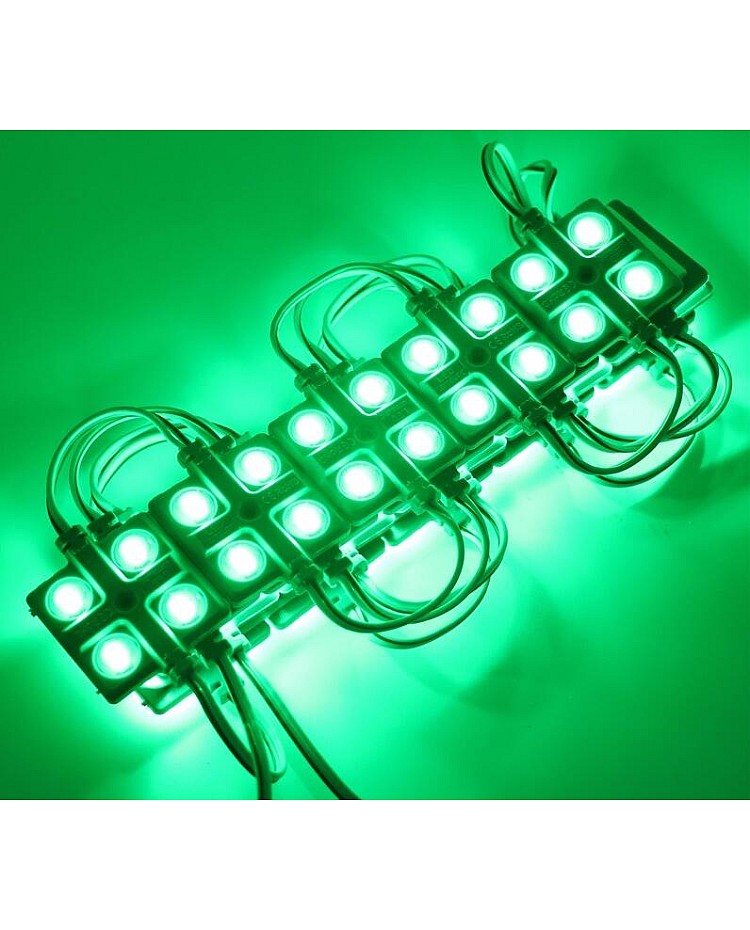

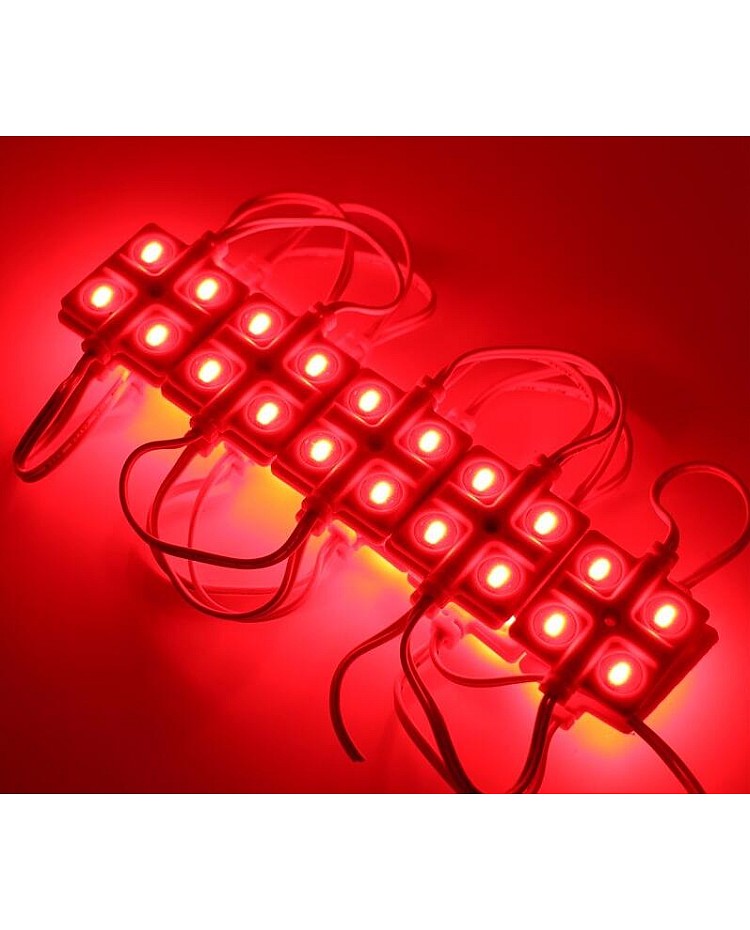

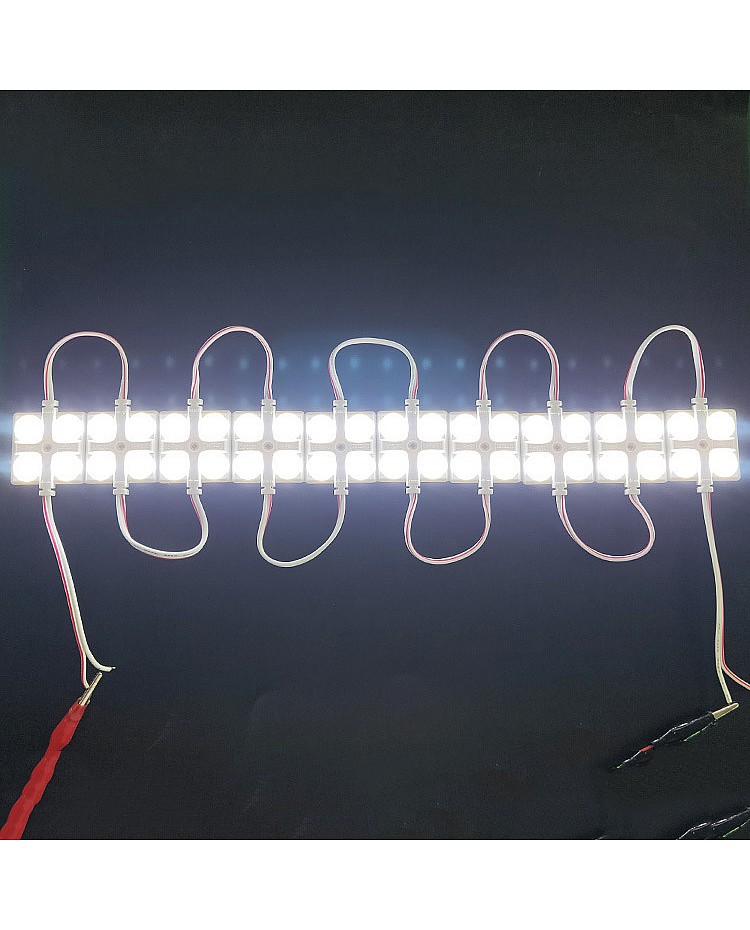

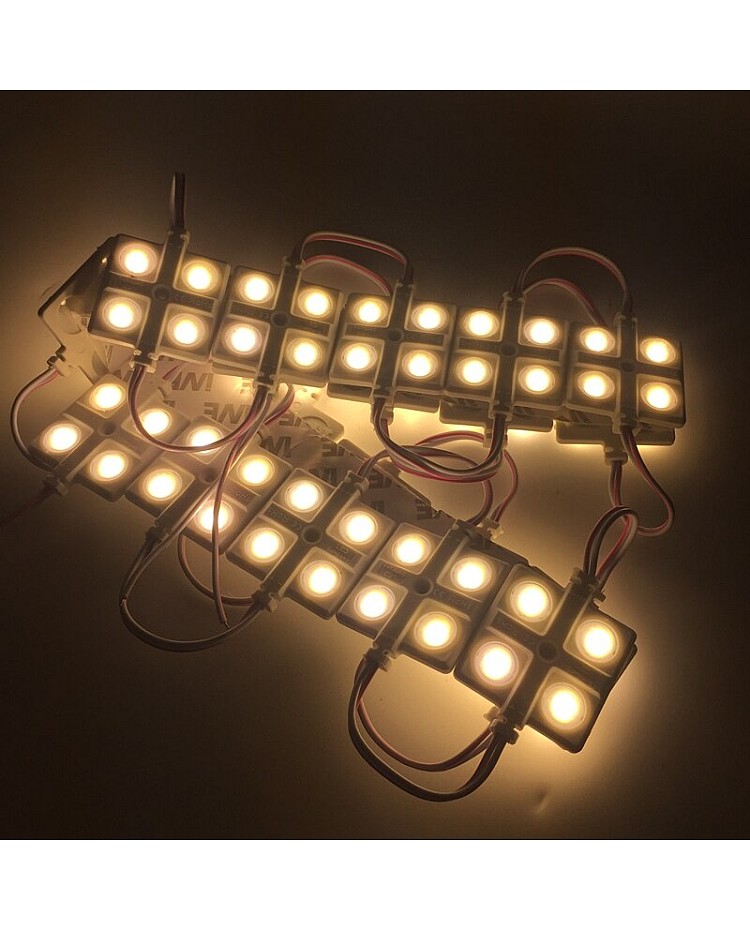

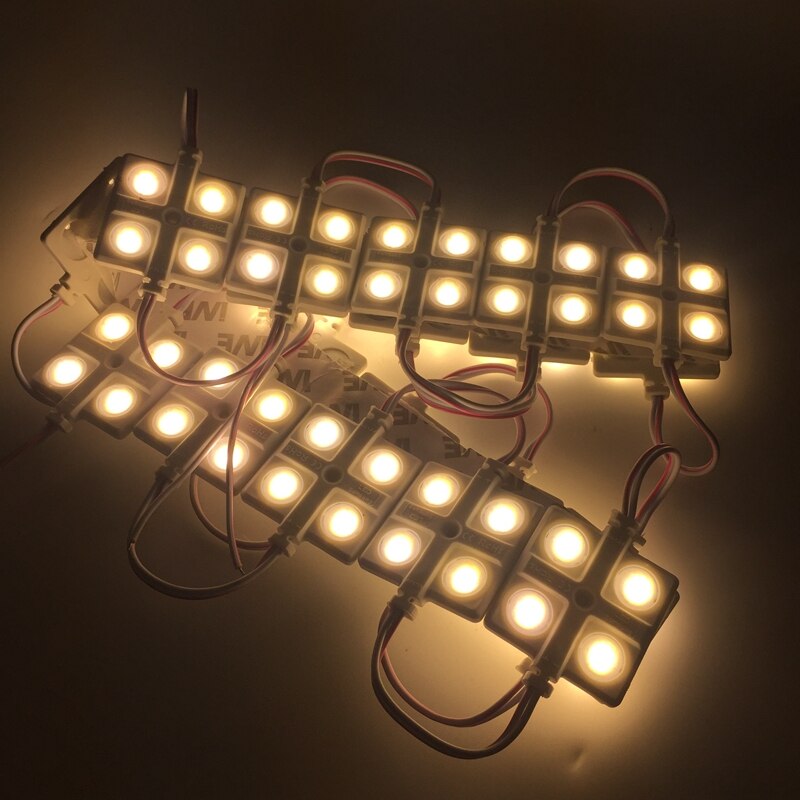

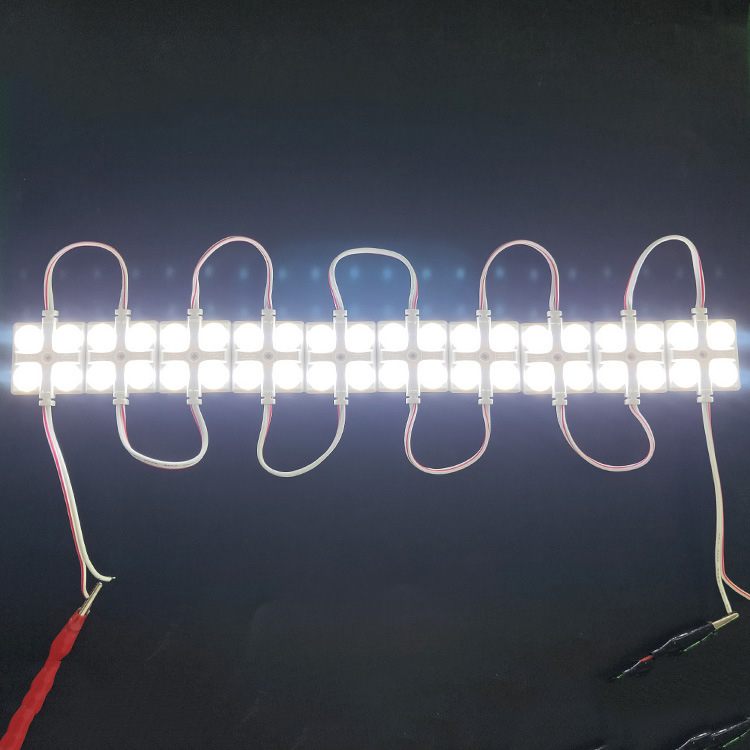

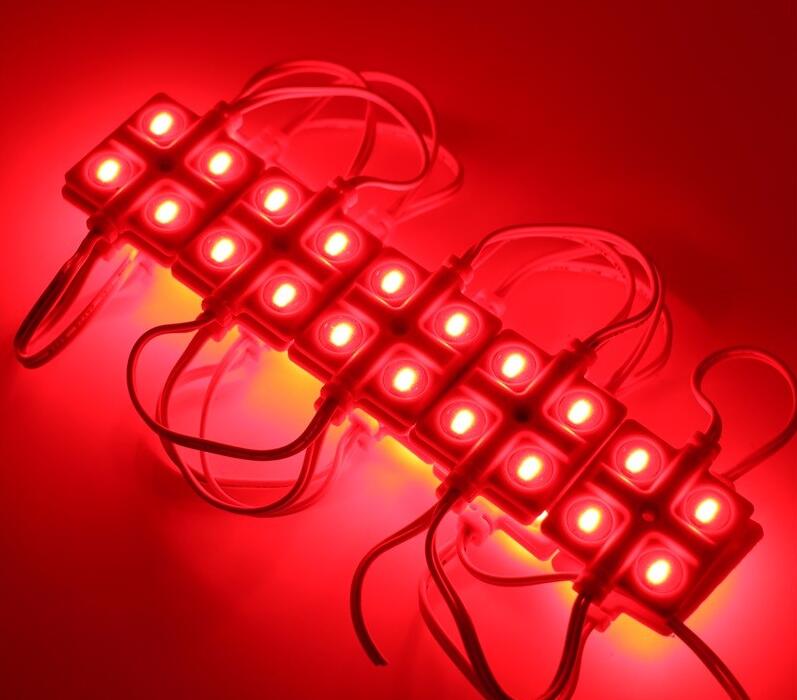

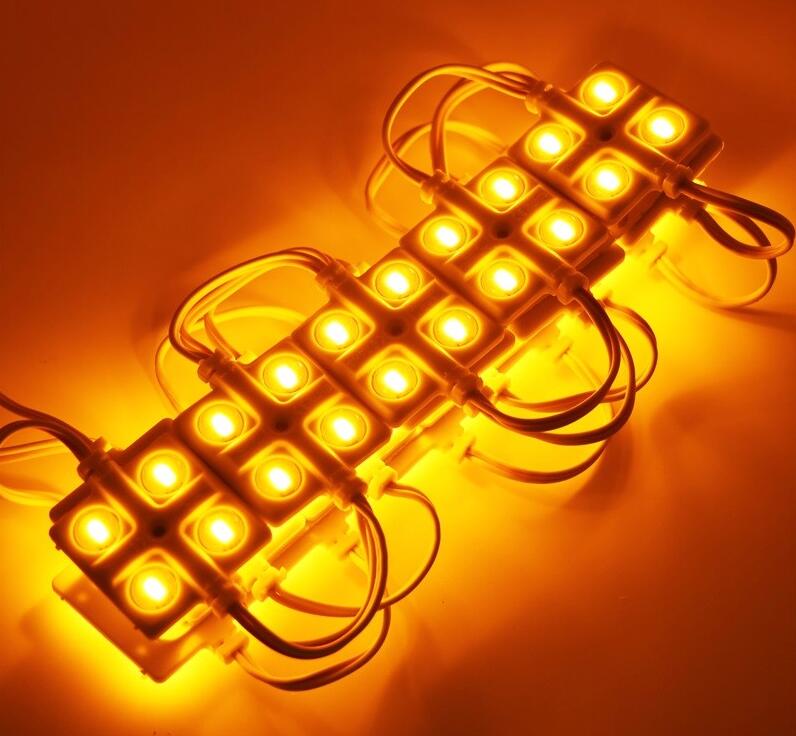

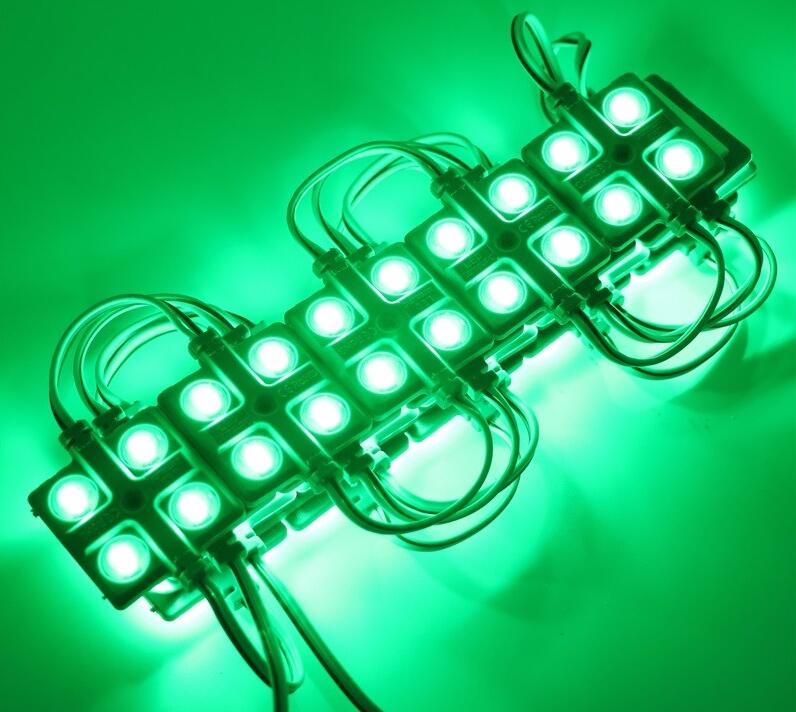

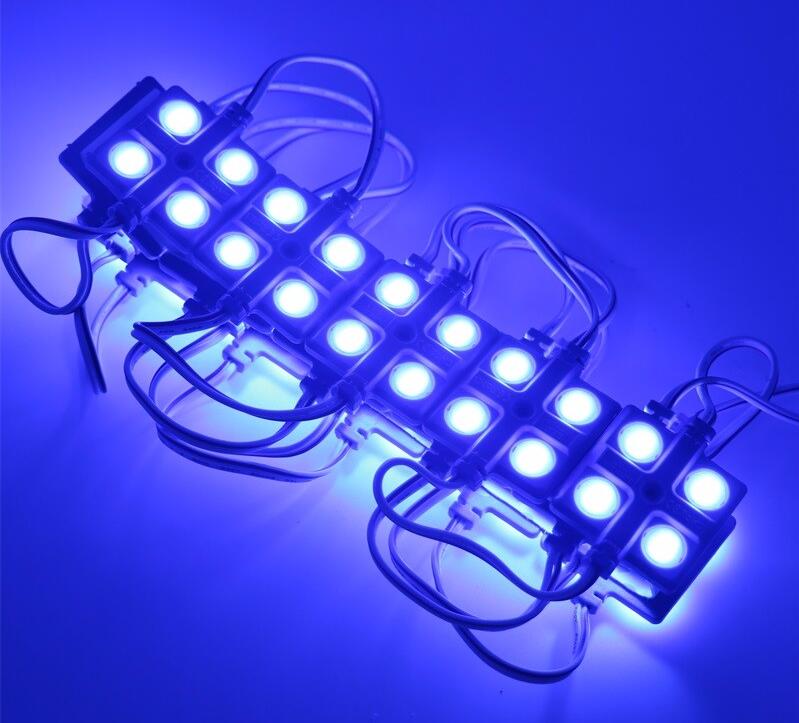

• Colors: Warm White, Cool White, Red, Yellow, Blue, Green
• IP Rating: IP65
• Color Temperature:13000-15000K(White)
• View Angle: 140°
• Lumen: 160-200lm
• 20PCS Per String
• Cuttable And Reconnectable
• Back With Double Sided Adhesive Tape
• Center With Screw Hole
• 2 Years Warranty
• Lifespan: >35,000 Hours

Applications:

Outdoor/Indoor Use,Cove Lighting

Path and contour lighting

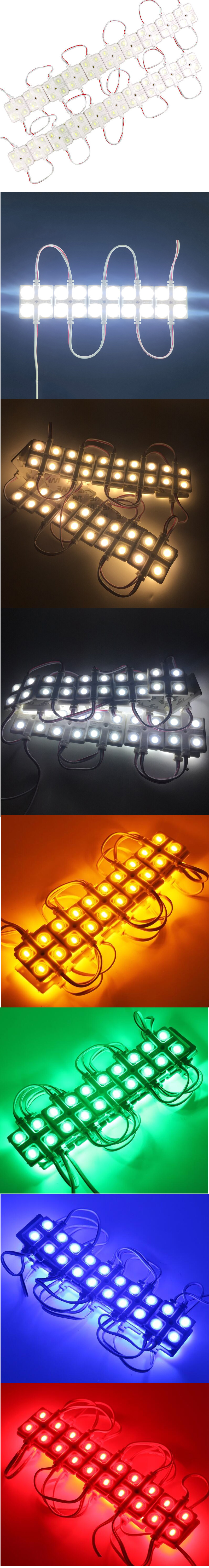

Backlight for signage/ letters

Architectural lights for Canopy, Corridor, Window, Archway

DIY Lights for home use

Marine light, Task lighting

Replacement of Fluorescent light

Decorative lights for holiday, event, show, exhibition

Package:

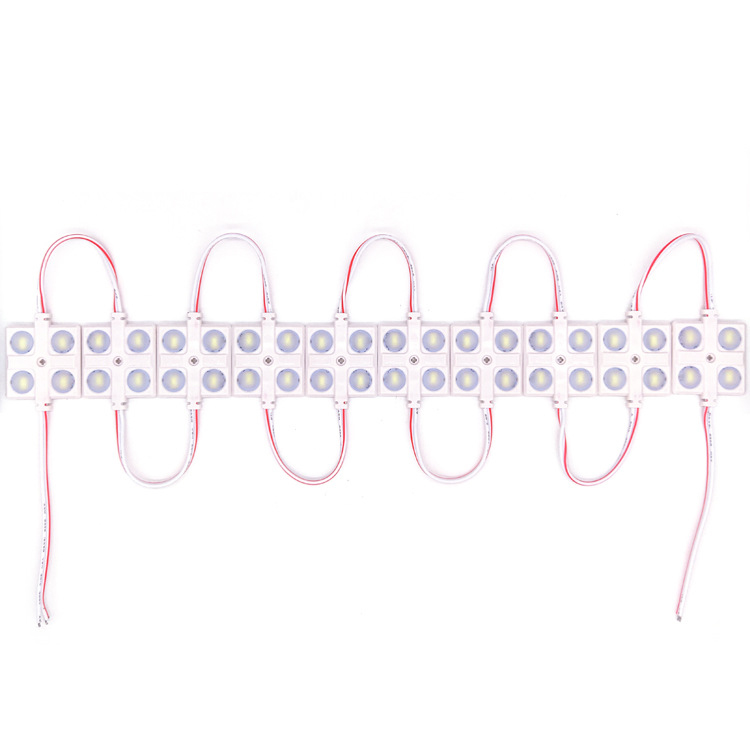

1*Square 5730 LED Light Module(20PCS/String)
