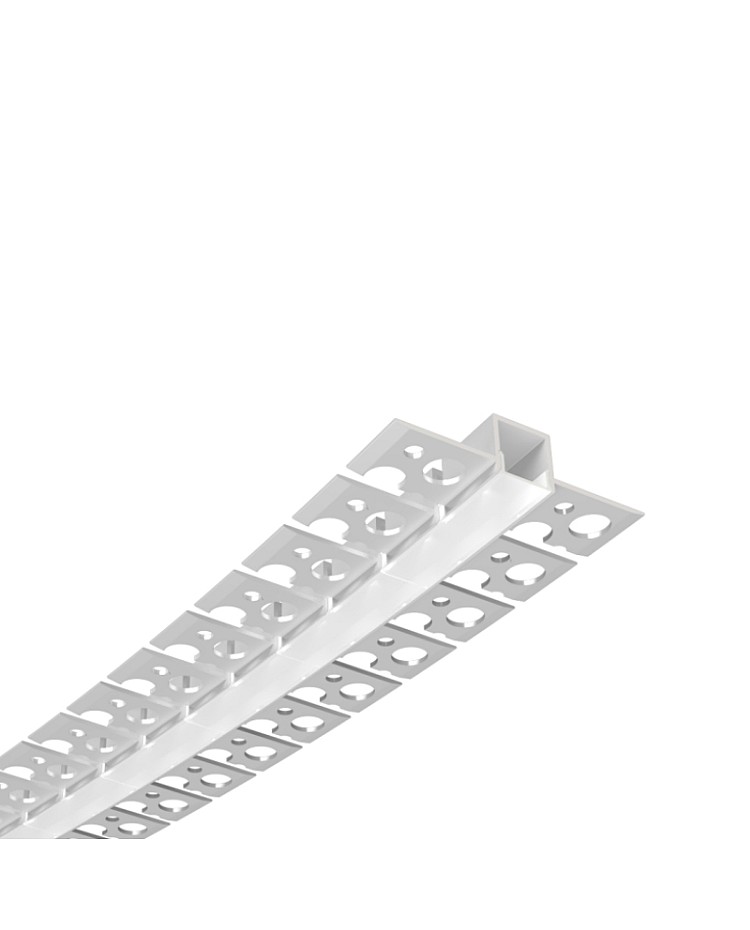

The 53mm Trimless Plaster-In LED Profiles with bendable design, you can choose the side bending or up-down bending products. They are designed for seamless integration into architectural surfaces, offering a clean and modern aesthetic and customizable lighting solutions for architectural and interior design projects. The Side Bending LED Profiles are made of 6063-T5 extruded aluminum material and have silver anodized surface treatment for anti-oxidation resistance and a longer lifespan. There are 1M, 2M, and 3M various-length products available, and you can cut to any size to suit your needs. Only one type of diffuser is available: the semi-clear diffusers, made of high-quality silicone material, will help distribute light evenly without dark areas. For the side-bending LED Channels, you can install the LED Strips on the side or on the bottom. The max width for side mounting is 5mm, and we recommend installing 10mm S-shaped LED Strips for bottom installation. The max width of Strip Light for up-down bending Light Profiles is 10mm; you can install the high-density COB Strip Lights to create a soft and uniform illumination effect. Both flanges have small honeycomb holes intended to be embedded directly into plaster or drywall during construction, ensuring a clean and integrated look.
Features:
- Type: 53mm Plaster-In Bendable LED Profiles

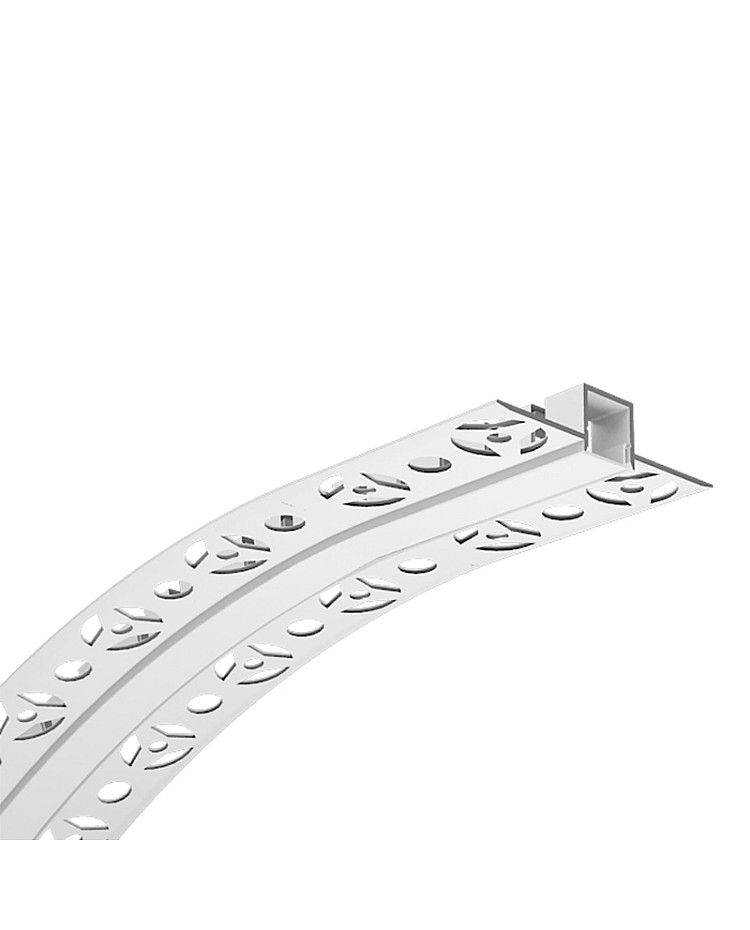

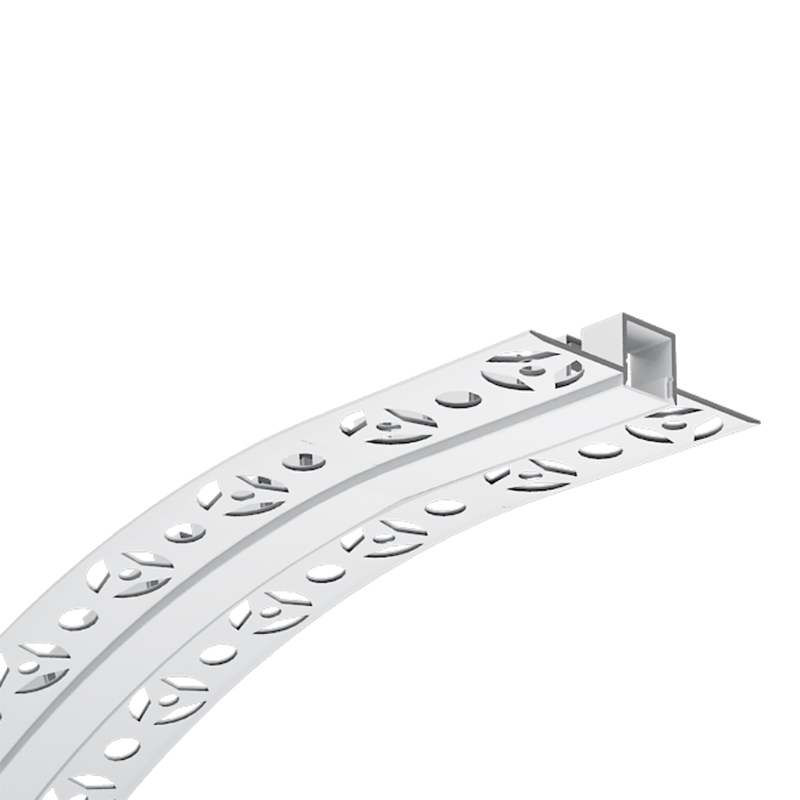

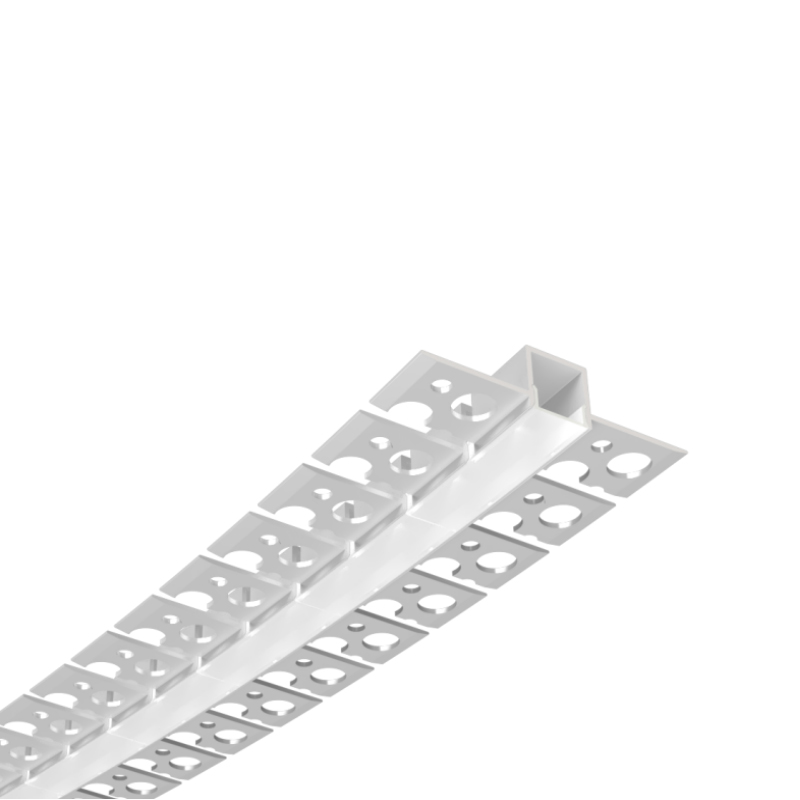

- Model: 5412-LR(Side Bending) / 5412-UD(Up-down Bending)
- Material: 6063-tT5 Extruded Aluminum
- Colors: Silver(Aluminum Channels) / Milky(Silicone Cover)

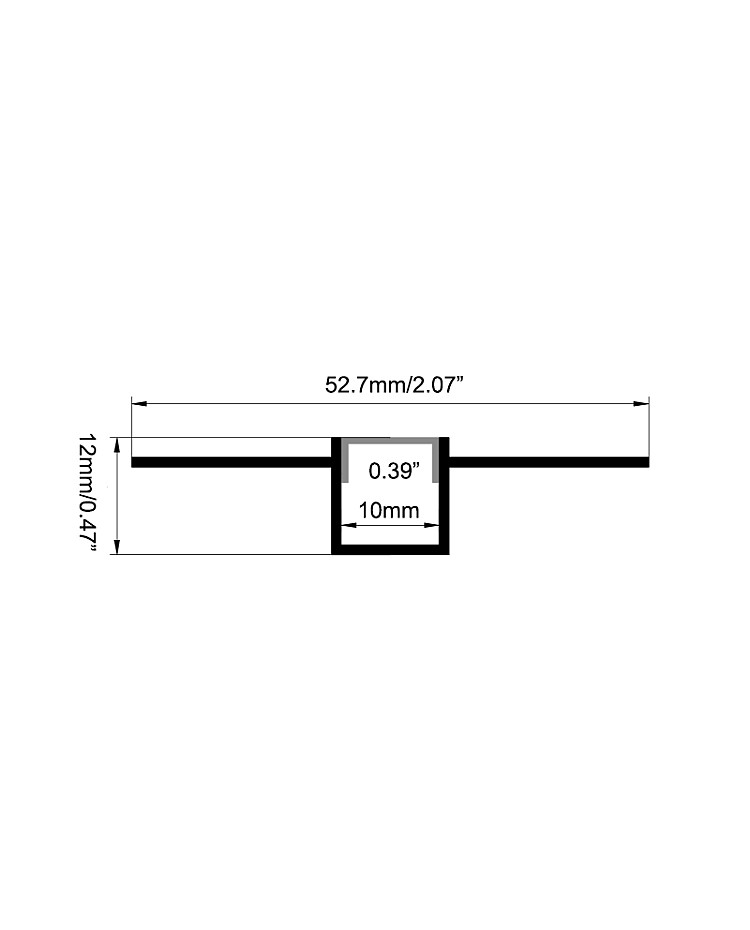

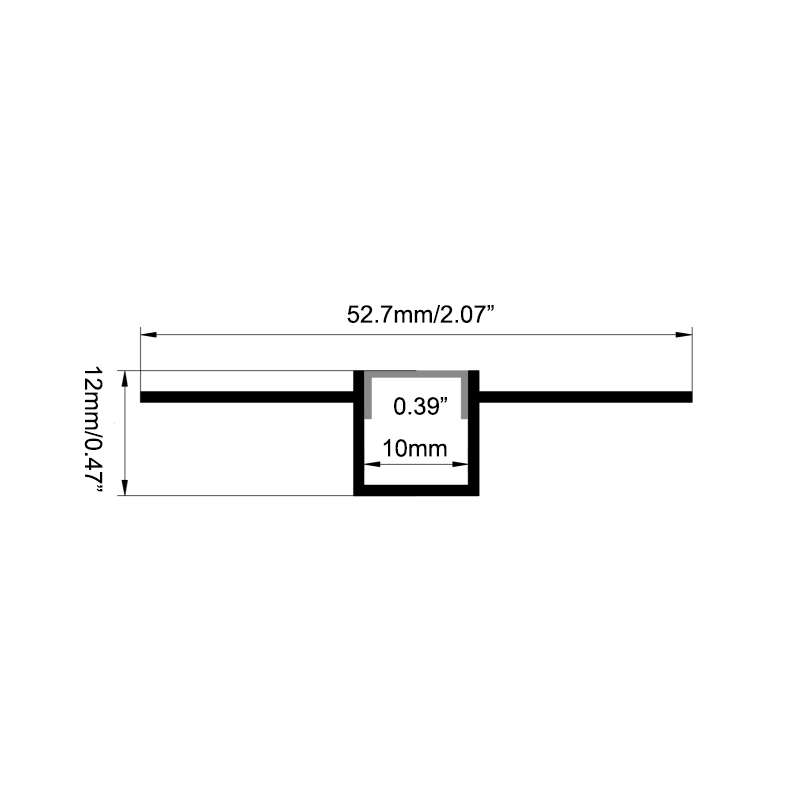

- Size(L*W): 52.7mm/2.07"*12mm/0.47"
- Aluminum Profile's Length Available: 1M, 2M, 3M
- Silicone Diffuser's Max Length: 50M/100M Per Roll
- Custom Length: YES
- Inner Width: 10mm/0.39"
- Max Width Of LED Strip Lights: 5mm(5412-LR Side Mount) / 10mm Zig Zag LED Strips(5412-LR Botton Mount) / 10mm(5412-UD)
- Diffusers: Semi-clear
- Mini Bending Diameter: 450mm(5412-LR) / 300mm(5412-UD)
- Installation: Plaster-In

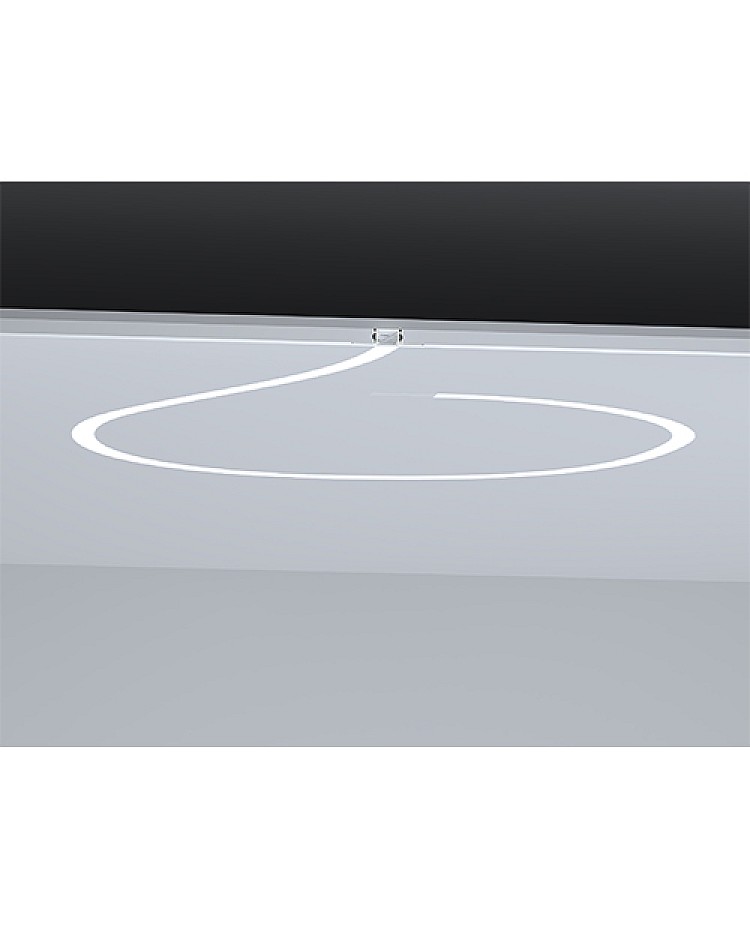

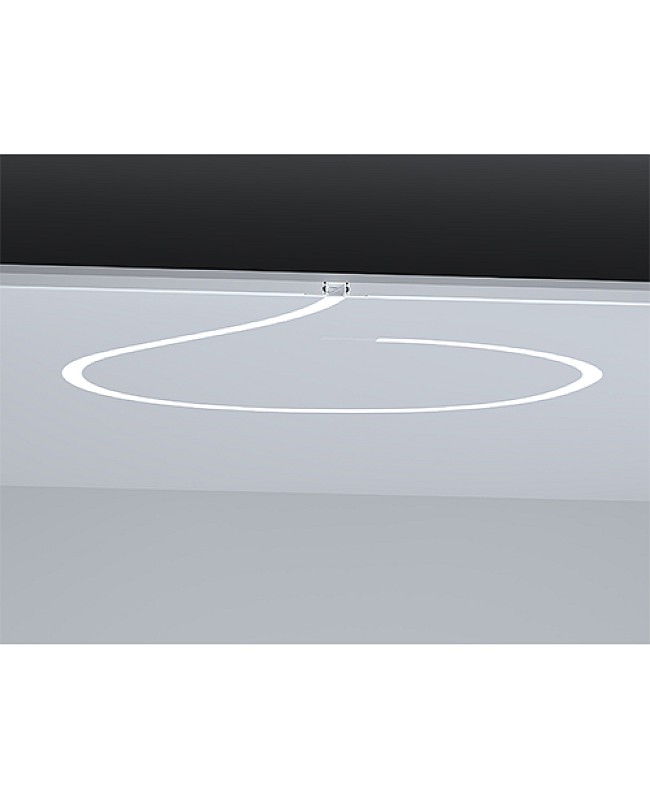

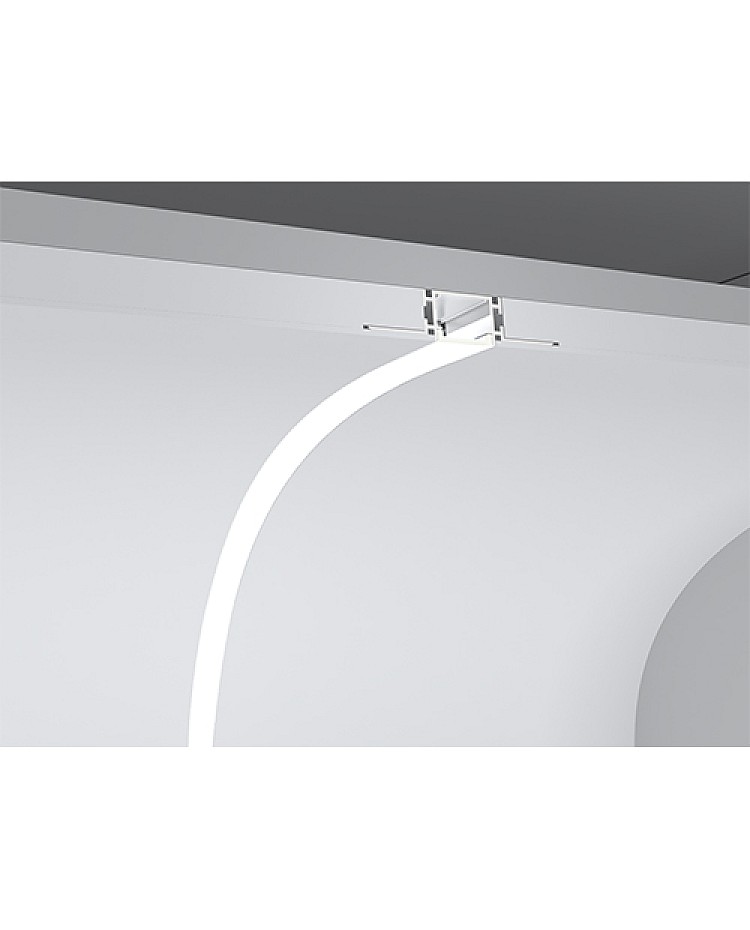

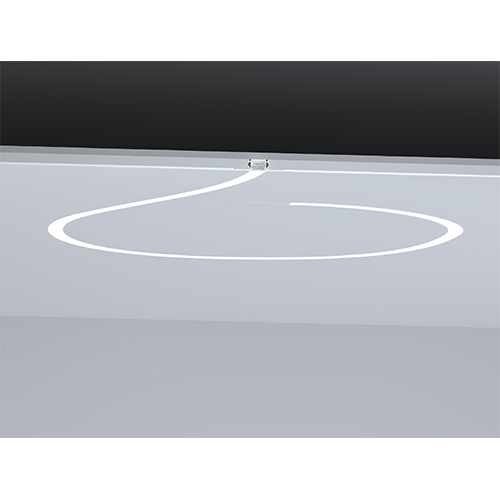

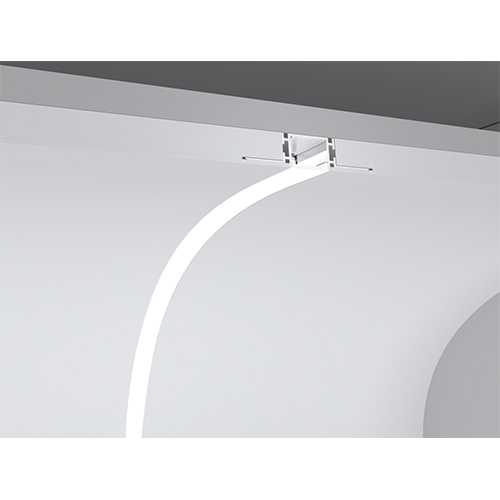

- Space Scenes: Left And Right Bending, Rounded Molding, Bend Walkway, Up And Down Bending

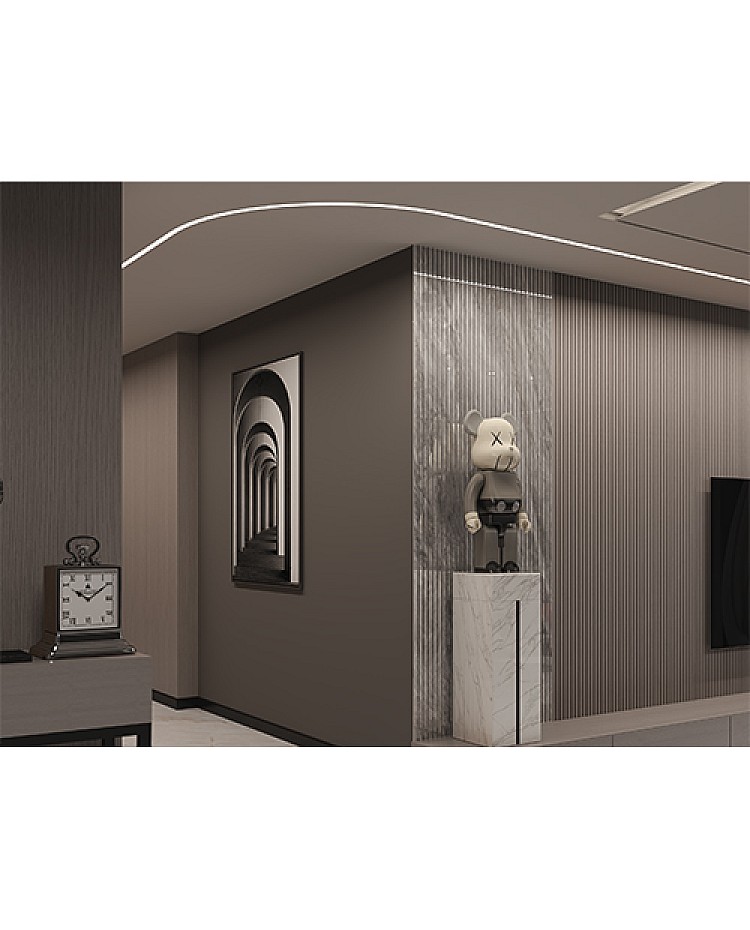

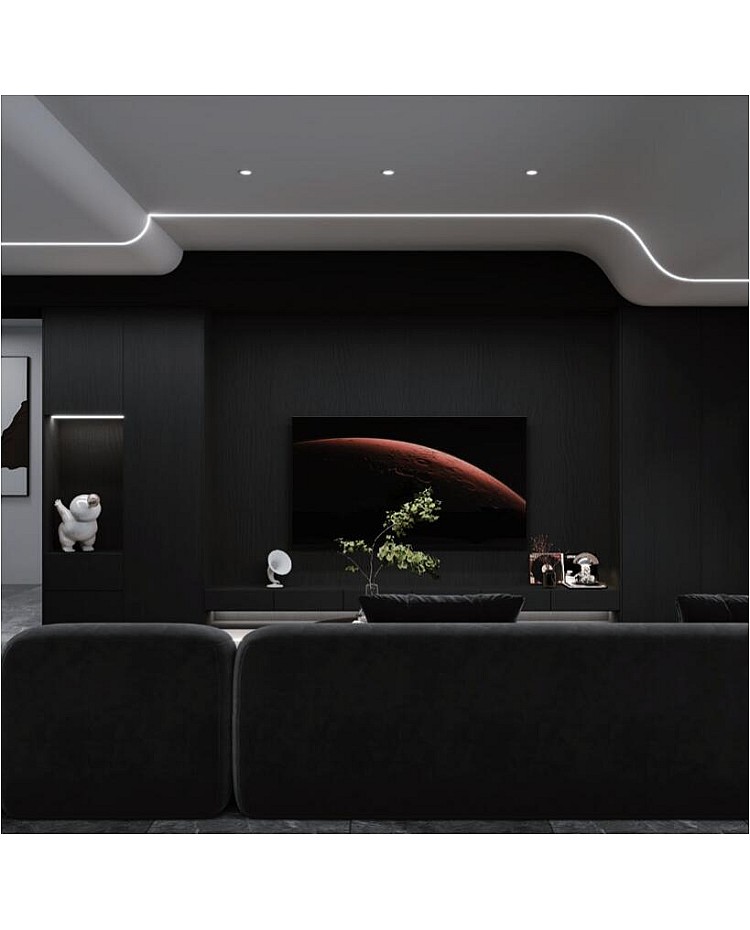

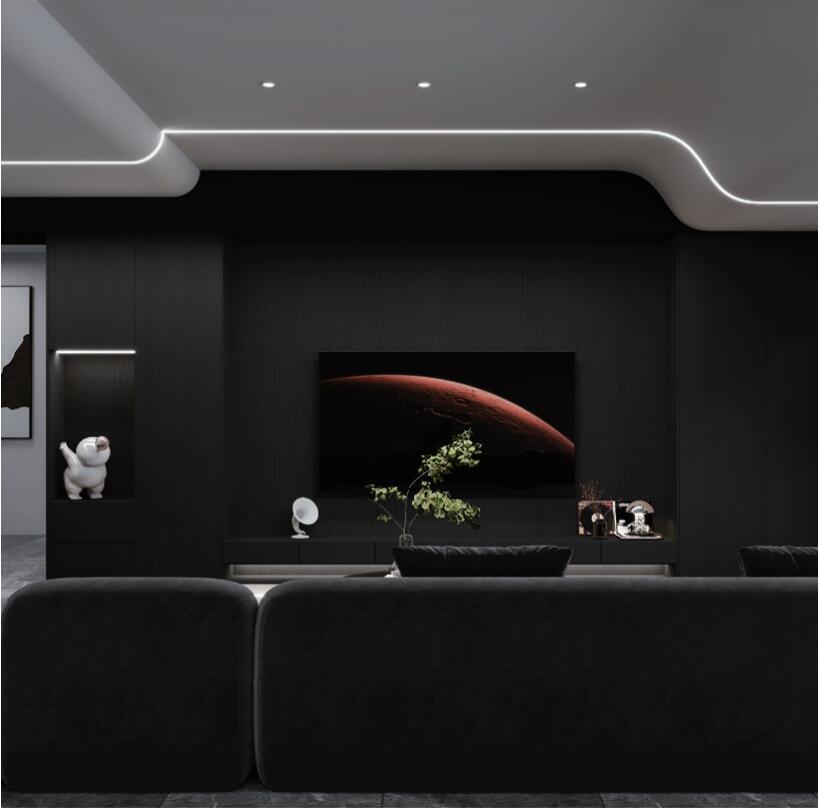

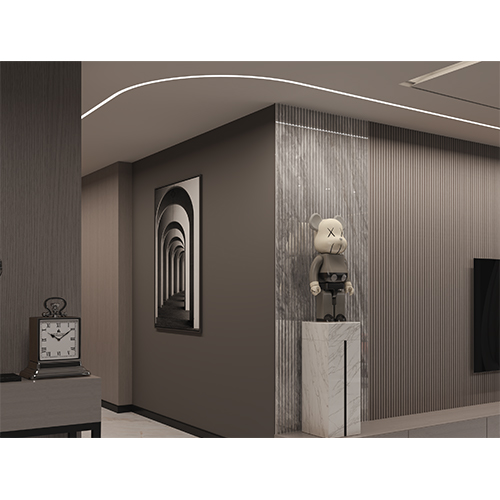

- Applications: Curved Linear Lighting On Ceilings, Walls, etc
- 3 Years Warranty
Includes:
1*Bending Plaster-In LED Profiles
1*Silicone Cover
End Caps(With/Without Wire Hole)
