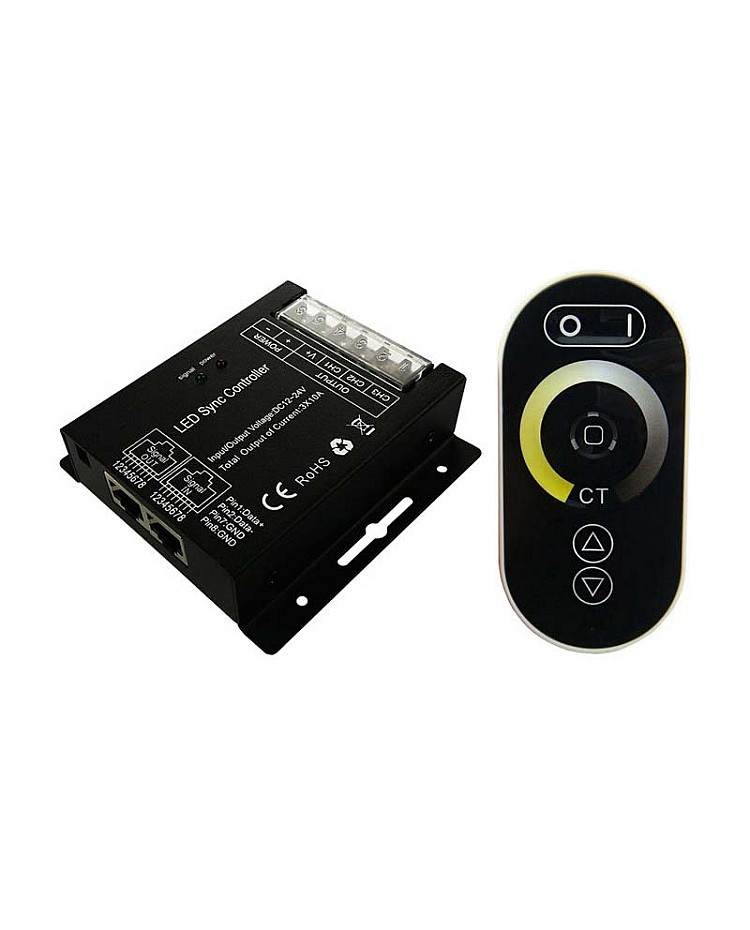

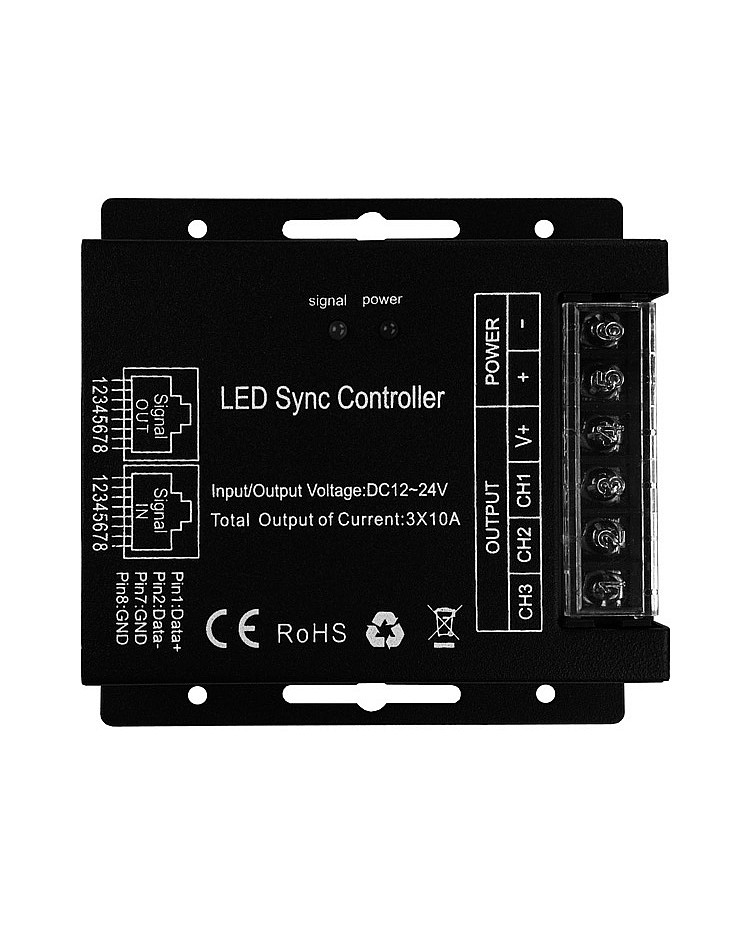

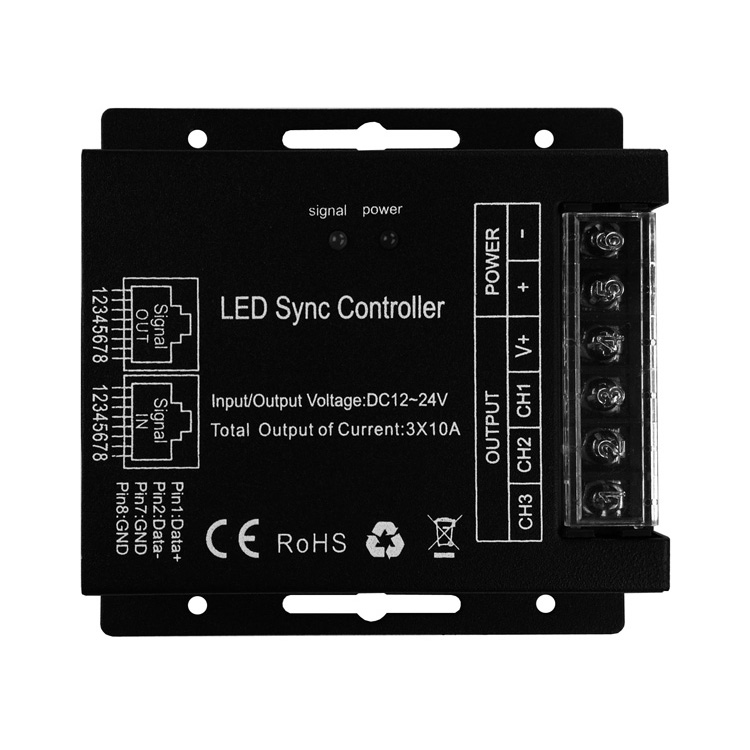

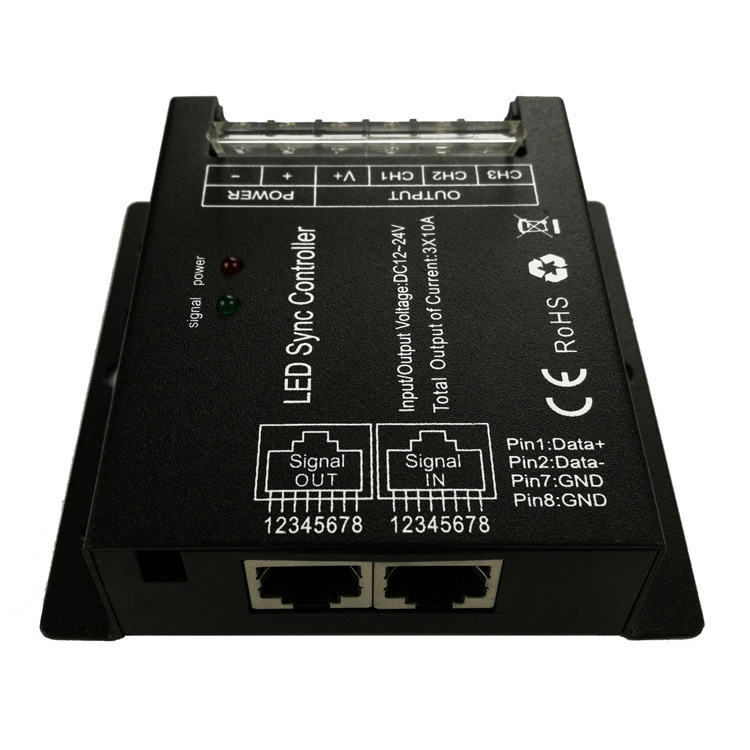

The Tunable White Remote Light Controller, designed for the constant voltage CW+WW LED Lights, working in DC12V-24V, with two output channels design, the max loading power up to 480W when working in 24V. The CCT Remote Controller adopts the most advanced PWM digital dimming technology, with dual RJ45 ports to achieve the Sync-Work to connect multiple LED Controllers. The RF Touch Remote includes five function buttons and one color temperature ring. All buttons are in the touch form, and the color ring has 128 levels in different color temperature values. There is a sense of light in the center to show the exact color that has been touched. There are nine dynamic modes, one static color, and eight dynamic modes. The brightness of static color and speed of dynamic modes are adjustable.
Features:
- Working Temperature: -20-60℃
- Working Voltage: DC12-24V
- Output Channels: 2
- Max Output Current: <10A(Each Channel)
- Max Output Power: 240W(12V), 480W(24V)
- Connecting Mode: Common Anode
- Output Gray: 256 Levels
- RF Frequency: 433.92MHz

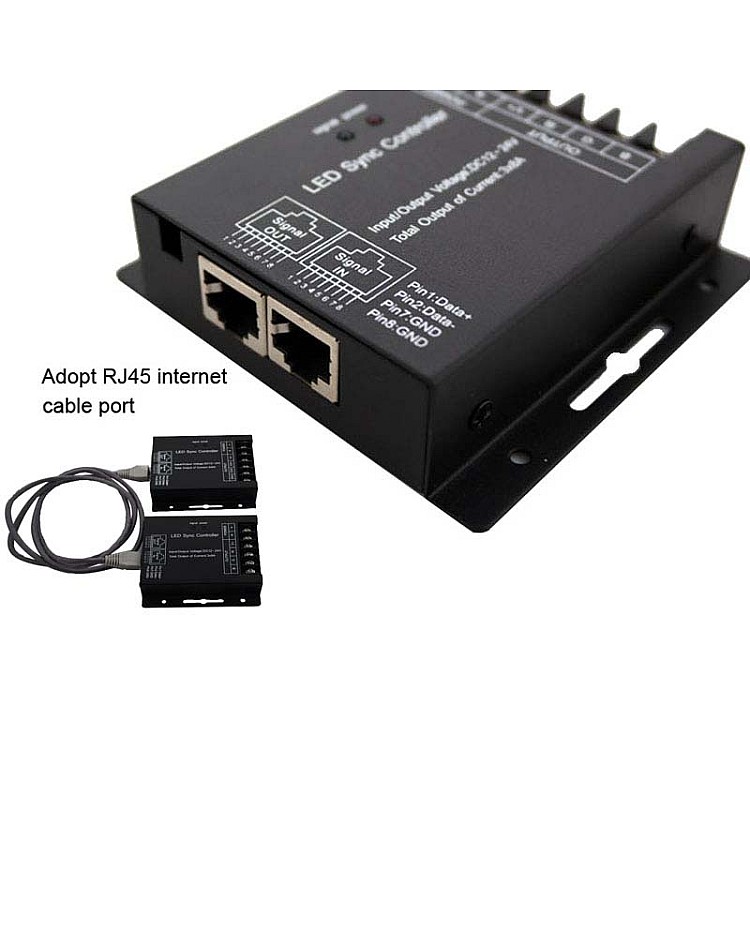

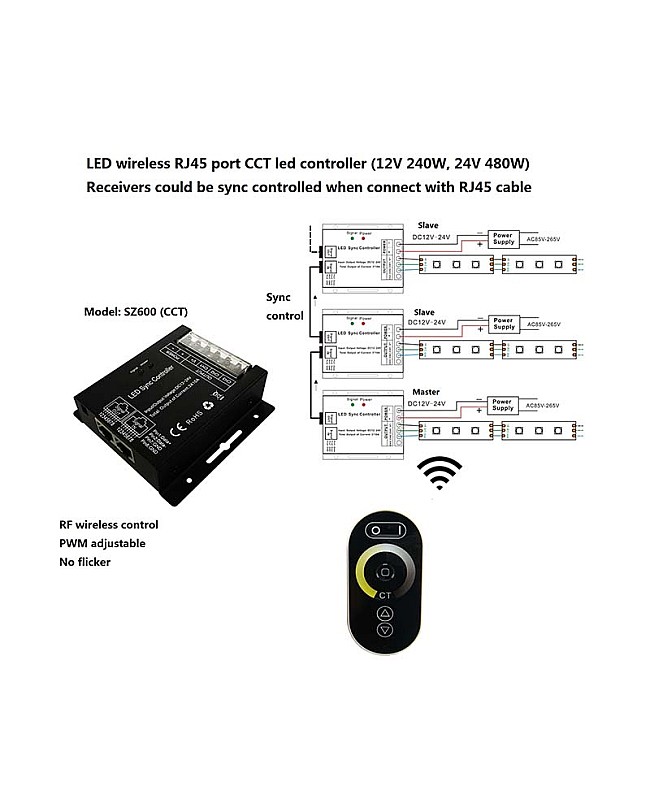

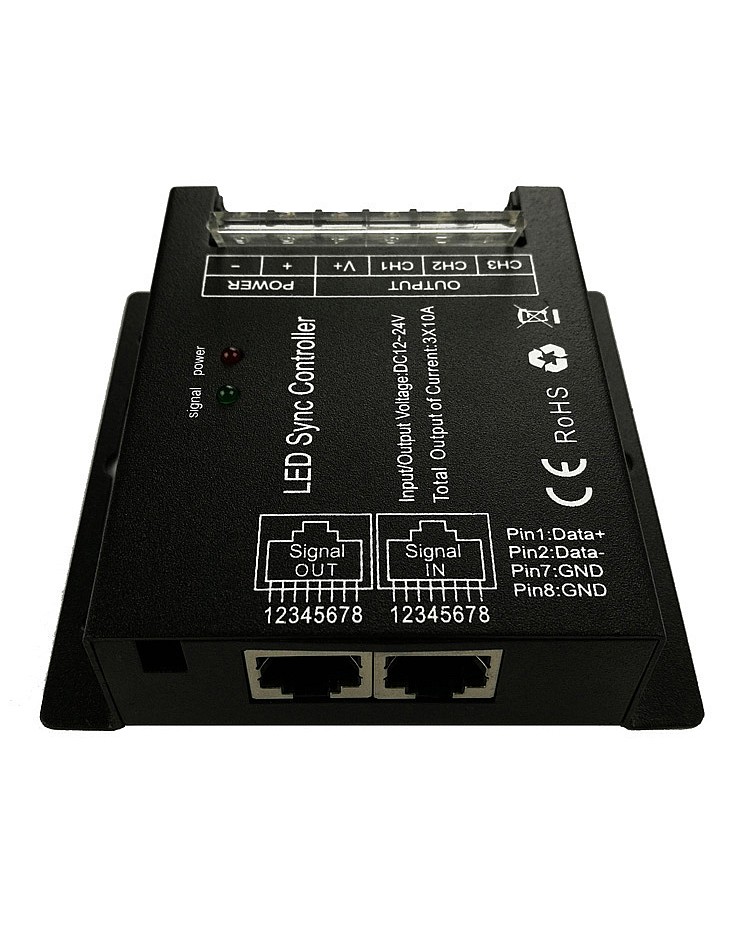

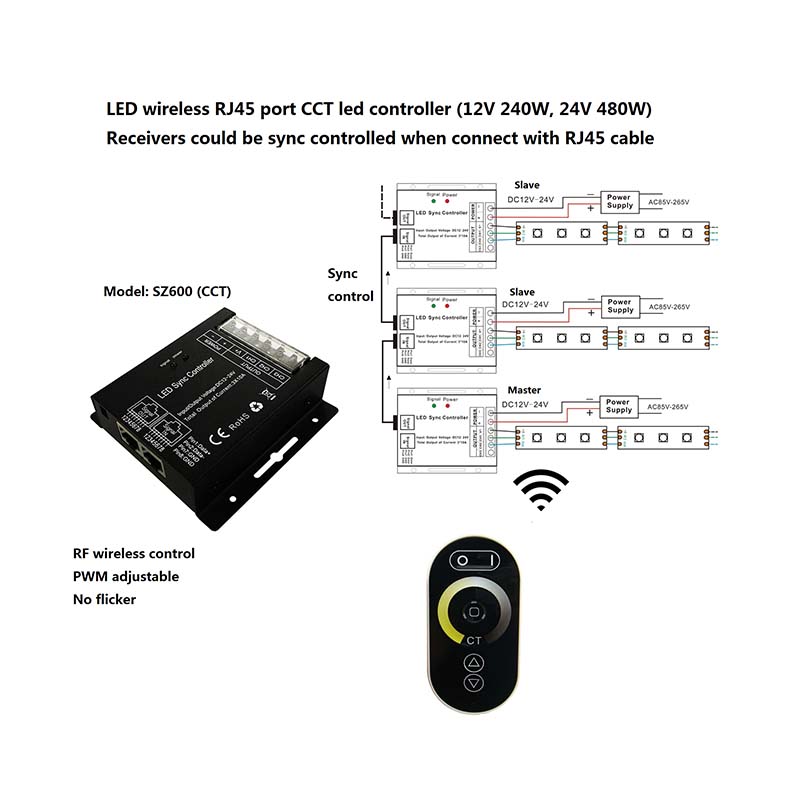

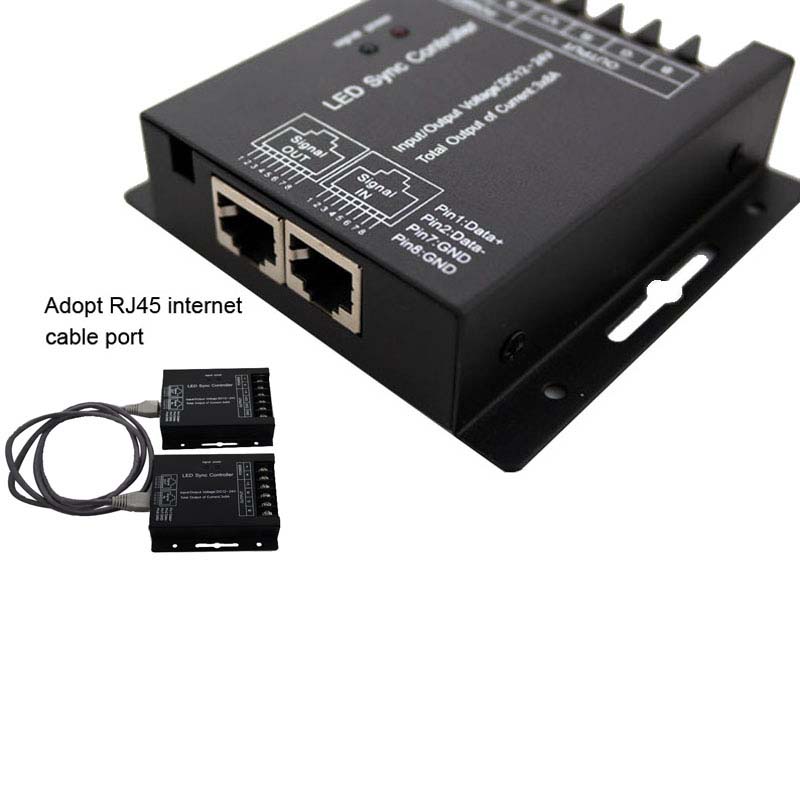

- Easy Connection To Achieve Multiple Controllers Sync-Work By RJ45 Ports

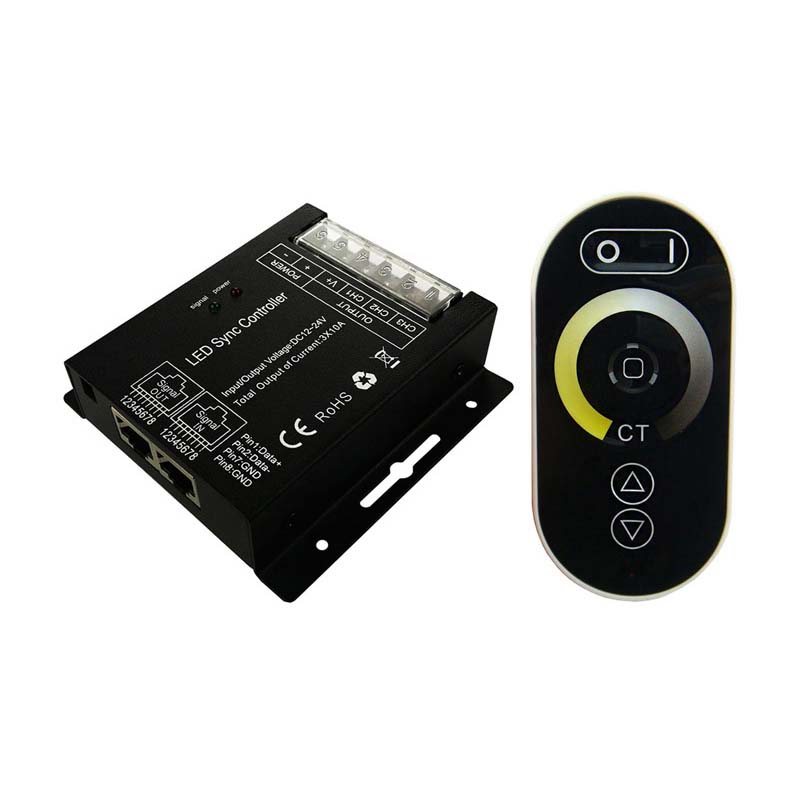

- RF Full Touch Remote Control Included

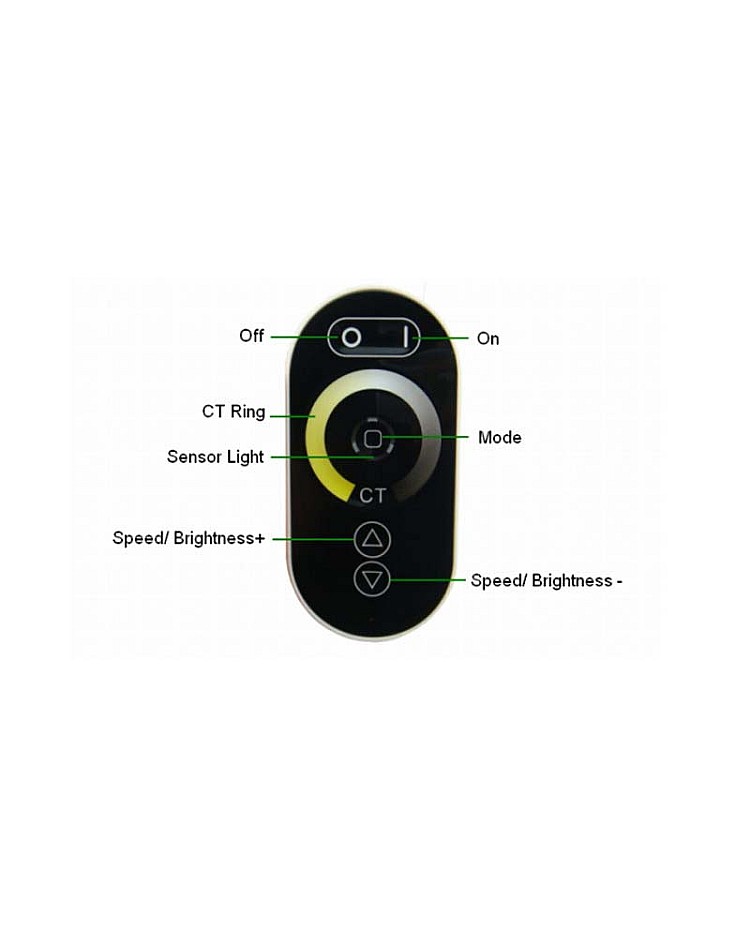

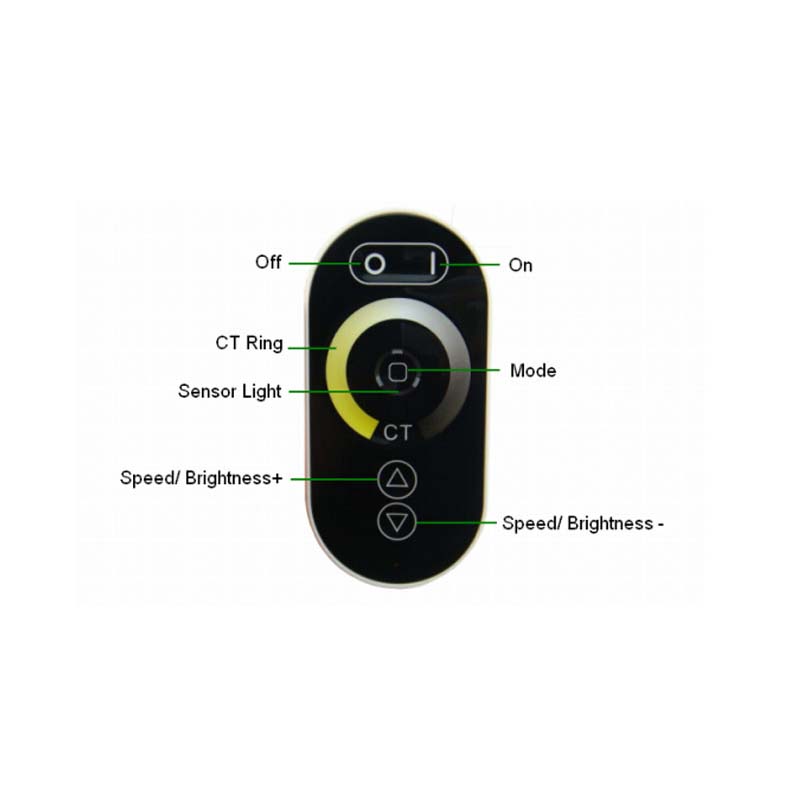

- Remote With One CCT Ring And 5 Function Buttons
- 9 Working Modes In Total, 1 Static Color And 8 Dynamic Modes
- Weight: 300g
- 3 Years Warranty
Includes:
1*Remote Light Controller
1*RF Touch Remote Control
