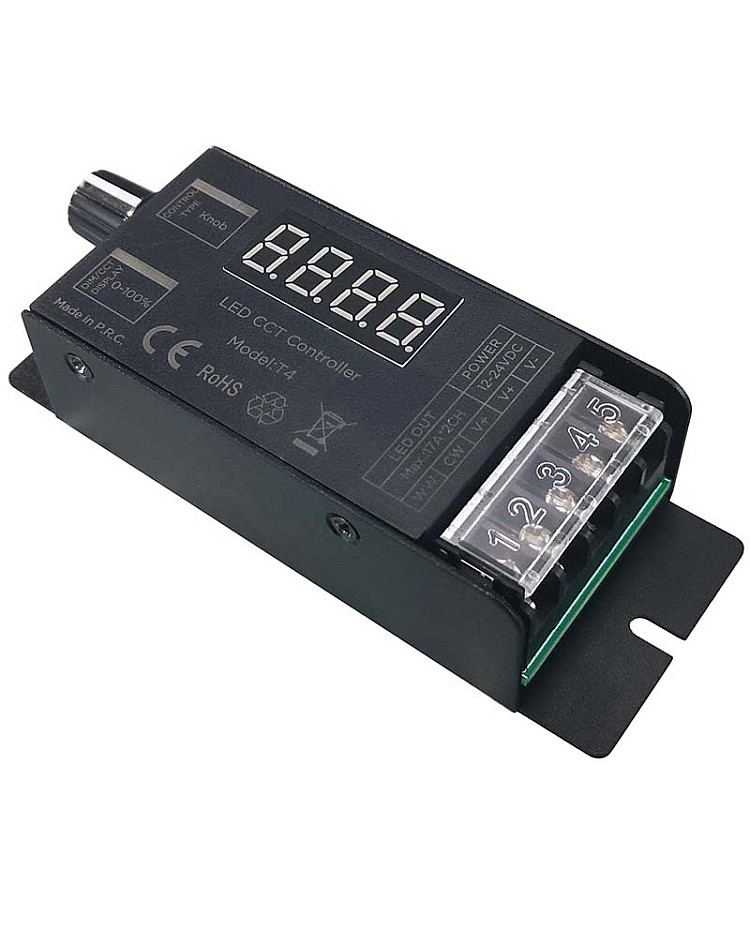

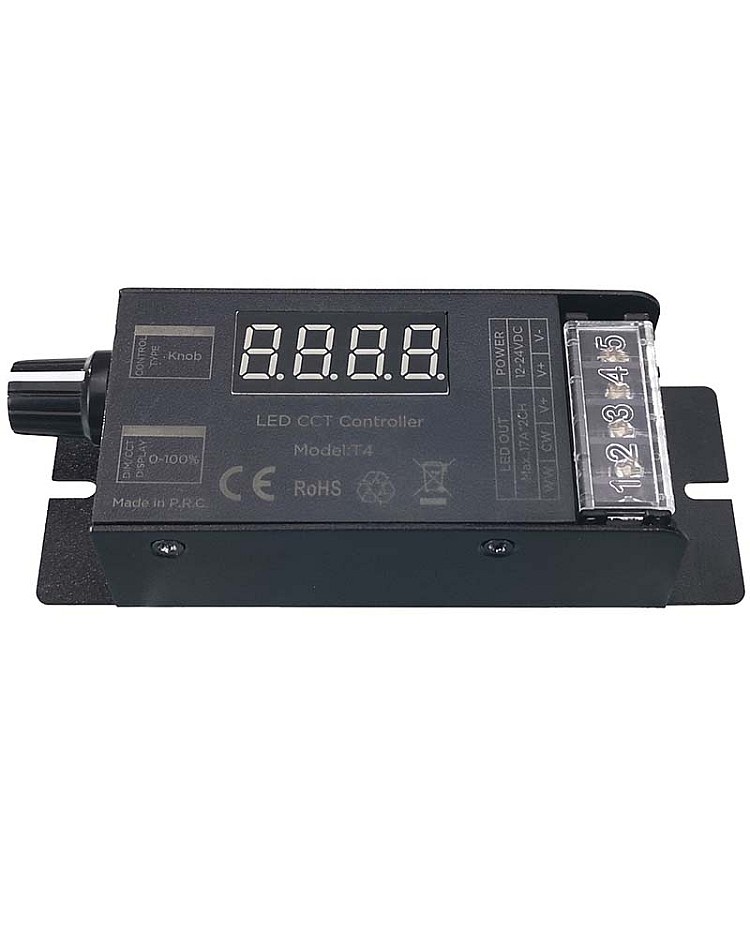

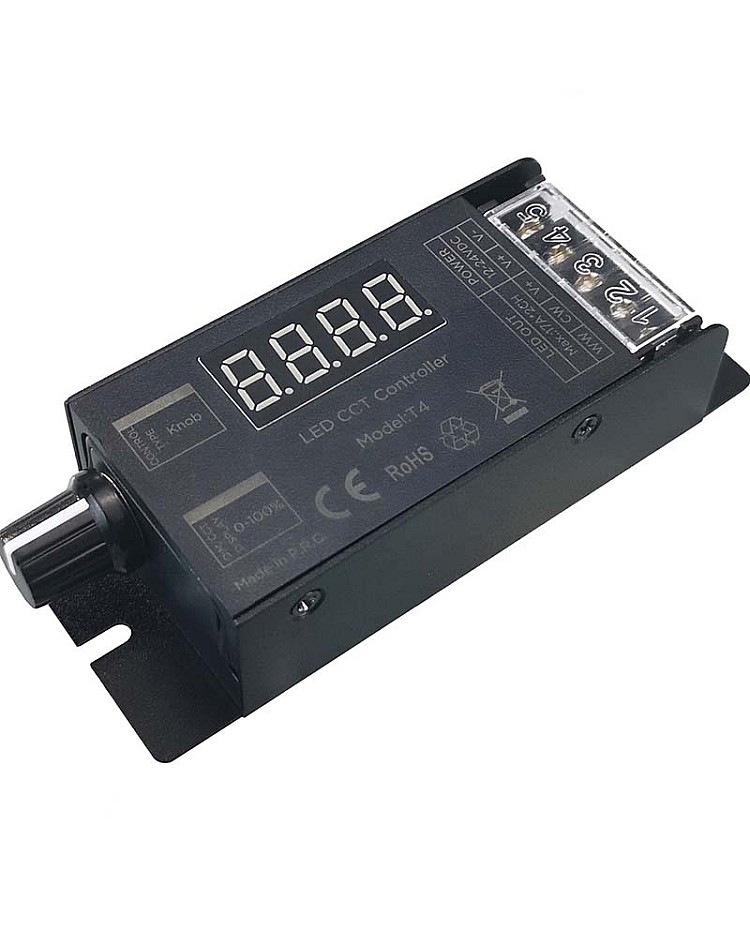

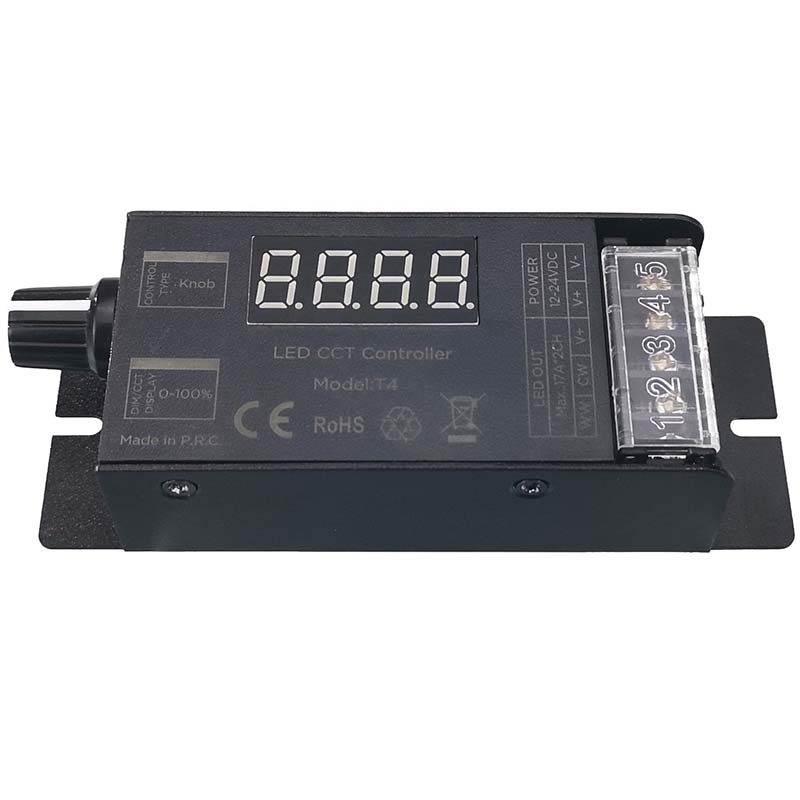

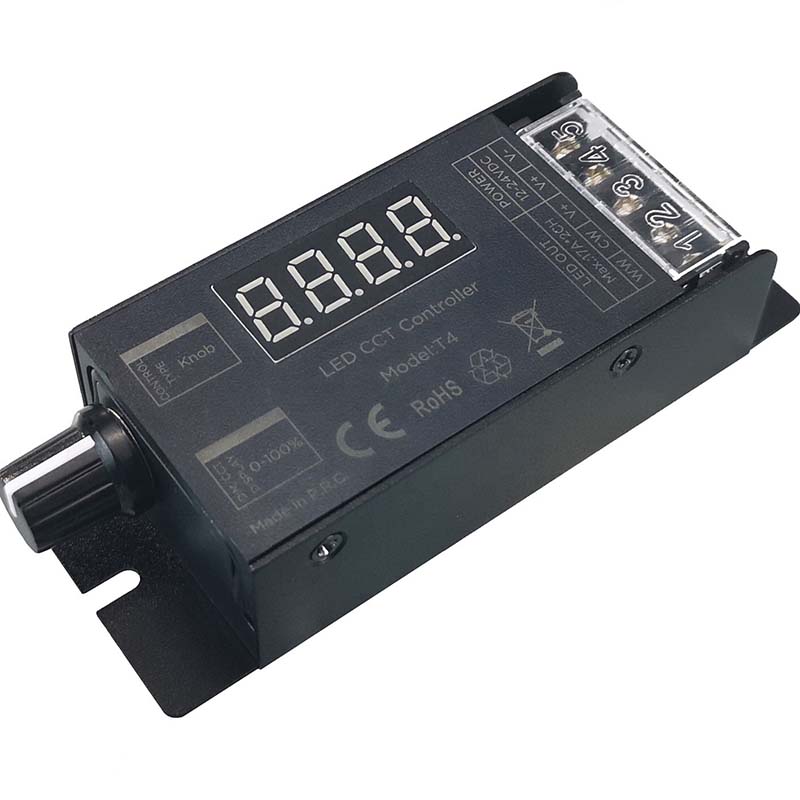

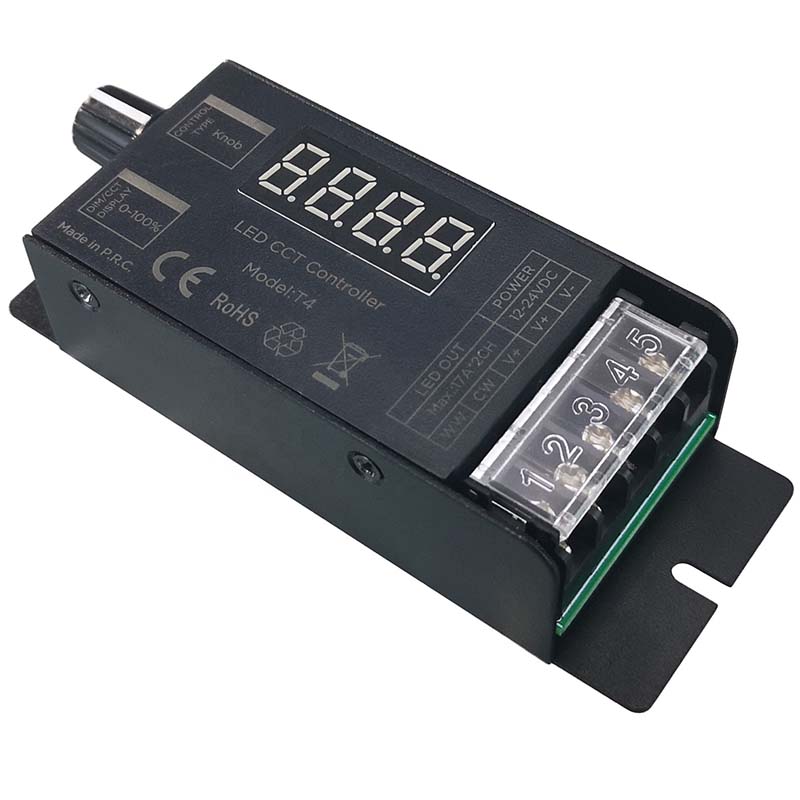

The CCT Tunable White PWM Dimmer with Knob Switch, which is designed for the constant voltage CW+WW LED Strips, working in DC12-24V, with 2 output channels design, the max output current of each channel up to 17A, the max loading power up to 400W when working in DC24V. The output PWM frequency is adjustable; the default is 2KHz, and the adjustable range is from 500Hz to 115.6KHz. The CCT PWM Dimmer with a knob switch, and you can rotate it to adjust the PWM frequency, brightness, or color temperature, and the digital tube will display the brightness percentage intuitively. when dimming ranges from 0% to 100%, and the digital tube will display from d000 to d100. When adjusting the color temperature, the color temperature adjustable ranges from 100%WW to 100%CW, and the digital tube will display from C000 to C100. When adjusting the PWM frequency, the digital tube will display P***. there are 6 frequencies available: 500Hz, 1KHz, 2KHz, 4KHz, 7.8KHz and 15.6KHz. The 12V PWM Dimmer can work with 2.4G wireless Remote Control and can realize synchronous control of countless controllers.
Quick Links:
2.4G 4 Zones CCT Remote Control
Features:
- Working Temperature: -20℃-60℃
- Size: 103*40*24mm(L*W*H)
- Working Voltage: DC12-24V
- Static Power Consumption: <1W
- Output Channels: 2
- Max Output Current(Each Channel): 17A(PWM≤2KHz), 13A(PWM=4/7.8KHz), 10A(PWM=15.6KHz)
- Max Output Power: 200W/12V, 400W/24V(PWM≤2KHz); 150W/12V, 300W/24V(PWM=4/7.8KHz); 120W/12V, 240W/24V(PWM=15.6KHz)
- Brightness Range: 0-100%
- CCT Range: 100%WW-100%CW
- Memory Function: YES
- PWM Frequency: 2KHz(Default), 500Hz, 1KHz, 4KHz, 7.8KHz, 15.6KHz
- With Knob Switch To Adjust The Brightness And Color Temperature
- Digital Tube Display The Brightness Percentage Intuitively
- Can Be Controlled By the 2.4G Remote Control(Sold Separately)
- Short Circuit Protection: YES
- Weight: 90g
- 3 Years Warranty
Includes:
1*Tunable White PWM Dimmer With Knob Switch
