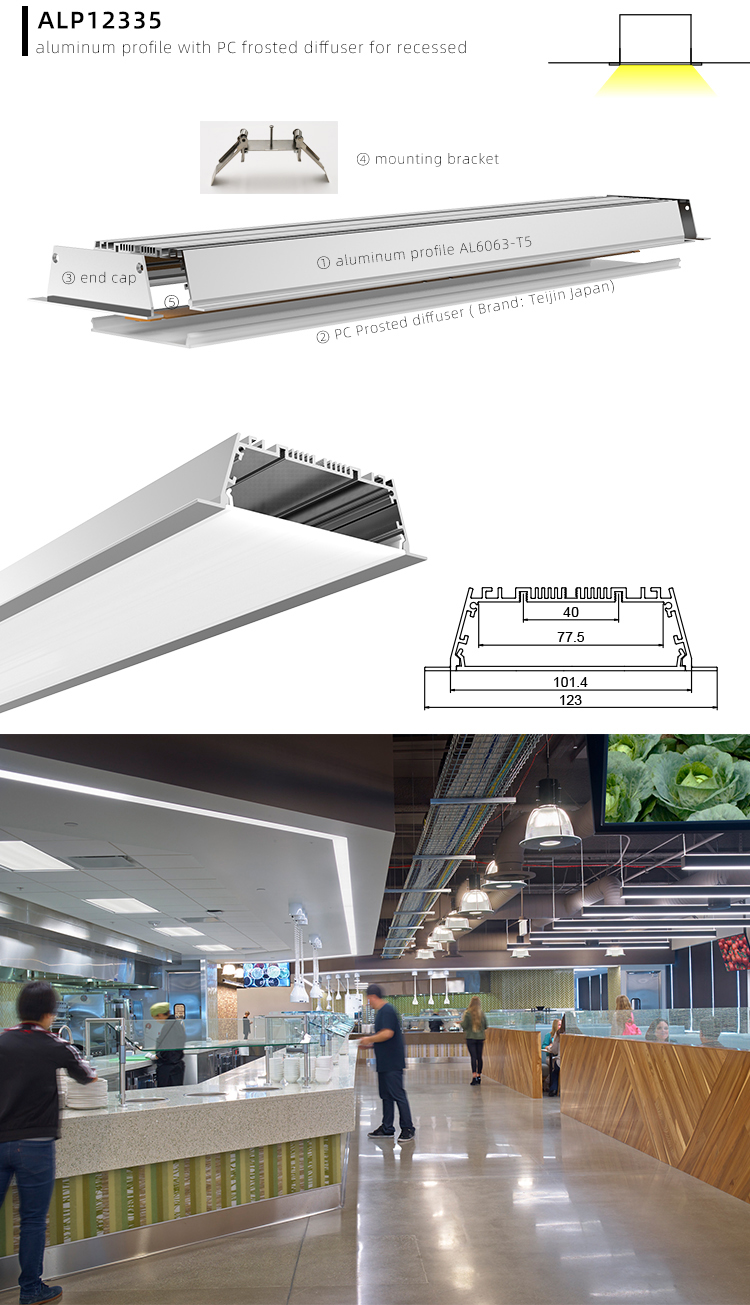

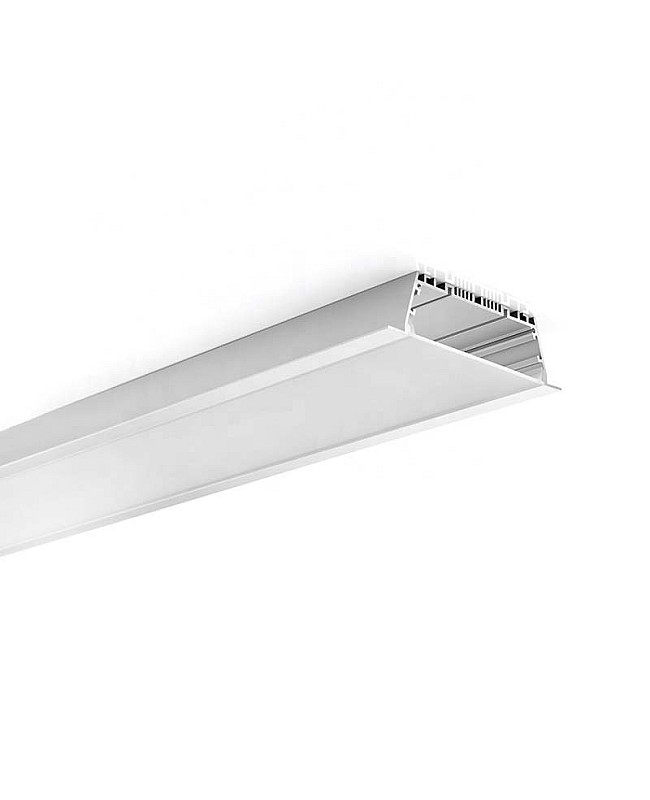

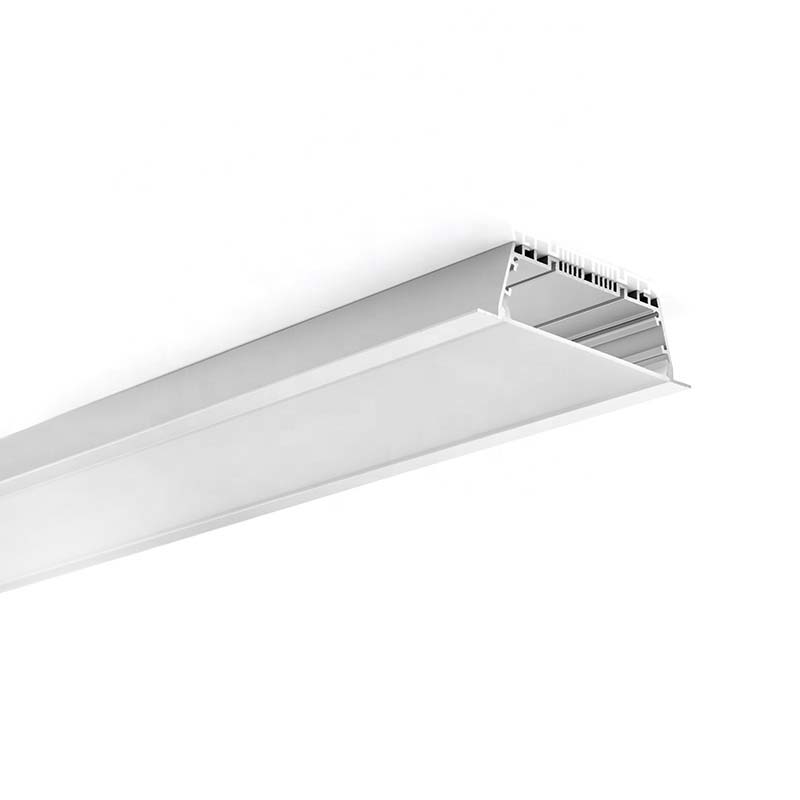

The 4 inches LED Strip Aluminium Casing with flange, which with a 100mm extra-wide in size, is designed to offer a sleek, contemporary look to your linear lighting setup, making it ideal for a variety of linear lighting installations. The inner width is 40mm and allows the max width of LED Light to be 40mm, compatible with 560mm Rigid Constant LED Modules or Multiple Rows Flexible LED Strips as the light source. The mounting brackets included allow recessed installation, you can recess them into the wall or ceiling for residential lighting, architectural lighting or main lighting, etc. the LED Strip Case is made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and has a longer lifespan than other similar products. There is only one type of diffuser available: the PC frosted diffuser, which is made of brand-stable material, anti-yellowing, perfect light distribution, and evenly light output. End caps are included. The Casing is designed for quick and easy installation, making it the perfect choice for any lighting project.
Features:
- Model: ALP12335
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Siver Anodized
- Colors: Silver(Default), White, Black

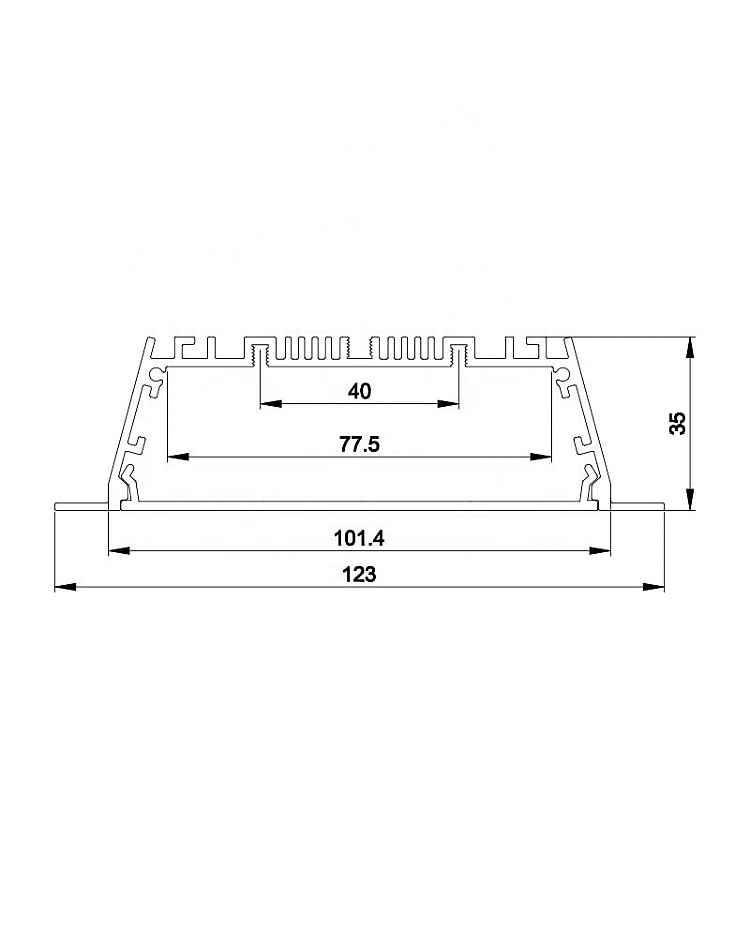

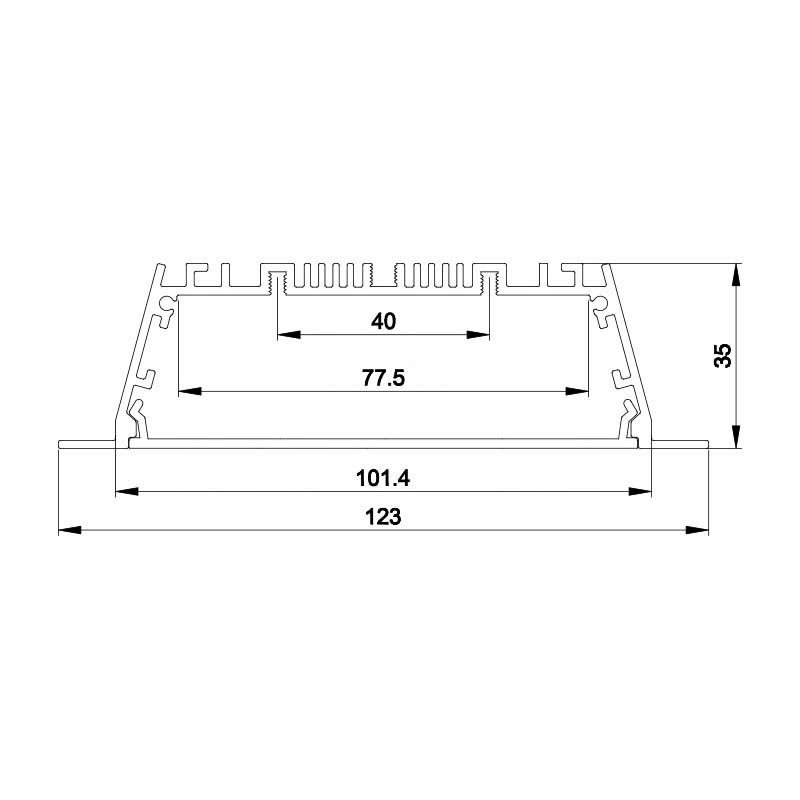

- Size: 123*35mm(W*H)
- Inner Width: 40mm
- Compatible With 560mm LED Modules Or Multiple Rows of LED Strip Lights
- Max Power: <50W/Meter
- Standard Length: 1M
- Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M
- Custom Length Available: YES
- Diffusers: PC Frosted Diffuser

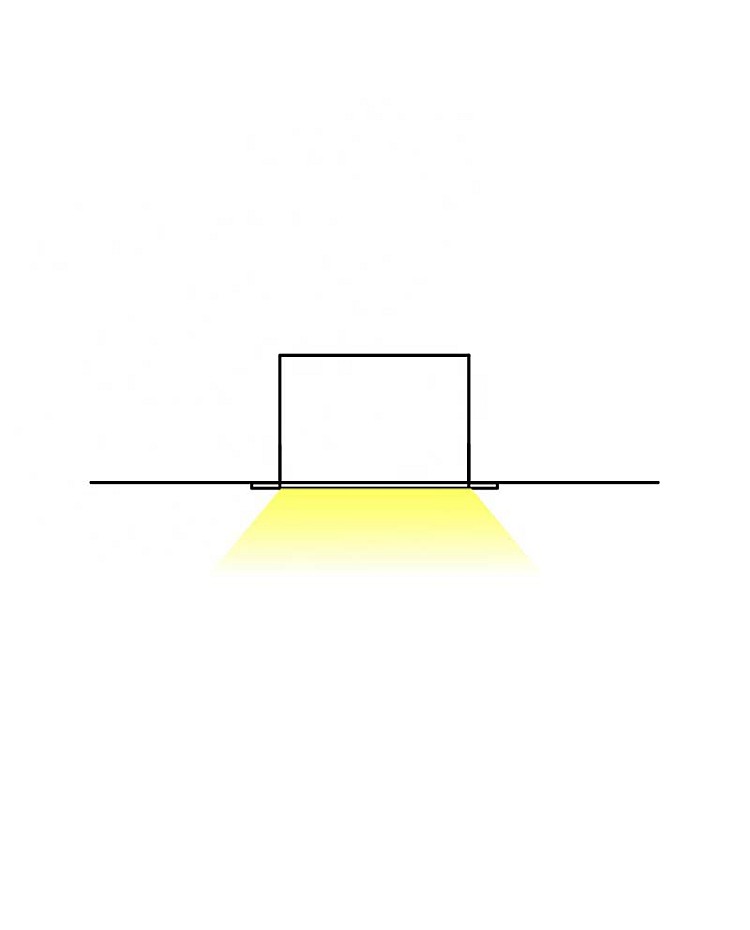

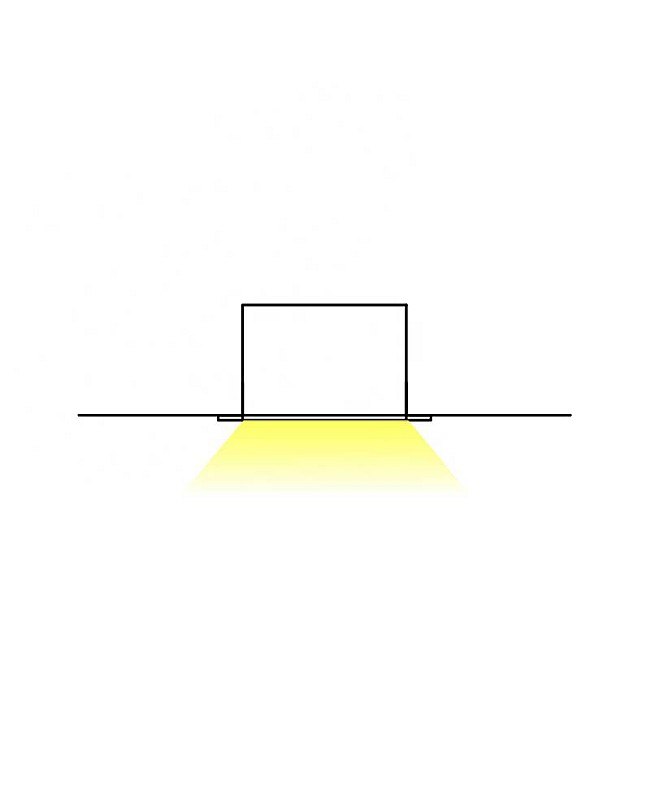

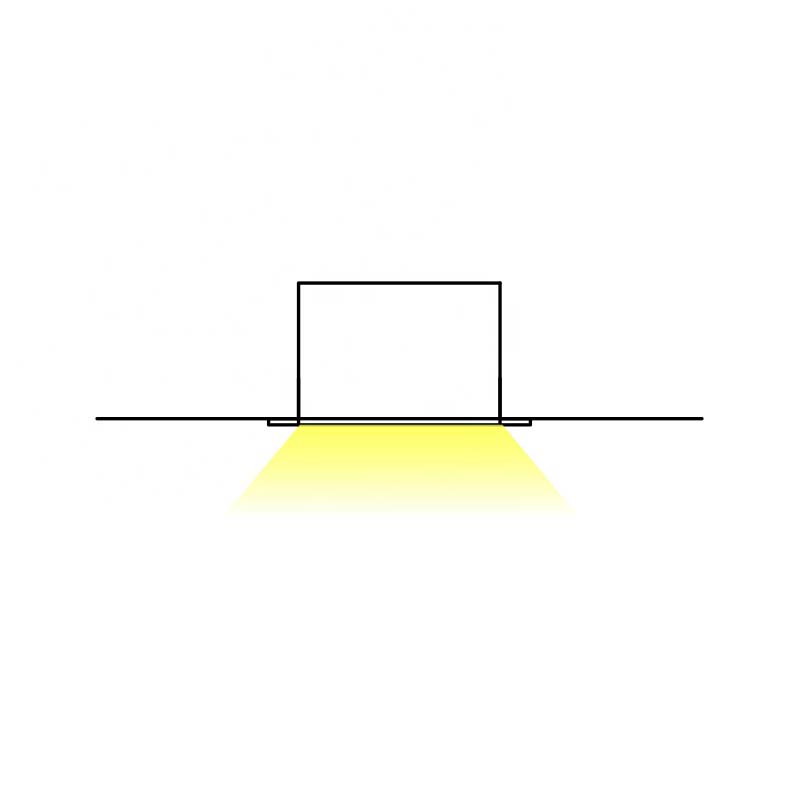

- Installation: Recessed
- Applications: Main Lighting In Offices, Shops, Factories, Schools, Shopping Malls, etc
- End Caps And Mounting Brackets Included
- LED Lights Not Included
- 5 Years Warranty
Includes:
1*LED Strip Aluminium Casing With Diffuser

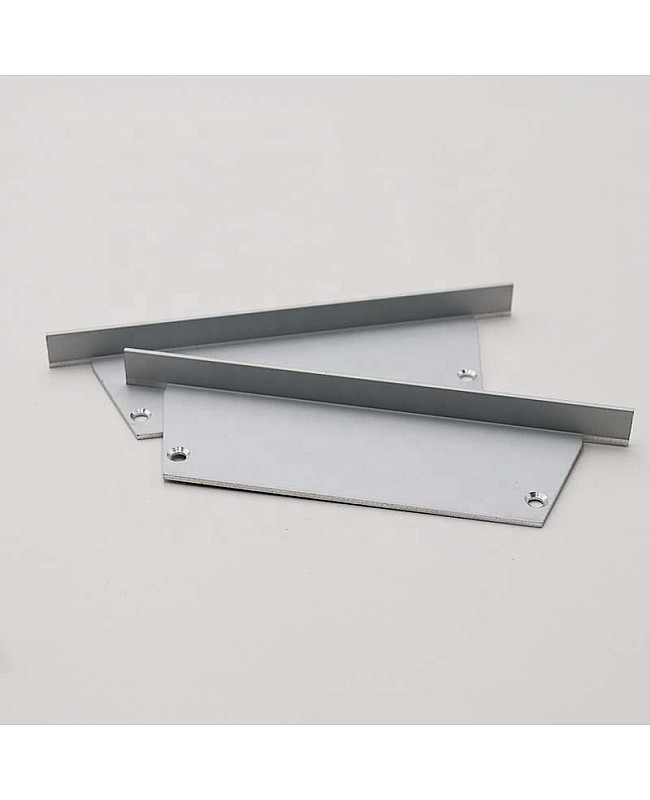

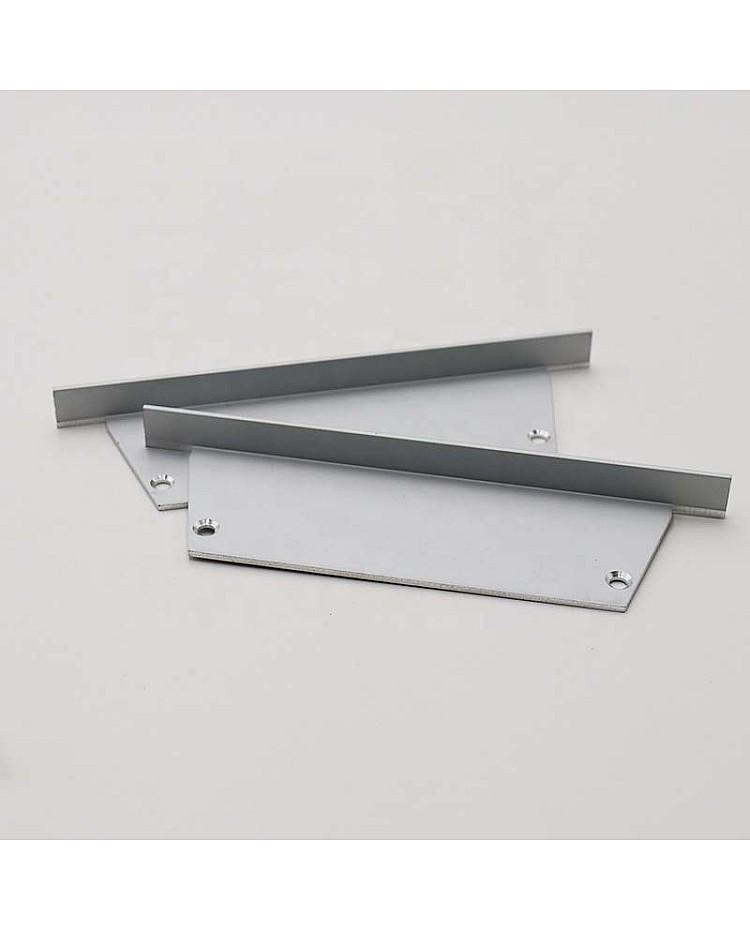

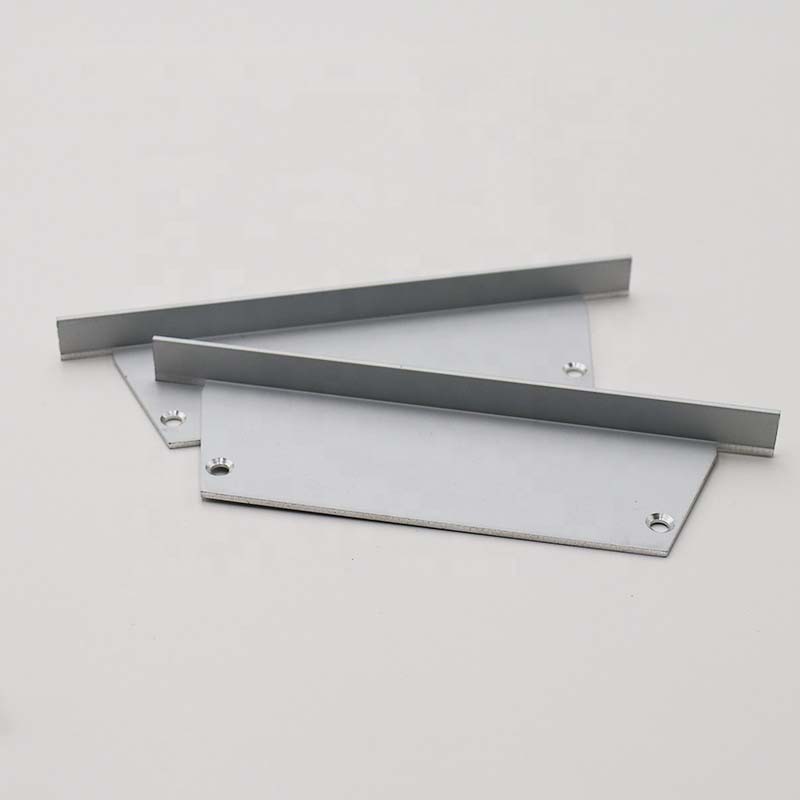

End Caps

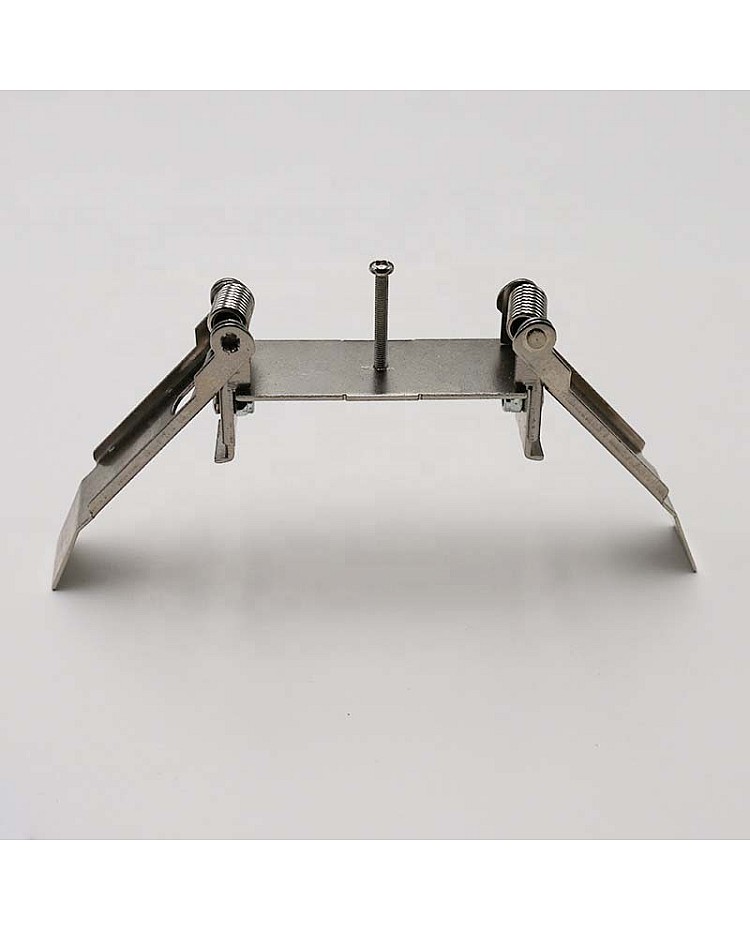

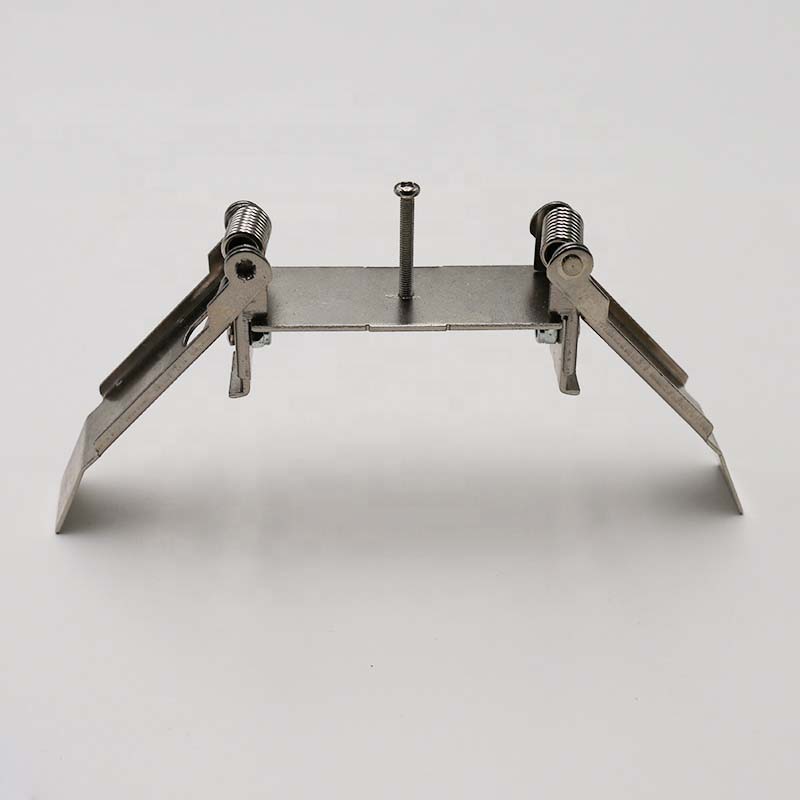

Mounting Brackets
