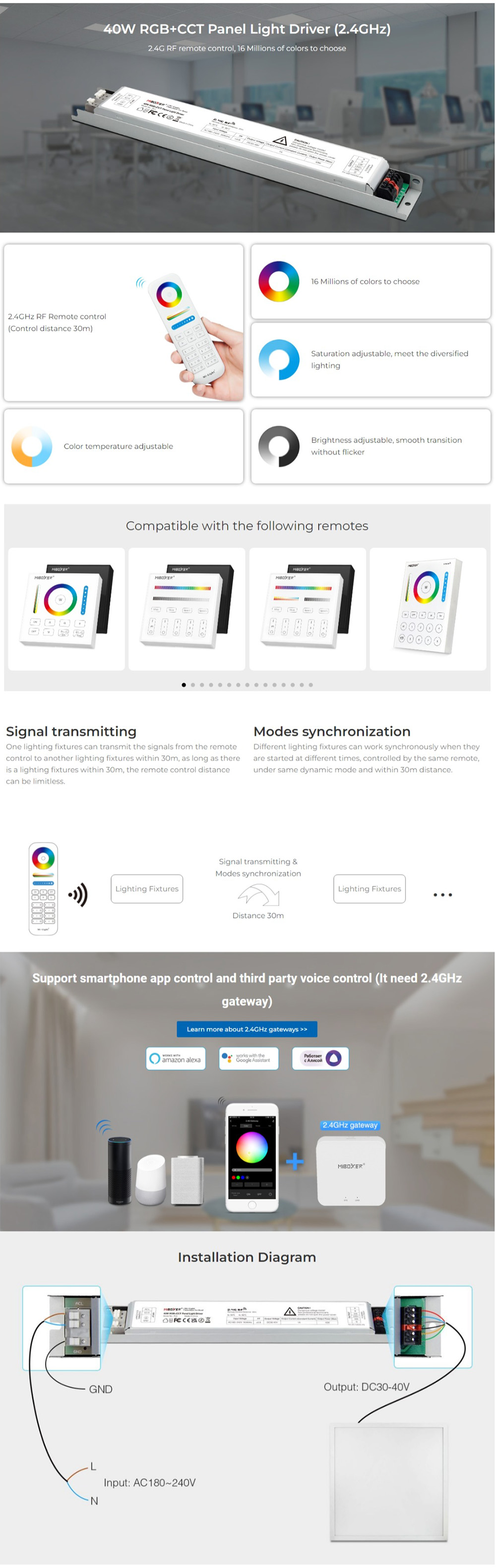

The MiBoxer PL5 RGBWW Constant Current Dimmable LED Driver, with a slim linear size and galvanization metal shell, has a constant current of 1000mA and max output power of 40W. The input voltage range is AC180V to AC240V, which is easy installation and operation. The PL5 Dimmable LED Drivers are compatible with 2.4G RF Remote Controls and can be controlled by a smartphone APP after adding WiFi iBox. You can set the static color, adjust the color temperature from warm white to cool white, and adjust the brightness and saturation. One RGBWW Dimming Driver will receive the signals from the remote control and transmit them to the same Drivers within 30 meters. All of the LED Drivers will work synchronously.
Quick Links:

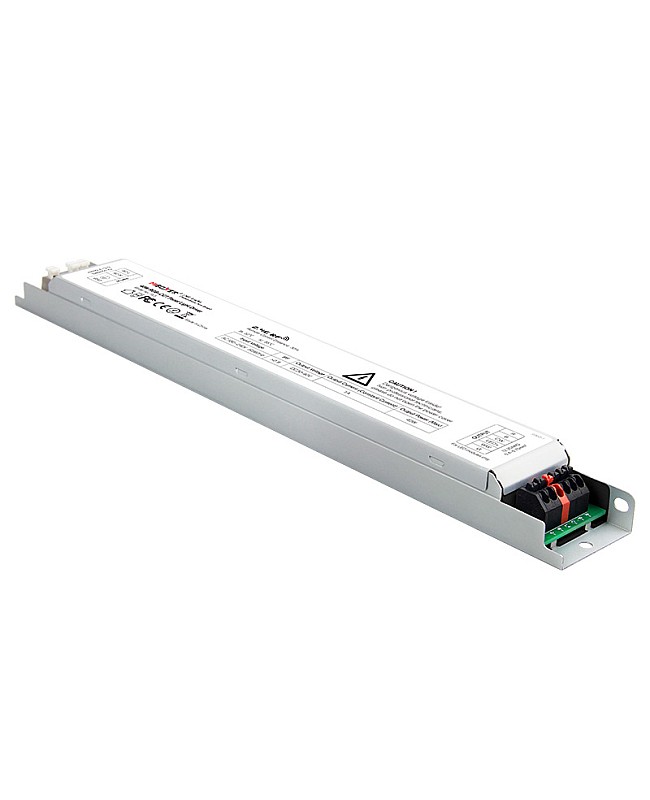

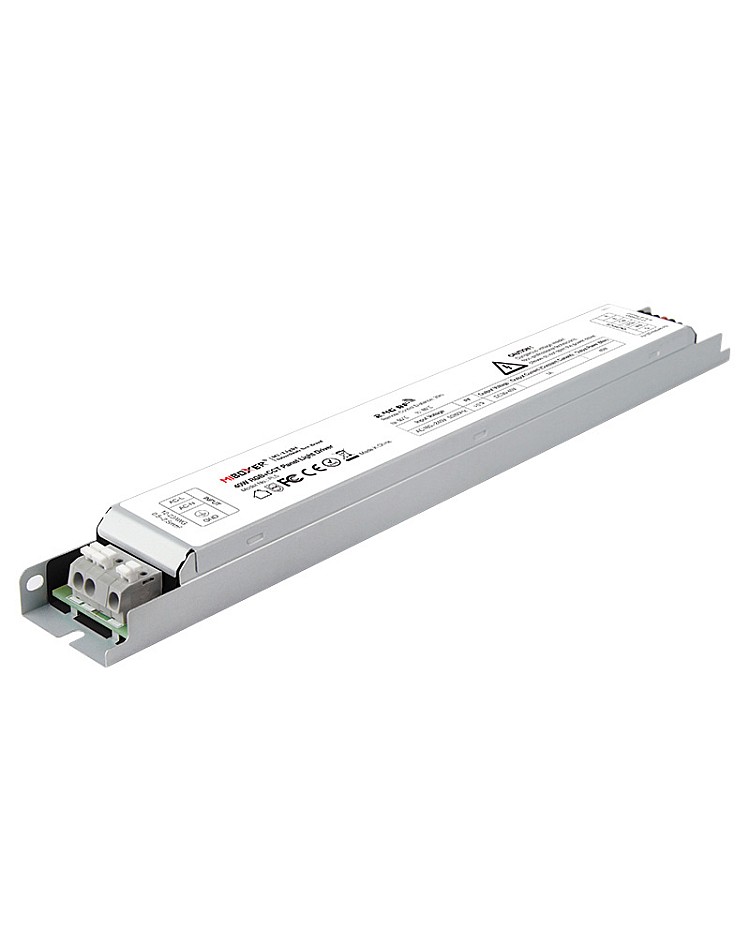

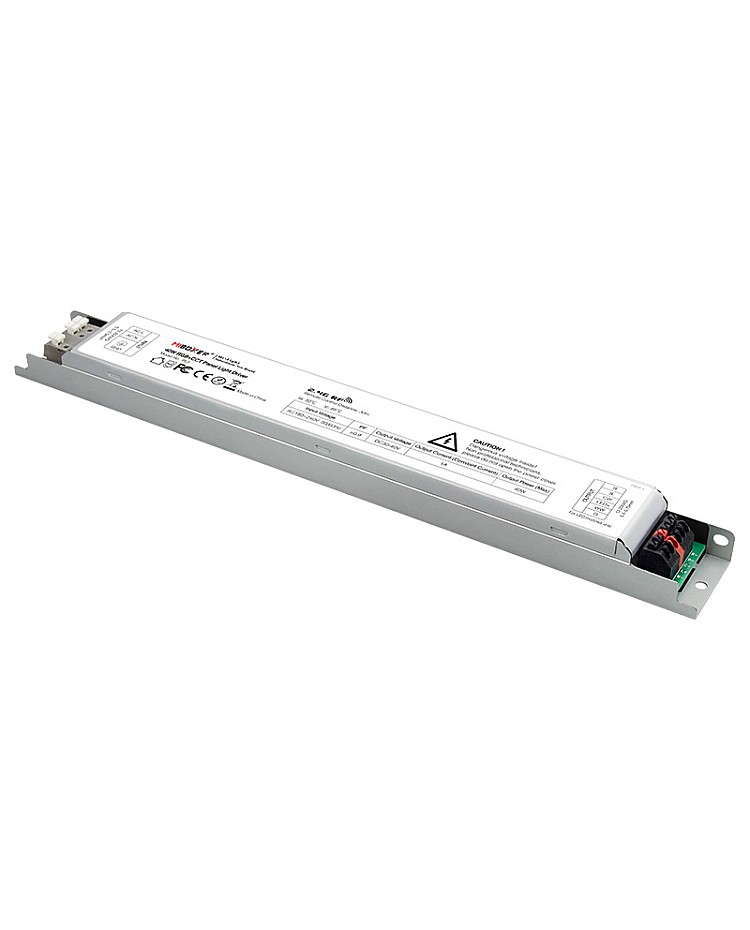

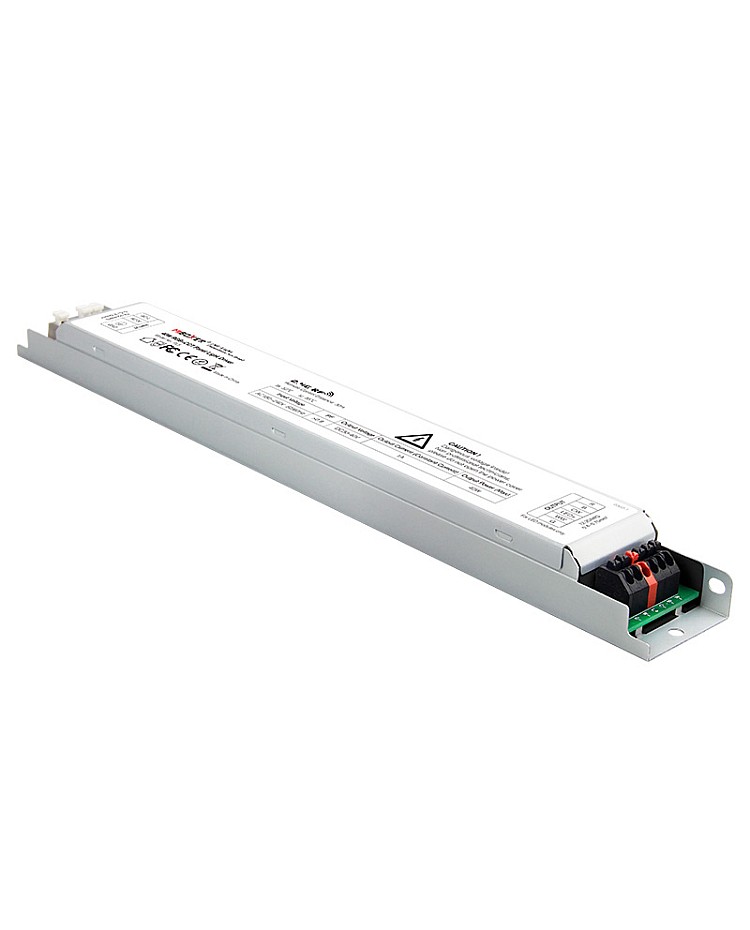

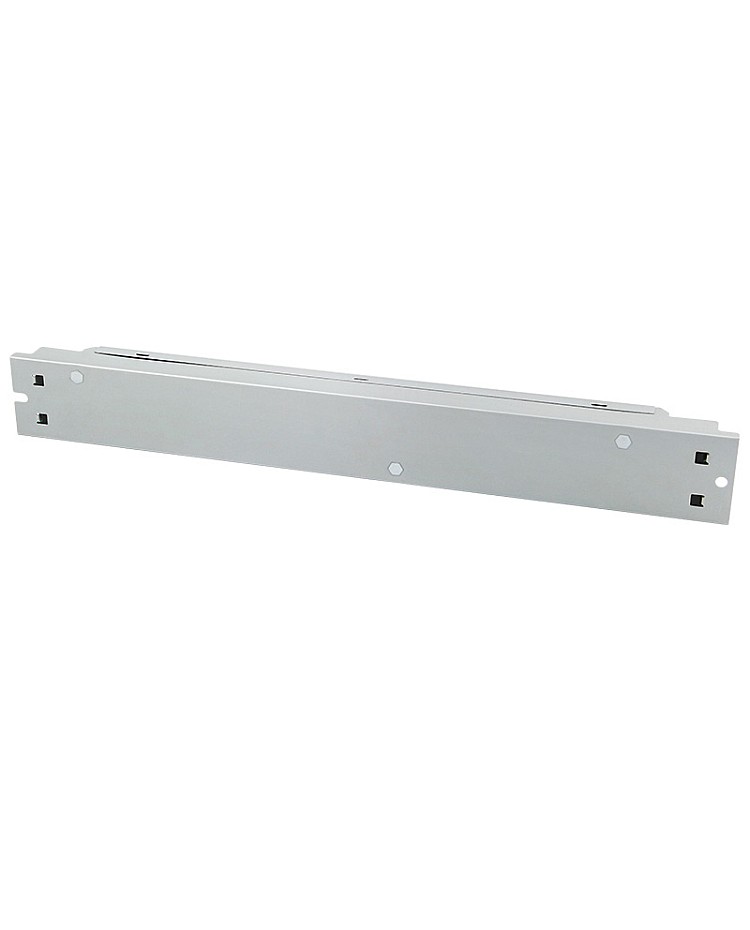

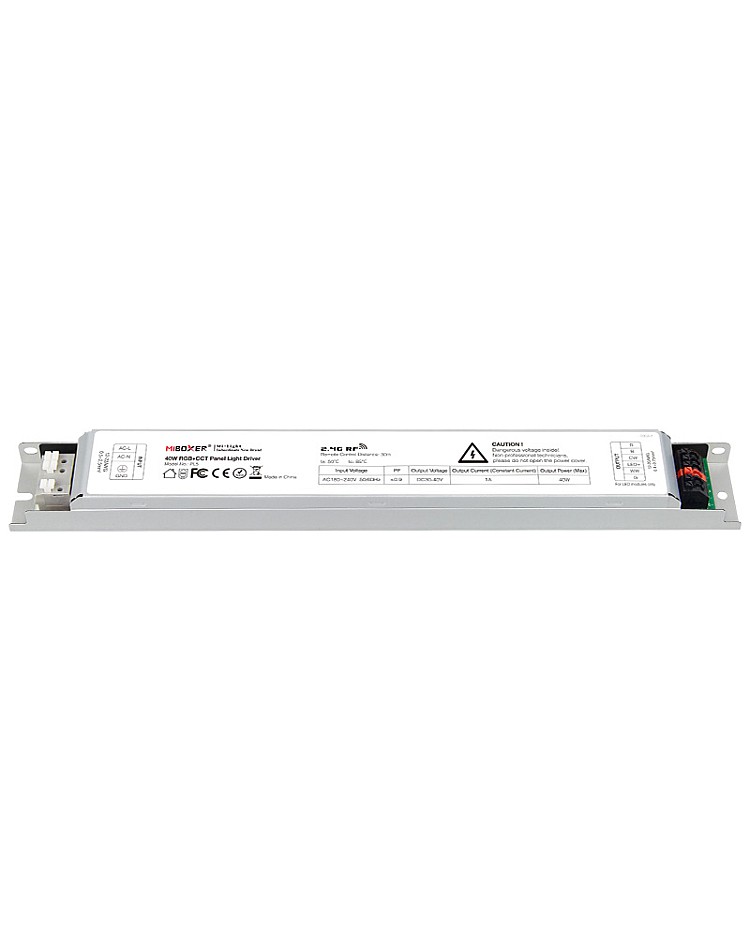

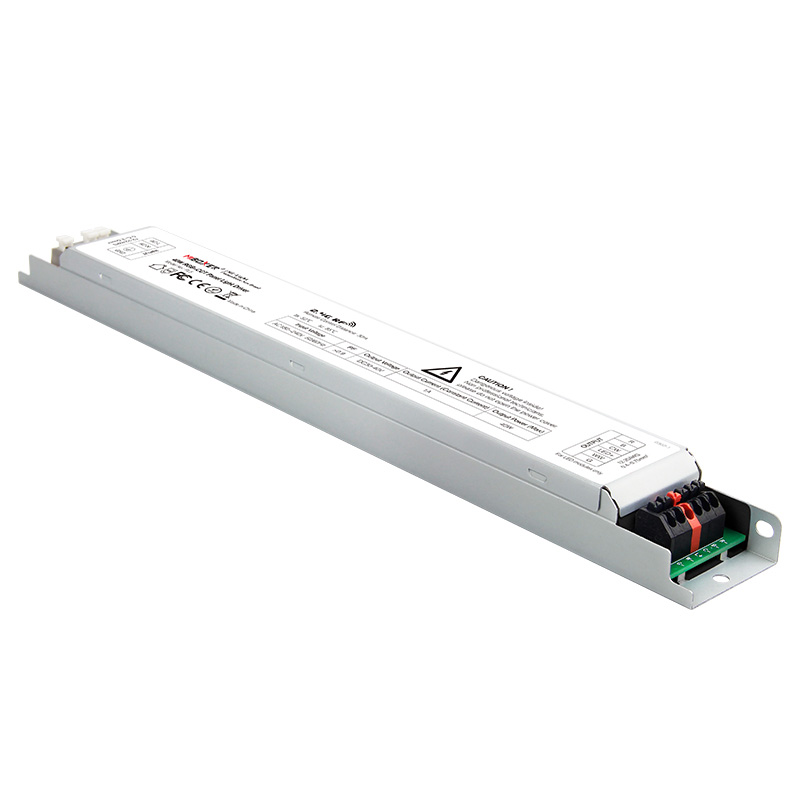

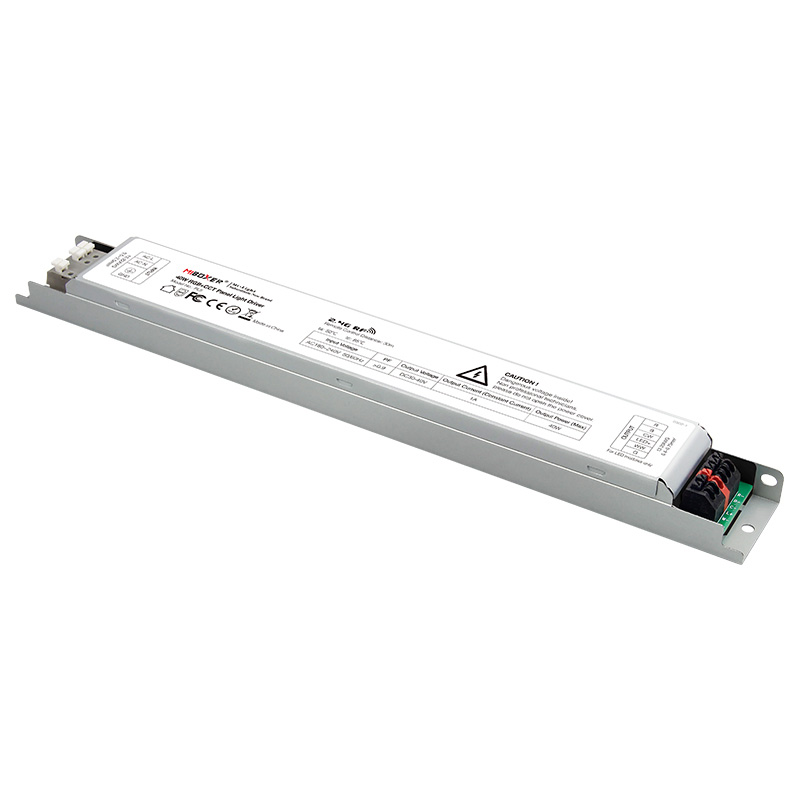

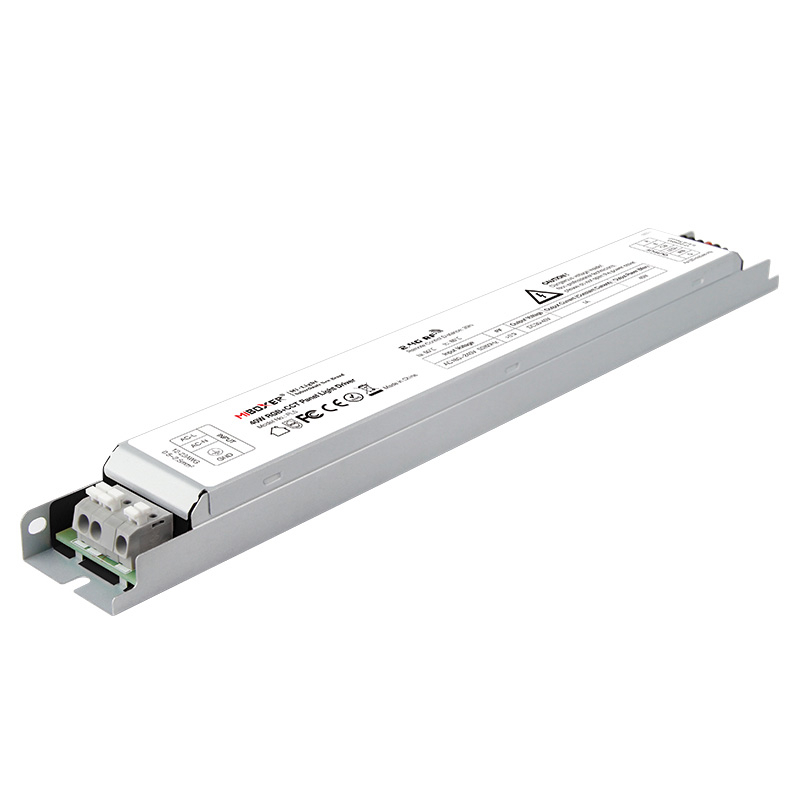

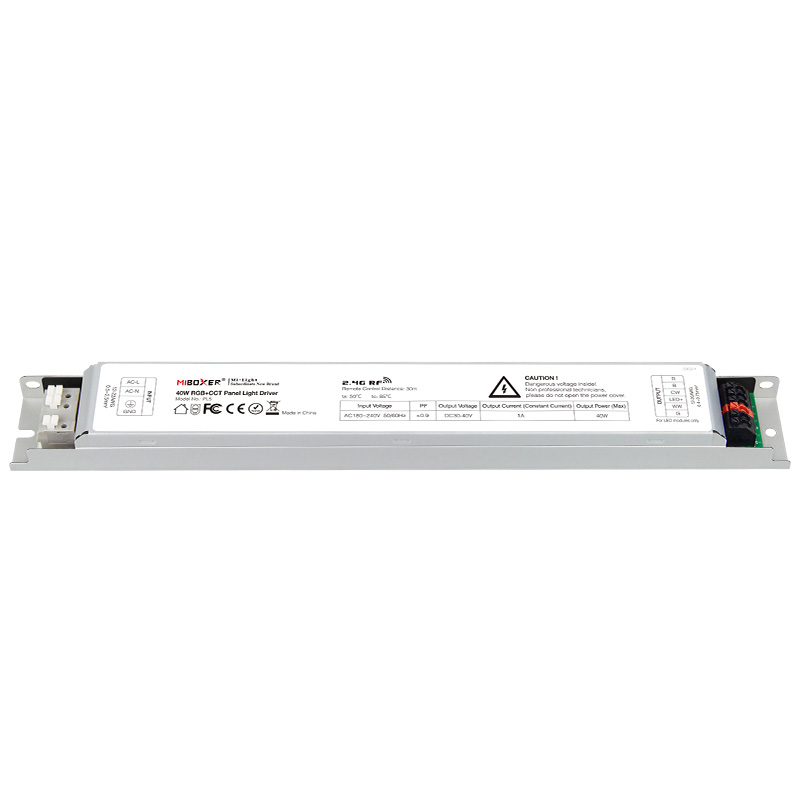

MiBoxer PL5 40W Constant Current Dimmable LED Driver
Features:
- Size: 300*37*22.5mm(L*W*H)
- Input Voltage: AC180-240V, 50/60Hz
- Output Voltage: DC30-40V
- Output Current: 1A Constant Current
- Output Power: 40W Max
- PF: >0.9
- Controllable Channels: 5
- Remote Control Distance: ≤30m
- 16 Million Colors Available
- Color Temperature Adjustable: 2700K-6500K
- Dimmable Saturation Control
- Auto-Synchronization And Auto-Transmitting Function
- Compatible With MiBoxer 2.4G Remote Controls: FUT089, FUT088, FUT092, B8, B4, T4, B0
- Smartphone APP Control（WiFi iBox Needed)
- Ta: 50℃
- Tc: 85℃
- 2 Years Warranty
Includes:
1*40W Constant Current Dimmable LED Driver
